X3D Model Documentation: description.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
  3  <X3D profile='Immersive' version='3.0 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
  4       <head>
  5            <meta name='titlecontent='description.x3d'/>
  6            <meta name='MovingImagecontent='description-movie.mpg'/>
  7            <meta name='referencecontent='http://www.nist.gov/vrml.html'/>
  8            <meta name='referencecontent='http://www.itl.nist.gov/div897/ctg/vrml/vrml.html'/>
  9            <meta name='creatorcontent='http://www.itl.nist.gov/div897/ctg/vrml/members.html'/>
 10            <meta name='disclaimercontent='This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology (NIST). This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified. '/>
 11            <meta name='referencecontent='Interactive Conformance Testing for VRML, Mary Brady and Lynn Rosenthal, NIST, created 8 September 2010 and updated 25 August 2016, https://www.nist.gov/itl/ssd/information-systems-group/interactive-conformance-testing-vrml'/>
 12            <meta name='infocontent='Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, https://www.web3d.org/working-groups/x3d'/>
 13            <meta name='translatorcontent='Michael Kass NIST, Don Brutzman NPS'/>
 14            <meta name='translatedcontent='21 January 2001'/>
 15            <meta name='modifiedcontent='28 August 2023'/>
 16            <meta name='descriptioncontent="This file tests the ability of a browser to parse the AudioClip node, and its description field. Because the AudioClip node does not affect the loaded world's Sounds or behavior, this test simply examines the browser's ability to read the AudioClip node, parse the description field, and execute the loaded world properly. The viewer should hear a constantly repeating chime sound when the world is loaded."/>
 17            <meta name='identifiercontent='https://www.web3d.org/x3d/content/examples/ConformanceNist/Sounds/AudioClip/description.x3d'/>
 18            <meta name='generatorcontent='Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html'/>
 19            <meta name='generatorcontent='X3D-Edit 4.0, https://savage.nps.edu/X3D-Edit'/>
 20            <meta name='licensecontent='../../license.html'/>
 21       </head>
<!--

<!--
Event Graph ROUTE Table shows event connections.
-->

<!-- to top Index for DEF nodes: HORNCOLOR, MYSOUND, PHONOCOLOR, SOUND_SCRIPT

Index for Viewpoint node: Viewpoint_1
-->
 22       <Scene>
 23            <WorldInfo title='description.x3d'/>

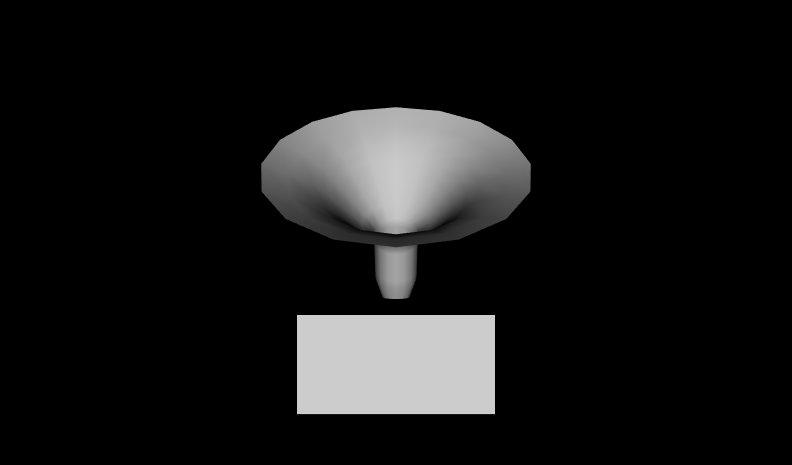

 24            <Viewpoint description='entry viewpointposition='0 0 5'/>
 25            <Sound>
 26
               <!-- ROUTE information for MYSOUND node:  [from isActive to SOUND_SCRIPT.colorPhonograph ] -->
               <AudioClip DEF='MYSOUNDdescription='chimesloop='true'   url=' "chimes.wav" "https://www.web3d.org/x3d/content/examples/ConformanceNist/Sounds/AudioClip/chimes.wav" '/>
 27            </Sound>
 28            <Transform scale='0.5 0.5 0.5'>
 29                 <Transform translation='0 -2 0'>
 30                      <Shape>
 31                           <Appearance>
 32
                              <!-- Material PHONOCOLOR is a DEF node that has 1 USE node: USE_1 -->
                              <Material DEF='PHONOCOLOR'/>
 33                           </Appearance>
 34                           <Box size='3 1.5 3'/>
 35                      </Shape>
 36                 </Transform>
 37                 <Transform rotation='1 0 0 -2.5'>
 38                      <Shape>
 39                           <Appearance>
 40
                              <!-- Material HORNCOLOR is a DEF node that has 1 USE node: USE_1 -->
                              <Material DEF='HORNCOLOR'/>
 41                           </Appearance>
 42                           <Extrusion beginCap='falsecreaseAngle='1.57crossSection='1 0 0.92388 0.382683 0.707107 0.707106 0.382684 0.923879 1.26759e-006 1 -0.382682 0.92388 -0.707105 0.707108 -0.923879 0.382685 -1 2.53518e-006 -0.923881 -0.382681 -0.707109 -0.707105 -0.382687 -0.923878 -3.80277e-006 -1 0.38268 -0.923881 0.707104 -0.70711 0.923878 -0.382688 1 0endCap='falseorientation='0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0 0 0 1 0scale='2.2 2.2 1.8 1.8 1.4 1.4 1.2 1.2 1 1 0.8 0.8 0.6 0.6 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.2 0.2 0.0001 0.0001solid='falsespine='0 -1.4 0 0 -1.22137 0 0 -1.01245 0 0 -0.819601 0 0 -0.626754 0 0 -0.401765 0 0 -0.204459 0 0 -0.0164327 0 0 0.176777 0 0 0.380511 0 0 0.578542 0 0 0.819601 0 0 0.996378 0 0 1.8 0 0 1.2 0'/>
 43                      </Shape>
 44                 </Transform>
 45            </Transform>
 46
          <!-- ROUTE information for SOUND_SCRIPT node:  [from MYSOUND.isActive to colorPhonograph ] -->
          <Script DEF='SOUND_SCRIPTdirectOutput='true'   url=' "description.js" "https://www.web3d.org/x3d/content/examples/ConformanceNist/Sounds/AudioClip/description.js" '>
 47                 <field name='phonoColortype='SFNodeaccessType='initializeOnly'>
 48                      <Material USE='PHONOCOLOR'/>
 49                 </field>
 50                 <field name='hornColortype='SFNodeaccessType='initializeOnly'>
 51                      <Material USE='HORNCOLOR'/>
 52                 </field>
 53                 <field name='yellowtype='SFColorvalue='0.75 0.75 0.00accessType='initializeOnly'/>
 54                 <field name='whitetype='SFColorvalue='0.80 0.80 0.80accessType='initializeOnly'/>
 55                 <field name='colorPhonographtype='SFBoolaccessType='inputOnly'/>
 56            </Script>
 57            < ROUTE  fromNode='MYSOUND' fromField='isActive' toNode='SOUND_SCRIPT' toField='colorPhonograph'/>
 58       </Scene>
 59  </X3D>
<!--

<!--
Event Graph ROUTE Table shows event connections.
-->

<!-- to top Index for DEF nodes: HORNCOLOR, MYSOUND, PHONOCOLOR, SOUND_SCRIPT

Index for Viewpoint node: Viewpoint_1
-->
X3D Tooltips element index: Appearance, AudioClip, Box, Extrusion, field, head, Material, meta, ROUTE, Scene, Script, Shape, Sound, Transform, Viewpoint, WorldInfo, X3D, accessType and type, XML data types, field types

Event Graph ROUTE Table with 1 ROUTE connection total, showing X3D event-model relationships for this scene.

Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.

MYSOUND
AudioClip
isActive
SFBool

ROUTE
event to
(1)
SOUND_SCRIPT
Script
colorPhonograph
SFBool
Additional guidance on X3D animation can be found in the 10-Step Animation Design Process and Event Tracing hint sheets. Have fun with X3D! 😀

-->
