<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "http://www.web3d.org/specifications/x3d-3.0.dtd">
<X3D profile='Interchange' version='3.0 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' http://www.web3d.org/specifications/x3d-3.0.xsd '>
<head>
<meta name='titlecontent='translation_primitives_t.x3d'/>
<meta name='Imagecontent='translation_primitives_t-front.jpg'/>
<meta name='Imagecontent='translation_primitives_t-rear.jpg'/>
<meta name='Imagecontent='translation_primitives_t-top.jpg'/>
<meta name='Imagecontent='translation_primitives_t-bottom.jpg'/>
<meta name='Imagecontent='translation_primitives_t-left.jpg'/>
<meta name='Imagecontent='translation_primitives_t-right.jpg'/>
<meta name='referencecontent=' http://www.nist.gov/vrml.html '/>
<meta name='referencecontent=' http://www.itl.nist.gov/div897/ctg/vrml/vrml.html '/>
<meta name='creatorcontent=' http://www.itl.nist.gov/div897/ctg/vrml/members.html '/>
<meta name='disclaimercontent=' This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology. This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified. '/>
<meta name='infocontent='Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, https://www.web3d.org/working-groups/x3d'/>
<meta name='translatorcontent='Michael Kass NIST, Don Brutzman NPS'/>
<meta name='translatedcontent='21 January 2001'/>
<meta name='modifiedcontent='20 October 2019'/>

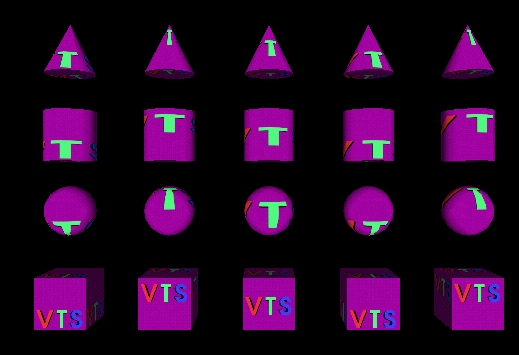

<meta name='descriptioncontent='Test ImageTexture translation along T axis for primitive geometry. Test browser ability to apply translations of (left to right) 0 -100.75, 0 -23.25, 0 0, 0 23.25, and 0 100.75 to an ImageTexture mapped to the faces of primitive geometry, mapping with default primitive mapping rules. The result is: The left column shows primitive geometry mapped with the VTS logo horizontally centered on all faces, with the VTS logo appearing at the bottom of all geometry faces. The second column shows a horizontally centered logo with the VTS logo at the top of all geometry faces. The third column shows a vertically and horizontally centered VTS logo on all faces. The fourth column should be identical to column #1. The fifth column should appear identical to column #2.'/>
<meta name='identifiercontent=' https://www.web3d.org/x3d/content/examples/ConformanceNist/Appearance/TextureTransform/translation_primitives_t.x3d '/>
<meta name='generatorcontent='Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html'/>
<meta name='generatorcontent='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='licensecontent=' ../../license.html'/>
</head>
<!--

Index for DEF node : VTS

Index for Viewpoint images : Viewpoint_1, Viewpoint_2, Viewpoint_3, Viewpoint_4, Viewpoint_5, Viewpoint_6
-->
<Scene>
<WorldInfo title='translation_primitives_t.x3d'/>
<Group>
<Viewpoint description='Front View'/>

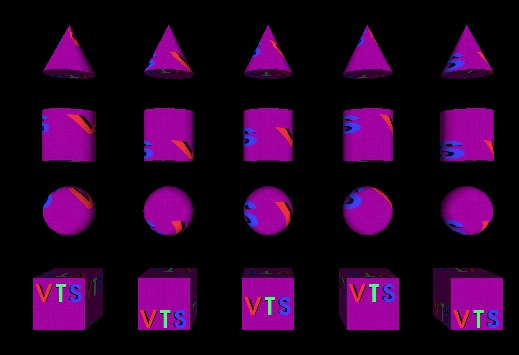

<Viewpoint description='Rear Vieworientation='0 1 0 3.14position='0 0 -10'/>

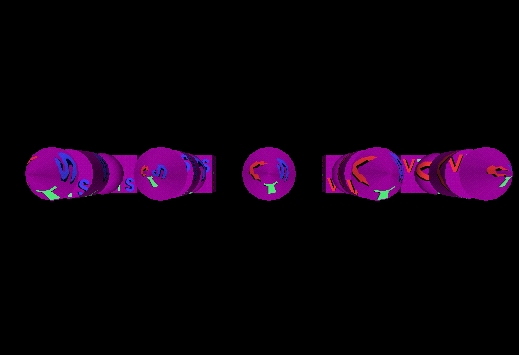

<Viewpoint description='Top Vieworientation='1 0 0 -1.57position='0 10 0'/>

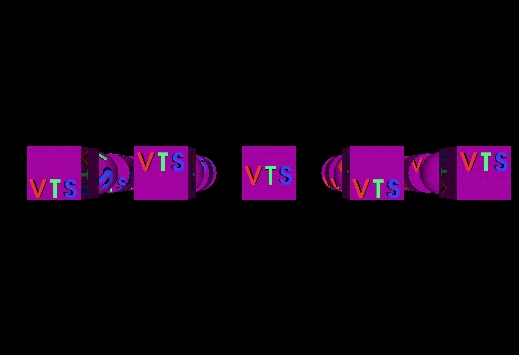

<Viewpoint description='Bottom Vieworientation='1 0 0 1.57position='0 -10 0'/>

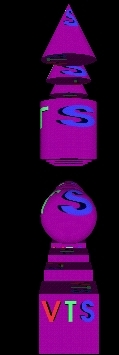

<Viewpoint description='Right Vieworientation='0 1 0 1.57position='10 0 0'/>

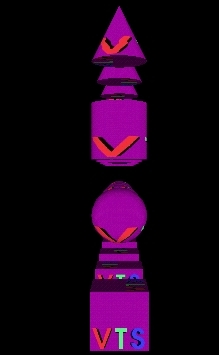

<Viewpoint description='Left Vieworientation='0 1 0 -1.57position='-10 0 0'/>
</Group>
<NavigationInfo type='"EXAMINE" "WALK" "FLY" "ANY"'/>
<DirectionalLight ambientIntensity='1intensity='0.2'/>
<DirectionalLight ambientIntensity='1direction='0 0 1intensity='0.2'/>
<Transform translation='-4 -0.75 0'>
<Shape>
<Appearance>
<ImageTexture DEF='VTS'
  url=' "../../vts.jpg" "https://www.web3d.org/x3d/content/examples/ConformanceNist/vts.jpg" '/>

<TextureTransform translation='0 -100.75'/>
<Material/>
</Appearance>
<Sphere radius='0.5'/>
</Shape>
</Transform>
<Transform translation='-2 -0.75 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<TextureTransform translation='0 -23.25'/>
<Material/>
</Appearance>
<Sphere radius='0.5'/>
</Shape>
</Transform>
<Transform translation='0 -0.75 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<TextureTransform/>
<Material/>
</Appearance>
<Sphere radius='0.5'/>
</Shape>
</Transform>
<Transform translation='2 -0.75 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<TextureTransform translation='0 23.25'/>
<Material/>
</Appearance>
<Sphere radius='0.5'/>
</Shape>
</Transform>
<Transform translation='4 -0.75 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<TextureTransform translation='0 100.75'/>
<Material/>
</Appearance>
<Sphere radius='0.5'/>
</Shape>
</Transform>
<Transform translation='-4 -2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<TextureTransform translation='0 -100.75'/>
<Material/>
</Appearance>
<Box size='1 1 1'/>
</Shape>
</Transform>
<Transform translation='-2 -2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<TextureTransform translation='0 -23.25'/>
<Material/>
</Appearance>
<Box size='1 1 1'/>
</Shape>
</Transform>
<Transform translation='0 -2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<TextureTransform/>
<Material/>
</Appearance>
<Box size='1 1 1'/>
</Shape>
</Transform>
<Transform translation='2 -2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<TextureTransform translation='0 23.25'/>
<Material/>
</Appearance>
<Box size='1 1 1'/>
</Shape>
</Transform>
<Transform translation='4 -2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<TextureTransform translation='0 100.75'/>
<Material/>
</Appearance>
<Box size='1 1 1'/>
</Shape>
</Transform>
<Transform translation='-4 2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<TextureTransform translation='0 -100.75'/>
<Material/>
</Appearance>
<Cone bottomRadius='0.5height='1'/>
</Shape>
</Transform>
<Transform translation='-2 2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<TextureTransform translation='0 -23.25'/>
<Material/>
</Appearance>
<Cone bottomRadius='0.5height='1'/>
</Shape>
</Transform>
<Transform translation='0 2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<TextureTransform/>
<Material/>
</Appearance>
<Cone bottomRadius='0.5height='1'/>
</Shape>
</Transform>
<Transform translation='2 2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<TextureTransform translation='0 23.25'/>
<Material/>
</Appearance>
<Cone bottomRadius='0.5height='1'/>
</Shape>
</Transform>
<Transform translation='4 2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<TextureTransform translation='0 100.75'/>
<Material/>
</Appearance>
<Cone bottomRadius='0.5height='1'/>
</Shape>
</Transform>
<Transform translation='-4 0.75 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<TextureTransform translation='0 -100.75'/>
<Material/>
</Appearance>
<Cylinder height='1radius='0.5'/>
</Shape>
</Transform>
<Transform translation='-2 0.75 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<TextureTransform translation='0 -23.25'/>
<Material/>
</Appearance>
<Cylinder height='1radius='0.5'/>
</Shape>
</Transform>
<Transform translation='0 0.75 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<TextureTransform/>
<Material/>
</Appearance>
<Cylinder height='1radius='0.5'/>
</Shape>
</Transform>
<Transform translation='2 0.75 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<TextureTransform translation='0 23.25'/>
<Material/>
</Appearance>
<Cylinder height='1radius='0.5'/>
</Shape>
</Transform>
<Transform translation='4 0.75 0'>
<Shape>
<Appearance>
<ImageTexture USE='VTS'/>
<TextureTransform translation='0 100.75'/>
<Material/>
</Appearance>
<Cylinder height='1radius='0.5'/>
</Shape>
</Transform>
</Scene>
</X3D>
<!--
