<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "http://www.web3d.org/specifications/x3d-3.0.dtd">
<X3D profile='Immersive' version='3.0 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' http://www.web3d.org/specifications/x3d-3.0.xsd '>
<head>
<meta name='titlecontent='translation_complex_t_movietexture.x3d'/>
<meta name='Imagecontent='translation_complex_t_movietexture-front.jpg'/>
<meta name='Imagecontent='translation_complex_t_movietexture-rear.jpg'/>
<meta name='Imagecontent='translation_complex_t_movietexture-top.jpg'/>
<meta name='Imagecontent='translation_complex_t_movietexture-bottom.jpg'/>
<meta name='Imagecontent='translation_complex_t_movietexture-left.jpg'/>
<meta name='Imagecontent='translation_complex_t_movietexture-right.jpg'/>
<meta name='referencecontent=' http://www.nist.gov/vrml.html '/>
<meta name='referencecontent=' http://www.itl.nist.gov/div897/ctg/vrml/vrml.html '/>
<meta name='creatorcontent=' http://www.itl.nist.gov/div897/ctg/vrml/members.html '/>
<meta name='disclaimercontent=' This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology. This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified. '/>
<meta name='infocontent='Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, https://www.web3d.org/working-groups/x3d'/>
<meta name='translatorcontent='Michael Kass NIST, Don Brutzman NPS'/>
<meta name='translatedcontent='21 January 2001'/>
<meta name='modifiedcontent='20 October 2019'/>

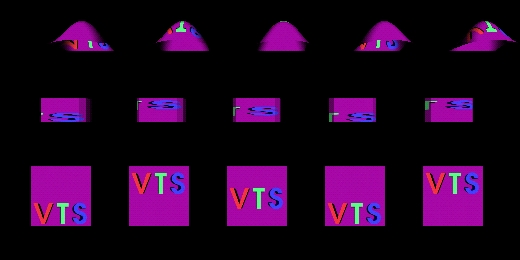

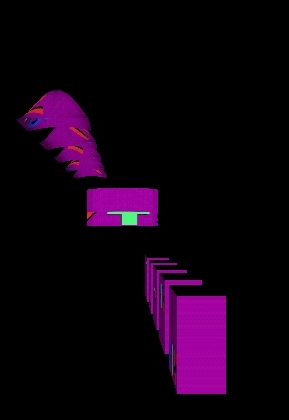

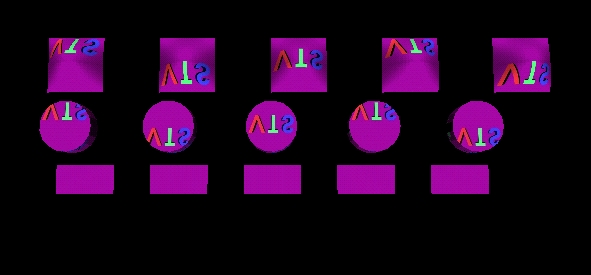

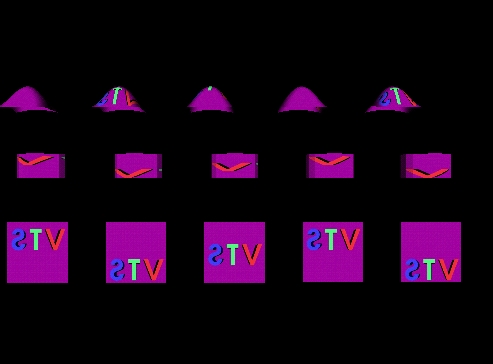

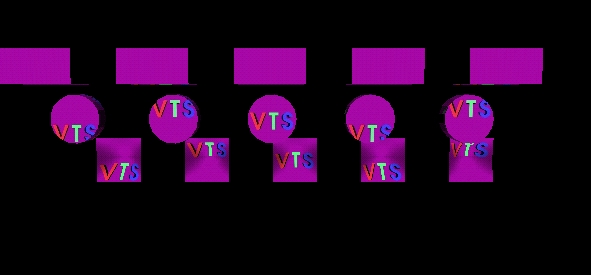

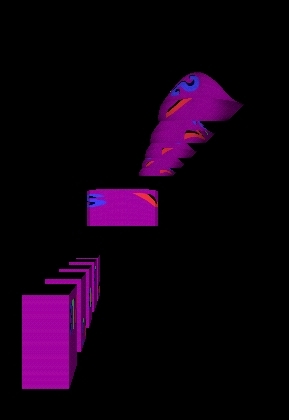

<meta name='descriptioncontent='Test MovieTexture translation along t axis for complex geometry. Test browser ability to apply translations of (left to right) 0 -100.75, 0 -23.25, 0 0, 0 23.25, and 0 100.75 to a MovieTexture mapped to the faces of complex geometry, using default complex geometry mapping rules. The result is (for the bottom face of the ElevationGrid, the side and bottom end cap of the Extrusion, and the front of the IndexedFaceSet): The left column shows primitive geometry mapped with the VTS logo horizontally centered on these faces, with the VTS logo appearing at the bottom of all geometry faces. The second column shows a horizontally centered logo with the VTS logo at the top of all geometry faces. The third column shows a vertically and horizontally centered VTS logo on these faces. The fourth column should be identical to column #1. The fifth column should appear identical to column #2. Opposite geometry faces should show reversed mapping, and side faces for the IndexedFaceSet should show smeared end pixels of the front and back faces.'/>
<meta name='identifiercontent=' https://www.web3d.org/x3d/content/examples/ConformanceNist/Appearance/TextureTransform/translation_complex_t_movietexture.x3d '/>
<meta name='generatorcontent='Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html'/>
<meta name='generatorcontent='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='licensecontent=' ../../license.html'/>
</head>
<!--

Index for DEF nodes : MYMOVIE, RectangularBoxCoordinates

Index for Viewpoint images : Viewpoint_1, Viewpoint_2, Viewpoint_3, Viewpoint_4, Viewpoint_5, Viewpoint_6
-->
<Scene>
<WorldInfo title='translation_complex_t_movietexture.x3d'/>
<Group bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Viewpoint description='Front Viewposition='0 0 15'/>
<Viewpoint description='Rear Vieworientation='0 1 0 3.14position='0 0 -15'/>
<Viewpoint description='Top Vieworientation='1 0 0 -1.57position='0 15 0'/>
<Viewpoint description='Bottom Vieworientation='1 0 0 1.57position='0 -15 0'/>
<Viewpoint description='Right Vieworientation='0 1 0 1.57position='15 0 0'/>
<Viewpoint description='Left Vieworientation='0 1 0 -1.57position='-15 0 0'/>
</Group>
<NavigationInfo type='"EXAMINE" "WALK" "FLY" "ANY"'/>
<DirectionalLight direction='0 0 1intensity='0.5'/>
<DirectionalLight intensity='0.5'/>
<Transform translation='-8 3 -3bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Appearance>
<MovieTexture DEF='MYMOVIEloop='true'
  url=' "vts.mpg" "https://www.web3d.org/x3d/content/examples/ConformanceNist/vts.mpg" '/>

<TextureTransform translation='0 -100.75'/>
<Material/>
</Appearance>
<ElevationGrid solid='falsexDimension='21xSpacing='0.1zDimension='21zSpacing='0.1height='0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.0233242 0.0461275 0.0679003 0.0881563 0.106443 0.122352 0.135528 0.145676 0.152571 0.156057 0.156057 0.152571 0.145676 0.135528 0.122352 0.106443 0.0881566 0.0679006 0.0461278 0.0233246 0 0.0461275 0.0912245 0.134284 0.174343 0.210508 0.241971 0.268028 0.288098 0.301733 0.308627 0.308627 0.301733 0.288099 0.268029 0.241971 0.210509 0.174344 0.134284 0.0912253 0.0461283 0 0.0679003 0.134284 0.197668 0.256636 0.309871 0.356185 0.394542 0.424085 0.444155 0.454304 0.454304 0.444155 0.424085 0.394542 0.356185 0.309872 0.256637 0.197669 0.134285 0.0679015 0 0.0881563 0.174343 0.256636 0.333195 0.402312 0.462442 0.512241 0.550598 0.576656 0.589832 0.589832 0.576656 0.550599 0.512242 0.462443 0.402313 0.333197 0.256637 0.174345 0.0881578 0 0.106443 0.210508 0.309871 0.402312 0.485766 0.558369 0.618498 0.664812 0.696275 0.712184 0.712184 0.696275 0.664813 0.618499 0.55837 0.485767 0.402314 0.309873 0.21051 0.106445 0 0.122352 0.241971 0.356185 0.462442 0.558369 0.641823 0.710939 0.764175 0.80034 0.818627 0.818627 0.800341 0.764176 0.710941 0.641824 0.55837 0.462444 0.356187 0.241973 0.122354 0 0.135528 0.268028 0.394542 0.512241 0.618498 0.710939 0.787499 0.846468 0.886527 0.906783 0.906784 0.886528 0.846468 0.7875 0.710941 0.6185 0.512243 0.394544 0.268031 0.13553 0 0.145676 0.288098 0.424085 0.550598 0.664812 0.764175 0.846468 0.909852 0.952911 0.974684 0.974684 0.952911 0.909852 0.846469 0.764177 0.664814 0.5506 0.424087 0.288101 0.145679 0 0.152571 0.301733 0.444155 0.576656 0.696275 0.80034 0.886527 0.952911 0.998008 1.02081 1.02081 0.998009 0.952912 0.886529 0.800342 0.696277 0.576658 0.444158 0.301736 0.152573 0 0.156057 0.308627 0.454304 0.589832 0.712184 0.818627 0.906783 0.974684 1.02081 1.04414 1.04414 1.02081 0.974685 0.906785 0.818629 0.712186 0.589834 0.454306 0.30863 0.156059 0 0.156057 0.308627 0.454304 0.589832 0.712184 0.818627 0.906784 0.974684 1.02081 1.04414 1.04414 1.02081 0.974685 0.906785 0.818629 0.712186 0.589834 0.454306 0.30863 0.156059 0 0.152571 0.301733 0.444155 0.576656 0.696275 0.800341 0.886528 0.952911 0.998009 1.02081 1.02081 0.998009 0.952912 0.886529 0.800342 0.696277 0.576658 0.444158 0.301736 0.152573 0 0.145676 0.288099 0.424085 0.550599 0.664813 0.764176 0.846468 0.909852 0.952912 0.974685 0.974685 0.952912 0.909853 0.84647 0.764177 0.664815 0.550601 0.424088 0.288101 0.145679 0 0.135528 0.268029 0.394542 0.512242 0.618499 0.710941 0.7875 0.846469 0.886529 0.906785 0.906785 0.886529 0.84647 0.787502 0.710942 0.618501 0.512244 0.394544 0.268031 0.135531 0 0.122352 0.241971 0.356185 0.462443 0.55837 0.641824 0.710941 0.764177 0.800342 0.818629 0.818629 0.800342 0.764177 0.710942 0.641825 0.558372 0.462445 0.356187 0.241974 0.122354 0 0.106443 0.210509 0.309872 0.402313 0.485767 0.55837 0.6185 0.664814 0.696277 0.712186 0.712186 0.696277 0.664815 0.618501 0.558372 0.485769 0.402315 0.309874 0.210511 0.106445 0 0.0881566 0.174344 0.256637 0.333197 0.402314 0.462444 0.512243 0.5506 0.576658 0.589834 0.589834 0.576658 0.550601 0.512244 0.462445 0.402315 0.333198 0.256638 0.174345 0.0881582 0 0.0679006 0.134284 0.197669 0.256637 0.309873 0.356187 0.394544 0.424087 0.444158 0.454306 0.454306 0.444158 0.424088 0.394544 0.356187 0.309874 0.256638 0.19767 0.134286 0.0679018 0 0.0461278 0.0912253 0.134285 0.174345 0.21051 0.241973 0.268031 0.288101 0.301736 0.30863 0.30863 0.301736 0.288101 0.268031 0.241974 0.210511 0.174345 0.134286 0.0912261 0.0461287 0 0.0233246 0.0461283 0.0679015 0.0881578 0.106445 0.122354 0.13553 0.145679 0.152573 0.156059 0.156059 0.152573 0.145679 0.135531 0.122354 0.106445 0.0881582 0.0679018 0.0461287 0.0233251'/>
</Shape>
</Transform>
<Transform translation='-4 3 -3bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Appearance>
<MovieTexture USE='MYMOVIE'/>
<TextureTransform translation='0 -23.25'/>
<Material/>
</Appearance>
<ElevationGrid solid='falsexDimension='21xSpacing='0.1zDimension='21zSpacing='0.1height='0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.0233242 0.0461275 0.0679003 0.0881563 0.106443 0.122352 0.135528 0.145676 0.152571 0.156057 0.156057 0.152571 0.145676 0.135528 0.122352 0.106443 0.0881566 0.0679006 0.0461278 0.0233246 0 0.0461275 0.0912245 0.134284 0.174343 0.210508 0.241971 0.268028 0.288098 0.301733 0.308627 0.308627 0.301733 0.288099 0.268029 0.241971 0.210509 0.174344 0.134284 0.0912253 0.0461283 0 0.0679003 0.134284 0.197668 0.256636 0.309871 0.356185 0.394542 0.424085 0.444155 0.454304 0.454304 0.444155 0.424085 0.394542 0.356185 0.309872 0.256637 0.197669 0.134285 0.0679015 0 0.0881563 0.174343 0.256636 0.333195 0.402312 0.462442 0.512241 0.550598 0.576656 0.589832 0.589832 0.576656 0.550599 0.512242 0.462443 0.402313 0.333197 0.256637 0.174345 0.0881578 0 0.106443 0.210508 0.309871 0.402312 0.485766 0.558369 0.618498 0.664812 0.696275 0.712184 0.712184 0.696275 0.664813 0.618499 0.55837 0.485767 0.402314 0.309873 0.21051 0.106445 0 0.122352 0.241971 0.356185 0.462442 0.558369 0.641823 0.710939 0.764175 0.80034 0.818627 0.818627 0.800341 0.764176 0.710941 0.641824 0.55837 0.462444 0.356187 0.241973 0.122354 0 0.135528 0.268028 0.394542 0.512241 0.618498 0.710939 0.787499 0.846468 0.886527 0.906783 0.906784 0.886528 0.846468 0.7875 0.710941 0.6185 0.512243 0.394544 0.268031 0.13553 0 0.145676 0.288098 0.424085 0.550598 0.664812 0.764175 0.846468 0.909852 0.952911 0.974684 0.974684 0.952911 0.909852 0.846469 0.764177 0.664814 0.5506 0.424087 0.288101 0.145679 0 0.152571 0.301733 0.444155 0.576656 0.696275 0.80034 0.886527 0.952911 0.998008 1.02081 1.02081 0.998009 0.952912 0.886529 0.800342 0.696277 0.576658 0.444158 0.301736 0.152573 0 0.156057 0.308627 0.454304 0.589832 0.712184 0.818627 0.906783 0.974684 1.02081 1.04414 1.04414 1.02081 0.974685 0.906785 0.818629 0.712186 0.589834 0.454306 0.30863 0.156059 0 0.156057 0.308627 0.454304 0.589832 0.712184 0.818627 0.906784 0.974684 1.02081 1.04414 1.04414 1.02081 0.974685 0.906785 0.818629 0.712186 0.589834 0.454306 0.30863 0.156059 0 0.152571 0.301733 0.444155 0.576656 0.696275 0.800341 0.886528 0.952911 0.998009 1.02081 1.02081 0.998009 0.952912 0.886529 0.800342 0.696277 0.576658 0.444158 0.301736 0.152573 0 0.145676 0.288099 0.424085 0.550599 0.664813 0.764176 0.846468 0.909852 0.952912 0.974685 0.974685 0.952912 0.909853 0.84647 0.764177 0.664815 0.550601 0.424088 0.288101 0.145679 0 0.135528 0.268029 0.394542 0.512242 0.618499 0.710941 0.7875 0.846469 0.886529 0.906785 0.906785 0.886529 0.84647 0.787502 0.710942 0.618501 0.512244 0.394544 0.268031 0.135531 0 0.122352 0.241971 0.356185 0.462443 0.55837 0.641824 0.710941 0.764177 0.800342 0.818629 0.818629 0.800342 0.764177 0.710942 0.641825 0.558372 0.462445 0.356187 0.241974 0.122354 0 0.106443 0.210509 0.309872 0.402313 0.485767 0.55837 0.6185 0.664814 0.696277 0.712186 0.712186 0.696277 0.664815 0.618501 0.558372 0.485769 0.402315 0.309874 0.210511 0.106445 0 0.0881566 0.174344 0.256637 0.333197 0.402314 0.462444 0.512243 0.5506 0.576658 0.589834 0.589834 0.576658 0.550601 0.512244 0.462445 0.402315 0.333198 0.256638 0.174345 0.0881582 0 0.0679006 0.134284 0.197669 0.256637 0.309873 0.356187 0.394544 0.424087 0.444158 0.454306 0.454306 0.444158 0.424088 0.394544 0.356187 0.309874 0.256638 0.19767 0.134286 0.0679018 0 0.0461278 0.0912253 0.134285 0.174345 0.21051 0.241973 0.268031 0.288101 0.301736 0.30863 0.30863 0.301736 0.288101 0.268031 0.241974 0.210511 0.174345 0.134286 0.0912261 0.0461287 0 0.0233246 0.0461283 0.0679015 0.0881578 0.106445 0.122354 0.13553 0.145679 0.152573 0.156059 0.156059 0.152573 0.145679 0.135531 0.122354 0.106445 0.0881582 0.0679018 0.0461287 0.0233251'/>
</Shape>
</Transform>
<Transform translation='0 3 -3bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Appearance>
<MovieTexture USE='MYMOVIE'/>
<TextureTransform/>
<Material/>
</Appearance>
<ElevationGrid solid='falsexDimension='21xSpacing='0.1zDimension='21zSpacing='0.1height='0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.0233242 0.0461275 0.0679003 0.0881563 0.106443 0.122352 0.135528 0.145676 0.152571 0.156057 0.156057 0.152571 0.145676 0.135528 0.122352 0.106443 0.0881566 0.0679006 0.0461278 0.0233246 0 0.0461275 0.0912245 0.134284 0.174343 0.210508 0.241971 0.268028 0.288098 0.301733 0.308627 0.308627 0.301733 0.288099 0.268029 0.241971 0.210509 0.174344 0.134284 0.0912253 0.0461283 0 0.0679003 0.134284 0.197668 0.256636 0.309871 0.356185 0.394542 0.424085 0.444155 0.454304 0.454304 0.444155 0.424085 0.394542 0.356185 0.309872 0.256637 0.197669 0.134285 0.0679015 0 0.0881563 0.174343 0.256636 0.333195 0.402312 0.462442 0.512241 0.550598 0.576656 0.589832 0.589832 0.576656 0.550599 0.512242 0.462443 0.402313 0.333197 0.256637 0.174345 0.0881578 0 0.106443 0.210508 0.309871 0.402312 0.485766 0.558369 0.618498 0.664812 0.696275 0.712184 0.712184 0.696275 0.664813 0.618499 0.55837 0.485767 0.402314 0.309873 0.21051 0.106445 0 0.122352 0.241971 0.356185 0.462442 0.558369 0.641823 0.710939 0.764175 0.80034 0.818627 0.818627 0.800341 0.764176 0.710941 0.641824 0.55837 0.462444 0.356187 0.241973 0.122354 0 0.135528 0.268028 0.394542 0.512241 0.618498 0.710939 0.787499 0.846468 0.886527 0.906783 0.906784 0.886528 0.846468 0.7875 0.710941 0.6185 0.512243 0.394544 0.268031 0.13553 0 0.145676 0.288098 0.424085 0.550598 0.664812 0.764175 0.846468 0.909852 0.952911 0.974684 0.974684 0.952911 0.909852 0.846469 0.764177 0.664814 0.5506 0.424087 0.288101 0.145679 0 0.152571 0.301733 0.444155 0.576656 0.696275 0.80034 0.886527 0.952911 0.998008 1.02081 1.02081 0.998009 0.952912 0.886529 0.800342 0.696277 0.576658 0.444158 0.301736 0.152573 0 0.156057 0.308627 0.454304 0.589832 0.712184 0.818627 0.906783 0.974684 1.02081 1.04414 1.04414 1.02081 0.974685 0.906785 0.818629 0.712186 0.589834 0.454306 0.30863 0.156059 0 0.156057 0.308627 0.454304 0.589832 0.712184 0.818627 0.906784 0.974684 1.02081 1.04414 1.04414 1.02081 0.974685 0.906785 0.818629 0.712186 0.589834 0.454306 0.30863 0.156059 0 0.152571 0.301733 0.444155 0.576656 0.696275 0.800341 0.886528 0.952911 0.998009 1.02081 1.02081 0.998009 0.952912 0.886529 0.800342 0.696277 0.576658 0.444158 0.301736 0.152573 0 0.145676 0.288099 0.424085 0.550599 0.664813 0.764176 0.846468 0.909852 0.952912 0.974685 0.974685 0.952912 0.909853 0.84647 0.764177 0.664815 0.550601 0.424088 0.288101 0.145679 0 0.135528 0.268029 0.394542 0.512242 0.618499 0.710941 0.7875 0.846469 0.886529 0.906785 0.906785 0.886529 0.84647 0.787502 0.710942 0.618501 0.512244 0.394544 0.268031 0.135531 0 0.122352 0.241971 0.356185 0.462443 0.55837 0.641824 0.710941 0.764177 0.800342 0.818629 0.818629 0.800342 0.764177 0.710942 0.641825 0.558372 0.462445 0.356187 0.241974 0.122354 0 0.106443 0.210509 0.309872 0.402313 0.485767 0.55837 0.6185 0.664814 0.696277 0.712186 0.712186 0.696277 0.664815 0.618501 0.558372 0.485769 0.402315 0.309874 0.210511 0.106445 0 0.0881566 0.174344 0.256637 0.333197 0.402314 0.462444 0.512243 0.5506 0.576658 0.589834 0.589834 0.576658 0.550601 0.512244 0.462445 0.402315 0.333198 0.256638 0.174345 0.0881582 0 0.0679006 0.134284 0.197669 0.256637 0.309873 0.356187 0.394544 0.424087 0.444158 0.454306 0.454306 0.444158 0.424088 0.394544 0.356187 0.309874 0.256638 0.19767 0.134286 0.0679018 0 0.0461278 0.0912253 0.134285 0.174345 0.21051 0.241973 0.268031 0.288101 0.301736 0.30863 0.30863 0.301736 0.288101 0.268031 0.241974 0.210511 0.174345 0.134286 0.0912261 0.0461287 0 0.0233246 0.0461283 0.0679015 0.0881578 0.106445 0.122354 0.13553 0.145679 0.152573 0.156059 0.156059 0.152573 0.145679 0.135531 0.122354 0.106445 0.0881582 0.0679018 0.0461287 0.0233251'/>
</Shape>
</Transform>
<Transform translation='4 3 -3bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Appearance>
<MovieTexture USE='MYMOVIE'/>
<TextureTransform translation='0 23.25'/>
<Material/>
</Appearance>
<ElevationGrid solid='falsexDimension='21xSpacing='0.1zDimension='21zSpacing='0.1height='0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.0233242 0.0461275 0.0679003 0.0881563 0.106443 0.122352 0.135528 0.145676 0.152571 0.156057 0.156057 0.152571 0.145676 0.135528 0.122352 0.106443 0.0881566 0.0679006 0.0461278 0.0233246 0 0.0461275 0.0912245 0.134284 0.174343 0.210508 0.241971 0.268028 0.288098 0.301733 0.308627 0.308627 0.301733 0.288099 0.268029 0.241971 0.210509 0.174344 0.134284 0.0912253 0.0461283 0 0.0679003 0.134284 0.197668 0.256636 0.309871 0.356185 0.394542 0.424085 0.444155 0.454304 0.454304 0.444155 0.424085 0.394542 0.356185 0.309872 0.256637 0.197669 0.134285 0.0679015 0 0.0881563 0.174343 0.256636 0.333195 0.402312 0.462442 0.512241 0.550598 0.576656 0.589832 0.589832 0.576656 0.550599 0.512242 0.462443 0.402313 0.333197 0.256637 0.174345 0.0881578 0 0.106443 0.210508 0.309871 0.402312 0.485766 0.558369 0.618498 0.664812 0.696275 0.712184 0.712184 0.696275 0.664813 0.618499 0.55837 0.485767 0.402314 0.309873 0.21051 0.106445 0 0.122352 0.241971 0.356185 0.462442 0.558369 0.641823 0.710939 0.764175 0.80034 0.818627 0.818627 0.800341 0.764176 0.710941 0.641824 0.55837 0.462444 0.356187 0.241973 0.122354 0 0.135528 0.268028 0.394542 0.512241 0.618498 0.710939 0.787499 0.846468 0.886527 0.906783 0.906784 0.886528 0.846468 0.7875 0.710941 0.6185 0.512243 0.394544 0.268031 0.13553 0 0.145676 0.288098 0.424085 0.550598 0.664812 0.764175 0.846468 0.909852 0.952911 0.974684 0.974684 0.952911 0.909852 0.846469 0.764177 0.664814 0.5506 0.424087 0.288101 0.145679 0 0.152571 0.301733 0.444155 0.576656 0.696275 0.80034 0.886527 0.952911 0.998008 1.02081 1.02081 0.998009 0.952912 0.886529 0.800342 0.696277 0.576658 0.444158 0.301736 0.152573 0 0.156057 0.308627 0.454304 0.589832 0.712184 0.818627 0.906783 0.974684 1.02081 1.04414 1.04414 1.02081 0.974685 0.906785 0.818629 0.712186 0.589834 0.454306 0.30863 0.156059 0 0.156057 0.308627 0.454304 0.589832 0.712184 0.818627 0.906784 0.974684 1.02081 1.04414 1.04414 1.02081 0.974685 0.906785 0.818629 0.712186 0.589834 0.454306 0.30863 0.156059 0 0.152571 0.301733 0.444155 0.576656 0.696275 0.800341 0.886528 0.952911 0.998009 1.02081 1.02081 0.998009 0.952912 0.886529 0.800342 0.696277 0.576658 0.444158 0.301736 0.152573 0 0.145676 0.288099 0.424085 0.550599 0.664813 0.764176 0.846468 0.909852 0.952912 0.974685 0.974685 0.952912 0.909853 0.84647 0.764177 0.664815 0.550601 0.424088 0.288101 0.145679 0 0.135528 0.268029 0.394542 0.512242 0.618499 0.710941 0.7875 0.846469 0.886529 0.906785 0.906785 0.886529 0.84647 0.787502 0.710942 0.618501 0.512244 0.394544 0.268031 0.135531 0 0.122352 0.241971 0.356185 0.462443 0.55837 0.641824 0.710941 0.764177 0.800342 0.818629 0.818629 0.800342 0.764177 0.710942 0.641825 0.558372 0.462445 0.356187 0.241974 0.122354 0 0.106443 0.210509 0.309872 0.402313 0.485767 0.55837 0.6185 0.664814 0.696277 0.712186 0.712186 0.696277 0.664815 0.618501 0.558372 0.485769 0.402315 0.309874 0.210511 0.106445 0 0.0881566 0.174344 0.256637 0.333197 0.402314 0.462444 0.512243 0.5506 0.576658 0.589834 0.589834 0.576658 0.550601 0.512244 0.462445 0.402315 0.333198 0.256638 0.174345 0.0881582 0 0.0679006 0.134284 0.197669 0.256637 0.309873 0.356187 0.394544 0.424087 0.444158 0.454306 0.454306 0.444158 0.424088 0.394544 0.356187 0.309874 0.256638 0.19767 0.134286 0.0679018 0 0.0461278 0.0912253 0.134285 0.174345 0.21051 0.241973 0.268031 0.288101 0.301736 0.30863 0.30863 0.301736 0.288101 0.268031 0.241974 0.210511 0.174345 0.134286 0.0912261 0.0461287 0 0.0233246 0.0461283 0.0679015 0.0881578 0.106445 0.122354 0.13553 0.145679 0.152573 0.156059 0.156059 0.152573 0.145679 0.135531 0.122354 0.106445 0.0881582 0.0679018 0.0461287 0.0233251'/>
</Shape>
</Transform>
<Transform translation='8 3 -3bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Appearance>
<MovieTexture USE='MYMOVIE'/>
<TextureTransform translation='0 100.75'/>
<Material/>
</Appearance>
<ElevationGrid solid='falsexDimension='21xSpacing='0.1zDimension='21zSpacing='0.1height='0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0.0233242 0.0461275 0.0679003 0.0881563 0.106443 0.122352 0.135528 0.145676 0.152571 0.156057 0.156057 0.152571 0.145676 0.135528 0.122352 0.106443 0.0881566 0.0679006 0.0461278 0.0233246 0 0.0461275 0.0912245 0.134284 0.174343 0.210508 0.241971 0.268028 0.288098 0.301733 0.308627 0.308627 0.301733 0.288099 0.268029 0.241971 0.210509 0.174344 0.134284 0.0912253 0.0461283 0 0.0679003 0.134284 0.197668 0.256636 0.309871 0.356185 0.394542 0.424085 0.444155 0.454304 0.454304 0.444155 0.424085 0.394542 0.356185 0.309872 0.256637 0.197669 0.134285 0.0679015 0 0.0881563 0.174343 0.256636 0.333195 0.402312 0.462442 0.512241 0.550598 0.576656 0.589832 0.589832 0.576656 0.550599 0.512242 0.462443 0.402313 0.333197 0.256637 0.174345 0.0881578 0 0.106443 0.210508 0.309871 0.402312 0.485766 0.558369 0.618498 0.664812 0.696275 0.712184 0.712184 0.696275 0.664813 0.618499 0.55837 0.485767 0.402314 0.309873 0.21051 0.106445 0 0.122352 0.241971 0.356185 0.462442 0.558369 0.641823 0.710939 0.764175 0.80034 0.818627 0.818627 0.800341 0.764176 0.710941 0.641824 0.55837 0.462444 0.356187 0.241973 0.122354 0 0.135528 0.268028 0.394542 0.512241 0.618498 0.710939 0.787499 0.846468 0.886527 0.906783 0.906784 0.886528 0.846468 0.7875 0.710941 0.6185 0.512243 0.394544 0.268031 0.13553 0 0.145676 0.288098 0.424085 0.550598 0.664812 0.764175 0.846468 0.909852 0.952911 0.974684 0.974684 0.952911 0.909852 0.846469 0.764177 0.664814 0.5506 0.424087 0.288101 0.145679 0 0.152571 0.301733 0.444155 0.576656 0.696275 0.80034 0.886527 0.952911 0.998008 1.02081 1.02081 0.998009 0.952912 0.886529 0.800342 0.696277 0.576658 0.444158 0.301736 0.152573 0 0.156057 0.308627 0.454304 0.589832 0.712184 0.818627 0.906783 0.974684 1.02081 1.04414 1.04414 1.02081 0.974685 0.906785 0.818629 0.712186 0.589834 0.454306 0.30863 0.156059 0 0.156057 0.308627 0.454304 0.589832 0.712184 0.818627 0.906784 0.974684 1.02081 1.04414 1.04414 1.02081 0.974685 0.906785 0.818629 0.712186 0.589834 0.454306 0.30863 0.156059 0 0.152571 0.301733 0.444155 0.576656 0.696275 0.800341 0.886528 0.952911 0.998009 1.02081 1.02081 0.998009 0.952912 0.886529 0.800342 0.696277 0.576658 0.444158 0.301736 0.152573 0 0.145676 0.288099 0.424085 0.550599 0.664813 0.764176 0.846468 0.909852 0.952912 0.974685 0.974685 0.952912 0.909853 0.84647 0.764177 0.664815 0.550601 0.424088 0.288101 0.145679 0 0.135528 0.268029 0.394542 0.512242 0.618499 0.710941 0.7875 0.846469 0.886529 0.906785 0.906785 0.886529 0.84647 0.787502 0.710942 0.618501 0.512244 0.394544 0.268031 0.135531 0 0.122352 0.241971 0.356185 0.462443 0.55837 0.641824 0.710941 0.764177 0.800342 0.818629 0.818629 0.800342 0.764177 0.710942 0.641825 0.558372 0.462445 0.356187 0.241974 0.122354 0 0.106443 0.210509 0.309872 0.402313 0.485767 0.55837 0.6185 0.664814 0.696277 0.712186 0.712186 0.696277 0.664815 0.618501 0.558372 0.485769 0.402315 0.309874 0.210511 0.106445 0 0.0881566 0.174344 0.256637 0.333197 0.402314 0.462444 0.512243 0.5506 0.576658 0.589834 0.589834 0.576658 0.550601 0.512244 0.462445 0.402315 0.333198 0.256638 0.174345 0.0881582 0 0.0679006 0.134284 0.197669 0.256637 0.309873 0.356187 0.394544 0.424087 0.444158 0.454306 0.454306 0.444158 0.424088 0.394544 0.356187 0.309874 0.256638 0.19767 0.134286 0.0679018 0 0.0461278 0.0912253 0.134285 0.174345 0.21051 0.241973 0.268031 0.288101 0.301736 0.30863 0.30863 0.301736 0.288101 0.268031 0.241974 0.210511 0.174345 0.134286 0.0912261 0.0461287 0 0.0233246 0.0461283 0.0679015 0.0881578 0.106445 0.122354 0.13553 0.145679 0.152573 0.156059 0.156059 0.152573 0.145679 0.135531 0.122354 0.106445 0.0881582 0.0679018 0.0461287 0.0233251'/>
</Shape>
</Transform>
<Transform translation='-8 0 0bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'> </Shape>
</Transform>
<Transform translation='-4 0 0bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'> </Shape>
</Transform>
<Transform bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'> </Shape>
</Transform>
<Transform translation='4 0 0bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'> </Shape>
</Transform>
<Transform translation='8 0 0bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'> </Shape>
</Transform>
<Transform scale='0.615111 0.615111 0.615112translation='-8 -3 2bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Appearance>
<MovieTexture USE='MYMOVIE'/>
<TextureTransform translation='0 -100.75'/>
<Material/>
</Appearance>
<IndexedFaceSet coordIndex='0 1 3 2 -1 4 5 7 6 -1 6 7 1 0 -1 2 3 5 4 -1 6 0 2 4 -1 1 7 5 3 -1'>
<Coordinate DEF='RectangularBoxCoordinatespoint='-2 2 1 -2 -2 1 2 2 1 2 -2 1 2 2 -1 2 -2 -1 -2 2 -1 -2 -2 -1'/>
</IndexedFaceSet>
</Shape>
</Transform>
<Transform scale='0.615111 0.615111 0.615112translation='-4 -3 2bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Appearance>
<MovieTexture USE='MYMOVIE'/>
<TextureTransform translation='0 -23.25'/>
<Material/>
</Appearance>
<IndexedFaceSet coordIndex='0 1 3 2 -1 4 5 7 6 -1 6 7 1 0 -1 2 3 5 4 -1 6 0 2 4 -1 1 7 5 3 -1'>
<Coordinate USE='RectangularBoxCoordinates'/>
</IndexedFaceSet>
</Shape>
</Transform>
<Transform scale='0.615111 0.615111 0.615112translation='0 -3 2bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Appearance>
<MovieTexture USE='MYMOVIE'/>
<TextureTransform/>
<Material/>
</Appearance>
<IndexedFaceSet coordIndex='0 1 3 2 -1 4 5 7 6 -1 6 7 1 0 -1 2 3 5 4 -1 6 0 2 4 -1 1 7 5 3 -1'>
<Coordinate USE='RectangularBoxCoordinates'/>
</IndexedFaceSet>
</Shape>
</Transform>
<Transform scale='0.615111 0.615111 0.615112translation='4 -3 2bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Appearance>
<MovieTexture USE='MYMOVIE'/>
<TextureTransform translation='0 23.25'/>
<Material/>
</Appearance>
<IndexedFaceSet coordIndex='0 1 3 2 -1 4 5 7 6 -1 6 7 1 0 -1 2 3 5 4 -1 6 0 2 4 -1 1 7 5 3 -1'>
<Coordinate USE='RectangularBoxCoordinates'/>
</IndexedFaceSet>
</Shape>
</Transform>
<Transform scale='0.615111 0.615111 0.615112translation='8 -3 2bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Appearance>
<MovieTexture USE='MYMOVIE'/>
<TextureTransform translation='0 100.75'/>
<Material/>
</Appearance>
<IndexedFaceSet coordIndex='0 1 3 2 -1 4 5 7 6 -1 6 7 1 0 -1 2 3 5 4 -1 6 0 2 4 -1 1 7 5 3 -1'>
<Coordinate USE='RectangularBoxCoordinates'/>
</IndexedFaceSet>
</Shape>
</Transform>
</Scene>
</X3D>
<!--
