Package Basic.X3dSpecifications

Class ExtrusionFigureX3dSpecification

java.lang.Object

Basic.X3dSpecifications.ExtrusionFigureX3dSpecification

public class ExtrusionFigureX3dSpecification
extends Object

X3D Extrusion spine-aligned cross-section plane (SCP) at a spine point. Modeled after Figure 13.5 in X3D Specification.

Related links: Catalog page ExtrusionFigureX3dSpecification, source ExtrusionFigureX3dSpecification.java, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information

meta tags	Document Metadata
title	ExtrusionFigureX3dSpecification.x3d
description	X3D Extrusion spine-aligned cross-section plane (SCP) at a spine point. Modeled after Figure 13.5 in X3D Specification.
creator	Al Shaffer
created	4 February 2005
modified	28 October 2019

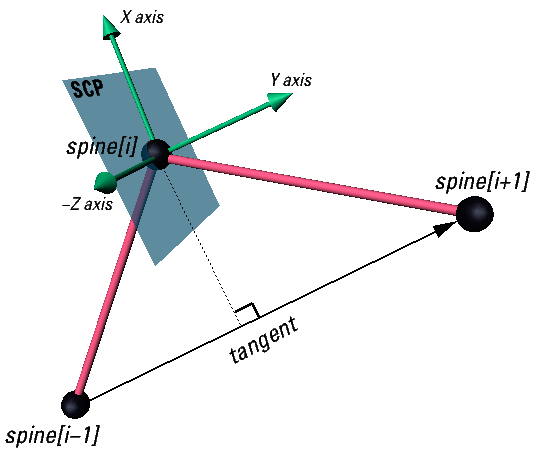

Image	Extrusion.gif
specificationSection	X3D encodings, ISO/IEC 19776-1.3, Part 1: XML encoding, Figure 13.5 - Spine-aligned cross-section plane at a spine point.
specificationUrl	https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/components/geometry3D.html#f-Spine-alignedcross-section
identifier	https://www.web3d.org/x3d/content/examples/Basic/X3dSpecifications/ExtrusionFigureX3dSpecification.x3d
generator	X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit
license	../license.html

This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet (version control) which is used to create Java source code from an original .x3d model.

Constructor Summary

Constructors

Constructor	Description
ExtrusionFigureX3dSpecification()	Default constructor to create this object.

Method Summary

Modifier and Type	Method	Description
org.web3d.x3d.jsail.Core.X3D	getX3dModel()	Provide a shallow copy of the X3D model.
final void	initialize()	Create and initialize the X3D model for this object.
static void	main(String[] args)	Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Details

ExtrusionFigureX3dSpecification

public ExtrusionFigureX3dSpecification()

Default constructor to create this object.

Method Details

initialize

public final void initialize()

Create and initialize the X3D model for this object.

getX3dModel

public org.web3d.x3d.jsail.Core.X3D getX3dModel()

Provide a shallow copy of the X3D model.

Returns:

ExtrusionFigureX3dSpecification model

See Also:

• X3D

main

public static void main(String[] args)

Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.

Parameters:

args - array of input parameters, provided as arguments

See Also:

• X3D.handleArguments(args)
• X3D.validationReport()
• CommandLine
• CommandLine.USAGE
• ConfigurationProperties
