Package Basic.NURBS

Class TrimmingContourExample

java.lang.Object
Basic.NURBS.TrimmingContourExample

public class TrimmingContourExample extends Object

Simple example demonstrating NURBS trimming contour content model.

Related links: TrimmingContourExample.java source, TrimmingContourExample catalog page, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information
meta tags   Document Metadata
title TrimmingContourExample.x3d
description Simple example demonstrating NURBS trimming contour content model.
creator Andrew Grieve, Vince Marchetti
contributor Don Brutzman
created 16 October 2005
modified 20 October 2019

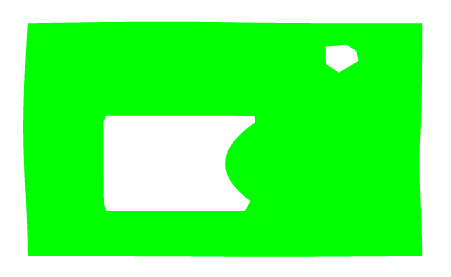

Image TrimmingContourExample.png

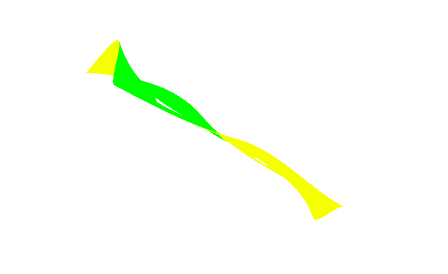

Image TrimmingContourExampleSideView.png

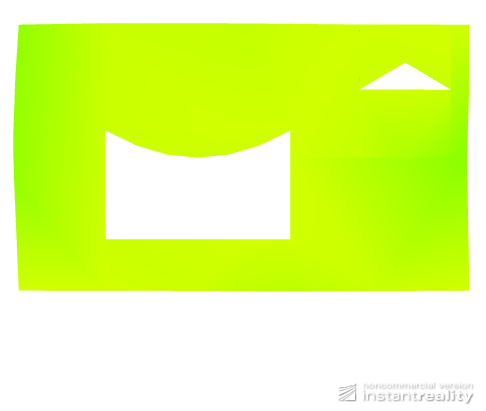

Image images/TrimmingContourExampleInstantReality.png
Image images/TrimmingContourExampleXj3d.png
subject NURBS trimming contour
reference https://www.web3d.org/x3d/specifications/ISO-IEC-19775-X3DAbstractSpecification/Part01/components/nurbs.html#NurbsTrimmedSurface
identifier https://www.web3d.org/x3d/content/examples/Basic/NURBS/TrimmingContourExample.x3d
generator X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit
license ../license.html


This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet to create Java source code from an .x3d model.

  • Constructor Details

    • TrimmingContourExample

      public TrimmingContourExample()
      Default constructor to create this object.
  • Method Details

    • initialize

      public final void initialize()
      Create and initialize the X3D model for this object.
    • getX3dModel

      public org.web3d.x3d.jsail.Core.X3D getX3dModel()
      Provide a shallow copy of the X3D model.
      Returns:
      TrimmingContourExample model
      See Also:
      X3D
    • main

      public static void main(String[] args)
      Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.
      Parameters:
      args - array of input parameters, provided as arguments
      See Also:
      X3D.handleArguments(args), X3D.validationReport(), CommandLine, CommandLine.USAGE, ConfigurationProperties
