Package Basic.NURBS

Class TrimmedNurbsWithHole

java.lang.Object
Basic.NURBS.TrimmedNurbsWithHole

public class TrimmedNurbsWithHole extends Object

Scene contains a single NurbsTrimmedSurface node which has two Contour2D child nodes, defining a trimmed outer boundary to the patch and an interior hole in the patch. Scene also contains unit-length line segments defining x-y-z coordinate axes.

Related links: TrimmedNurbsWithHole.java source, TrimmedNurbsWithHole catalog page, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information
meta tags   Document Metadata
title TrimmedNurbsWithHole.x3d
description Scene contains a single NurbsTrimmedSurface node which has two Contour2D child nodes, defining a trimmed outer boundary to the patch and an interior hole in the patch. Scene also contains unit-length line segments defining x-y-z coordinate axes.
creator Vincent Marchetti
created 10 February 2012
modified 20 October 2019
subject NURBS example NurbsTrimmedSurface Contour2D NurbsCurve2D

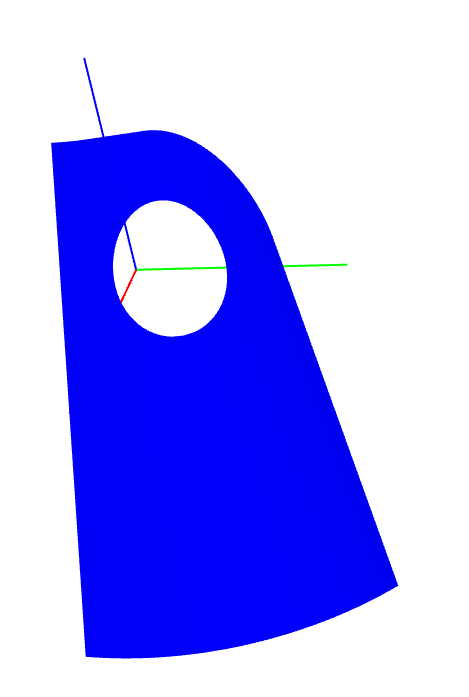

Image TrimmedNurbsWithHole.jpg

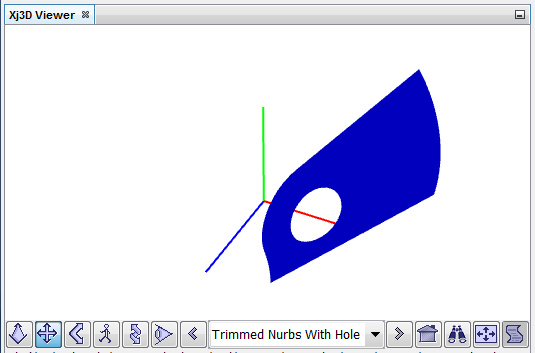

Image images/TrimmedNurbsWithHoleXj3d.png
reference originals/trimmed_nurbs_with_hole.x3d
identifier https://www.web3d.org/x3d/content/examples/Basic/NURBS/TrimmedNurbsWithHole.x3d
generator Python language scripts using Numpy, SciPy libraries http://numpy.scipy.org
generator X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit
license ../license.html
TODO instantReality Forum Issuehttp://forum.instantreality.org
TODO BS Contact BitManagement Bug Report: http://www.bitmanagement.de/en/contact


This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet to create Java source code from an .x3d model.

  • Constructor Details

    • TrimmedNurbsWithHole

      public TrimmedNurbsWithHole()
      Default constructor to create this object.
  • Method Details

    • initialize

      public final void initialize()
      Create and initialize the X3D model for this object.
    • getX3dModel

      public org.web3d.x3d.jsail.Core.X3D getX3dModel()
      Provide a shallow copy of the X3D model.
      Returns:
      TrimmedNurbsWithHole model
      See Also:
      X3D
    • main

      public static void main(String[] args)
      Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.
      Parameters:
      args - array of input parameters, provided as arguments
      See Also:
      X3D.handleArguments(args), X3D.validationReport(), CommandLine, CommandLine.USAGE, ConfigurationProperties
