Package Basic.CAD

Class CadDesignPatternExampleBushing

java.lang.Object
Basic.CAD.CadDesignPatternExampleBushing

public class CadDesignPatternExampleBushing extends Object

Design pattern examples demonstrating proper hierarchy of CAD nodes: CADLayer, CADAssembly, CADPart, and then CADFace.

Related links: Catalog page CadDesignPatternExampleBushing, source CadDesignPatternExampleBushing.java, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information
meta tags   Document Metadata
title CadDesignPatternExampleBushing.x3d
description Design pattern examples demonstrating proper hierarchy of CAD nodes: CADLayer, CADAssembly, CADPart, and then CADFace.
creator Vince Marchetti, Don Brutzman
translator Xj3D, http://www.xj3d.org
created 24 June 2012
modified 20 October 2019
warning Only InstantReality, X3DOM, OctagaVs and Xj3D are properly handling geometry of Disk2D end caps

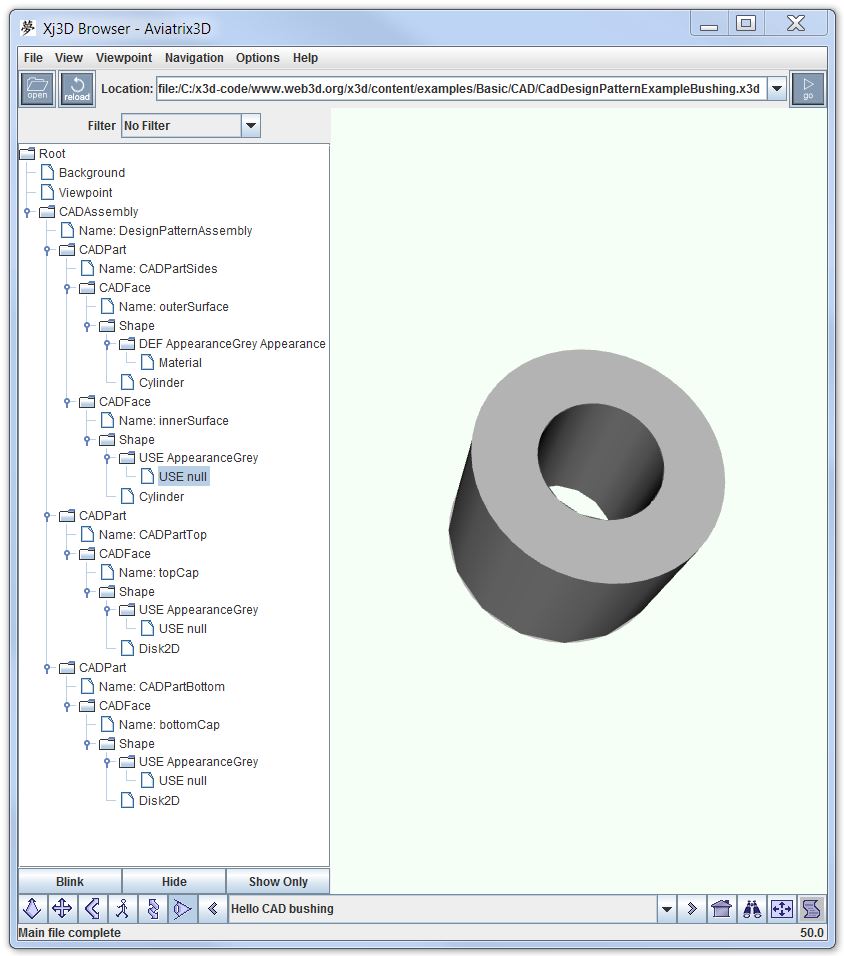

Image CadDesignPatternExampleBushingInstantReality.png
Image CadDesignPatternExampleBushingBsContact.png

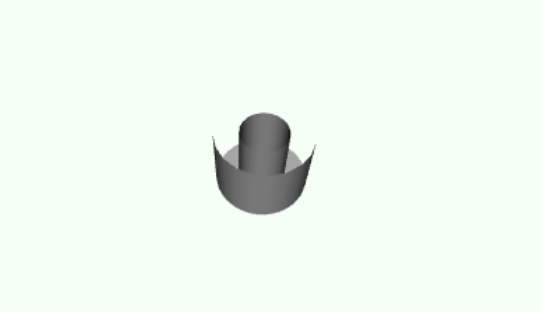

Image CadDesignPatternExampleBushingCobweb.png

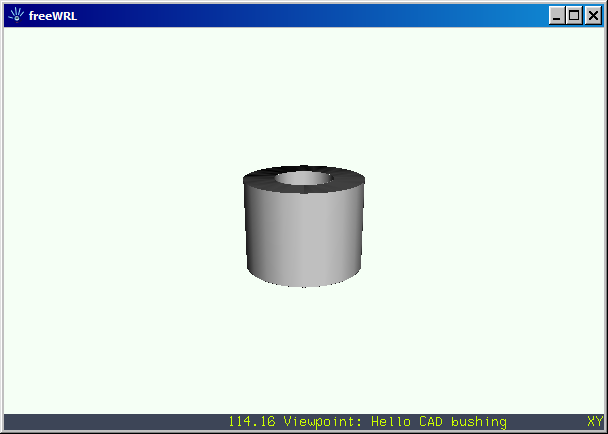

Image CadDesignPatternExampleBushingFreeX3d.png
Image CadDesignPatternExampleBushingInstantReality.png

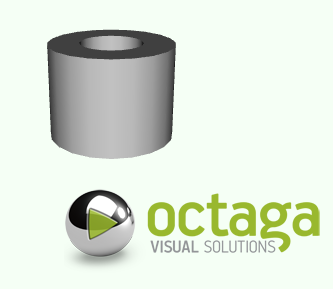

Image CadDesignPatternExampleBushingOctagaVs.png

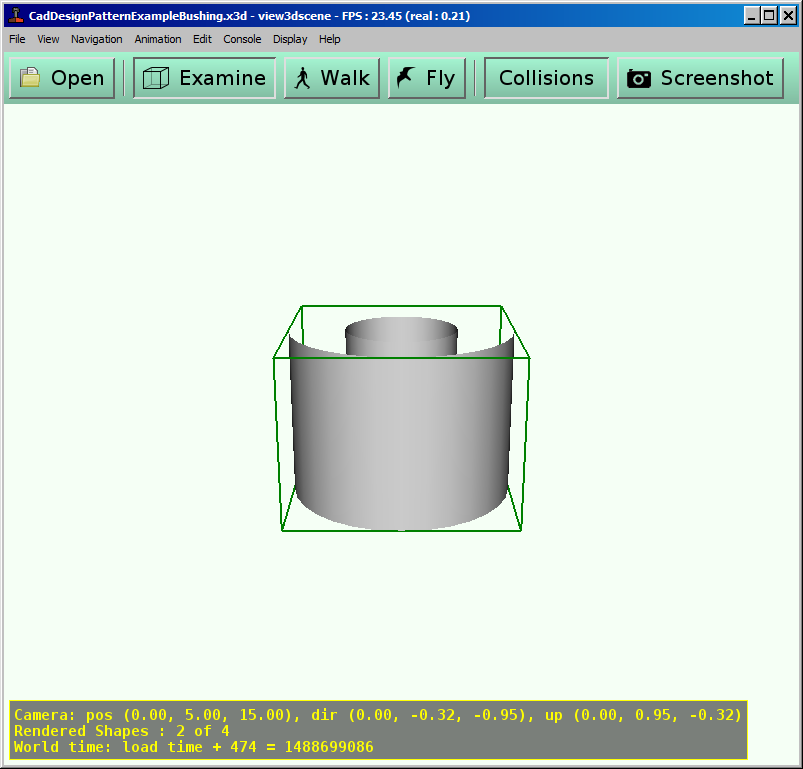

Image CadDesignPatternExampleBushingView3dscene.png

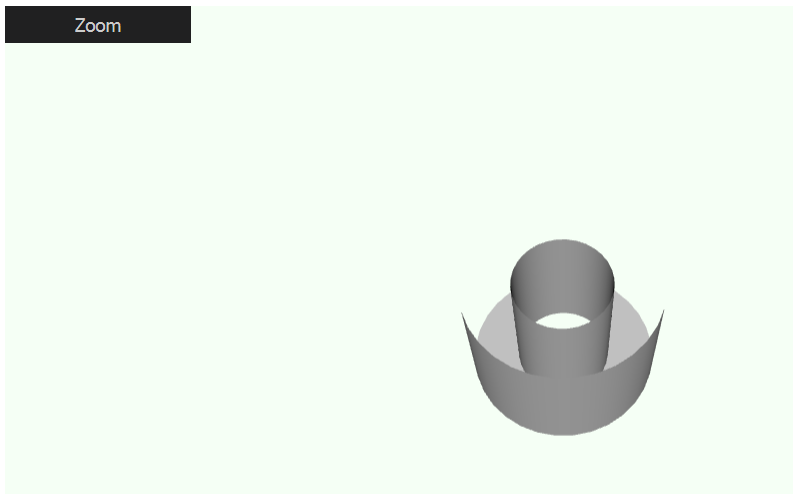

Image CadDesignPatternExampleBushingX3dom.png
Image CadDesignPatternExampleBushingXj3d.png
reference https://www.web3d.org/member-only/mantis/view.php?id=528
reference https://www.web3d.org/files/specifications/19775-1/V3.3/Part01/components/CADGeometry.html
subject X3D CAD CADInterchange profile
identifier https://www.web3d.org/x3d/content/examples/Basic/CAD/CadDesignPatternExampleBushing.x3d
generator X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit
license ../license.html


This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet (version control) which is used to create Java source code from an original .x3d model.
