<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.1//EN" "https://www.web3d.org/specifications/x3d-3.1.dtd">
<X3D profile='Immersive'  version='3.1 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.1.xsd ' >
<head>
<meta name='titlecontent=' CreateVrmlFromStringRandomBoxes.x3d '/>
<meta name='descriptioncontent='Sample world constructed in a Script node using the EcmaScript Browser call createVrmlFromString.'/>
<meta name='creatorcontent='Vincent Gardet'/>
<meta name='translatorcontent='Curt Blais'/>
<meta name='contributorcontent='Don Brutzman'/>
<meta name='createdcontent='23 April 2002'/>
<meta name='modifiedcontent='12 October 2023'/>
<meta name='referencecontent=' CreateX3dFromStringRandomSpheres.x3d '/>

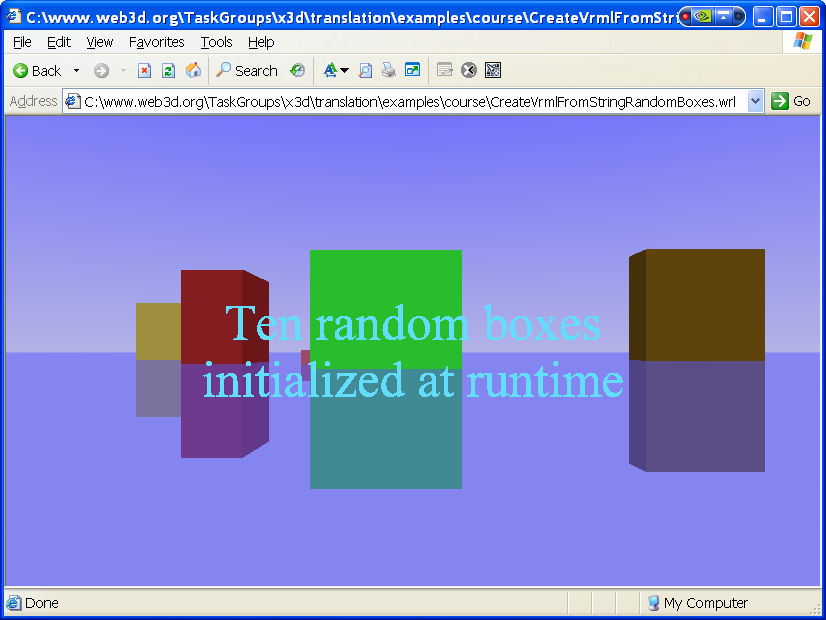

<meta name='Imagecontent='CreateVrmlFromStringRandomBoxes.png' />
<meta name='referencecontent='See CreateVrmlFromString tutorial at'/>
<meta name='referencecontent=' http://www.gardet.nom.fr/vrmlcity/tut_cvfs.htm '/>
<meta name='subjectcontent='create VRML from string, javascript'/>
<meta name='identifiercontent=' https://www.web3d.org/x3d/content/examples/Basic/course/CreateVrmlFromStringRandomBoxes.x3d '/>
<meta name='generatorcontent='X3D-Edit 4.0, https://savage.nps.edu/X3D-Edit'/>
<meta name='licensecontent=' ../license.html'/>
</head>
<!--

to top <!-- Event Graph ROUTE Table shows event connections -->

<!-- Index for DEF nodes: BoxGeneratorScript, HoldsAutogeneratedContent, TouchText

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2
-->
<Scene>
<WorldInfo title='CreateVrmlFromStringRandomBoxes.x3d'/>
<NavigationInfo avatarSize='0.1 1.6 2.0headlight='falsespeed='5type='"EXAMINE" "WALK" "ANY"'/>
<Background skyAngle='1.1 1.57skyColor='.3 .3 1 .4 .4 1 .7 .7 .9'/>
<DirectionalLight direction='0 -.5 -1'/>
<DirectionalLight direction='-1 -.5 .5intensity='.9'/>
<DirectionalLight direction='1 -.5 .5intensity='.8'/>
<Viewpoint description='Interaction viewposition='50 1.6 150'/>
<Viewpoint description='Plan (top-down) vieworientation='1 0 0 -1.54position='50 200 50'/>
<Shape>
<Appearance>
<Material diffuseColor='.3 .3 1transparency='0.5'/>
</Appearance>
<Box size='1000 0.01 1000'/>
</Shape>
<Transform translation='50 1.6 140'>
<Billboard>
<Shape>
<Appearance>
<Material diffuseColor='0.1 0.3 0.2emissiveColor='0.3 0.6 0.9'/>
</Appearance>
<Text string='"Ten random boxes" "computed at runtime" "(select text to recompute)"'>
<FontStyle justify='"MIDDLE" "MIDDLE"'/>
</Text>
</Shape>
<!-- ROUTE information for TouchText node:  [from isActive to BoxGeneratorScript.recompute ] -->
<TouchSensor DEF='TouchTextdescription='Touch text to recompute random boxes'/>

<!-- Transparent Box makes the text much more accessible/clickable -->
<Shape>
<Box size='8 2 0.1'/>
<Appearance>
<Material transparency='1'/>
</Appearance>
</Shape>
</Billboard>
</Transform>
<!-- ROOT is used at initialize time as parent for randomly generated Shape children -->
<Group DEF='HoldsAutogeneratedContent'>
<!-- content added here at run time -->
</Group>
<!-- ROUTE information for BoxGeneratorScript node:  [from TouchText.isActive to recompute ] -->
<Script DEF='BoxGeneratorScriptdirectOutput='true'>
<field name='ModifiableExternalNodetype='SFNodeaccessType='initializeOnly'>
<Group USE=' HoldsAutogeneratedContent'/>
</field>
<field name='recomputetype='SFBoolaccessType='inputOnly'/>
<![CDATA[

ecmascript:

function R () {
	return Math.random();
}
function recompute (isActive) {
	if (isActive==true) initialize();
}

function initialize() {
  for (i=0; i < 10; i++) {
    rand1 = 100*R();
    rand2 = 100*R();
    rand3 = 20*R();
    rand4 = 40*R();
    rand5 = 20*R();
    sceneString ='Transform {                                                    \n' +
                      '   translation ' + rand1 + ' 0 ' + rand2 + ' \n' +
                      '   children [                                            \n' +
                      '           Shape {                                       \n' +
                      '                   appearance Appearance {               \n' +
                      '                      material Material {                \n' +
                      '                         diffuseColor ' + R() + ' ' + R() + ' ' + R() + '\n' +
                      '                      }                                  \n' +
                      '                   }                                     \n' +
                      '                   geometry Box {                        \n' +
                      '                      size ' + rand3 + ' ' + rand4 + ' ' + rand5 + '\n' +
                      '                   }                                     \n' +
                      '           }                                             \n' +
                      '   ]                                                     \n' +
                      '}                                                        \n' +
                      '#########################################################\n';
       Browser.println (sceneString);
       newNode = Browser.createVrmlFromString(sceneString);
//     newNode = Browser.createX3dFromString(sceneString);
       ModifiableExternalNode.children[i] = newNode[0];
  }
}


]]>
</Script>
< ROUTE  fromNode=' TouchText' fromField='isActive' toNode=' BoxGeneratorScript' toField='recompute'/>
</Scene>
</X3D>
<!--

to top <!-- Event Graph ROUTE Table shows event connections -->

<!-- Index for DEF nodes: BoxGeneratorScript, HoldsAutogeneratedContent, TouchText

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2
-->

Event Graph ROUTE Table with 1 ROUTE connections total, showing X3D event-model relationships for this scene.

Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.

TouchText
TouchSensor
isActive
SFBool

ROUTE
event to
(1)
BoxGeneratorScript
Script
recompute
SFBool


      BoxGeneratorScript
Script
No ROUTE connection found for output from this node.
Contains SFNode field with indirect access to another node.


-->
