<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
<X3D profile='Interchange' version='3.3 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.3.xsd '>
<head>
<component level='3name='VolumeRendering'/>
<meta name='titlecontent='BlendedComposedVolumes.x3d'/>
<meta name='descriptioncontent='Composed and blended rendering of a human torso and internal structure'/>
<meta name='createdcontent='6 May 2013'/>
<meta name='modifiedcontent='20 October 2019'/>
<meta name='creatorcontent='Nicholas Polys, Andrew Wood: Virginia Tech'/>

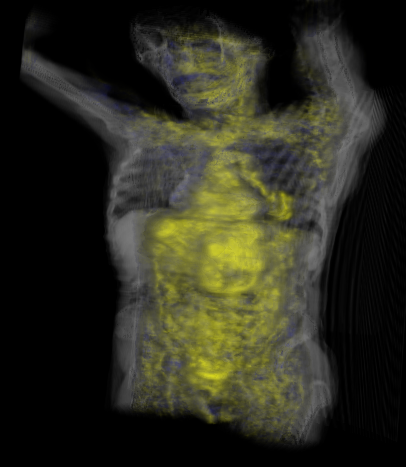

<meta name='Imagecontent='BlendedComposedVolumes.png'/>
<meta name='referencecontent='BlendedBodyInternals.x3d'/>
<meta name='referencecontent=' Datasets, http://metagrid2.sv.vt.edu/~npolys/X3DVolexamples/X3DVolumeExamples/datasets/nrrd/body.nrrd '/>
<meta name='referencecontent=' Datasets, http://metagrid2.sv.vt.edu/~npolys/X3DVolexamples/X3DVolumeExamples/datasets/nrrd/internals.x3d '/>
<meta name='referencecontent=' All datasets, http://metagrid2.sv.vt.edu/~npolys/X3DVolexamples/X3DVolumeExamples/datasets/datasets.zip '/>
<meta name='referencecontent='Run the download target in the Ant build.xml file to install reference nrrd files locally.'/>
<meta name='referencecontent='build.xml'/>
<meta name='identifiercontent=' https://www.web3d.org/x3d/content/examples/Basic/VolumeRendering/BlendedComposedVolumes.x3d '/>
<meta name='referencecontent=' Volume data obtained from http://pubimage.hcuge.ch:8080 '/>
<meta name='generatorcontent='Volume data converted using Osirix, http://www.osirix-viewer.com'/>
<meta name='generatorcontent='Nrrd conversion utility located at http://teem.sourceforge.net/unrrdu'/>
<meta name='generatorcontent='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='licensecontent=' ../license.html'/>
</head>
<!--

Index for DEF nodes : BG, VP

Index for Viewpoint image : VP
-->
<Scene>
<WorldInfo title='BlendedComposedVolumes.x3d'/>
<Group>
<Viewpoint DEF='VPdescription='Blended Composed Volumesorientation='0.940022 0.208839 0.269711 1.71637position='0.108923 -0.189725 -0.0135375'/>
<Background DEF='BG'/>
<Transform scale='0.000292969 0.000292969 0.000292969'>
<VolumeData dimensions='512 512 452'>
<ComposedVolumeStyle>
<OpacityMapVolumeStyle/>
<SilhouetteEnhancementVolumeStyle/>
<BlendedVolumeStyle weightConstant1='0.15weightConstant2='0.85'>
<ComposedVolumeStyle>
<SilhouetteEnhancementVolumeStyle/>
<CartoonVolumeStyle/>
<BoundaryEnhancementVolumeStyle retainedOpacity='.8'/>
<ToneMappedVolumeStyle/>
<EdgeEnhancementVolumeStyle/>
</ComposedVolumeStyle>
<ImageTexture3D containerField='voxels'
  url=' "datasets/nrrd/internals.nrrd" "http://metagrid2.sv.vt.edu/~npolys/X3DVolexamples/X3DVolumeExamples/datasets/nrrd/internals.nrrd" "https://savage.nps.edu/Savage/VolumeRendering/datasets/nrrd/internals.nrrd" '/>
</BlendedVolumeStyle>
</ComposedVolumeStyle>
<ImageTexture3D containerField='voxels'
  url=' "datasets/nrrd/body.nrrd" "http://metagrid2.sv.vt.edu/~npolys/X3DVolexamples/X3DVolumeExamples/datasets/nrrd/body.nrrd" "https://savage.nps.edu/Savage/VolumeRendering/datasets/nrrd/body.nrrd" '/>
</VolumeData>
</Transform>
</Group>
</Scene>
</X3D>
<!--
