<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.2//EN" "http://www.web3d.org/specifications/x3d-3.2.dtd">
<X3D profile='Immersive' version='3.2 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' http://www.web3d.org/specifications/x3d-3.2.xsd '>
<head>
<meta name='titlecontent='CoasterClassical.x3d'/>
<meta name='descriptioncontent='X3D example showing a flying model using classical animation techniques'/>
<meta name='creatorcontent='Herbert Stocker'/>
<meta name='translatorcontent='Don Brutzman'/>
<meta name='createdcontent='18 April 2006'/>
<meta name='translatedcontent='2 December 2011'/>
<meta name='modifiedcontent='28 November 2019'/>
<meta name='referencecontent='originals/coaster-classical.wrl'/>
<meta name='referencecontent='Stocker_06_Followers.pdf'/>
<meta name='referencecontent=' http://www.hersto.com/Publications/Followers '/>
<meta name='requirescontent='X3D version 3.2 or greater'/>
<meta name='subjectcontent='X3D Follower Chaser Damper'/>
<meta name='referencecontent=' https://www.web3d.org/x3d/specifications/ISO-IEC-19775-1.2-X3D-AbstractSpecification/Part01/components/followers.html '/>
<meta name='referencecontent=' https://www.web3d.org/x3d/content/examples/X3dSceneAuthoringHints.html '/>
<meta name='identifiercontent=' https://www.web3d.org/x3d/content/examples/Basic/Followers/CoasterClassical.x3d '/>
<meta name='generatorcontent='Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html'/>
<meta name='generatorcontent='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='licensecontent=' ../../license.html'/>
</head>
<!-- -->
<Scene>
<WorldInfo info='"Roller Coaster with Twin Motion Trails" "Developed by Tom Kaye (tomk@sgi.com)" "Silicon Graphics Inc, 1997" "Created in CosmoWorlds" "Packaged by CosmoPackage" "PositionDamper and OrientationDamper nodes added by Herbert Stocker, www.hersto.com"title='CoasterClassical.x3d'/>
<Background skyColor='0.113 0.529 0.847transparency='0'/>
<Inline bboxCenter='0 0 0bboxSize='-1 -1 -1'
  url=' "Sky.x3d" "https://www.web3d.org/x3d/content/examples/Basic/Followers/Sky.x3d" "Sky.wrl" "https://www.web3d.org/x3d/content/examples/Basic/Followers/Sky.wrl" '/>

<DirectionalLight direction='0.0 -1.0 0.0'/>
<Transform DEF='GroundEdgesscale='10.0 0.05 5.0translation='-2.97994 -0.0499999 -1.0bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Appearance>
<Material diffuseColor='0.0 0.0 0.0emissiveColor='0.274 0.427 0.098'/>
</Appearance>
<IndexedFaceSet creaseAngle='0.5solid='falsecoordIndex='0 1 3 2 -1 4 5 7 6 -1 6 7 1 0 -1 2 3 5 4 -1'>
<Coordinate DEF='CubePointspoint='-1 1 1 -1 -1 1 1 1 1 1 -1 1 1 1 -1 1 -1 -1 -1 1 -1 -1 -1 -1'/>
</IndexedFaceSet>
</Shape>
</Transform>
<Transform DEF='GroundPlanescale='10.0 0.05 5.0translation='-3.0 -0.05 -1.0bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Appearance>
<TextureTransform DEF='TexTransGrassscale='4.0 4.0'/>
<ImageTexture DEF='TexGrass'
  url=' "grass4.jpg" "https://www.web3d.org/x3d/content/examples/Basic/Followers/grass4.jpg" '/>
</Appearance>
<IndexedFaceSet creaseAngle='0.5coordIndex='0 1 2 3 -1'>
<Coordinate point='-1.0 1.0 -1.0 -1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 -1.0'/>
</IndexedFaceSet>
</Shape>
</Transform>
<Transform DEF='GroundPlaneFromBelowscale='10.0 0.05 5.0translation='-3.0 -0.05 -1.0bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Appearance DEF='AppFromBelow'>
<Material DEF='MatFromBelowdiffuseColor='0.0 0.0 0.0emissiveColor='0.274 0.427 0.098shininess='0.0transparency='0.51'/>
</Appearance>
<IndexedFaceSet ccw='falsecreaseAngle='0.5coordIndex='0 1 2 3 -1'>
<Coordinate point='-1.0 1.0 -1.0 -1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 -1.0'/>
</IndexedFaceSet>
</Shape>
</Transform>
<Script DEF='TexturizerdirectOutput='true'>
<field name='TexTransGrasstype='SFNodeaccessType='initializeOnly'>
<TextureTransform USE='TexTransGrass'/>
</field>
<field name='TexGrasstype='SFNodeaccessType='initializeOnly'>
<ImageTexture USE='TexGrass'/>
</field>
<field name='AppFromBelowtype='SFNodeaccessType='initializeOnly'>
<Appearance USE='AppFromBelow'/>
</field>
<field name='MatFromBelowtype='SFNodeaccessType='initializeOnly'>
<Material USE='MatFromBelow'/>
</field>
<![CDATA[

ecmascript:

function initialize()
{
    if(   Browser.getName() == 'blaxxunCC3D'  // This also covers BS Contact VRML.
       || Browser.getName() == 'bsContactMP4'
      )
    {
        AppFromBelow.texture= TexGrass;
        AppFromBelow.textureTransform= TexTransGrass;
        MatFromBelow.transparency= .6;
        MatFromBelow.emissiveColor= new SFColor(1, 1, 1);
    }
}


]]>
</Script>
<!-- ROUTE information for TargetVehicle node:  [from TargetVehicleTranslationInterp.value_changed to set_translation ] [from TargetVehicleRotationInterp.value_changed to set_rotation ] [from translation_changed to offsetCoordinates.rawCoordinateIn ] [from rotation_changed to wingtipCoordinates.set_vehicleRotation ] -->
<Transform DEF='TargetVehiclecenter='1.04904E-5 0.717017 -8.82894E-4rotation='-0.57735 0.57735 0.577351 2.09439scale='0.499976 0.499948 0.499971scaleOrientation='0.356491 -0.901205 0.246461 0.410829translation='1.5 -0.712227 -3.99929bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Group bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Group DEF='CoasterAnimbboxCenter='0 0 0bboxSize='-1 -1 -1'> </Group>
<!-- ROUTE information for TargetVehicleTranslationInterp node:  [from Time.fraction_changed to set_fraction ] [from value_changed to TargetVehicle.set_translation ] -->
<PositionInterpolator DEF='TargetVehicleTranslationInterpkey='0.0 0.0307592 0.0307692 0.0576923 0.0615385 0.0653846 0.0692308 0.0730769 0.0769231 0.0807693 0.0846154 0.0884616 0.0923077 0.0961539 0.1 0.103846 0.107692 0.111539 0.115385 0.119231 0.123077 0.126923 0.130769 0.134615 0.138462 0.142308 0.146154 0.15 0.153846 0.157692 0.161539 0.165385 0.169231 0.173077 0.17735 0.181624 0.185897 0.190171 0.194444 0.198718 0.202991 0.207265 0.211538 0.215384 0.21923 0.223077 0.226923 0.230769 0.234615 0.238461 0.242308 0.246154 0.25 0.253846 0.257692 0.261539 0.265385 0.269231 0.273077 0.276923 0.28077 0.284616 0.288462 0.294231 0.3 0.303846 0.307692 0.311539 0.315385 0.319231 0.323077 0.326923 0.33077 0.334616 0.338462 0.343269 0.348077 0.352885 0.357692 0.361538 0.365384 0.369231 0.373077 0.376923 0.419231 0.423718 0.428205 0.432692 0.43718 0.441667 0.446154 0.45055 0.454945 0.459341 0.463736 0.468132 0.472527 0.476923 0.481319 0.485714 0.49011 0.494505 0.498901 0.503296 0.507692 0.512179 0.516666 0.521153 0.525641 0.530128 0.534615 0.539102 0.543589 0.548076 0.552564 0.557051 0.561538 0.565384 0.56923 0.573077 0.576923 0.580769 0.584615 0.588462 0.592308 0.596154 0.6 0.603846 0.607692 0.611539 0.615385 0.619231 0.623077 0.626923 0.630769 0.634616 0.638462 0.642735 0.647009 0.651282 0.655556 0.659829 0.664102 0.668376 0.672649 0.676923 0.681319 0.685714 0.69011 0.694505 0.698901 0.703297 0.707692 0.712088 0.716483 0.720879 0.725274 0.72967 0.734065 0.738461 0.742307 0.746153 0.75 0.753846 0.757692 0.761538 0.765385 0.769231 0.8 0.804487 0.808974 0.813461 0.817949 0.822436 0.826923 0.830769 0.892308 0.896154 0.9 0.903847 0.907693 0.911539 0.915385 0.976923 0.980769 0.984615 0.988461 0.992308 0.996154 1.0keyValue='1.5 -0.712227 -3.99929 1.5 -0.712227 -3.99929 1.5 -0.712227 -3.99929 -2.98023E-8 -0.712227 -3.99929 -0.135118 -0.684878 -3.99929 -0.249569 -0.659854 -3.99929 -0.348176 -0.634392 -3.99929 -0.435765 -0.605731 -3.99929 -0.517157 -0.571108 -3.99929 -0.597176 -0.52776 -3.99929 -0.680647 -0.472924 -3.99929 -0.772392 -0.40384 -3.99929 -0.877235 -0.317743 -3.99929 -1.0 -0.211873 -3.99929 -1.13575 -0.0903623 -3.99929 -1.276 0.0401461 -3.99929 -1.42025 0.178653 -3.99929 -1.568 0.324157 -3.99929 -1.71875 0.47566 -3.99929 -1.872 0.632161 -3.99929 -2.02725 0.792661 -3.99929 -2.184 0.95616 -3.99929 -2.34175 1.12166 -3.99929 -2.5 1.28816 -3.99929 -2.65825 1.45465 -3.99929 -2.816 1.62015 -3.99929 -2.97275 1.78365 -3.99929 -3.128 1.94414 -3.99929 -3.28125 2.10064 -3.99929 -3.432 2.25213 -3.99929 -3.57975 2.39763 -3.99929 -3.724 2.53613 -3.99929 -3.86425 2.66663 -3.99929 -4.0 2.78813 -3.99929 -4.14037 2.9077 -3.99929 -4.26703 3.00806 -3.99929 -4.38271 3.0906 -3.99929 -4.49017 3.15667 -3.99929 -4.59214 3.20765 -3.99929 -4.69136 3.24492 -3.99929 -4.79058 3.26984 -3.99929 -4.89255 3.28379 -3.99929 -5.0 3.28813 -3.99929 -5.091 3.28988 -3.99929 -5.168 3.29213 -3.99929 -5.237 3.29038 -3.99929 -5.304 3.28013 -3.99929 -5.375 3.25688 -3.99929 -5.456 3.21613 -3.99929 -5.553 3.15338 -3.99929 -5.672 3.06413 -3.99929 -5.819 2.94388 -3.99929 -6.0 2.78813 -3.99929 -6.22034 2.58518 -3.99929 -6.47675 2.33319 -3.99929 -6.76235 2.04246 -3.99929 -7.07024 1.7233 -3.99929 -7.39354 1.38601 -3.99929 -7.72536 1.04089 -3.99929 -8.05881 0.698235 -3.99929 -8.38699 0.368357 -3.99929 -8.70302 0.0615546 -3.99929 -9.0 -0.211873 -3.99929 -9.38046 -0.486211 -3.99929 -9.7071 -0.504772 -3.99929 -9.94767 -0.377057 -3.99929 -10.2127 -0.187134 -3.9993 -10.4575 0.0384212 -3.9993 -10.6372 0.273034 -3.9993 -10.7071 0.490127 -3.99929 -10.6304 0.71709 -3.99926 -10.437 0.97164 -3.99923 -10.182 1.21269 -3.99918 -9.92036 1.39917 -3.99915 -9.70711 1.48998 -3.99912 -9.49317 1.43325 -4.01568 -9.29107 1.24316 -4.0433 -9.12021 0.999743 -4.04882 -9.00002 0.782985 -3.99911 -8.95476 0.641569 -3.90294 -8.9491 0.500148 -3.76718 -8.96606 0.358725 -3.60879 -8.98868 0.217301 -3.44475 -8.99999 0.0758787 -3.29202 -9.0 0.0758831 8.81374E-4 -9.02165 0.156862 0.377715 -9.06926 0.278578 0.786017 -9.11688 0.430141 1.19519 -9.13853 0.600657 1.57462 -9.10823 0.779234 1.89372 -9.00001 0.954982 2.12188 -8.81189 1.13921 2.26291 -8.56375 1.34809 2.3519 -8.27199 1.56759 2.39465 -7.95299 1.78363 2.39691 -7.62314 1.98218 2.36447 -7.29882 2.14918 2.3031 -6.99643 2.27058 2.21857 -6.71286 2.35274 2.08419 -6.43251 2.41028 1.88591 -6.15303 2.44152 1.64852 -5.87204 2.44477 1.39679 -5.58719 2.41835 1.15551 -5.2961 2.36059 0.949439 -4.99643 2.26981 0.803365 -4.67853 2.10492 0.710561 -4.34952 1.85751 0.653148 -4.0131 1.56821 0.632428 -3.67297 1.27761 0.649702 -3.33285 1.02632 0.706271 -2.99643 0.854937 0.803438 -2.65729 0.765917 0.968587 -2.31119 0.72726 1.20616 -1.9651 0.727911 1.48302 -1.62596 0.756815 1.76605 -1.30076 0.802918 2.02214 -0.996445 0.855165 2.21814 -0.74528 0.911436 2.34886 -0.493761 0.987636 2.47346 -0.24516 1.07762 2.58902 -0.00275008 1.17525 2.69261 0.230195 1.27439 2.78127 0.450403 1.36888 2.85209 0.654601 1.45258 2.90213 0.839515 1.51936 2.92844 1.00187 1.56306 2.9281 1.14473 1.58985 2.90446 1.27405 1.60986 2.86363 1.39088 1.62293 2.80686 1.49628 1.62889 2.73535 1.59133 1.62758 2.65033 1.67707 1.61882 2.55304 1.75456 1.60246 2.44469 1.82487 1.57832 2.32651 1.88906 1.54624 2.19973 1.94818 1.50605 2.06557 2.00331 1.45759 1.92524 2.0598 1.38509 1.74941 2.10934 1.28868 1.54462 2.15031 1.17446 1.31831 2.18108 1.04854 1.07793 2.20001 0.917032 0.830914 2.20549 0.786048 0.584711 2.19587 0.661696 0.34676 2.16953 0.550085 0.124505 2.12483 0.457321 -0.0746234 2.04566 0.382953 -0.26982 1.92723 0.324577 -0.466918 1.78027 0.278421 -0.654261 1.61552 0.240713 -0.820186 1.44371 0.207684 -0.953036 1.27556 0.17556 -1.04115 1.12182 0.140572 -1.07287 0.961417 0.104905 -1.03454 0.777803 0.0726409 -0.93196 0.588454 0.0428501 -0.782685 0.410843 0.0146023 -0.604261 0.262447 -0.0130321 -0.414235 0.16074 -0.0409833 -0.230153 0.123196 -0.0701823 -0.0695581 0.152848 -0.0965528 0.0554954 0.233341 -0.122932 0.180429 0.352943 -0.149317 0.305271 0.499921 -0.175707 0.430048 0.662542 -0.202099 0.554788 0.829075 -0.228492 0.679519 0.987787 -0.254884 0.804269 1.12695 -0.281274 0.92907 3.25257 -0.281718 0.928657 3.49502 -0.302707 0.820501 3.71072 -0.33278 0.666566 3.90667 -0.368681 0.482109 4.08991 -0.407152 0.282388 4.26745 -0.444937 0.0826635 4.44633 -0.478779 -0.10181 4.49975 -0.492812 -0.249108 4.49974 -0.617812 -3.50169 4.4583 -0.629977 -3.64537 4.38642 -0.64534 -3.74526 4.29424 -0.662836 -3.81596 4.19192 -0.681397 -3.87206 4.08959 -0.699958 -3.92816 3.99741 -0.717453 -3.99886 1.95311 -0.708216 -3.99918 1.8512 -0.708255 -3.9992 1.76829 -0.708748 -3.99922 1.69805 -0.709542 -3.99924 1.63415 -0.710487 -3.99925 1.57024 -0.711433 -3.99927 1.5 -0.712227 -3.99929'/>
<!-- ROUTE information for TargetVehicleRotationInterp node:  [from Time.fraction_changed to set_fraction ] [from value_changed to TargetVehicle.set_rotation ] -->
<OrientationInterpolator DEF='TargetVehicleRotationInterpkey='0.0 0.0307592 0.0307692 0.0576923 0.0615385 0.0653846 0.0692308 0.0730769 0.0769231 0.0807693 0.0846154 0.0884616 0.0923077 0.0961539 0.1 0.103846 0.107692 0.111539 0.115385 0.119231 0.123077 0.126923 0.130769 0.134615 0.138462 0.142308 0.146154 0.15 0.153846 0.157692 0.161539 0.165385 0.169231 0.173077 0.17735 0.181624 0.185897 0.190171 0.194444 0.198718 0.202991 0.207265 0.211538 0.215384 0.21923 0.223077 0.226923 0.230769 0.234615 0.238461 0.242308 0.246154 0.25 0.253846 0.257692 0.261539 0.265385 0.269231 0.273077 0.276923 0.28077 0.284616 0.288462 0.294231 0.3 0.303846 0.307692 0.311539 0.315385 0.319231 0.323077 0.326923 0.33077 0.334616 0.338462 0.343269 0.348077 0.352885 0.357692 0.361538 0.365385 0.371154 0.376923 0.419231 0.423718 0.428205 0.432692 0.43718 0.441667 0.446154 0.45055 0.454945 0.459341 0.463736 0.468132 0.472527 0.476923 0.481319 0.485714 0.49011 0.494505 0.498901 0.503296 0.507692 0.512179 0.516666 0.521153 0.525641 0.530128 0.534615 0.539102 0.543589 0.548076 0.552564 0.557051 0.561538 0.565384 0.56923 0.573077 0.576923 0.580769 0.584615 0.588462 0.592308 0.596154 0.6 0.603846 0.607692 0.611539 0.615385 0.619231 0.623077 0.626923 0.630769 0.634616 0.638462 0.64327 0.648077 0.652884 0.657692 0.661538 0.665384 0.669231 0.673077 0.676923 0.681319 0.685714 0.69011 0.694505 0.698901 0.703297 0.707692 0.712088 0.716483 0.720879 0.725274 0.72967 0.734065 0.738461 0.742307 0.746153 0.75 0.753846 0.757692 0.761538 0.765385 0.769231 0.8 0.805769 0.811538 0.815385 0.819231 0.826923 0.830769 0.892308 0.898077 0.903846 0.907692 0.911539 0.915385 0.976923 0.980769 0.984615 0.988461 0.992308 0.996154 1.0keyValue='-0.57735 0.57735 0.577351 2.09439 -0.57735 0.57735 0.577351 2.09439 -0.57735 0.57735 0.577351 2.09439 -0.57735 0.57735 0.577351 2.09439 -0.567425 0.596705 0.567426 2.0656 -0.552946 0.623298 0.552947 2.02684 -0.534178 0.655215 0.534179 1.98152 -0.5115 0.690459 0.511501 1.933 -0.485545 0.726974 0.485546 1.88439 -0.457321 0.762702 0.457322 1.83843 -0.428293 0.795694 0.428294 1.79737 -0.400386 0.824246 0.400387 1.76289 -0.375911 0.846983 0.375912 1.73611 -0.357406 0.862856 0.357407 1.71777 -0.350413 0.868574 0.350414 1.71123 -0.344112 0.873598 0.344113 1.70552 -0.338526 0.877952 0.338527 1.70059 -0.333674 0.881659 0.333675 1.69641 -0.329572 0.884739 0.329573 1.69295 -0.326233 0.887211 0.326234 1.69018 -0.323666 0.889089 0.323667 1.68808 -0.321879 0.890386 0.32188 1.68664 -0.320874 0.891111 0.320875 1.68583 -0.320653 0.891271 0.320654 1.68565 -0.321213 0.890867 0.321214 1.6861 -0.32255 0.8899 0.322551 1.68718 -0.324657 0.888367 0.324658 1.68889 -0.327523 0.88626 0.327524 1.69125 -0.331134 0.883572 0.331135 1.69426 -0.335476 0.88029 0.335477 1.69795 -0.340529 0.876401 0.340531 1.70235 -0.346273 0.871888 0.346274 1.70746 -0.352682 0.866735 0.352684 1.71333 -0.359731 0.860922 0.359732 1.71999 -0.379051 0.84418 0.379052 1.73938 -0.403091 0.821605 0.403091 1.76604 -0.430042 0.793805 0.430043 1.79969 -0.458227 0.761614 0.458227 1.83981 -0.486193 0.726108 0.486193 1.88552 -0.512787 0.688549 0.512787 1.93559 -0.537168 0.650309 0.537168 1.98841 -0.55879 0.612787 0.55879 2.04206 0.57735 -0.57735 -0.57735 4.18879 -0.592737 0.545276 0.592737 2.14317 -0.607867 0.510877 0.607867 2.19697 -0.622164 0.475209 0.622164 2.25436 -0.635219 0.439311 0.635219 2.31374 -0.646775 0.404185 0.646774 2.37338 -0.656701 0.370792 0.656701 2.43144 -0.664968 0.340054 0.664967 2.48602 -0.67161 0.312858 0.67161 2.53517 -0.676704 0.290074 0.676704 2.57694 -0.680334 0.272566 0.680334 2.60939 0.682874 -0.25955 -0.682874 3.64949 0.684721 -0.24963 -0.684721 3.63085 0.685956 -0.24275 -0.685957 3.61788 0.686638 -0.238864 -0.686638 3.61053 0.6868 -0.237929 -0.686801 3.60877 0.686455 -0.23991 -0.686456 3.61251 0.685596 -0.244775 -0.685597 3.6217 0.684194 -0.252499 -0.684195 3.63625 0.682202 -0.263059 -0.682203 3.65606 -0.679551 0.276441 0.679552 2.60218 -0.651684 0.388092 0.651685 2.40119 -0.57735 0.577351 0.57735 2.09439 -0.519268 0.678765 0.519268 1.94893 -0.431702 0.792002 0.431701 1.8019 -0.31046 0.898459 0.31046 1.67767 -0.16043 0.973922 0.16043 1.59722 9.74767E-7 1.0 -1.41687E-6 1.5708 0.161223 0.975708 -0.148326 1.59539 0.315447 0.90762 -0.276984 1.66758 0.44283 0.80887 -0.386822 1.78134 0.53168 0.695018 -0.484011 1.92685 0.577351 0.577349 -0.577351 2.0944 0.575666 0.423328 -0.699573 2.34418 0.526724 0.265591 -0.80748 2.6321 0.454336 0.119696 -0.882752 2.91451 -0.382683 5.22933E-7 0.92388 3.14159 0.252411 -0.125411 -0.959459 3.39666 -0.139004 0.246324 0.959168 2.81009 -0.0386425 0.43267 0.900724 2.81224 -2.31525E-8 0.707107 0.707107 3.14159 7.73042E-7 0.707106 0.707107 3.14159 -0.00876494 0.734457 0.678599 3.14885 -0.0285068 0.769004 0.638608 3.16521 -0.0486659 0.808026 0.587133 3.18191 -0.0581319 0.848652 0.525748 3.18975 -0.0456313 0.888339 0.456915 3.1794 2.39447E-6 0.92391 0.38261 3.14159 0.0786355 0.946421 0.313215 3.08231 0.192106 0.953145 0.233687 3.00228 0.323556 0.935491 0.142016 2.91004 0.454104 0.890043 0.0401617 2.81573 0.56562 0.821933 -0.0670859 2.72855 0.643683 0.745038 -0.174902 2.65407 0.678589 0.678584 -0.281141 2.59345 0.668232 0.633955 -0.389317 2.54351 0.62041 0.603828 -0.500483 2.50165 0.542536 0.57856 -0.609035 2.46915 0.44421 0.549133 -0.707906 2.44718 0.338083 0.508887 -0.791665 2.4346 0.238101 0.453246 -0.858997 2.42716 -0.156533 -0.377892 0.912521 3.86435 0.0841793 0.268063 -0.959717 2.40414 0.0256254 0.144472 -0.989177 2.38826 -0.0235779 0.0120284 -0.99965 2.37673 -0.0677081 -0.123358 -0.99005 2.37506 -0.110799 -0.255312 -0.960489 2.38791 0.156584 0.378037 0.912453 3.8643 0.199754 0.495172 0.845519 3.81534 0.234386 0.606756 0.759546 3.75121 0.26331 0.703896 0.659696 3.67508 0.290188 0.780534 0.553677 3.59248 0.319705 0.833754 0.450158 3.51028 0.357418 0.86288 0.357337 3.43548 0.388222 0.870408 0.302778 3.382 0.422536 0.870603 0.252018 3.31762 0.460181 0.863923 0.204623 3.24888 0.500434 0.850766 0.160508 3.18273 0.542297 0.83159 0.119883 3.12627 0.584709 0.806972 0.0831381 3.08674 0.626724 0.77759 0.0507125 3.07135 0.667642 0.744129 0.0229443 3.08727 0.707107 0.707106 -5.66118E-5 3.14148 0.74037 0.672053 -0.0140531 3.22796 0.776084 0.630213 -0.0229366 3.35674 0.813139 0.581409 -0.027708 3.51729 0.850398 0.525328 -0.0292033 3.69882 0.886636 0.461616 -0.0280549 3.89037 0.920425 0.390135 -0.0247437 4.08094 0.950058 0.31145 -0.0197199 4.25974 0.973667 0.227572 -0.0135787 4.41657 0.989727 0.142788 -0.00725208 4.54238 0.997946 0.0640204 -0.00213212 4.62976 1.0 -6.35534E-7 6.57274E-7 4.67307 0.996553 -0.0829147 0.00280905 4.58205 0.997358 -0.0723366 0.00661529 4.31936 0.999519 -0.0302525 0.00676277 4.04802 1.0 1.43159E-5 1.09746E-5 3.92683 0.999789 0.0203775 -0.00242897 3.98667 0.998433 0.0559599 2.76579E-4 4.13447 0.995428 0.0953603 -0.00548976 4.33023 0.991672 0.12336 -0.0369914 4.53263 0.98617 0.117199 -0.117189 4.69846 0.972284 0.0799382 -0.219712 4.77524 0.934194 0.0177418 -0.356323 4.81433 0.861097 -0.0615913 -0.504696 4.81086 0.754371 -0.146391 -0.639917 4.76748 0.626563 -0.226361 -0.745775 4.69736 0.491671 -0.296641 -0.818696 4.62182 -0.35747 0.357464 0.862806 1.71782 0.21821 -0.412778 -0.884307 4.54287 0.0661529 -0.463952 -0.883387 4.53918 -0.0944755 -0.507746 -0.856311 4.53289 -0.25223 -0.540327 -0.802762 4.50509 -0.392158 -0.560344 -0.729538 4.44253 -0.502221 -0.570694 -0.649679 4.33821 0.577348 0.577349 0.577354 2.09439 0.644809 0.569887 0.509361 2.21646 0.690244 0.566606 0.450024 2.36556 0.718052 0.569145 0.400594 2.53842 0.731837 0.578127 0.36081 2.7331 0.734077 0.593619 0.329768 2.94811 0.726083 0.615517 0.3065 3.18152 0.707982 0.643794 0.290327 3.43027 0.678599 0.678602 0.281075 3.68959 0.577346 0.577353 0.577352 4.18878 0.702176 0.593063 0.393985 4.21811 0.802385 0.584275 0.121658 4.14687 0.815464 0.577014 -0.045534 4.15811 0.832054 0.535461 -0.144804 4.24246 0.990554 0.130102 -0.0433214 4.64834 1.0 7.4414E-6 6.62627E-6 4.71239 1.0 7.3873E-6 6.62225E-6 4.71239 0.884975 0.140068 -0.444072 4.8316 -0.593457 -0.140733 0.792466 1.59101 0.460357 0.0639742 -0.885426 4.55475 0.49072 -0.205856 -0.846651 4.43643 0.577355 -0.577348 -0.577348 4.1888 0.577351 -0.577349 -0.57735 4.18879 0.577351 -0.577349 -0.577351 4.18879 0.577351 -0.57735 -0.577351 4.18879 0.57735 -0.57735 -0.577351 4.18879 0.57735 -0.57735 -0.577351 4.18879 0.57735 -0.57735 -0.577351 4.1888 -0.57735 0.57735 0.577351 2.09439'/>
</Group>
<Transform center='5.06639E-7 0.711873 0.25bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Switch whichChoice='0bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Transform DEF='AircraftObjectcenter='0.0 0.711873 0.25bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Transform DEF='LeftSideGreencenter='1.0 0.0 0.5scale='0.5 1.0 0.5translation='-1.0 0.711873 -0.25bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Appearance>
<Material DEF='_4ambientIntensity='0.0diffuseColor='1.0 0.0 0.0shininess='0.0'/>
</Appearance>
<IndexedFaceSet ccw='falsecolorPerVertex='falsecreaseAngle='0.5colorIndex='1 0coordIndex='0 1 3 4 -1 3 2 4 -1'>
<Coordinate point='1.0 -1.0 1.0 1.0 -1.0 0.0 1.0 1.0 0.0 1.0 0.0 0.0 1.0 0.0 0.5'/>
<Color color='0.0 1.0 0.0 0.0 0.497326 0.0'/>
</IndexedFaceSet>
</Shape>
</Transform>
<Transform DEF='BottomWhitecenter='1.0 0.0 0.0scale='0.5 1.0 0.5scaleOrientation='5.58553E-9 -1.0 -9.77967E-9 0.492161translation='-1.0 0.711872 -1.56338E-7bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Appearance>
<Material ambientIntensity='0.0diffuseColor='1.0 1.0 1.0shininess='0.0'/>
</Appearance>
<IndexedFaceSet ccw='falsecolorPerVertex='falsecreaseAngle='0.5colorIndex='1 0 1 0coordIndex='1 3 4 5 -1 4 2 5 -1 0 1 5 6 -1 5 2 6 -1'>
<Coordinate point='0.0 -1.0 0.0 1.0 -1.0 0.0 1.0 1.0 0.0 2.0 -1.0 0.0 1.5 0.0 0.0 1.0 0.0 0.0 0.5 0.0 0.0'/>
<Color color='1.0 1.0 1.0 0.502674 0.502674 0.502674'/>
</IndexedFaceSet>
</Shape>
</Transform>
<Transform DEF='TopBluecenter='1.0 0.0 0.0scale='0.5 1.0 0.5scaleOrientation='5.58553E-9 -1.0 -9.77967E-9 0.492161translation='-1.0 0.711872 -1.56338E-7bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Appearance>
<Material USE='_4'/>
</Appearance>
<IndexedFaceSet colorPerVertex='falsecreaseAngle='0.5colorIndex='1 0 1 0coordIndex='1 3 4 5 -1 4 2 5 -1 0 1 5 6 -1 5 2 6 -1'>
<Coordinate point='0.0 -1.0 0.0 1.0 -1.0 0.0 1.0 1.0 0.0 2.0 -1.0 0.0 1.5 0.0 0.0 1.0 0.0 0.0 0.5 0.0 0.0'/>
<Color color='0.0 0.0 1.0 0.0 0.0 0.502674'/>
</IndexedFaceSet>
</Shape>
</Transform>
<Transform DEF='RightSideRedcenter='1.0 0.0 0.5scale='0.5 1.0 0.5scaleOrientation='5.58553E-9 -1.0 -9.77967E-9 0.492161translation='-0.999999 0.711873 -0.25bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Appearance>
<Material ambientIntensity='0.0diffuseColor='1.0 0.0 0.0shininess='0.0'/>
</Appearance>
<IndexedFaceSet colorPerVertex='falsecreaseAngle='0.5colorIndex='1 0coordIndex='0 1 3 4 -1 3 2 4 -1'>
<Coordinate point='1.0 -1.0 1.0 1.0 -1.0 0.0 1.0 1.0 0.0 1.0 0.0 0.0 1.0 0.0 0.5'/>
<Color color='1.0 0.0 0.0 0.502674 0.0 0.0'/>
</IndexedFaceSet>
</Shape>
</Transform>
</Transform>
</Switch>
</Transform>

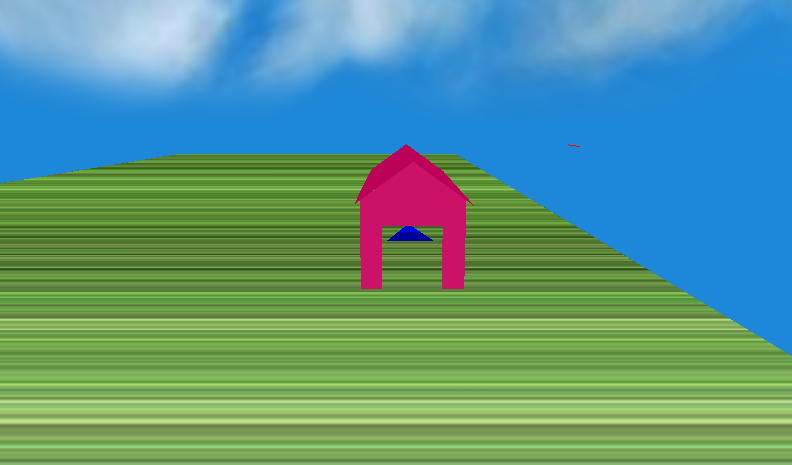

<Viewpoint description='Far Behindorientation='1.0 0.0 0.0 1.37position='-0.3 -11.75 2.52'/>

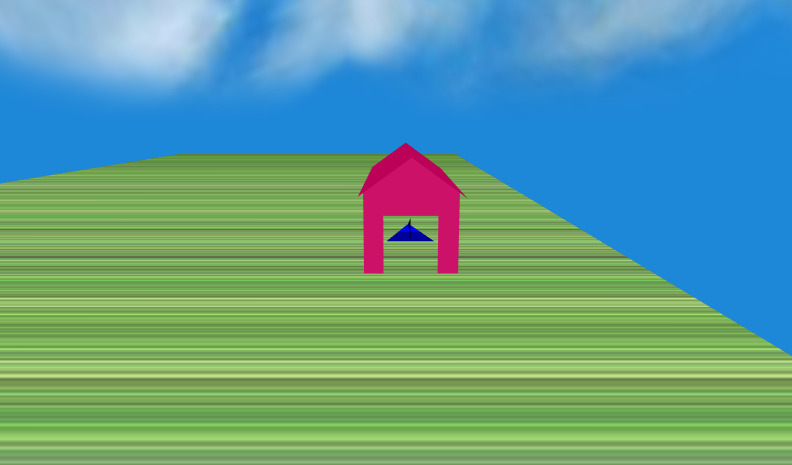

<Viewpoint description='Behindorientation='1.0 0.0 0.0 1.37position='-0.1 -3.7 0.8'/>

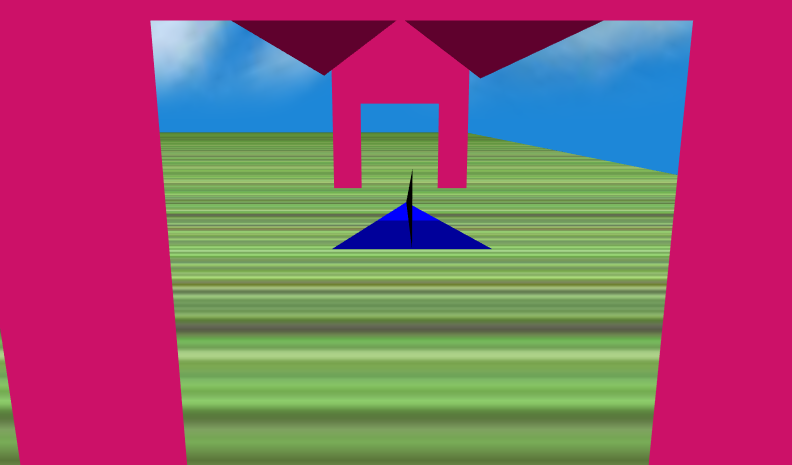

<Viewpoint description='From the Sideorientation='0.294 0.617 0.73 2.673position='5.7 4.0 1.1'/>

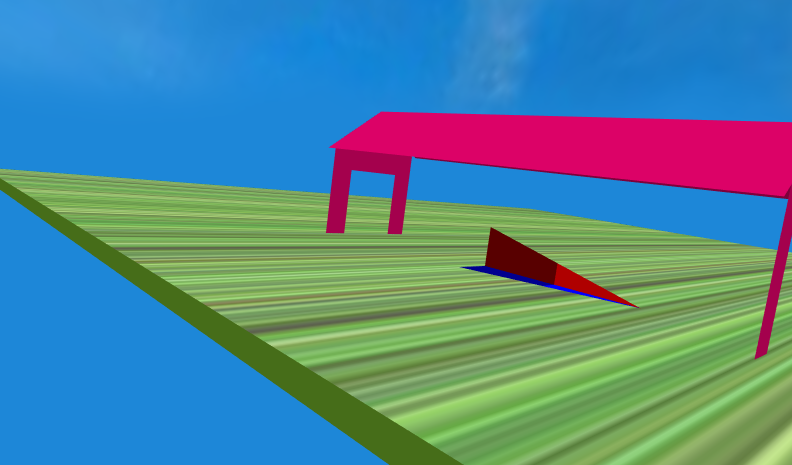

<Viewpoint description='Far from the SidefieldOfView='0.785orientation='0.199 0.493 0.847 2.274position='7.689 3.242 7.885'/>

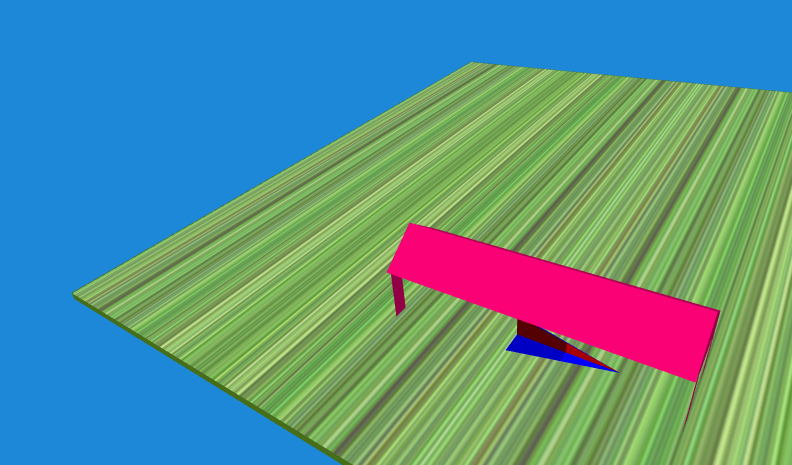

<Viewpoint description='Pilot Vieworientation='1.0 0.0 0.0 1.5position='0.0 0.5 0.3'/>

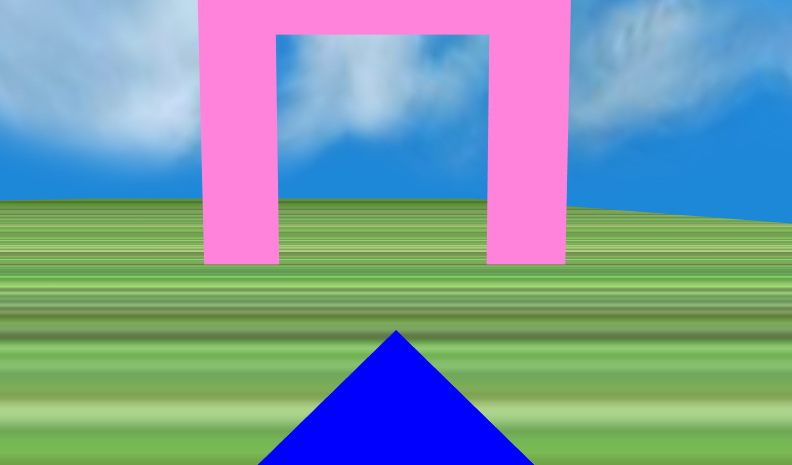

<Viewpoint description='From the FrontfieldOfView='0.785orientation='0.036 0.735 0.677 3.106position='0.353 3.737 0.43'/>

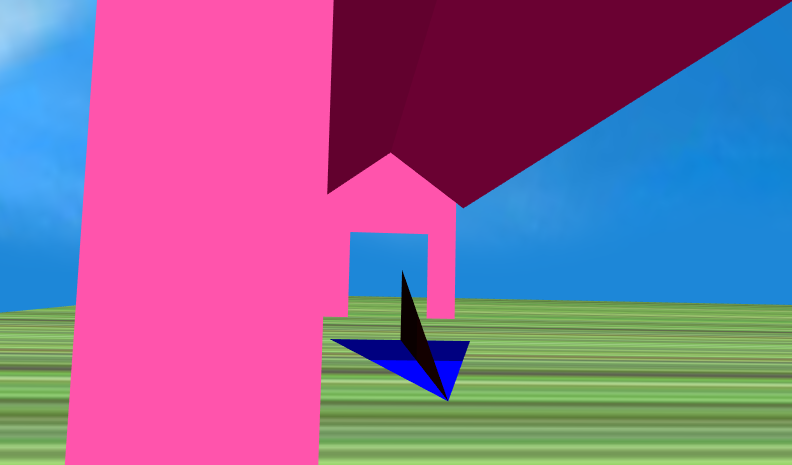

<Viewpoint description='From the Front 2fieldOfView='0.785orientation='0.044 -0.746 -0.664 2.996position='-0.327 3.746 0.357'/>
</Transform>
<!-- ROUTE information for enterWorldTimeSensor node:  [from enterWorldScript.firstTime to set_enabled ] [from time to enterWorldScript.triggerIn ] -->
<TimeSensor DEF='enterWorldTimeSensorloop='truestartTime='1.0'/>
<!-- ROUTE information for enterWorldScript node:  [from enterWorldTimeSensor.time to triggerIn ] [from firstTime to enterWorldTimeSensor.set_enabled ] [from startTime to Time.set_startTime ] -->
<Script DEF='enterWorldScript'>
<field name='triggerIntype='SFTimeaccessType='inputOnly'/>
<field name='startTimetype='SFTimeaccessType='outputOnly'/>
<field name='firstTimetype='SFBoolaccessType='outputOnly'/>
<![CDATA[

ecmascript:
function triggerIn(value, time) {

     // fire off a single round
     startTime = value;
     firstTime = false;
}


]]>
</Script>
<NavigationInfo DEF='NavInfo1type='"EXAMINE"'/>

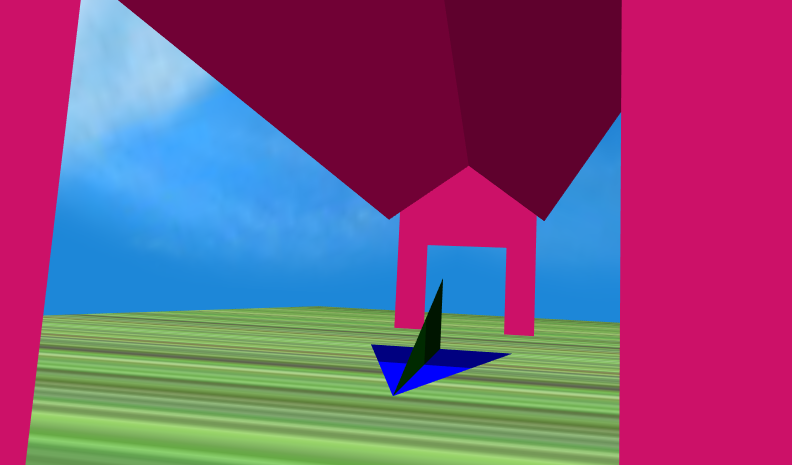

<Viewpoint description='Overvieworientation='-0.0762904 0.961347 0.264559 2.28129position='11.0 6.0 -9.0'/>
<!-- ROUTE information for offsetCoordinates node:  [from TargetVehicle.translation_changed to rawCoordinateIn ] [from offsetCoordinateOut to wingtipCoordinates.set_vehiclePosition ] -->
<Script DEF='offsetCoordinates'>
<field name='offsetFactortype='SFVec3fvalue='0.0 0.717 0.0accessType='initializeOnly'/>
<field name='offsetCoordinateOuttype='SFVec3faccessType='outputOnly'/>
<field name='rawCoordinateIntype='SFVec3faccessType='inputOnly'/>
<![CDATA[

ecmascript:
function rawCoordinateIn(value, time)
{
	offsetCoordinateOut = value.add(offsetFactor);
}


]]>
</Script>
<Transform DEF='Shedscale='1.40933 0.391759 0.391759translation='1.80788 0.281642 -3.97569bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Appearance>
<Material ambientIntensity='0.25diffuseColor='0.374 0.0030 0.176emissiveColor='0.374 0.0030 0.176shininess='0.933333specularColor='0.685 0.685 0.685'/>
</Appearance>
<IndexedFaceSet colorPerVertex='falsecreaseAngle='0.5solid='falsecoordIndex='1 17 14 7 5 13 10 3 -1 2 8 11 12 9 4 19 -1 8 3 10 11 -1 13 5 9 12 -1 17 1 15 18 -1 22 23 24 25 -1 27 26 28 29 -1 6 21 16 18 15 0 20 -1 21 7 14 16 -1'>
<Coordinate point='-1.0 1.0 1.0 -1.0 -1.0 1.0 1.0 1.0 1.0 1.0 -1.0 1.0 1.0 1.0 -1.0 1.0 -1.0 -1.0 -1.0 1.0 -1.0 -1.0 -1.0 -1.0 1.0 0.51827 1.0 1.0 0.518265 -1.0 1.0 -1.0 0.585131 1.0 0.518269 0.585132 1.0 0.518266 -0.563741 1.0 -1.0 -0.56374 -1.0 -1.0 -0.564348 -1.0 0.525568 1.0 -1.0 0.525568 -0.564348 -1.0 -1.0 0.584421 -1.0 0.525568 0.584421 1.0 1.72428 3.12775E-7 -1.0 1.72428 3.12775E-7 -1.0 0.525568 -1.0 -1.0 0.88185 -1.16313 -1.0 1.72428 3.12775E-7 1.0 1.72428 3.12775E-7 1.0 0.88185 -1.16313 -1.0 0.921288 1.10868 -1.0 1.72428 3.12775E-7 1.0 0.921288 1.10868 1.0 1.72428 3.12775E-7'/>
</IndexedFaceSet>
</Shape>
</Transform>
<Transform DEF='MotionTrailLeftbboxCenter='0 0 0bboxSize='-1 -1 -1'>
<!-- ROUTE information for MotionTrailScriptL node:  [from Time.cycleInterval_changed to reset ] [from wingtipCoordinates.leftWingtipCoordinate_changed to set_position ] [from coord_changed to MotionTrailCoordL.set_point ] [from coordIndex_changed to MotionTrailLineSetL.set_coordIndex ] -->
<Script DEF='MotionTrailScriptL'>
<field name='stepCounttype='SFInt32value='1accessType='initializeOnly'/>
<field name='isVisible_changedtype='SFBoolaccessType='outputOnly'/>
<field name='coordIndex_changedtype='MFInt32accessType='outputOnly'/>
<field name='currentIndextype='SFInt32value='0accessType='initializeOnly'/>
<field name='last_timetype='SFTimevalue='0.0accessType='initializeOnly'/>
<field name='distancetype='SFFloatvalue='0.0accessType='initializeOnly'/>
<field name='isActive_changedtype='SFBoolaccessType='outputOnly'/>
<field name='stepSizetype='SFInt32value='1accessType='initializeOnly'/>
<field name='coordIndextype='MFInt32value='-1 -1accessType='initializeOnly'/>
<field name='startIndextype='SFInt32value='0accessType='initializeOnly'/>
<field name='position_changedtype='SFVec3faccessType='outputOnly'/>
<field name='reset_triggertype='SFTimeaccessType='outputOnly'/>
<field name='coord_changedtype='MFVec3faccessType='outputOnly'/>
<field name='current_timetype='SFTimevalue='0.0accessType='initializeOnly'/>
<field name='rotation_changedtype='SFRotationaccessType='outputOnly'/>
<field name='set_isVisibletype='SFBoolaccessType='inputOnly'/>
<field name='last_positiontype='SFVec3fvalue='0.0 0.0 0.0accessType='initializeOnly'/>
<field name='set_isActivetype='SFBoolaccessType='inputOnly'/>
<field name='initial_directiontype='SFVec3fvalue='0.0 0.0 -1.0accessType='initializeOnly'/>
<field name='isVisibletype='SFBoolvalue='trueaccessType='initializeOnly'/>
<field name='coordtype='MFVec3fvalue='0.0 0.0 0.0 1.0 0.0 0.0accessType='initializeOnly'/>
<field name='rotationtype='SFRotationvalue='0.0 0.0 1.0 0.0accessType='initializeOnly'/>
<field name='speed_changedtype='SFFloataccessType='outputOnly'/>
<field name='speedtype='SFFloatvalue='0.0accessType='initializeOnly'/>
<field name='isActivetype='SFBoolvalue='trueaccessType='initializeOnly'/>
<field name='set_positiontype='SFVec3faccessType='inputOnly'/>
<field name='maxPointstype='SFInt32value='50accessType='initializeOnly'/>
<field name='pointCounttype='SFInt32value='0accessType='initializeOnly'/>
<field name='directiontype='SFVec3fvalue='0.0 0.0 0.0accessType='initializeOnly'/>
<field name='resettype='SFTimeaccessType='inputOnly'/>
<field name='positiontype='SFVec3fvalue='0.0 0.0 0.0accessType='initializeOnly'/>
<field name='nullcoordIndextype='MFInt32accessType='initializeOnly'/>
<![CDATA[

ecmascript:
//////////////////////////////////////////////////////////////////////
// author:	-Tom Kaye, Silicon Graphics Inc, 1997 (tomk@sgi.com)
// purpose:	-Generate a polyline tail from a series of coordinates
//		passed into the script (one per clock-tick).
//		Lots of useful auxilliary info is returned as well.
// input:	-a series of position values
// output:	-a polyline consisting of the last maxPoints coordinates
//		passed into the script.
//			- position, orientation and speed of the head
//			  of the motion path
//////////////////////////////////////////////////////////////////////
function initialize()
{
	position[0] = 0;
	position[1] = 0;
	position[2] = 0;
	last_position = position;
	direction = position;
	distance = 0;
	rotation = new SFRotation(initial_direction, direction);
	speed     = 0;
	last_time = 0;
	current_time = 0;
	pointCount = 0;
	stepCount = stepSize;
	currentIndex = 0;
	coord.length = maxPoints;
	coordIndex.length = maxPoints + 3;
	for ( i = 0; i < coordIndex.length; ++i) {
		coordIndex[i] = -1;
	}
}

function reset(value, time)
{
	position[0] = 0;
	position[1] = 0;
	position[2] = 0;
	last_position = position;
	direction = position;
	distance = 0;
	rotation = new SFRotation(initial_direction, direction);
	speed     = 0;
	last_time = 0;
	current_time = 0;
	pointCount = 0;
	stepCount = stepSize;
	currentIndex = 0;
	coord.length = maxPoints;
	coordIndex.length = maxPoints + 3;
	for ( i = 0; i < coordIndex.length; ++i) {
		coordIndex[i] = -1;
	}
}

function set_isVisible(value, time)
{
	isVisible = value;
	isVisible_changed = isVisible;
}

function set_isActive(value, time)
{
	if (value != isActive) {
		isActive = value;
		isActive_changed = isActive;
		if (isActive == true) {
			reset_trigger = time;
		}
	}
}

function set_position(value, time)
{
  last_position = value; 		// a bogus assignment
  if ( isActive ) {

    // skip every stepSize points
    if ( stepCount >= stepSize ) {

	 stepCount = 0;

	// update the coordIndex with as few operations as possible
	if ( pointCount <= maxPoints ) {
		// first pass as tail grows from 0 to maxPoints in length
		// and coordIndex consists of only one polyline
		if ( pointCount < maxPoints ) {
			coordIndex[currentIndex + 1] = currentIndex;
			coordIndex[currentIndex + 2] = -1;
		} else {
			// occurs once: currentIndex == pointCount == maxPoints
			coordIndex[currentIndex + 1] = 0;
			coordIndex[currentIndex + 2] = -1;
			currentIndex = 0;
			coordIndex[currentIndex ] = currentIndex;
			coordIndex[currentIndex + 1] = -1;
		}
	} else {
		// subsequent passes when tail is a constant length of maxPoints
		// and coordIndex consists of two polylines
		if ( currentIndex < maxPoints ) {
			coordIndex[currentIndex]     = currentIndex;
			coordIndex[currentIndex + 1] = -1;
		} else {
			// occurs once each cycle when currentIndex == maxPoints
			coordIndex[currentIndex ]    = 0;
			coordIndex[currentIndex + 1] = -1;
			currentIndex = 0;
			coordIndex[currentIndex ] = currentIndex;
			coordIndex[currentIndex + 1] = -1;
		}
	}


	// save last position  and time to later compute direction and speed
	last_position = position;
	position = value;
	last_time = current_time;
	current_time = time;

	// add the new position to the coordinate array ring-buffer
	coord[currentIndex] = position;
	position_changed = position; 	// echo position value as an output



	// compute direction based on last two points passed in
	direction = position.subtract(last_position);
	distance = direction.length();

	// compute a new rotation only if there has been some finite movement
	if ( distance >= 0.00001 ) {
			rotation = new SFRotation(initial_direction, direction);
	}

	// Compute speed and output results only if two or more points have been
	// passed in since initialization or last reset
	if ( pointCount >= 1 ) {

		// compute speed
		speed = distance / (current_time - last_time);
		rotation_changed = rotation;
		speed_changed = speed;

		// outpout the coord and coordIndex arrays only when appropriate
		if (isVisible ) {
			coord_changed = coord;
			coordIndex_changed = coordIndex;
		} else {
			coordIndex_changed = nullcoordIndex;
		}

	}

	// increment the appropriate counters
	currentIndex += 1;	// cycles between 0 and maxPoints (length of tail)
	pointCount += 1;	// total number of points processed since reset

    }  // end stepCount block

    stepCount += 1;
  }
}


]]>
</Script>
<Transform DEF='MotionTrailLineLbboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Appearance>
<Material ambientIntensity='0.0diffuseColor='0.0 0.0 0.0emissiveColor='1.0 0.0 0.0shininess='0.0510204specularColor='0.622449 0.622449 0.622449'/>
</Appearance>
<!-- ROUTE information for MotionTrailLineSetL node:  [from MotionTrailScriptL.coordIndex_changed to set_coordIndex ] -->
<IndexedLineSet DEF='MotionTrailLineSetLcoordIndex='0 1 -1'>
<!-- ROUTE information for MotionTrailCoordL node:  [from MotionTrailScriptL.coord_changed to set_point ] -->
<Coordinate DEF='MotionTrailCoordLpoint='0.0 0.0 0.0 1.0 0.0 0.0'/>
</IndexedLineSet>
</Shape>
</Transform>
</Transform>
<Transform DEF='MotionTrailRightbboxCenter='0 0 0bboxSize='-1 -1 -1'>
<!-- ROUTE information for MotionTrailScriptR node:  [from Time.cycleInterval_changed to reset ] [from wingtipCoordinates.rightWingtipCoordinate_changed to set_position ] [from coord_changed to MotionTrailCoordR.set_point ] [from coordIndex_changed to MotionTrailLineSetR.set_coordIndex ] -->
<Script DEF='MotionTrailScriptR'>
<field name='stepCounttype='SFInt32value='1accessType='initializeOnly'/>
<field name='isVisible_changedtype='SFBoolaccessType='outputOnly'/>
<field name='coordIndex_changedtype='MFInt32accessType='outputOnly'/>
<field name='currentIndextype='SFInt32value='0accessType='initializeOnly'/>
<field name='last_timetype='SFTimevalue='0.0accessType='initializeOnly'/>
<field name='distancetype='SFFloatvalue='0.0accessType='initializeOnly'/>
<field name='isActive_changedtype='SFBoolaccessType='outputOnly'/>
<field name='stepSizetype='SFInt32value='1accessType='initializeOnly'/>
<field name='coordIndextype='MFInt32value='-1 -1accessType='initializeOnly'/>
<field name='startIndextype='SFInt32value='0accessType='initializeOnly'/>
<field name='position_changedtype='SFVec3faccessType='outputOnly'/>
<field name='reset_triggertype='SFTimeaccessType='outputOnly'/>
<field name='coord_changedtype='MFVec3faccessType='outputOnly'/>
<field name='current_timetype='SFTimevalue='0.0accessType='initializeOnly'/>
<field name='rotation_changedtype='SFRotationaccessType='outputOnly'/>
<field name='set_isVisibletype='SFBoolaccessType='inputOnly'/>
<field name='last_positiontype='SFVec3fvalue='0.0 0.0 0.0accessType='initializeOnly'/>
<field name='set_isActivetype='SFBoolaccessType='inputOnly'/>
<field name='initial_directiontype='SFVec3fvalue='0.0 0.0 -1.0accessType='initializeOnly'/>
<field name='isVisibletype='SFBoolvalue='trueaccessType='initializeOnly'/>
<field name='coordtype='MFVec3fvalue='0.0 0.0 0.0 1.0 0.0 0.0accessType='initializeOnly'/>
<field name='rotationtype='SFRotationvalue='0.0 0.0 1.0 0.0accessType='initializeOnly'/>
<field name='speed_changedtype='SFFloataccessType='outputOnly'/>
<field name='speedtype='SFFloatvalue='0.0accessType='initializeOnly'/>
<field name='isActivetype='SFBoolvalue='trueaccessType='initializeOnly'/>
<field name='set_positiontype='SFVec3faccessType='inputOnly'/>
<field name='maxPointstype='SFInt32value='50accessType='initializeOnly'/>
<field name='pointCounttype='SFInt32value='0accessType='initializeOnly'/>
<field name='directiontype='SFVec3fvalue='0.0 0.0 0.0accessType='initializeOnly'/>
<field name='resettype='SFTimeaccessType='inputOnly'/>
<field name='positiontype='SFVec3fvalue='0.0 0.0 0.0accessType='initializeOnly'/>
<field name='nullcoordIndextype='MFInt32accessType='initializeOnly'/>
<![CDATA[

ecmascript:
//////////////////////////////////////////////////////////////////////
// author:	-Tom Kaye, Silicon Graphics Inc, 1997 (tomk@sgi.com)
// purpose:	-Generate a polyline tail from a series of coordinates
//		passed into the script (one per clock-tick).
//		Lots of useful auxilliary info is returned as well.
// input:	-a series of position values
// output:	-a polyline consisting of the last maxPoints coordinates
//		passed into the script.
//			- position, orientation and speed of the head
//			  of the motion path
//////////////////////////////////////////////////////////////////////
function initialize()
{
	position[0] = 0;
	position[1] = 0;
	position[2] = 0;
	last_position = position;
	direction = position;
	distance = 0;
	rotation = new SFRotation(initial_direction, direction);
	speed     = 0;
	last_time = 0;
	current_time = 0;
	pointCount = 0;
	stepCount = stepSize;
	currentIndex = 0;
	coord.length = maxPoints;
	coordIndex.length = maxPoints + 3;
	for ( i = 0; i < coordIndex.length; ++i) {
		coordIndex[i] = -1;
	}
}

function reset(value, time)
{
	position[0] = 0;
	position[1] = 0;
	position[2] = 0;
	last_position = position;
	direction = position;
	distance = 0;
	rotation = new SFRotation(initial_direction, direction);
	speed     = 0;
	last_time = 0;
	current_time = 0;
	pointCount = 0;
	stepCount = stepSize;
	currentIndex = 0;
	coord.length = maxPoints;
	coordIndex.length = maxPoints + 3;
	for ( i = 0; i < coordIndex.length; ++i) {
		coordIndex[i] = -1;
	}
}

function set_isVisible(value, time)
{
	isVisible = value;
	isVisible_changed = isVisible;
}

function set_isActive(value, time)
{
	if (value != isActive) {
		isActive = value;
		isActive_changed = isActive;
		if (isActive == true) {
			reset_trigger = time;
		}
	}
}

function set_position(value, time)
{
  last_position = value; 		// a bogus assignment
  if ( isActive ) {

    // skip every stepSize points
    if ( stepCount >= stepSize ) {

	 stepCount = 0;

	// update the coordIndex with as few operations as possible
	if ( pointCount <= maxPoints ) {
		// first pass as tail grows from 0 to maxPoints in length
		// and coordIndex consists of only one polyline
		if ( pointCount < maxPoints ) {
			coordIndex[currentIndex + 1] = currentIndex;
			coordIndex[currentIndex + 2] = -1;
		} else {
			// occurs once: currentIndex == pointCount == maxPoints
			coordIndex[currentIndex + 1] = 0;
			coordIndex[currentIndex + 2] = -1;
			currentIndex = 0;
			coordIndex[currentIndex ] = currentIndex;
			coordIndex[currentIndex + 1] = -1;
		}
	} else {
		// subsequent passes when tail is a constant length of maxPoints
		// and coordIndex consists of two polylines
		if ( currentIndex < maxPoints ) {
			coordIndex[currentIndex]     = currentIndex;
			coordIndex[currentIndex + 1] = -1;
		} else {
			// occurs once each cycle when currentIndex == maxPoints
			coordIndex[currentIndex ]    = 0;
			coordIndex[currentIndex + 1] = -1;
			currentIndex = 0;
			coordIndex[currentIndex ] = currentIndex;
			coordIndex[currentIndex + 1] = -1;
		}
	}

	// save last position  and time to later compute direction and speed
	last_position = position;
	position = value;
	last_time = current_time;
	current_time = time;

	// add the new position to the coordinate array ring-buffer
	coord[currentIndex] = position;
	position_changed = position; 	// echo position value as an output

	// compute direction based on last two points passed in
	direction = position.subtract(last_position);
	distance = direction.length();

	// compute a new rotation only if there has been some finite movement
	if ( distance >= 0.00001 ) {
			rotation = new SFRotation(initial_direction, direction);
	}

	// Compute speed and output results only if two or more points have been
	// passed in since initialization or last reset
	if ( pointCount >= 1 ) {

		// compute speed
		speed = distance / (current_time - last_time);
		rotation_changed = rotation;
		speed_changed = speed;

		// outpout the coord and coordIndex arrays only when appropriate
		if (isVisible ) {
			coord_changed = coord;
			coordIndex_changed = coordIndex;
		} else {
			coordIndex_changed = nullcoordIndex;
		}

	}

	// increment the appropriate counters
	currentIndex += 1;	// cycles between 0 and maxPoints (length of tail)
	pointCount += 1;	// total number of points processed since reset

    }  // end stepCount block

    stepCount += 1;
  }
}


]]>
</Script>
<Transform DEF='MotionTrailLineRbboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Shape bboxCenter='0 0 0bboxSize='-1 -1 -1'>
<Appearance>
<Material ambientIntensity='0.0diffuseColor='0.0 0.0 0.0emissiveColor='0.0 1.0 0.168349shininess='0.0510204specularColor='0.622449 0.622449 0.622449'/>
</Appearance>
<!-- ROUTE information for MotionTrailLineSetR node:  [from MotionTrailScriptR.coordIndex_changed to set_coordIndex ] -->
<IndexedLineSet DEF='MotionTrailLineSetRcoordIndex='0 1 -1'>
<!-- ROUTE information for MotionTrailCoordR node:  [from MotionTrailScriptR.coord_changed to set_point ] -->
<Coordinate DEF='MotionTrailCoordRpoint='0.0 0.0 0.0 1.0 0.0 0.0'/>
</IndexedLineSet>
</Shape>
</Transform>
</Transform>
<!-- ROUTE information for wingtipCoordinates node:  [from offsetCoordinates.offsetCoordinateOut to set_vehiclePosition ] [from TargetVehicle.rotation_changed to set_vehicleRotation ] [from leftWingtipCoordinate_changed to MotionTrailScriptL.set_position ] [from rightWingtipCoordinate_changed to MotionTrailScriptR.set_position ] -->
<Script DEF='wingtipCoordinates'>
<field name='leftWingtipCoordinate_changedtype='SFVec3faccessType='outputOnly'/>
<field name='set_vehicleRotationtype='SFRotationaccessType='inputOnly'/>
<field name='vehiclePositiontype='SFVec3fvalue='0.0 0.0 0.0accessType='initializeOnly'/>
<field name='rightOffsetVectortype='SFVec3fvalue='0.25 -0.5 0.0accessType='initializeOnly'/>
<field name='leftOffsetVectortype='SFVec3fvalue='-0.25 -0.5 0.0accessType='initializeOnly'/>
<field name='rightWingtipCoordinate_changedtype='SFVec3faccessType='outputOnly'/>
<field name='set_vehiclePositiontype='SFVec3faccessType='inputOnly'/>
<field name='vehicleRotationtype='SFRotationvalue='0.0 0.0 1.0 0.0accessType='initializeOnly'/>
<![CDATA[

ecmascript:
//////////////////////////////////////////////////////////////////////
// author:	Tom Kaye, Silicon Graphics Inc, 1997 (tomk@sgi.com)
// purpose:	Generate absolute WingTip coordinates from a single
//		position and rotation value.
// input:	position and rotation of a vehicle
// output:	absolute coordinates of left and right wingtips
//////////////////////////////////////////////////////////////////////
function set_vehiclePosition(value, time)
{
	vehiclePosition = value;
	rightWingtipCoordinate_changed = vehiclePosition.add( vehicleRotation.multVec(rightOffsetVector) );
	leftWingtipCoordinate_changed  = vehiclePosition.add( vehicleRotation.multVec(leftOffsetVector) );

}

function set_vehicleRotation(value, time)
{
	vehicleRotation = value;
}


]]>
</Script>
<ROUTE fromNode='enterWorldScriptfromField='firstTimetoNode='enterWorldTimeSensortoField='set_enabled'/>
<ROUTE fromNode='enterWorldTimeSensorfromField='timetoNode='enterWorldScripttoField='triggerIn'/>
<ROUTE fromNode='TargetVehiclefromField='translation_changedtoNode='offsetCoordinatestoField='rawCoordinateIn'/>
<ROUTE fromNode='TimefromField='cycleInterval_changedtoNode='MotionTrailScriptLtoField='reset'/>
<ROUTE fromNode='wingtipCoordinatesfromField='leftWingtipCoordinate_changedtoNode='MotionTrailScriptLtoField='set_position'/>
<ROUTE fromNode='MotionTrailScriptLfromField='coord_changedtoNode='MotionTrailCoordLtoField='set_point'/>
<ROUTE fromNode='MotionTrailScriptLfromField='coordIndex_changedtoNode='MotionTrailLineSetLtoField='set_coordIndex'/>
<ROUTE fromNode='TimefromField='cycleInterval_changedtoNode='MotionTrailScriptRtoField='reset'/>
<ROUTE fromNode='wingtipCoordinatesfromField='rightWingtipCoordinate_changedtoNode='MotionTrailScriptRtoField='set_position'/>
<ROUTE fromNode='MotionTrailScriptRfromField='coord_changedtoNode='MotionTrailCoordRtoField='set_point'/>
<ROUTE fromNode='MotionTrailScriptRfromField='coordIndex_changedtoNode='MotionTrailLineSetRtoField='set_coordIndex'/>
<ROUTE fromNode='offsetCoordinatesfromField='offsetCoordinateOuttoNode='wingtipCoordinatestoField='set_vehiclePosition'/>
<ROUTE fromNode='TargetVehiclefromField='rotation_changedtoNode='wingtipCoordinatestoField='set_vehicleRotation'/>
<ROUTE fromNode='enterWorldScriptfromField='startTimetoNode='TimetoField='set_startTime'/>
<ROUTE fromNode='TimefromField='fraction_changedtoNode='TargetVehicleTranslationInterptoField='set_fraction'/>
<ROUTE fromNode='TimefromField='fraction_changedtoNode='TargetVehicleRotationInterptoField='set_fraction'/>
<ROUTE fromNode='TargetVehicleTranslationInterpfromField='value_changedtoNode='TargetVehicletoField='set_translation'/>
<ROUTE fromNode='TargetVehicleRotationInterpfromField='value_changedtoNode='TargetVehicletoField='set_rotation'/>
</Scene>
</X3D>
<!--

Index for DEF nodes : _4, AircraftObject, AppFromBelow, BottomWhite, CoasterAnim, CubePoints, enterWorldScript, enterWorldTimeSensor, GroundEdges, GroundPlane, GroundPlaneFromBelow, LeftSideGreen, MatFromBelow, MotionTrailCoordL, MotionTrailCoordR, MotionTrailLeft, MotionTrailLineL, MotionTrailLineR, MotionTrailLineSetL, MotionTrailLineSetR, MotionTrailRight, MotionTrailScriptL, MotionTrailScriptR, NavInfo1, offsetCoordinates, RightSideRed, Shed, TargetVehicle, TargetVehicleRotationInterp, TargetVehicleTranslationInterp, TexGrass, TexTransGrass, Texturizer, Time, TopBlue, wingtipCoordinates

Index for Viewpoint images : Viewpoint_1, Viewpoint_2, Viewpoint_3, Viewpoint_4, Viewpoint_5, Viewpoint_6, Viewpoint_7, Viewpoint_8
-->

<!-- Color key: <X3dNode DEF='idName' field='value'/> matches <XmlElement DEF='idName' attribute='value'/>
(Light blue background: behavior node) (Grey background: inserted documentation) (Magenta background: X3D Extensibility)
-->

<!-- Additional help information about X3D scenes: X3D Resources, X3D Scene Authoring Hints and X3D Tooltips -->
