X3D Model Documentation: ElevationGridSimpleWaveAnimation.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2  <!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
  3  <X3D profile='Immersive' version='3.3'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.3.xsd'>
  4       <head>
  5            <meta name='title' content=' ElevationGridSimpleWaveAnimation.x3d '/>
  6            <meta name='description' content='Simple Javascript animation of ElevationGrid'/>
  7            <meta name='creator' content='Don Brutzman'/>
  8            <meta name='created' content='2 December 2012'/>
  9            <meta name='modified' content='20 October 2019'/>

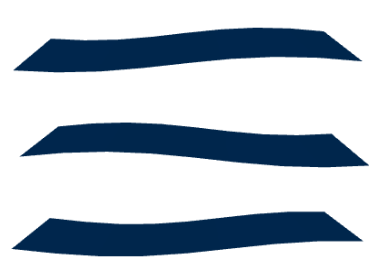

 10            <meta name='Image' content='ElevationGridSimpleWaveAnimation.png'/>
 11            <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter09EventUtilitiesScripting/ElevationGridSimpleWaveAnimation.x3d '/>
 12            <meta name='generator' content='X3D-Edit 3.3, https://www.web3d.org/x3d/tools/X3D-Edit'/>
 13            <meta name='license' content='../license.html'/>
 14       </head>
<!--
<!--
Event Graph ROUTE Table shows event connections.
-->
<!-- to top DEF nodes index: Clock, GridSurface, WaveGenerationScript

Index for Viewpoint node: Viewpoint_1
-->
 15       <Scene>
 16            <WorldInfo title='ElevationGridSimpleWaveAnimation.x3d'/>
 17            <Viewpoint description='Wave view' orientation='1 0 0 -0.358771' position='0 3 8'/>
 18            <Background groundColor='1 1 1' skyColor='1 1 1'/>
 19            <!-- Shift zero-based ElevationGrid to left, centering it -->
 20            <Transform translation='-4 0 0'>
 21                 <Shape>
 22
                    <!-- ROUTE information for GridSurface node:  [from WaveGenerationScript.gridOutput to set_height ] -->
                     <ElevationGrid DEF='GridSurface' solid='false' xDimension='9' zDimension='3' height='0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0'/>
 23                      <Appearance>
 24                           <Material diffuseColor='0 0.5 1'/>
 25                      </Appearance>
 26                 </Shape>
 27            </Transform>
 28
          <!-- ROUTE information for Clock node:  [from fraction_changed to WaveGenerationScript.newInputValue ] -->
           <TimeSensor DEF='Clock' cycleInterval='5' loop='true'/>
 29
          <!-- ROUTE information for WaveGenerationScript node:  [from Clock.fraction_changed to newInputValue ] [from gridOutput to GridSurface.set_height ] -->
           <Script DEF='WaveGenerationScript'>
 30                 <field name='newInputValue' type='SFFloat' accessType='inputOnly'
                appinfo='provide value and trigger new computation'/>
 31                 <field name='gridOutput' type='MFFloat' accessType='outputOnly'
                appinfo='provide values to ElevationGrid'/>
 32                 <field name='waveStep' type='SFTime' value='0.1' accessType='initializeOnly'
                appinfo='wave variation'/>
  <![CDATA[

ecmascript:

function newInputValue (eventValue)
{
   fraction = eventValue; // connected by ROUTE, receives values from TimeSensor Clock fraction_changed

   value0 = 0.2 * Math.sin (2 * Math.PI * (fraction - 4*waveStep));
   value1 = 0.2 * Math.sin (2 * Math.PI * (fraction - 3*waveStep));
   value2 = 0.2 * Math.sin (2 * Math.PI * (fraction - 2*waveStep));
   value3 = 0.2 * Math.sin (2 * Math.PI * (fraction -   waveStep));
   value4 = 0.2 * Math.sin (2 * Math.PI * (fraction             ));
   value5 = 0.2 * Math.sin (2 * Math.PI * (fraction +   waveStep));
   value6 = 0.2 * Math.sin (2 * Math.PI * (fraction + 2*waveStep));
   value7 = 0.2 * Math.sin (2 * Math.PI * (fraction + 3*waveStep));
   value8 = 0.2 * Math.sin (2 * Math.PI * (fraction + 4*waveStep));

   // setting the gridOutput value creates an output event that is connected via ROUTE to the ElevationGrid set_height field.
   // note that types match (MFFloat) and accessTypes also match (output_only connects to inputOnly).
   gridOutput = new MFFloat (
		value0, value1, value2, value3, value4, value5, value6, value7, value8,
		value0, value1, value2, value3, value4, value5, value6, value7, value8,
		value0, value1, value2, value3, value4, value5, value6, value7, value8 );
}
]]>
 34            </Script>
 35            < ROUTE  fromNode='Clock' fromField='fraction_changed' toNode='WaveGenerationScript' toField='newInputValue'/>
 36            < ROUTE  fromNode='WaveGenerationScript' fromField='gridOutput' toNode='GridSurface' toField='set_height'/>
 37       </Scene>
 38  </X3D>
<!--
<!--
Event Graph ROUTE Table shows event connections.
-->
<!-- to top DEF nodes index: Clock, GridSurface, WaveGenerationScript

Index for Viewpoint node: Viewpoint_1
-->
X3D Tooltips element index: Appearance, Background, ElevationGrid, field, head, Material, meta, ROUTE, Scene, Script, Shape, TimeSensor, Transform, Viewpoint, WorldInfo, X3D, plus documentation for accessType definitions, type definitions, XML data types, and field types

Event Graph ROUTE Table entries with 2 ROUTE connections total, showing X3D event-model relationships for this scene.

Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.

Clock
TimeSensor
fraction_changed
SFFloat
→
ROUTE
event to
(1)
WaveGenerationScript
Script
newInputValue
SFFloat 		then


  		WaveGenerationScript
Script
gridOutput
MFFloat
→
ROUTE
event to
(2)
GridSurface
ElevationGrid
set_height
MFFloat


Additional guidance on X3D animation can be found in the 10-Step Animation Design Process and Event Tracing hint sheets. Have fun with X3D! 😀
-->
