FiftyCaliberGunFiring.x3d (X3dToXhtml listing)

ecmascript: // Author: Claudio Coreixas // Created: 19 November 2009 function SFVec3fY_SFFloat (value) { SFFloat_Yout = 30 * value[1]; }

ecmascript: // Author: Claudio Coreixas // Created: 19 November 2009 function SFVec3fY_SFFloat (value) { SFFloat_Yout = 10 * value[1]; }

Event Graph ROUTE Table entries with 14 ROUTE connections total, showing X3D event-model relationships for this scene.

Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.

MovementTimer TimeSensor fraction_changed SFFloat	→ ROUTE event to (1)	MovetheShip PositionInterpolator set_fraction SFFloat	then	MovetheShip PositionInterpolator value_changed SFVec3f	→ ROUTE event to (2)	Ship3 Transform translation SFVec3f
MovementTimer TimeSensor fraction_changed SFFloat	→ ROUTE event to (1)	SpinTheShip OrientationInterpolator set_fraction SFFloat	then	SpinTheShip OrientationInterpolator value_changed SFRotation	→ ROUTE event to (2)	Ship Transform rotation SFRotation
MovementTimer TimeSensor fraction_changed SFFloat	→ ROUTE event to (1)	SpinTheShip2 OrientationInterpolator set_fraction SFFloat	then	SpinTheShip2 OrientationInterpolator value_changed SFRotation	→ ROUTE event to (2)	Ship2 Transform rotation SFRotation

spintTimer
TimeSensor
fraction_changed
SFFloat

→
ROUTE
event to
(1)

SpinTheShip3
OrientationInterpolator
set_fraction
SFFloat

then

SpinTheShip3
OrientationInterpolator
value_changed
SFRotation

→
ROUTE
event to
(2)

Ship4
Transform
rotation
SFRotation

dimmerAmplitude PlaneSensor translation_changed SFVec3f	→ ROUTE event to (1)	Converter Script SFVec3fY_SFFloat SFVec3f	then	Converter Script SFFloat_Yout SFFloat	→ ROUTE event to (2)	gunLight SpotLight intensity SFFloat
dimmerAmplitude PlaneSensor translation_changed SFVec3f	→ ROUTE event to (1)	dimmerLightGunBox Transform translation SFVec3f

dimmerGeneralLightAmplitude PlaneSensor translation_changed SFVec3f	→ ROUTE event to (1)	Converter2 Script SFVec3fY_SFFloat SFVec3f	then	Converter2 Script SFFloat_Yout SFFloat	→ ROUTE event to (2)	generalLight PointLight intensity SFFloat
dimmerGeneralLightAmplitude PlaneSensor translation_changed SFVec3f	→ ROUTE event to (1)	dimmerGeneralLight Transform translation SFVec3f

Additional guidance on X3D animation can be found in the 10-Step Animation Design Process and Event Tracing hint sheets. Have fun with X3D! 😀

1	`<?xml version="1.0" encoding="UTF-8"?>`
2	`<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.2//EN" "https://www.web3d.org/specifications/x3d-3.2.dtd">`
3	<X3D profile='Immersive' version='3.2' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.2.xsd'>
4	<head>
5	<meta name='title' content=' FiftyCaliberGunFiring.x3d '/>
6	<meta name='description' content='Brazilian Naval Academy Training Ship 50cal firing against other Ship during night'/>
7	<meta name='creator' content='Claudio Coreixas'/>
8	<meta name='created' content='20 October 2009'/>
9	<meta name='modified' content='20 October 2019'/>
10	<meta name='reference' content='http://www.en.mar.mil.br'/>
11	<meta name='subject' content='ships'/>
12	<meta name='info' content='Headlight is off, lighting is controlled when shooting'/>
13	<meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Savage/ShipsMilitary/PatrolCraft-NavalAcademy-Brazil/FiftyCaliberGunFiring.x3d '/>
14	<meta name='generator' content='X3D-Edit, https://www.web3d.org/x3d/tools/X3D-Edit'/>
15	<meta name='license' content='../../license.html'/>
16	</head>

17	<Scene>
18	<Sound maxBack='100' maxFront='100'>
19	<AudioClip DEF='boat' description='licensed from http://www.1soundfx.com/infopage.php#license' loop='true' url=' "boatSoundedit.wav" "https://www.web3d.org/x3d/content/examples/Savage/ShipsMilitary/PatrolCraft-NavalAcademy-Brazil/boatSoundedit.wav" '/>
20	</Sound>
21	<NavigationInfo headlight='false' type='"EXAMINE"'/>
22	<WorldInfo info='"an Butakov MOB scene"' title='Butakov'/>
23	<Background skyAngle='0.7 0' skyColor='0.478431 0.160784 1 0.701961 0.776471 1 0.380392 0.384314 1'/>
24	<Viewpoint description='top' orientation='1 0 0 -1.57' position='0 20 0'/>
25	<!-- ROUTE information for MovementTimer node: [from fraction_changed to MovetheShip.set_fraction ] [from fraction_changed to SpinTheShip.set_fraction ] [from fraction_changed to SpinTheShip2.set_fraction ] --> <TimeSensor DEF='MovementTimer' cycleInterval='60' loop='true'/>
26	<!-- ROUTE information for spintTimer node: [from fraction_changed to SpinTheShip3.set_fraction ] --> <TimeSensor DEF='spintTimer' cycleInterval='4' loop='true'/>
27	<!-- ROUTE information for MovetheShip node: [from MovementTimer.fraction_changed to set_fraction ] [from value_changed to Ship3.translation ] --> <PositionInterpolator DEF='MovetheShip' key='0 0.0625 0.125 0.1875 0.25 0.3125 0.375 0.4375 0.5 0.5625 0.625 0.6875 0.75 0.8125 0.875 0.9375 1' keyValue='10.00 0.00 0.00 9.24 0.00 3.82 7.07 0.00 7.07 3.83 0.00 9.24 0.01 0.00 10.00 -3.82 0.00 9.24 -7.06 0.00 7.08 -9.23 0.00 3.84 -10.00 0.00 0.02 -9.25 0.00 -3.81 -7.09 0.00 -7.06 -3.85 0.00 -9.23 -0.02 0.00 -10.00 3.80 0.00 -9.25 7.05 0.00 -7.09 9.23 0.00 -3.85 10.00 0.00 0.00'/>
28	< ROUTE fromNode='MovementTimer' fromField='fraction_changed' toNode='MovetheShip' toField='set_fraction'/>
29	<!-- ROUTE information for SpinTheShip node: [from MovementTimer.fraction_changed to set_fraction ] [from value_changed to Ship.rotation ] --> <OrientationInterpolator DEF='SpinTheShip' key='0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1' keyValue='1 0 0 0 1 0 0 -0.2 1 0 0 -0.1 1 0 0 -0.05 1 0 0 -0 1 0 0 -0.06 1 0 0 -0.07 1 0 0 -0.1 1 0 0 -0.12 1 0 0 -0.18 1 0 0 0'/>
30	< ROUTE fromNode='MovementTimer' fromField='fraction_changed' toNode='SpinTheShip' toField='set_fraction'/>
31	<!-- ROUTE information for SpinTheShip2 node: [from MovementTimer.fraction_changed to set_fraction ] [from value_changed to Ship2.rotation ] --> <OrientationInterpolator DEF='SpinTheShip2' key='0 0.25 0.5 0.75 1' keyValue='0 1 0 -1.57 0 1 0 -3.14 0 1 0 -4.71 0 1 0 0 0 1 0 -1.57'/>
32	< ROUTE fromNode='MovementTimer' fromField='fraction_changed' toNode='SpinTheShip2' toField='set_fraction'/>
33	<!-- ROUTE information for SpinTheShip3 node: [from spintTimer.fraction_changed to set_fraction ] [from value_changed to Ship4.rotation ] --> <OrientationInterpolator DEF='SpinTheShip3' key='0 0.5 1' keyValue='0 0 1 -0.05 0 0 1 0.05 0 0 1 -0.05'/>
34	< ROUTE fromNode='spintTimer' fromField='fraction_changed' toNode='SpinTheShip3' toField='set_fraction'/>
35	<!-- ROUTE information for Ship3 node: [from MovetheShip.value_changed to translation ] --> <Transform DEF='Ship3'>
36	< ROUTE fromNode='MovetheShip' fromField='value_changed' toNode='Ship3' toField='translation'/>
37	<Viewpoint description='top Moving' orientation='1 0 0 -1.57079' position='0 3 0'/>
38	<!-- ROUTE information for Ship2 node: [from SpinTheShip2.value_changed to rotation ] --> <Transform DEF='Ship2'>
39	< ROUTE fromNode='SpinTheShip2' fromField='value_changed' toNode='Ship2' toField='rotation'/>
40	<Viewpoint description='Stern' orientation='0 1 0 -1.57' position='-3 0.5 0'/>
41	<Viewpoint description='bow' orientation='0 1 0 1.57' position='3 0.5 0'/>

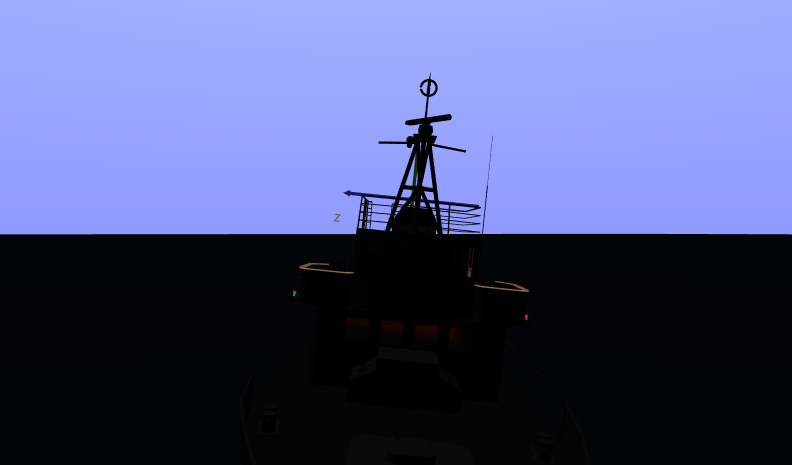

42	<Viewpoint description='bowClose' orientation='0 1 0 1.57' position='1 0.3 0'/>

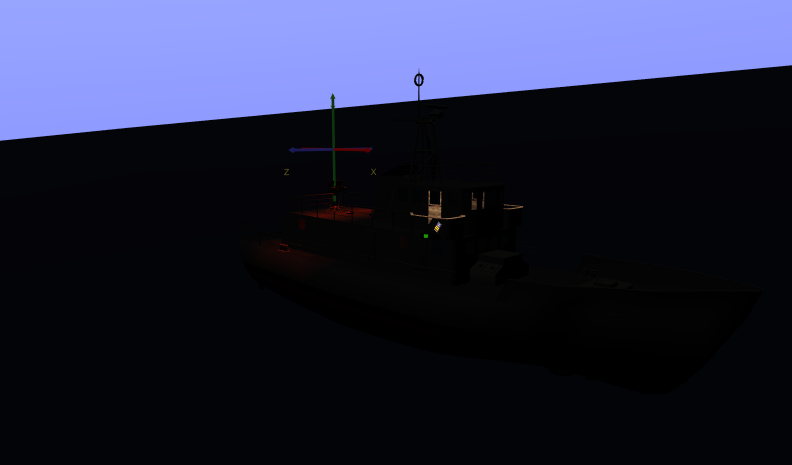

43	<Viewpoint description='stb Bow' orientation='-0.3162 0.9487 0 0.8117' position='1 0.5 1'/>

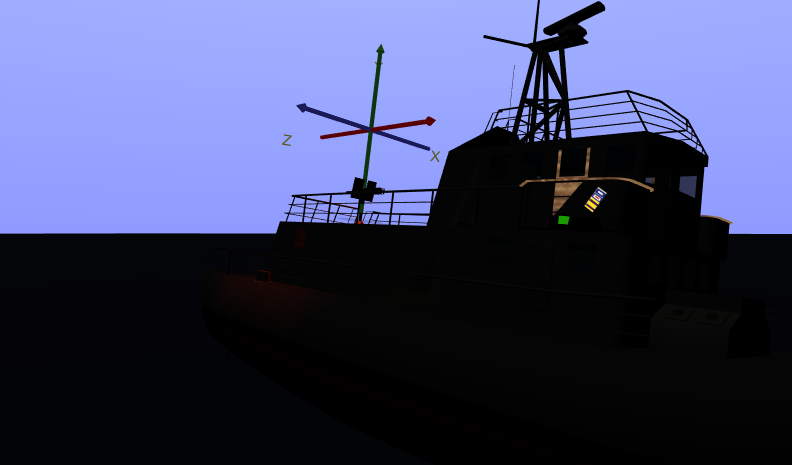

44	<Viewpoint description='stb Bridge Outside' orientation='0 0.6247 0 0.8179' position='0.5 0.2 0.6'/>
45	<Viewpoint description='port Bow' orientation='0 0.9487 0 2.3299' position='1.5 0.5 -1.5'/>

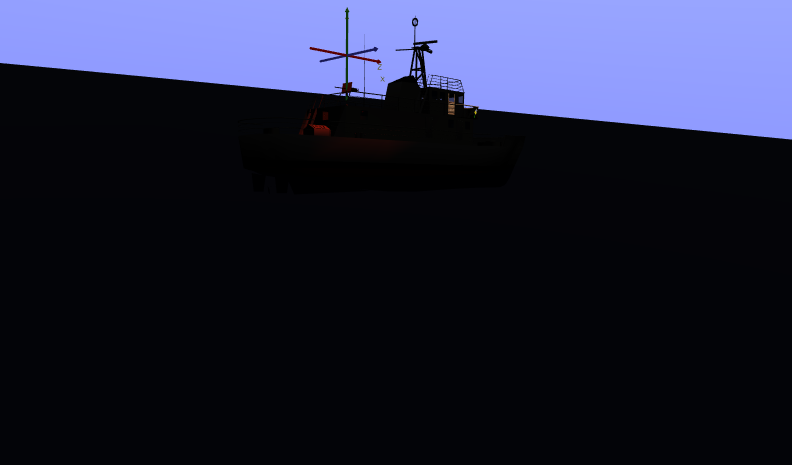

46	<Viewpoint description='stb Quarter' orientation='-0.3162 -0.9487 0 0.8117' position='-1.5 0.25 1.5'/>
47	<Viewpoint description='port Quarter' orientation='0 -0.9487 0 2.3299' position='-1.5 0.25 -1.5'/>
48	<!-- ROUTE information for Ship node: [from SpinTheShip.value_changed to rotation ] --> <Transform DEF='Ship'>
49	< ROUTE fromNode='SpinTheShip' fromField='value_changed' toNode='Ship' toField='rotation'/>
50	<Viewpoint description='StbRudder' orientation='0 1 0 -1.57' position='-0.9 -0.1 0.14'/>
51	<!-- ROUTE information for Ship4 node: [from SpinTheShip3.value_changed to rotation ] --> <Transform DEF='Ship4'>

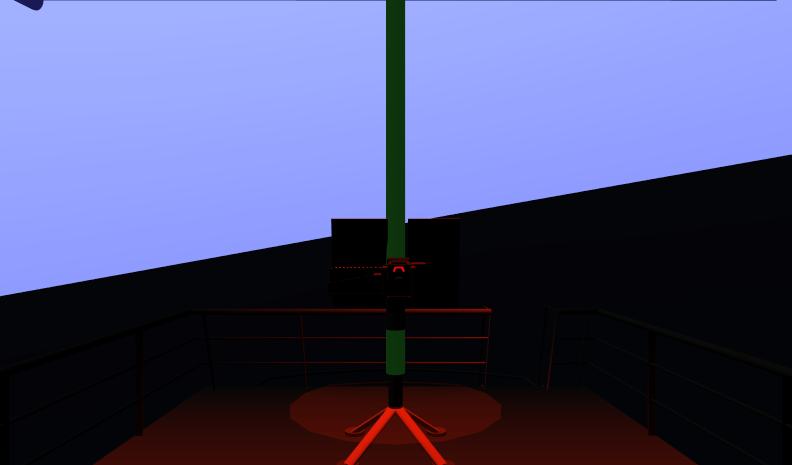

52	<Viewpoint description='.50cal' orientation='0 1 0 1.57' position='-0.05 0.28 0'/>
53	<Viewpoint description='Bridge' fieldOfView='0.43' orientation='0 -0.9935 0 1.57079' position='0.14 0.27 0'/>
54	<Viewpoint description='Radar' fieldOfView='0.45' orientation='-0.1888 -0.982 0 1.57079' position='-0.6 0.5 0'/>
55	< ROUTE fromNode='SpinTheShip3' fromField='value_changed' toNode='Ship4' toField='rotation'/>
56	<Transform translation='-0.23 2.5 0'>
57	<!-- ROUTE information for gunLight node: [from Converter.SFFloat_Yout to intensity ] --> <SpotLight DEF='gunLight' beamWidth='0.05' color='0.721569 0.066667 0' cutOffAngle='0.03' direction='0 -1 0' radius='5'/>
58	</Transform>
59	<Transform scale='0.15 0.15 0.15'>
60	<Transform translation='-1.8 2.5 0'>
61	<Inline DEF='CoordinateAxes' url=' "CoordinateAxes.x3d" "../../Basic/course/CoordinateAxes.x3d" "../../../Savage/Tools/Authoring/CoordinateAxes.x3d" "https://www.web3d.org/x3d/content/examples/Basic/course/CoordinateAxes.x3d" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Authoring/CoordinateAxes.x3d" "CoordinateAxes.wrl" "../../Basic/course/CoordinateAxes.wrl" "../../../Savage/Tools/Authoring/CoordinateAxes.wrl" "https://www.web3d.org/x3d/content/examples/Basic/course/CoordinateAxes.wrl" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Authoring/CoordinateAxes.wrl" '/>
62	<SpotLight DEF='gunLight2' beamWidth='0.5' color='0.721569 0.066667 0' cutOffAngle='0.6' direction='0 -1 0' radius='3'/>
63	</Transform>
64	<Transform translation='-.8 1.33 0'>
65	<Transform rotation='1 0 0 1.57'>
66	<!-- ROUTE information for dimmerAmplitude node: [from translation_changed to Converter.SFVec3fY_SFFloat ] [from translation_changed to dimmerLightGunBox.translation ] --> <PlaneSensor DEF='dimmerAmplitude' description='click and drag to dimm Light' maxPosition='0 .1'/>
67	<!-- ROUTE information for dimmerLightGunBox node: [from dimmerAmplitude.translation_changed to translation ] --> <Transform DEF='dimmerLightGunBox'>
68	<Shape>
69	<Appearance>
70	<Material ambientIntensity='1' diffuseColor='1 0 0'/>
71	</Appearance>
72	<Box size='.03 0.03 0.03'/>
73	</Shape>
74	</Transform>
75	<!-- ROUTE information for Converter node: [from dimmerAmplitude.translation_changed to SFVec3fY_SFFloat ] [from SFFloat_Yout to gunLight.intensity ] --> <Script DEF='Converter'>
76	<field name='SFVec3fY_SFFloat' type='SFVec3f' accessType='inputOnly'/>
77	<field name='SFFloat_Yout' type='SFFloat' accessType='outputOnly'/>
	`<![CDATA[` ecmascript: // Author: Claudio Coreixas // Created: 19 November 2009 function SFVec3fY_SFFloat (value) { SFFloat_Yout = 30 * value[1]; } `]]>`
79	</Script>
80	< ROUTE fromNode='dimmerAmplitude' fromField='translation_changed' toNode='Converter' toField='SFVec3fY_SFFloat'/>
81	< ROUTE fromNode='dimmerAmplitude' fromField='translation_changed' toNode='dimmerLightGunBox' toField='translation'/>
82	< ROUTE fromNode='Converter' fromField='SFFloat_Yout' toNode='gunLight' toField='intensity'/>
83	</Transform>
84	</Transform>
85	<Transform translation='-.65 1.33 0'>
86	<Transform rotation='1 0 0 1.57'>
87	<!-- ROUTE information for dimmerGeneralLightAmplitude node: [from translation_changed to Converter2.SFVec3fY_SFFloat ] [from translation_changed to dimmerGeneralLight.translation ] --> <PlaneSensor DEF='dimmerGeneralLightAmplitude' description='click and drag to dimm General Light' maxPosition='0 .1'/>
88	<!-- ROUTE information for dimmerGeneralLight node: [from dimmerGeneralLightAmplitude.translation_changed to translation ] --> <Transform DEF='dimmerGeneralLight'>
89	<Shape>
90	<Appearance>
91	<Material ambientIntensity='1' diffuseColor='1 0 0'/>
92	</Appearance>
93	<Box size='.03 0.03 0.03'/>
94	</Shape>
95	</Transform>
96	</Transform>
97	</Transform>
98	<Inline url=' "U11.x3d" "https://www.web3d.org/x3d/content/examples/Savage/ShipsMilitary/PatrolCraft-NavalAcademy-Brazil/U11.x3d" '/>
99	</Transform>
100	</Transform>
101	</Transform>
102	</Transform>
103	</Transform>
104	<Transform scale='0.15 0.15 0.15'>
105	<Inline url=' "U11.x3d" "https://www.web3d.org/x3d/content/examples/Savage/ShipsMilitary/PatrolCraft-NavalAcademy-Brazil/U11.x3d" '/>
106	</Transform>
107	<Transform translation='0 -5 0'>
108	<Shape DEF='ocean'>
109	<Appearance>
110	<Material ambientIntensity='1' diffuseColor='0 0.219608 0.419608' shininess='1' transparency='0.16'/>
111	</Appearance>
112	<Box size='200 10 200' solid='false'/>
113	</Shape>
114	</Transform>
115	<!-- ROUTE information for generalLight node: [from Converter2.SFFloat_Yout to intensity ] --> <PointLight DEF='generalLight' intensity='0.05' location='0 30 -1'/>
116	<!-- ROUTE information for Converter2 node: [from dimmerGeneralLightAmplitude.translation_changed to SFVec3fY_SFFloat ] [from SFFloat_Yout to generalLight.intensity ] --> <Script DEF='Converter2'>
117	<field name='SFVec3fY_SFFloat' type='SFVec3f' accessType='inputOnly'/>
118	<field name='SFFloat_Yout' type='SFFloat' accessType='outputOnly'/>
	`<![CDATA[` ecmascript: // Author: Claudio Coreixas // Created: 19 November 2009 function SFVec3fY_SFFloat (value) { SFFloat_Yout = 10 * value[1]; } `]]>`
120	</Script>
121	< ROUTE fromNode='dimmerGeneralLightAmplitude' fromField='translation_changed' toNode='Converter2' toField='SFVec3fY_SFFloat'/>
122	< ROUTE fromNode='dimmerGeneralLightAmplitude' fromField='translation_changed' toNode='dimmerGeneralLight' toField='translation'/>
123	< ROUTE fromNode='Converter2' fromField='SFFloat_Yout' toNode='generalLight' toField='intensity'/>
124	</Scene>
125	</X3D>

X3D Model Documentation: FiftyCaliberGunFiring.x3d
