Package X3dForAdvancedModeling.Scanning
Class HammingBrickPoissonMesh
java.lang.Object
X3dForAdvancedModeling.Scanning.HammingBrickPoissonMesh
3D scan of Hamming brick: mesh produced by DotProduct scanner, converted to X3D using Meshlab, and tuned for publication using X3D-Edit.
Related links: Catalog page HammingBrickPoissonMesh, source HammingBrickPoissonMesh.java, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.
meta tags | Document Metadata |
title | HammingBrickPoissonMesh.x3d |
description | 3D scan of Hamming brick: mesh produced by DotProduct scanner, converted to X3D using Meshlab, and tuned for publication using X3D-Edit. |
creator | Don Brutzman |
created | 4 April 2016 |
modified | 20 October 2019 |

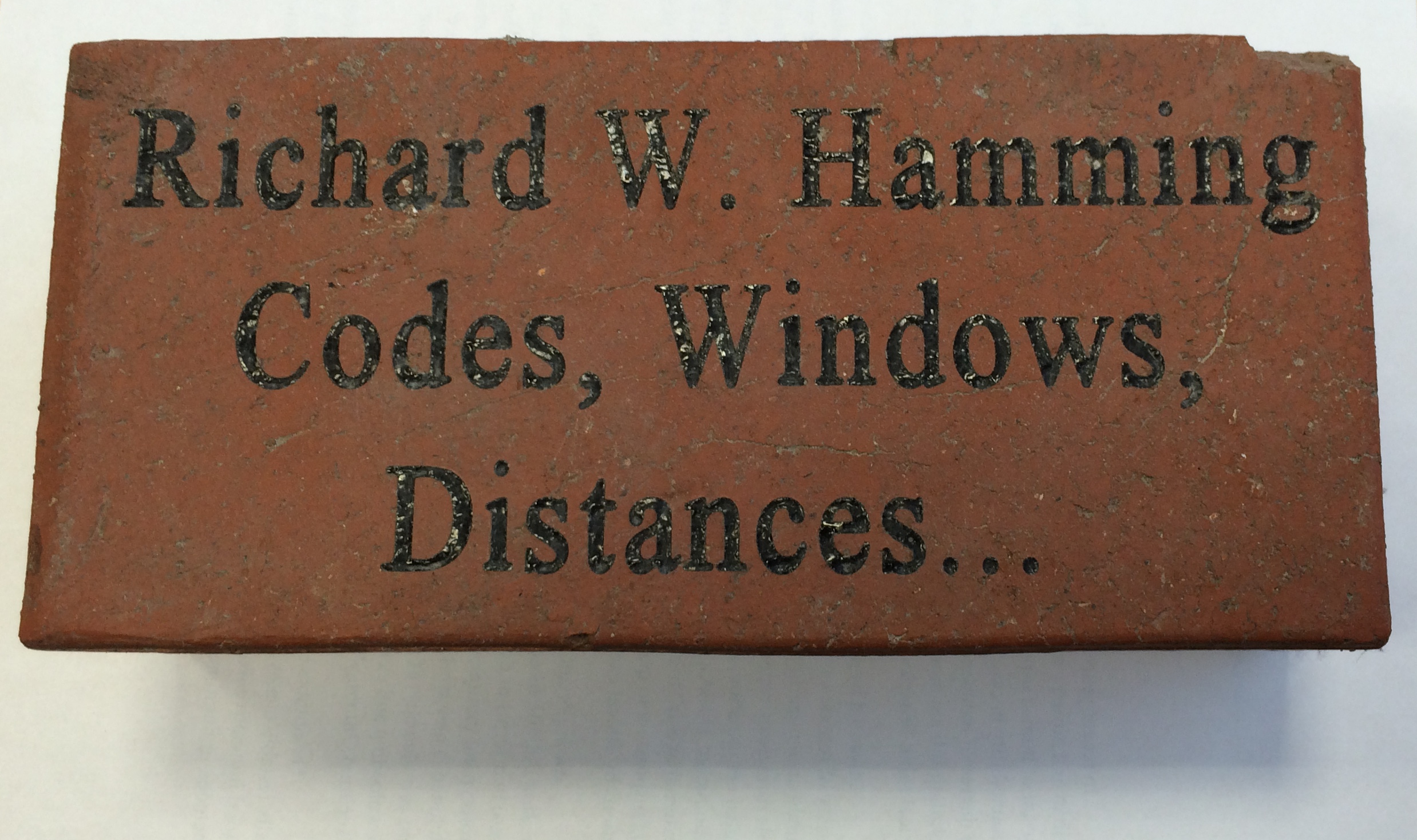

Image | HammingBrickPhotograph.jpg |
Image | HammingBrickPreparationFor3dScan.jpg |
Image | HammingScannerBrickAprilTags.jpg |

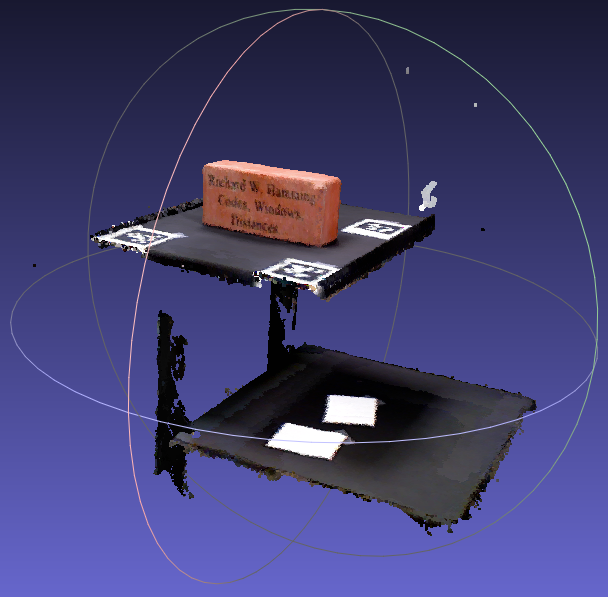

Image | HammingBrick2016April3.OriginalScanBeforeDataReduction.png |
Image | HammingBrickConvexHullWireFrame.png |
reference | HammingBrickConvexHull.ply |
TODO | correct color values |
reference | HammingBrickDotProductScan.2016April3.dp |
reference | HammingBrick2016April3.PoissonSurfaceReconstruction.png |
reference | HammingBrick2016April3.PoissonSurfaceReconstruction.ply |
generator | http://www.dotproduct3d.com |
generator | Meshlab X3D Exported, http://meshlab.sourceforge.net |
generator | X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit |
identifier | https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/Scanning/HammingBrickPoissonMesh.x3d |
license | ../license.html |
This program uses the
X3D Java Scene Access Interface Library (X3DJSAIL).
It has been produced using the
X3dToJava.xslt
stylesheet
(version control)
which is used to create Java source code from an original .x3d
model.
-
Constructor Summary
-
Method Summary
Modifier and TypeMethodDescriptionorg.web3d.x3d.jsail.Core.X3D
Provide a shallow copy of the X3D model.final void
Create and initialize the X3D model for this object.static void
Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.
-
Constructor Details
-
HammingBrickPoissonMesh
public HammingBrickPoissonMesh()Default constructor to create this object.
-
-
Method Details
-
initialize
public final void initialize()Create and initialize the X3D model for this object. -
getX3dModel
public org.web3d.x3d.jsail.Core.X3D getX3dModel()Provide a shallow copy of the X3D model.- Returns:
- HammingBrickPoissonMesh model
- See Also:
-
main
Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.- Parameters:
args
- array of input parameters, provided as arguments- See Also:
-
