X3D Model Documentation: AAV.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
  3  <X3D profile='Immersive' version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
  4       <head>
  5            <meta name='title' content=' AAV.x3d '/>
  6            <meta name='description' content='The AAV is a fully-tracked Amphibious Assault Vehicle (Patrol), aka AAV7PA1 and LVTP7.'/>
  7            <meta name='creator' content='Jeffrey Weekley'/>
  8            <meta name='created' content='1 June 2001'/>
  9            <meta name='modified' content='7 October 2025'/>
 10            <meta name='info' content='Marines retire ‘workhorse’ Assault Amphibious Vehicle after 50 years https://www.militarytimes.com/news/your-marine-corps/2025/10/06/marines-retire-workhorse-assault-amphibious-vehicle-after-50-years'/>
 11            <meta name='photo' content='AAV1.jpg'/>

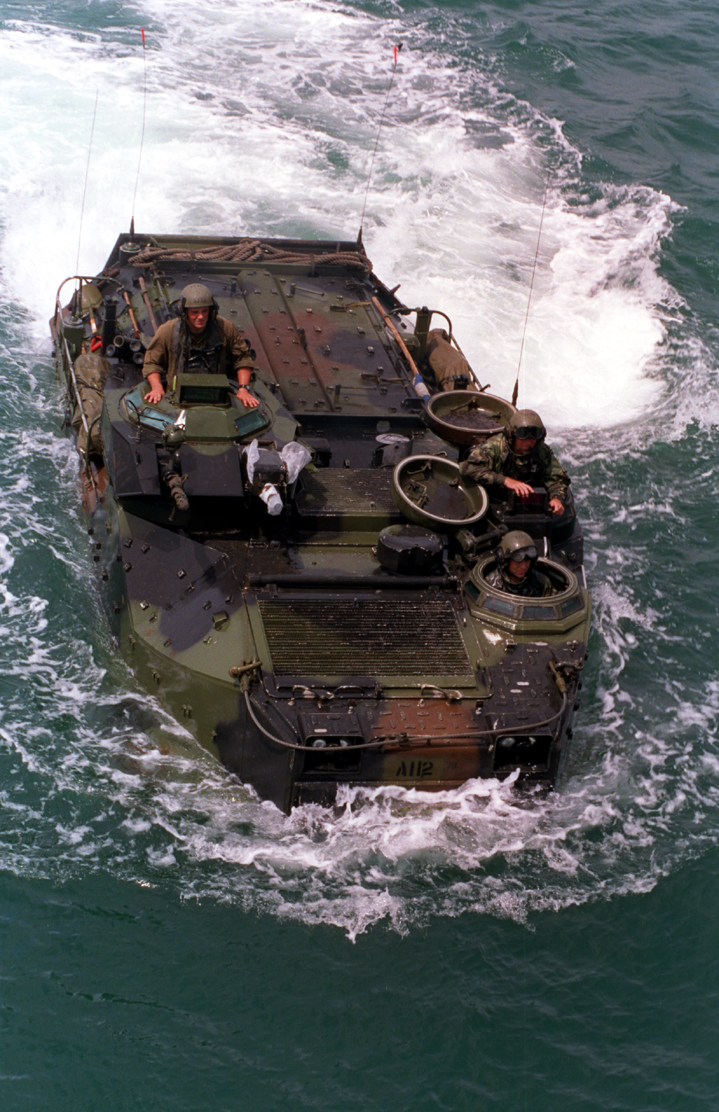

 12            <meta name='photo' content='aav3.jpg'/>

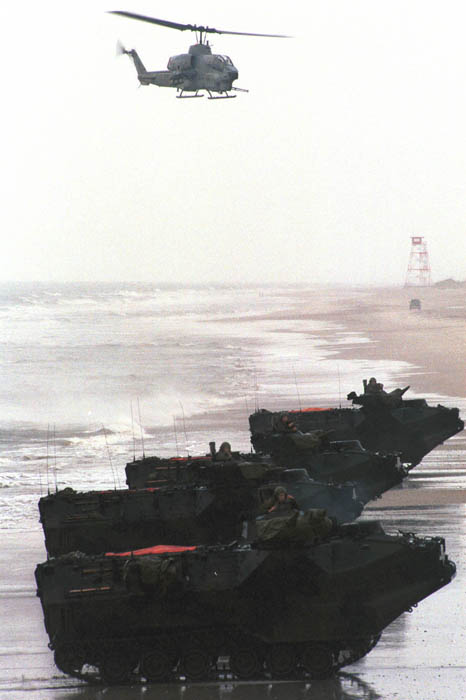

 13            <meta name='photo' content='capex7.jpg'/>
 14            <meta name='reference' content=' aavp7a1.pdf '/>
 15            <meta name='reference' content=' https://www.fas.org/man/dod-101/sys/land/aavp7a1.htm '/>
 16            <meta name='reference' content=' http://www.technogap.com/aavp7a1.htm '/>
 17            <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Savage/AmphibiousVehicles/AAV/AAV.x3d '/>
 18            <meta name='subject' content='AAV AAV7PA1 LVTP7'/>
 19            <meta name='generator' content='X3D-Edit 3.2, https://www.web3d.org/x3d/tools/X3D-Edit'/>
 20            <meta name='license' content='../../license.html'/>
 21       </head>
<!--
<!--
Event Graph ROUTE Table shows event connections.
-->
<!-- to top DEF nodes index: AAV, AAVGroup, Chassis, ChassisHatch, ForwardAntenna, FullTrack, HeadLights, LeftAAVHeadLight, MediumRangeBox, RearAntenna, RearLeftAntennaINLINE, RearRightAntennaINLINE, RightAAVHeadLight, Turret, TurretCylinderSensor

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2
-->
 22       <Scene>
 23            <Background skyColor='0.15 0.2 0.8'/>
 24            <Viewpoint description='AAV from behind' orientation='0 -1 0 1.57' position='-12 2.7 0'/>
 25            <Viewpoint description='AAV from ahead' orientation='0 1 0 1.57' position='12 2.7 0'/>
 26            <LOD range='500 2000'>
 27                 <Group DEF='AAVGroup'>
 28                      <Transform DEF='AAV'>
 29                           <Transform DEF='FullTrack' rotation='0 1 0 1.57' scale='0.5 0.5 0.5' translation='-1.5 -1 -0.3'>
 30                                <Inline   url=' "FullTrack.x3d" "https://www.web3d.org/x3d/content/examples/Savage/AmphibiousVehicles/AAV/FullTrack.x3d" "FullTrack.wrl" "https://www.web3d.org/x3d/content/examples/Savage/AmphibiousVehicles/AAV/FullTrack.wrl" '/>
 31                           </Transform>
 32                           <Transform DEF='Chassis'>
 33                                <Inline   url=' "Chassis.x3d" "https://www.web3d.org/x3d/content/examples/Savage/AmphibiousVehicles/AAV/Chassis.x3d" "Chassis.wrl" "https://www.web3d.org/x3d/content/examples/Savage/AmphibiousVehicles/AAV/Chassis.wrl" '/>
 34                           </Transform>
 35                           <Transform DEF='ChassisHatch' rotation='0 1 0 1.57' scale='0.9 0.9 0.9' translation='0.4 1.74 -1'>
 36                                <Inline   url=' "ChassisHatch.x3d" "https://www.web3d.org/x3d/content/examples/Savage/AmphibiousVehicles/AAV/ChassisHatch.x3d" "ChassisHatch.wrl" "https://www.web3d.org/x3d/content/examples/Savage/AmphibiousVehicles/AAV/ChassisHatch.wrl" '/>
 37                           </Transform>
 38
                         <!-- ROUTE information for Turret node:  [from TurretCylinderSensor.rotation_changed to set_rotation ] -->
                          <Transform DEF='Turret' rotation='0 1 0 1.57' scale='0.5 0.5 0.5' translation='-0.65 2.5 1.33'>
 39                                <Inline   url=' "Turret.x3d" "https://www.web3d.org/x3d/content/examples/Savage/AmphibiousVehicles/AAV/Turret.x3d" "Turret.wrl" "https://www.web3d.org/x3d/content/examples/Savage/AmphibiousVehicles/AAV/Turret.wrl" '/>
 40
                              <!-- ROUTE information for TurretCylinderSensor node:  [from rotation_changed to Turret.set_rotation ] -->
                               <CylinderSensor DEF='TurretCylinderSensor' description='click and drag to rotate turret' maxAngle='3.14' minAngle='-3.14'/>
 41                           </Transform>
 42                           <Transform DEF='RearLeftAntennaINLINE' scale='0.6 0.6 0.6' translation='-5.3 1.425 -1.633'>
 43
                              <!-- Inline RearAntenna is a DEF node that has 1 USE node: USE_1 -->
                               <Inline DEF='RearAntenna'   url=' "RearAntenna.x3d" "https://www.web3d.org/x3d/content/examples/Savage/AmphibiousVehicles/AAV/RearAntenna.x3d" "RearAntenna.wrl" "https://www.web3d.org/x3d/content/examples/Savage/AmphibiousVehicles/AAV/RearAntenna.wrl" '/>
 44                           </Transform>
 45                           <Transform DEF='RearRightAntennaINLINE' scale='0.6 0.6 0.6' translation='-5.3 1.425 1.633'>
 46                                <Inline USE='RearAntenna'/>
 47                           </Transform>
 48                           <Transform DEF='RightAAVHeadLight' rotation='0 1 0 1.57' scale='0.85 0.85 0.85' translation='2.15 1.575 -1.2'>
 49
                              <!-- Inline HeadLights is a DEF node that has 1 USE node: USE_1 -->
                               <Inline DEF='HeadLights'   url=' "HeadLights.x3d" "https://www.web3d.org/x3d/content/examples/Savage/AmphibiousVehicles/AAV/HeadLights.x3d" "HeadLights.wrl" "https://www.web3d.org/x3d/content/examples/Savage/AmphibiousVehicles/AAV/HeadLights.wrl" '/>
 50                           </Transform>
 51                           <Transform DEF='LeftAAVHeadLight' rotation='0 1 0 1.57' scale='0.85 0.85 0.85' translation='2.15 1.575 1'>
 52                                <Inline USE='HeadLights'/>
 53                           </Transform>
 54                           <Transform DEF='ForwardAntenna' scale='0.6 0.5 0.6' translation='-3.6 1.6 1.666'>
 55                                <Inline   url=' "ForwardAntenna.x3d" "https://www.web3d.org/x3d/content/examples/Savage/AmphibiousVehicles/AAV/ForwardAntenna.x3d" "ForwardAntenna.wrl" "https://www.web3d.org/x3d/content/examples/Savage/AmphibiousVehicles/AAV/ForwardAntenna.wrl" '/>
 56                           </Transform>
 57                      </Transform>
 58                 </Group>
 59                 <Shape DEF='MediumRangeBox'>
 60                      <Box size='5.5 2.5 3'/>
 61                      <Appearance>
 62                           <Material diffuseColor='0.15 0.65 0.2'/>
 63                      </Appearance>
 64                 </Shape>
 65                 <WorldInfo info='"null node"'/>
 66            </LOD>
 67            < ROUTE  fromNode='TurretCylinderSensor' fromField='rotation_changed' toNode='Turret' toField='set_rotation'/>
 68       </Scene>
 69  </X3D>
<!--
<!--
Event Graph ROUTE Table shows event connections.
-->
<!-- to top DEF nodes index: AAV, AAVGroup, Chassis, ChassisHatch, ForwardAntenna, FullTrack, HeadLights, LeftAAVHeadLight, MediumRangeBox, RearAntenna, RearLeftAntennaINLINE, RearRightAntennaINLINE, RightAAVHeadLight, Turret, TurretCylinderSensor

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2
-->
X3D Tooltips element index: Appearance, Background, Box, CylinderSensor, Group, head, Inline, LOD, Material, meta, ROUTE, Scene, Shape, Transform, Viewpoint, WorldInfo, X3D, plus documentation for accessType definitions, type definitions, XML data types, and field types

Event Graph ROUTE Table with 1 ROUTE connection total, showing X3D event-model relationships for this scene.

Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.

TurretCylinderSensor
CylinderSensor
rotation_changed
SFRotation
→
ROUTE
event to
(1)
Turret
Transform
set_rotation
SFRotation

Additional guidance on X3D animation can be found in the 10-Step Animation Design Process and Event Tracing hint sheets. Have fun with X3D! 😀
-->
