X3D Model Documentation: OspreyParts.x3d

1	`<?xml version="1.0" encoding="UTF-8"?>`
2	`<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">`
3	<X3D profile='Immersive' version='3.0' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
4	<head>
5	<meta name='title' content=' OspreyParts.x3d '/>
6	<meta name='description' content='Osprey MV-22 parts?'/>
7	<meta name='creator' content='Major William C. James USMC'/>
8	<meta name='created' content='23 September 2001'/>
9	<meta name='modified' content='20 October 2019'/>
10	<meta name='reference' content='https://www.navy.mil/Resources/Fact-Files/Display-FactFiles/Article/2417719/v-22b-osprey-tilt-rotor-aircraft'/>
11	<meta name='reference' content=' https://www.fas.org/man/dod-101/sys/ac/v-22.htm '/>
12	<meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Savage/AircraftFixedWing/Mv22OspreyUnitedStates/OspreyParts.x3d '/>
13	<meta name='generator' content='X3D-Edit 3.2, https://www.web3d.org/x3d/tools/X3D-Edit'/>
14	<meta name='license' content='../../license.html'/>
15	</head>

<!--

Event Graph ROUTE Table shows event connections.

-->
<!--

DEF nodes index: body1, CLOCK1, CoordinateAxes, Hatch, Osprey_Body, Osprey_Body_Whole, RearHatch, RearHatchInterpolator, RearHatchRotationSupport, RearHatchSensor, RearHatchTransform, RotatingBar

Index for Viewpoint node: Viewpoint_1

-->

16	<Scene>
17	<WorldInfo title='OspreyParts.x3d'/>

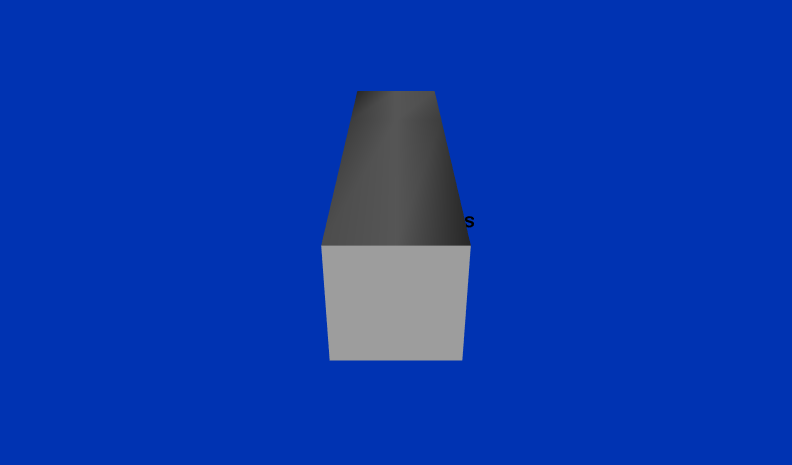

18	<Viewpoint description='Front, level' orientation='-1 0 0 0.5' position='0 15 30'/>
19	<Background skyColor='0 0.2 0.7'/>
20	<Transform DEF='Osprey_Body_Whole' scale='2 2 2'>
21	<Shape>
22	<Extrusion DEF='Osprey_Body' creaseAngle='1.6' crossSection='0 0 2 0 2 -4 -2 -4 -2 0 0 0' scale='1 1 1 1 1 0.1' spine='0 0 2 0 0 -9 0 0 -14'/>
23	<Appearance>
24	<Material DEF='body1' diffuseColor='.7 .7 .7'/>
25	</Appearance>
26	</Shape>
27	</Transform>
28	<!-- -->
29	<Group>
30	<Transform DEF='RearHatchTransform' rotation='0 0 -1 1.57' translation='0 -5.5 -25'>
31	<Group DEF='RearHatch'>
32	<!-- ROUTE information for RearHatchRotationSupport node: [from RearHatchInterpolator.value_changed to set_rotation ] --> <Transform DEF='RearHatchRotationSupport'>
33	<Shape DEF='RotatingBar'>
34	<Cylinder height='4' radius='.2'/>
35	<Appearance>
36	<Material diffuseColor='.7 .7 .7'/>
37	</Appearance>
38	</Shape>
39	<Transform DEF='Hatch'>
40	<Transform rotation='0 0 -1 1.57' translation='0 0 -2.5'>
41	<Shape>
42	<Box size='4 .2 5'/>
43	<Appearance>
44	<Material diffuseColor='0 0 0' shininess='.5'/>
45	</Appearance>
46	</Shape>
47	</Transform>
48	</Transform>
49	</Transform>
50	</Group>
51	</Transform>
52	<!-- ROUTE information for RearHatchSensor node: [from touchTime to CLOCK1.set_startTime ] --> <TouchSensor DEF='RearHatchSensor' description='touch to open'/>
53	<!-- ROUTE information for CLOCK1 node: [from RearHatchSensor.touchTime to set_startTime ] [from fraction_changed to RearHatchInterpolator.set_fraction ] --> <TimeSensor DEF='CLOCK1' cycleInterval='4'/>
54	<!-- ROUTE information for RearHatchInterpolator node: [from CLOCK1.fraction_changed to set_fraction ] [from value_changed to RearHatchRotationSupport.set_rotation ] --> <OrientationInterpolator DEF='RearHatchInterpolator' key='0.0 1.0' keyValue='0.0 1.0 0.0 0.0 0.0 1.0 0.0 -1.0'/>
55	</Group>
56	< ROUTE fromNode='RearHatchSensor' fromField='touchTime' toNode='CLOCK1' toField='set_startTime'/>
57	< ROUTE fromNode='CLOCK1' fromField='fraction_changed' toNode='RearHatchInterpolator' toField='set_fraction'/>
58	< ROUTE fromNode='RearHatchInterpolator' fromField='value_changed' toNode='RearHatchRotationSupport' toField='set_rotation'/>
59	<!-- <Appearance><Material diffuseColor="0 0 0" ambientIntensity="0.2" emissiveColor="0 0 0" shininess="0.2" specularColor="0 0 0" transparency="0"/> -->
60	<Shape>
61	<Text string='"MARINES"'>
62	<FontStyle family='"SANS"' justify='"BEGIN" "MIDDLE"' size='1.3' style='BOLD'/>
63	</Text>
64	<Appearance>
65	<Material diffuseColor='0 0 0'/>
66	</Appearance>
67	</Shape>
68	<Transform scale='10 10 10'>
69	<Inline DEF='CoordinateAxes' url=' "../../X3dForWebAuthors/Chapter03Grouping/CoordinateAxes.x3d" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter03Grouping/CoordinateAxes.x3d" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Authoring/CoordinateAxes.x3d" "../../X3dForWebAuthors/Chapter03Grouping/CoordinateAxes.wrl" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter03Grouping/CoordinateAxes.wrl" "https://www.web3d.org/x3d/content/examples/Savage/Tools/Authoring/CoordinateAxes.wrl" '/>
70	</Transform>
71	</Scene>
72	</X3D>

<!--

Event Graph ROUTE Table shows event connections.

-->
<!--

-->

X3D Tooltips element index: Appearance, Background, Box, Cylinder, Extrusion, FontStyle, Group, head, Inline, Material, meta, OrientationInterpolator, ROUTE, Scene, Shape, Text, TimeSensor, TouchSensor, Transform, Viewpoint, WorldInfo, X3D, plus documentation for accessType definitions, type definitions, XML data types, and field types

Event Graph ROUTE Table entries with 3 ROUTE connections total, showing X3D event-model relationships for this scene.

Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.

RearHatchSensor
TouchSensor
touchTime
SFTime

→
ROUTE
event to
(1)

CLOCK1
TimeSensor
set_startTime
SFTime

then

CLOCK1
TimeSensor
fraction_changed
SFFloat

→
ROUTE
event to
(2)

RearHatchInterpolator
OrientationInterpolator
set_fraction
SFFloat

then

RearHatchInterpolator
OrientationInterpolator
value_changed
SFRotation

→
ROUTE
event to
(3)

RearHatchRotationSupport
Transform
set_rotation
SFRotation

Additional guidance on X3D animation can be found in the 10-Step Animation Design Process and Event Tracing hint sheets. Have fun with X3D! 😀

-->
