X3D Model Documentation: LoadSensorExample.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
  3  <X3D profile='Immersive' version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
  4       <head>
  5            <meta name='title' content=' LoadSensorExample.x3d '/>
  6            <meta name='description' content='LoadSensor test: default initial view means no functionality, active view means load in progress, final view means LoadSensor (and loading) success.'/>
  7            <meta name='created' content='16 August 2002'/>
  8            <meta name='modified' content='20 October 2019'/>
  9            <meta name='creator' content='Don Brutzman, Alan Hudson'/>
 10            <meta name=' warning ' content=' LoadSensor only supported by X3D-compliant browsers. LoadSensor is not implemented in VRML 97. '/>
 11            <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Basic/development/LoadSensorExample.x3d '/>
 12            <meta name='generator' content='X3D-Edit 3.3, https://www.web3d.org/x3d/tools/X3D-Edit'/>
 13            <meta name='license' content='../license.html'/>
 14       </head>
<!--
<!--
Event Graph ROUTE Table shows event connections.
-->
<!-- to top DEF nodes index: ActiveView, EarthImage, Font, JavaBoardImage, LoadedView, Loader, NotLoadedView

Index for Viewpoint nodes: ActiveView, LoadedView, NotLoadedView

Index for ExternProtoDeclare definition: LoadSensor
-->
 15       <Scene>
 16            <!-- Do not copy this ExternProtoDeclare, it is used for providing automatic support in X3dToVrml97.xslt and X3D-Edit -->
 17            <WorldInfo title='LoadSensorExample.x3d'/>
 18            <ExternProtoDeclare name='LoadSensor' appinfo='LoadSensor monitors the progress and success of downloading URL elements over a network. Only nodes that contain a valid URL field (i.e. descendants of X3DUrlObject) may be specified as watchList children. Multiple nodes may be watched with a single LoadSensor.' documentation='https://www.web3d.org/specifications/ISO-IEC-19775/Part01/components/networking.html#LoadSensor'   url=' "LoadSensorPrototype.wrl#LoadSensor" "https://www.web3d.org/x3d/content/examples/Basic/development/LoadSensorPrototype.wrl#LoadSensor" "LoadSensorPrototype.x3d#LoadSensor" "https://www.web3d.org/x3d/content/examples/Basic/development/LoadSensorPrototype.x3d#LoadSensor" '>
 19                 <field name='enabled' type='SFBool' accessType='inputOutput'/>
 20                 <field name='timeOut' type='SFTime' accessType='inputOutput'/>
 21                 <field name='watchList' type='MFNode' accessType='initializeOnly'/>
 22                 <field name='set_watchList' type='MFNode' accessType='inputOnly'/>
 23                 <field name='isActive' type='SFBool' accessType='outputOnly'/>
 24                 <field name='isLoaded' type='SFBool' accessType='outputOnly'/>
 25                 <field name='loadTime' type='SFTime' accessType='outputOnly'/>
 26                 <field name='progress' type='SFFloat' accessType='outputOnly'/>
 27                 <field name='metadata' type='SFNode' accessType='initializeOnly'/>
 28            </ExternProtoDeclare>
 29            <Group>
 30                 <Viewpoint DEF='NotLoadedView' description='Not loaded texture' position='0 0 6'/>
 31
               <!-- ROUTE information for ActiveView node:  [from Loader.isActive to set_bind ] -->
                <Viewpoint DEF='ActiveView' description='Loading textures'/>
 32
               <!-- ROUTE information for LoadedView node:  [from Loader.isLoaded to set_bind ] -->
                <Viewpoint DEF='LoadedView' description='Texture loading complete' orientation='0 1 0 3.14159' position='0 0 -10'/>
 33                 <Group>
 34                      <Transform translation='-1 0 0'>
 35                           <Shape>
 36                                <Sphere/>
 37                                <Appearance>
 38
                                   <!-- ImageTexture EarthImage is a DEF node that has 1 USE node: USE_1 -->
                                    <ImageTexture DEF='EarthImage'   url=' "earth-topo.png " "earth-topo-small.gif " "https://www.web3d.org/x3d/content/examples/Basic/earth-topo.png " "https://www.web3d.org/x3d/content/examples/Basic/earth-topo-small.gif " '/>
 39                                </Appearance>
 40                           </Shape>
 41                      </Transform>
 42                      <Transform translation='1 0 0'>
 43                           <Shape>
 44                                <Box/>
 45                                <Appearance>
 46
                                   <!-- ImageTexture JavaBoardImage is a DEF node that has 1 USE node: USE_1 -->

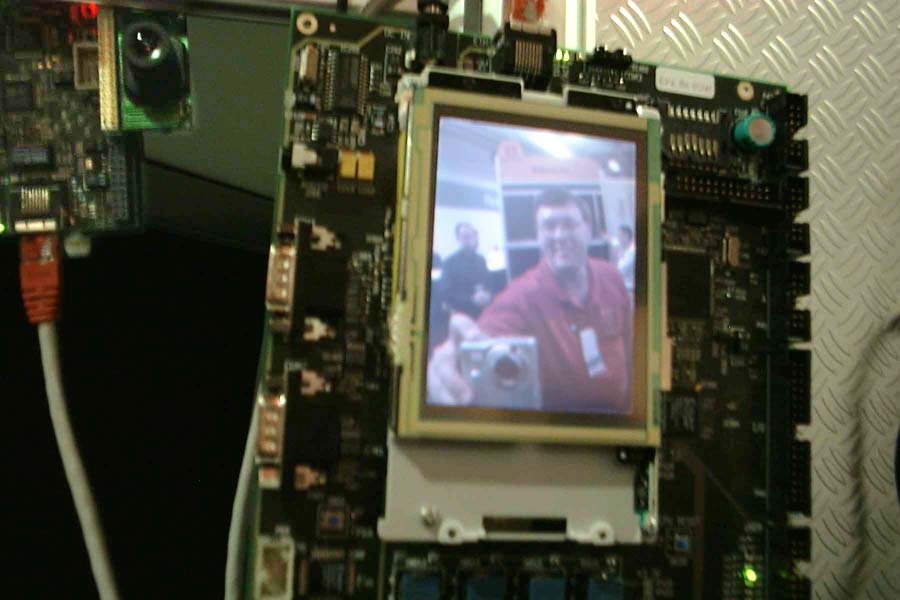

                                    <ImageTexture DEF='JavaBoardImage'   url=' "JavaBoardSmileForTheCamera.jpg " "https://www.web3d.org/x3d/content/examples/Basic/development/JavaBoardSmileForTheCamera.jpg " '/>
 47                                </Appearance>
 48                           </Shape>
 49                      </Transform>
 50                 </Group>
 51
               <!-- ROUTE information for Loader node:  [from isActive to ActiveView.set_bind ] [from isLoaded to LoadedView.set_bind ] -->
                <LoadSensor DEF='Loader' timeOut='4'>
 52                      <ImageTexture USE='EarthImage' containerField='watchList'/>
 53                      <ImageTexture USE='JavaBoardImage' containerField='watchList'/>
 54                 </LoadSensor>
 55                 < ROUTE  fromNode='Loader' fromField='isActive' toNode='ActiveView' toField='set_bind'/>
 56                 < ROUTE  fromNode='Loader' fromField='isLoaded' toNode='LoadedView' toField='set_bind'/>
 57                 <Transform translation='0 0 7'>
 58                      <Shape>
 59                           <Text string='"LoadSensor active"'>
 60
                              <!-- FontStyle Font is a DEF node that has 1 USE node: USE_1 -->
                               <FontStyle DEF='Font' justify='"MIDDLE" "MIDDLE"' size='0.5'/>
 61                           </Text>
 62                           <Appearance>
 63                                <Material diffuseColor='0.8 0.5 0.1'/>
 64                           </Appearance>
 65                      </Shape>
 66                 </Transform>
 67                 <Transform rotation='0 1 0 3.14159' translation='0 0 -7'>
 68                      <Shape>
 69                           <Text string='"LoadSensor success"'>
 70                                <FontStyle USE='Font'/>
 71                           </Text>
 72                           <Appearance>
 73                                <Material diffuseColor='0.1 0.5 0.1'/>
 74                           </Appearance>
 75                      </Shape>
 76                 </Transform>
 77            </Group>
 78       </Scene>
 79  </X3D>
<!--
<!--
Event Graph ROUTE Table shows event connections.
-->
<!-- to top DEF nodes index: ActiveView, EarthImage, Font, JavaBoardImage, LoadedView, Loader, NotLoadedView

Index for Viewpoint nodes: ActiveView, LoadedView, NotLoadedView

Index for ExternProtoDeclare definition: LoadSensor
-->
X3D Tooltips element index: Appearance, Box, ExternProtoDeclare, field, FontStyle, Group, head, ImageTexture, LoadSensor, Material, meta, ROUTE, Scene, Shape, Sphere, Text, Transform, Viewpoint, WorldInfo, X3D, plus documentation for accessType definitions, type definitions, XML data types, and field types

Event Graph ROUTE Table entries with 2 ROUTE connections total, showing X3D event-model relationships for this scene.

Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.

Loader
LoadSensor
isActive
SFBool
→
ROUTE
event to
(1)
ActiveView
Viewpoint
set_bind
SFBool
Loader
LoadSensor
isLoaded
SFBool
→
ROUTE
event to
(1)
LoadedView
Viewpoint
set_bind
SFBool

Additional guidance on X3D animation can be found in the 10-Step Animation Design Process and Event Tracing hint sheets. Have fun with X3D! 😀
-->
