X3D Model Documentation: X3dArchitectureConceptsPrototypeBodyValidationExample.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2  <!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 4.0//EN" "https://www.web3d.org/specifications/x3d-4.0.dtd">
  3  <X3D profile='Immersive' version='4.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-4.0.xsd'>
  4       <head>
  5            <meta name='title' content=' X3dArchitectureConceptsPrototypeBodyValidationExample.x3d '/>
  6            <meta name='description' content='Prototype example to illustrate why additional non-rendering nodes might be needed after first node in ProtoBody'/>
  7            <meta name='creator' content='*Don Brutzman'/>
  8            <meta name='created' content='10 September 2021'/>
  9            <meta name='version' content='19 September 2021'/>

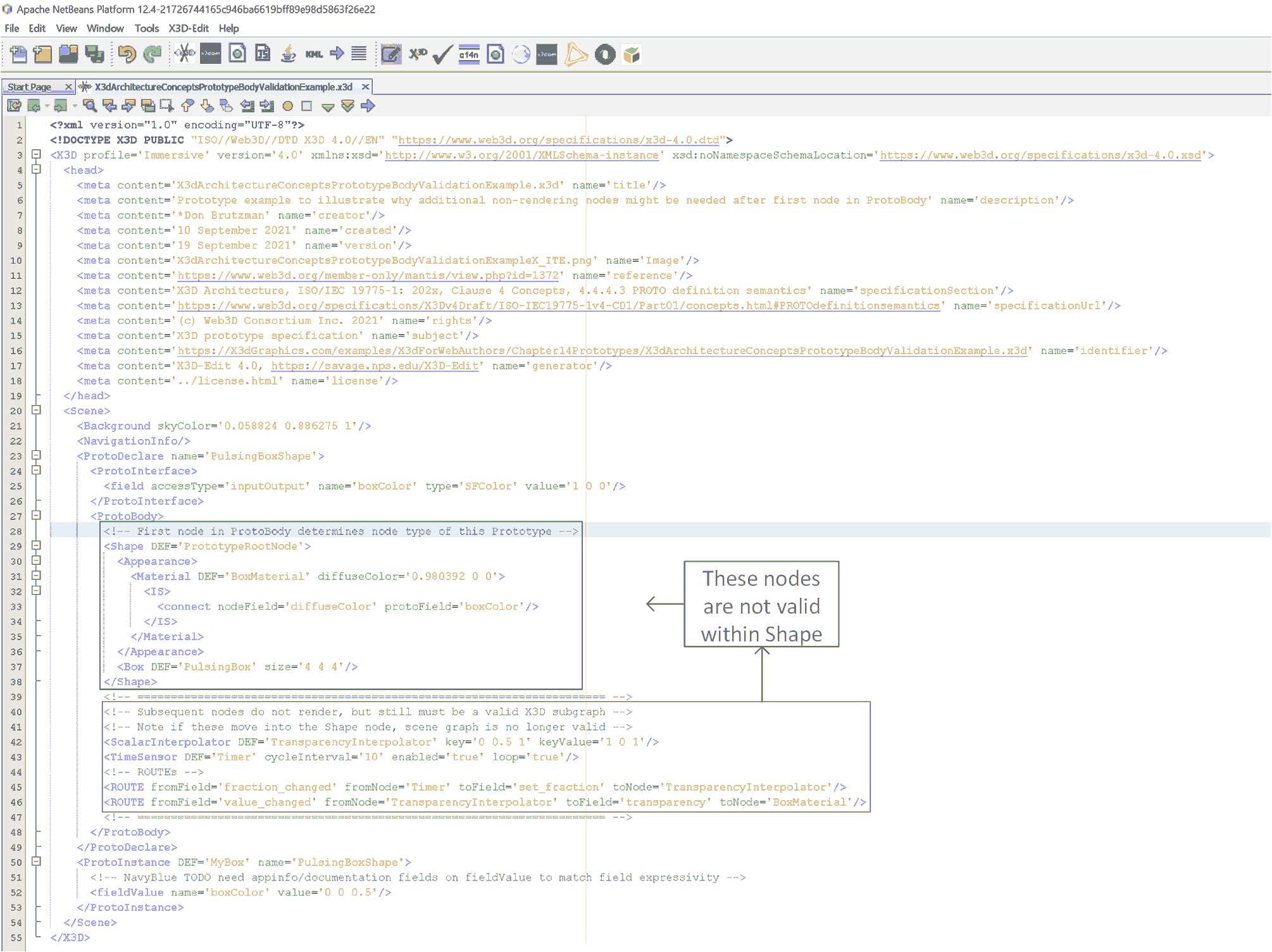

 10            <meta name='drawing' content='X3dArchitectureConceptsPrototypeBodyValidationDiagram.png'/>
 11            <meta name='drawing' content='X3dArchitectureConceptsPrototypeBodyValidationDiagram.vsdx'/>

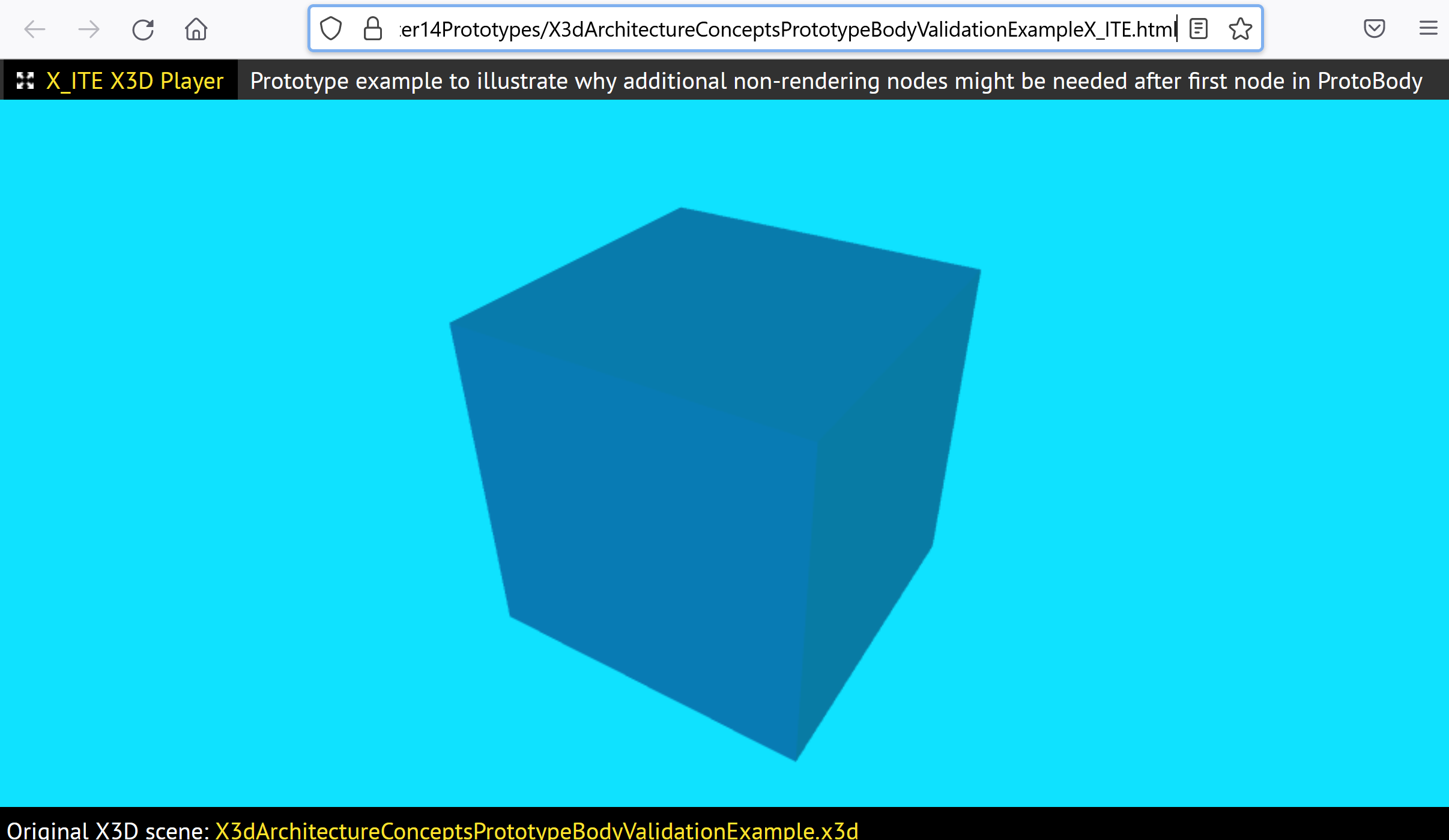

 12            <meta name='Image' content='X3dArchitectureConceptsPrototypeBodyValidationExampleX_ITE.png'/>
 13            <meta name='reference' content='https://www.web3d.org/member-only/mantis/view.php?id=1372'/>
 14            <meta name='specificationSection' content='X3D Architecture, ISO/IEC 19775-1: 202x, Clause 4 Concepts, 4.4.4.3 PROTO definition semantics'/>
 15            <meta name='specificationUrl' content='https://www.web3d.org/specifications/X3Dv4/ISO-IEC19775-1v4-IS/Part01/concepts.html#PROTOdefinitionsemantics'/>
 16            <meta name='rights' content='(c) Web3D Consortium Inc. 2021'/>
 17            <meta name='subject' content='X3D prototype specification'/>
 18            <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter14Prototypes/X3dArchitectureConceptsPrototypeBodyValidationExample.x3d '/>
 19            <meta name='generator' content='X3D-Edit 4.0, https://www.web3d.org/x3d/tools/X3D-Edit'/>
 20            <meta name='license' content='../license.html'/>
 21       </head>
<!--
<!--
Event Graph ROUTE Table shows event connections.
-->
<!-- to top DEF nodes index: BoxMaterial, MyBox, PrototypeRootNode, PulsingBox, Timer, TransparencyInterpolator

Index for ProtoDeclare definition: PulsingBoxShape
-->
 22       <Scene>
 23            <Background skyColor='0.058824 0.886275 1'/>
 24            <NavigationInfo/>
 25            <ProtoDeclare name='PulsingBoxShape'>
 26                 <ProtoInterface>
 27                      <field name='boxColor' type='SFColor' value='1 0 0' accessType='inputOutput'/>
 28                 </ProtoInterface>
 29                 <ProtoBody>
 30                      <!-- First node in ProtoBody determines node type of this Prototype -->
 31                      <Shape DEF='PrototypeRootNode'>
 32                           <Appearance>
 33
                              <!-- ROUTE information for BoxMaterial node:  [from TransparencyInterpolator.value_changed to transparency ] -->
                               <Material DEF='BoxMaterial' diffuseColor='0.980392 0 0'>
 34                                     <IS>
 35                                          <connect nodeField='diffuseColor' protoField='boxColor'/>
 36                                     </IS>
 37                                </Material>
 38                           </Appearance>
 39                           <Box DEF='PulsingBox' size='4 4 4'/>
 40                      </Shape>
 41                      <!-- ====================================================================== -->
 42                      <!-- Subsequent nodes do not render, but still must be a valid X3D subgraph -->
 43                      <!-- Note if these move into the Shape node, scene graph is no longer valid -->
 44
                    <!-- ROUTE information for TransparencyInterpolator node:  [from Timer.fraction_changed to set_fraction ] [from value_changed to BoxMaterial.transparency ] -->
                     <ScalarInterpolator DEF='TransparencyInterpolator' key='0 0.5 1' keyValue='1 0 1'/>
 45
                    <!-- ROUTE information for Timer node:  [from fraction_changed to TransparencyInterpolator.set_fraction ] -->
                     <TimeSensor DEF='Timer' cycleInterval='10' loop='true'/>
 46                      <!-- ROUTEs -->
 47                      < ROUTE  fromNode='Timer' fromField='fraction_changed' toNode='TransparencyInterpolator' toField='set_fraction'/>
 48                      < ROUTE  fromNode='TransparencyInterpolator' fromField='value_changed' toNode='BoxMaterial' toField='transparency'/>
 49                      <!-- ====================================================================== -->
 50                 </ProtoBody>
 51            </ProtoDeclare>
 52            <ProtoInstance name='PulsingBoxShape' DEF='MyBox'>
 53                 <!-- NavyBlue TODO need appinfo/documentation fields on fieldValue to match field expressivity -->
 54                 <fieldValue name='boxColor' value='0 0 0.5'/>
 55            </ProtoInstance>
 56       </Scene>
 57  </X3D>
<!--
<!--
Event Graph ROUTE Table shows event connections.
-->
<!-- to top DEF nodes index: BoxMaterial, MyBox, PrototypeRootNode, PulsingBox, Timer, TransparencyInterpolator

Index for ProtoDeclare definition: PulsingBoxShape
-->
X3D Tooltips element index: Appearance, Background, Box, connect, field, fieldValue, head, IS, Material, meta, NavigationInfo, ProtoBody, ProtoDeclare, ProtoInstance, ProtoInterface, ROUTE, ScalarInterpolator, Scene, Shape, TimeSensor, X3D, plus documentation for accessType definitions, type definitions, XML data types, and field types

Event Graph ROUTE Table entries with 2 ROUTE connections total, showing X3D event-model relationships for this scene.

Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.

Timer
TimeSensor
fraction_changed
SFFloat
→
ROUTE
event to
(1)
TransparencyInterpolator
ScalarInterpolator
set_fraction
SFFloat 		then


  		TransparencyInterpolator
ScalarInterpolator
value_changed
SFFloat
→
ROUTE
event to
(2)
BoxMaterial
Material
transparency
SFFloat

MyBox
ProtoInstance
PulsingBoxShape 		No direct ROUTE connection found for events to/from this node.
This ProtoInstance contains SFNode/MFNode fieldValue declarations with
direct access to other nodes, and thus has potential to produce run-time animation.

Additional guidance on X3D animation can be found in the 10-Step Animation Design Process and Event Tracing hint sheets. Have fun with X3D! 😀
-->
