<?xml version="1.0" encoding="UTF-8"?>
|
| 2 |
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
|
| 3 | <X3D profile='Immersive' version='3.3' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.3.xsd'> |
| 4 | <head> |
| 5 | <meta name='title' content=' TextureAngleViewer.x3d '/> |
| 6 | <meta name='description' content='View a given texture from different angles to judge readability, example use is a QR code.'/> |
| 7 | <meta name='creator' content='Don Brutzman'/> |
| 8 | <meta name='created' content='23 April 2013'/> |
| 9 | <meta name='modified' content='25 November 2024'/> |
| 10 | <meta name=' TODO ' content=' color mapper in scene for varying Background contrast '/> |
| 11 | <meta name=' TODO ' content=' second X-axis angle slider '/> |
| 12 |

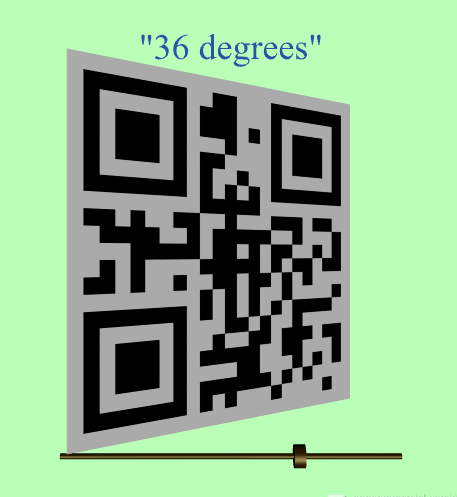

<meta name='Image' content='TextureAngleViewer36degrees.png' />
|
| 13 |
<meta name='Image' content='images/QrNpsEduCode.png' />
|
| 14 | <meta name='reference' content='http://qr.nps.edu'/> |
| 15 | <meta name='reference' content='https://zxing.appspot.com/generator'/> |
| 16 | <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/TextureMapping/TextureAngleViewer.x3d '/> |
| 17 | <meta name='generator' content='X3D-Edit 3.3, https://www.web3d.org/x3d/tools/X3D-Edit'/> |
| 18 | <meta name='license' content='../license.html'/> |
| 19 | </head> |
| 20 | <Scene> |
| 21 | <!-- ================================ --> |
| 22 | <WorldInfo title='Texture Angle Viewer'/> |
| 23 | <Background skyColor='0.72549 1 0.721569'/> |
| 24 | <Viewpoint description='Texture angle viewer' position='0 0 11'/> |
| 25 | <NavigationInfo DEF='NavigationInfoFinal' type='"NONE"'/> |
| 26 | <!-- <NavigationInfo DEF='NavigationInfoDebug' type='"EXAMINE" "ANY"'/> --> |
| 27 | <!-- ================================ --> |
| 28 | <Transform translation='0 3.6 0'> |
| 29 | <Shape> |
| 30 |
<!-- ROUTE information for AngleOutputText node:
[from SliderScript.angleMFString_changed to string
]
-->
<Text DEF='AngleOutputText' string='"Texture angle viewer"'> |
| 31 | <FontStyle justify='"MIDDLE" "MIDDLE"' size='0.7'/> |
| 32 | </Text> |
| 33 | <Appearance> |
| 34 | <Material diffuseColor='0.2 0.4 0.8'/> |
| 35 | </Appearance> |
| 36 | </Shape> |
| 37 | </Transform> |
| 38 | <!-- ================================ --> |
| 39 | <Anchor description='this QR code links to http://qr.nps.edu' url=' "http://qr.nps.edu" '> |
| 40 |
<!-- ROUTE information for ImageTransform node:
[from SliderScript.rotation_changed to rotation
]
-->
<Transform DEF='ImageTransform'> |
| 41 | <Shape> |
| 42 | <!-- TODO add a single geometry node here --> |
| 43 | <IndexedFaceSet coordIndex='1 0 2 3 0 -1'> |
| 44 | <Coordinate point='-3 -3 0 3 -3 0 3 3 0 -3 3 0 -3 -3 0'/> |
| 45 | </IndexedFaceSet> |
| 46 | <Appearance> |
| 47 | <Material/> |
| 48 |
<ImageTexture
url=' "images/QrNpsEduCode.png
" "https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/TextureMapping/images/QrNpsEduCode.png
" '/>
|
| 49 | </Appearance> |
| 50 | </Shape> |
| 51 | </Transform> |
| 52 | </Anchor> |
| 53 | <!-- ================================ --> |
| 54 | <Transform DEF='SliderSituated' translation='0 -3.6 0'> |
| 55 |
<!-- ROUTE information for SliderKnobTransform node:
[from SliderScript.translation_changed to translation
]
-->
<Transform DEF='SliderKnobTransform'> |
| 56 |
<!-- ROUTE information for SliderPlaneSensor node:
[from translation_changed to SliderScript.set_translation
]
-->
<PlaneSensor DEF='SliderPlaneSensor' description='select and drag to change angle values' maxPosition='3 0' minPosition='-3 0'/> |
| 57 | <Transform rotation='0 0 1 1.570796'> |
| 58 | <Shape> |
| 59 | <Cylinder DEF='SliderKnob' height='0.2' radius='0.2'/> |
| 60 |
<!-- Appearance
Metals13Appearance is a DEF node that has 1 USE node: USE_1 -->
<Appearance DEF='Metals13Appearance'> |
| 61 | <Material ambientIntensity='0.25641' diffuseColor='0.222308 0.15428 0' specularColor='0.882653 0.860832 0.687861'> |
| 62 | <!-- Universal Media Library: Metals 13 --> |
| 63 | </Material> |
| 64 | </Appearance> |
| 65 | </Shape> |
| 66 | </Transform> |
| 67 | </Transform> |
| 68 | <!-- SliderBar does not rotate or drag with SliderKnob --> |
| 69 | <Transform DEF='SliderBar' rotation='0 0 1 1.570796'> |
| 70 | <Shape> |
| 71 | <Cylinder height='6' radius='0.05'/> |
| 72 | <Appearance USE='Metals13Appearance'/> |
| 73 | </Shape> |
| 74 | </Transform> |
| 75 | </Transform> |
| 76 | <!-- ================================ --> |
| 77 |
<!-- ROUTE information for SliderScript node:
[from SliderPlaneSensor.translation_changed to set_translation
]
[from translation_changed to SliderKnobTransform.translation
]
[from rotation_changed to ImageTransform.rotation
]
[from angleMFString_changed to AngleOutputText.string
]
-->
<Script DEF='SliderScript'> |
| 78 |
<field name='set_translation' type='SFVec3f' accessType='inputOnly'
appinfo='input provided by SliderKnobTransform PlaneSensor output'/> |
| 79 | <field name='angle' type='SFFloat' value='0.0' accessType='initializeOnly'/> |
| 80 | <field name='y' type='SFFloat' value='0.0' accessType='initializeOnly'/> |
| 81 |
<field name='rotation_changed' type='SFRotation' accessType='outputOnly'
appinfo='output provided for ImageTransform rotation'/> |
| 82 | <!-- Note that trackPoint_changed events represent unclamped intersection points on plane surface. Browsers can interpret drags off of the surface in various ways. Note that translation_changed events are clamped by minPosition/maxPosition and thus may be preferable. --> |
| 83 |
<field name='translation_changed' type='SFVec3f' accessType='outputOnly'
appinfo='output provided for SliderKnobTransform translation'/> |
| 84 |
<field name='angleMFString_changed' type='MFString' accessType='outputOnly'
appinfo='output provided for degrees of rotation in Text node'/> |
| 85 |
<field name='tracePrint' type='SFBool' value='true' accessType='initializeOnly'
appinfo='console output for debugging'/> |
<![CDATA[
ecmascript:
function set_translation (eventValue)
{
x = eventValue.x;
if (tracePrint)
{
Browser.println ('========================');
Browser.println (' x=' + x);
}
// clamp values to prevent overrun/underrun, in case minPosition/maxPosition fail
if (x > 3.0) x = 3.0;
if (x < -3.0) x = -3.0;
translation_changed = eventValue;
angle = Math.round(x * 90.0 / 3.0);
rotation_changed = new SFRotation (0, 1, 0, angle * Math.PI / 180.0);
var angleString = angle.toString() + ' degrees'; // JavaScript string
// angleMFString_changed = new MFString (new SFString(angleString)); // only works in InstantReality
angleMFString_changed = new MFString (angleString); // works in several players but not all
// angleMFString_changed = [ angleString ]; // Use JavaScript string array instead of MFString doesn't work
if (tracePrint)
{
Browser.println (' clamped x=' + x);
Browser.println (' set_translation=' + eventValue);
Browser.println ('translation_changed=' + translation_changed.toString() + ', rotation_changed=' + rotation_changed.toString());
Browser.println (''angle=' + angle + ', angleString=' + angleString + ', angleMFString_changed=' + angleMFString_changed.toString());
}
/*
example console excerpt:
========================
x=-0.05248255282640457
clamped x=-0.05248255282640457
set_translation=-0.05248255282640457 0 0
translation_changed=-0.05248255282640457 0 0, rotation_changed=0 1 0 -0.03490658503988659
angle=-2, angleString=-2 degrees, angleMFString_changed=-2 degrees
========================
*/
}
]]>
|
|
| 87 | </Script> |
| 88 | < ROUTE fromNode='SliderPlaneSensor' fromField='translation_changed' toNode='SliderScript' toField='set_translation'/> |
| 89 | < ROUTE fromNode='SliderScript' fromField='translation_changed' toNode='SliderKnobTransform' toField='translation'/> |
| 90 | < ROUTE fromNode='SliderScript' fromField='rotation_changed' toNode='ImageTransform' toField='rotation'/> |
| 91 | < ROUTE fromNode='SliderScript' fromField='angleMFString_changed' toNode='AngleOutputText' toField='string'/> |
| 92 | </Scene> |
| 93 | </X3D> |
Event Graph ROUTE Table entries with 4 ROUTE connections total, showing X3D event-model relationships for this scene.
Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.
|
SliderPlaneSensor
PlaneSensor translation_changed SFVec3f |
SliderScript
Script set_translation SFVec3f |
then
|
SliderScript
Script angleMFString_changed MFString |
AngleOutputText
Text string MFString |
||
|
then
|
SliderScript
Script rotation_changed SFRotation |
ImageTransform
Transform rotation SFRotation |
||||
|
then
|
SliderScript
Script translation_changed SFVec3f |
SliderKnobTransform
Transform translation SFVec3f |
||||
| line 39
Anchor |
description='this QR code links to http://qr.nps.edu' User-interaction hint for this node. |
<!--
Color-coding legend: X3D terminology
