X3D Model Documentation: RotationCalculatorExample.x3d

1	`<?xml version="1.0" encoding="UTF-8"?>`
2	`<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">`
3	<X3D profile='Immersive' version='3.3' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.3.xsd'>
4	<head>
5	<meta name='title' content=' RotationCalculatorExample.x3d '/>
6	<meta name='creator' content='Don Brutzman'/>
7	<meta name='created' content='30 December 2015'/>
8	<meta name='modified' content='14 July 2025'/>
9	<meta name='description' content='Demonstrate composition of rotation values using X3D-Edit RotationCalculator, select and hold either side to compare direct straight-ahead views without parallax.'/>
10	<meta name='drawing' content='https://savage.nps.edu/X3D-Edit/images/RotationCalculator.png'/>
11	<meta name='reference' content='../HumanoidAnimation/RotationTests.x3d'/>
12	<meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/Animation/RotationCalculatorExample.x3d '/>
13	<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
14	<meta name='license' content='../license.html'/>
15	</head>

<!--

Event Graph ROUTE Table shows event connections.

-->
<!--

Index for DEF nodes: AxisLinesShape, CenterRotationYaxis45Degrees, ComposedRotation, CubeWithLabeledSides1, CubeWithLabeledSides2, InnerRotationZaxis-30degrees, LeftSide, OuterRotationXaxis135degrees, RightSide, TextAppearance, TouchLeftCube, TouchRightCube, TransparentAppearance, TransparentBacking1, TransparentBacking2, ViewCenter, ViewLeft, ViewRight

Index for Viewpoint nodes: ViewCenter, ViewLeft, ViewRight

-->

16	<Scene>
17	<WorldInfo title='RotationCalculatorExample.x3d'/>
18	<Background skyColor='0.8 0.8 0.9'/>
19	<NavigationInfo/>
20	<Viewpoint DEF='ViewCenter' description='Rotation Calculator Example' position='0 0 12'/>

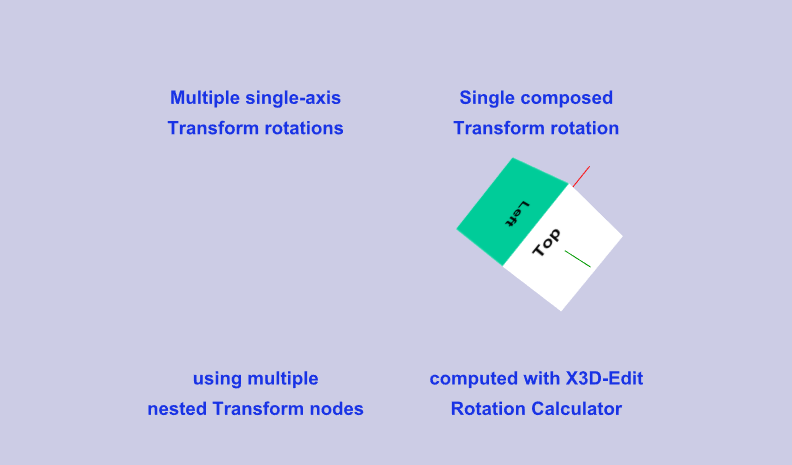

21	<!-- ROUTE information for ViewLeft node: [from TouchLeftCube.isActive to set_bind ] --> <Viewpoint DEF='ViewLeft' description='Left side direct view' position='-3 0 12'/>

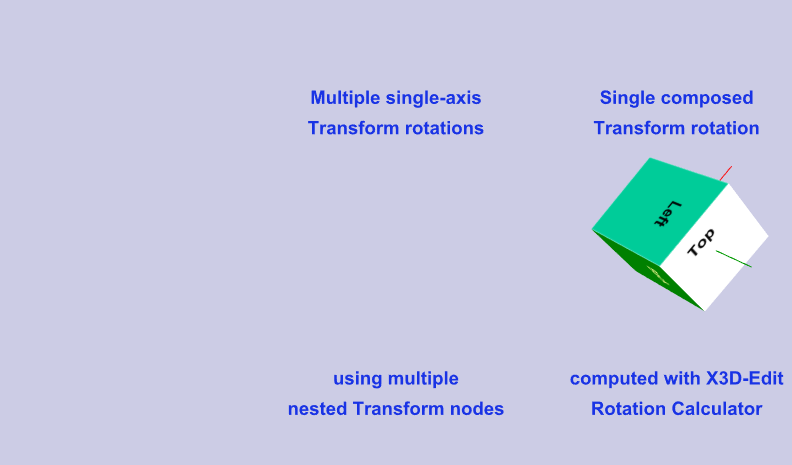

22	<!-- ROUTE information for ViewRight node: [from TouchRightCube.isActive to set_bind ] --> <Viewpoint DEF='ViewRight' description='Right side direct view' position='3 0 12'/>
23	<Transform DEF='LeftSide' translation='-4 0 0'>
24	<!-- Individual nested rotations follow -->
25	<Transform DEF='OuterRotationXaxis135degrees' rotation='1 0 0 2.356194'>
26	<Transform DEF='CenterRotationYaxis45Degrees' rotation='0 1 0 0.785398'>
27	<Transform DEF='InnerRotationZaxis-30degrees' rotation='0 0 1 -0.523599'>
28	<Inline DEF='CubeWithLabeledSides1' url=' "../GeometricShapes/CubeWithLabeledSides.x3d" "https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/GeometricShapes/CubeWithLabeledSides.x3d" "../GeometricShapes/CubeWithLabeledSides.wrl" "https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/GeometricShapes/CubeWithLabeledSides.wrl" '>
29	<MetadataString name='profile' value='"Interchange"'/>
30	</Inline>
31	<!-- Shape AxisLinesShape is a DEF node that has 1 USE node: USE_1 --> <Shape DEF='AxisLinesShape'>
32	<IndexedLineSet colorPerVertex='false' colorIndex='0 1 2' coordIndex='0 1 -1 0 2 -1 0 3 -1'>
33	<Coordinate point='0 0 0 1.78 0 0 0 1.78 0 0 0 1.78'/>
34	<Color color='1 0 0 0 0.6 0 0 0 1'/>
35	</IndexedLineSet>
36	<Appearance>
37	<Material diffuseColor='0.9 0.9 0.9'/>
38	</Appearance>
39	</Shape>
40	</Transform>
41	</Transform>
42	</Transform>
43	<Transform translation='0 3 0'>
44	<Shape>
45	<Text string='"Multiple single-axis" "Transform rotations"'>
46	<FontStyle family='"SANS"' justify='"MIDDLE" "MIDDLE"' size='0.5' style='BOLD'/>
47	</Text>
48	<!-- Appearance TextAppearance is a DEF node that has 3 USE nodes: USE_1, USE_2, USE_3 --> <Appearance DEF='TextAppearance'>
49	<Material diffuseColor='0.1 0.2 0.9'/>
50	</Appearance>
51	</Shape>
52	</Transform>
53	<Transform translation='0 -3 0'>
54	<Shape>
55	<Text string='"using multiple" "nested Transform nodes"'>
56	<FontStyle family='"SANS"' justify='"MIDDLE" "MIDDLE"' size='0.5' style='BOLD'/>
57	</Text>
58	<Appearance USE='TextAppearance'/>
59	</Shape>
60	</Transform>
61	<Shape DEF='TransparentBacking1'>
62	<Box size='7 7 0.1'/>
63	<!-- Appearance TransparentAppearance is a DEF node that has 1 USE node: USE_1 --> <Appearance DEF='TransparentAppearance'>
64	<Material transparency='1'/>
65	</Appearance>
66	</Shape>
67	<!-- ROUTE information for TouchLeftCube node: [from isActive to ViewLeft.set_bind ] --> <TouchSensor DEF='TouchLeftCube' description='Hold for direct left-side view, no parallax'/>
68	< ROUTE fromNode='TouchLeftCube' fromField='isActive' toNode='ViewLeft' toField='set_bind'/>
69	</Transform>
70	<Transform DEF='RightSide' translation='4 0 0'>
71	<!-- Composed equivalent rotation follows, X3D-Edit can reload rotation array values from embedded comment -->
72	<Transform DEF='ComposedRotation' rotation='0.87262 0.40202 0.27735 2.24592'>
73	<!-- RotationCalculator composed rotation: 1.0 0.0 0.0 2.35619, 0.0 1.0 0.0 0.785398, 0.0 0.0 1.0 -0.523599 -->
74	<!-- Can't re-use USE node for independent TouchSensor selection <Inline USE='CubeWithLabeledSides'/> -->
75	<Inline DEF='CubeWithLabeledSides2' url=' "../GeometricShapes/CubeWithLabeledSides.x3d" "https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/GeometricShapes/CubeWithLabeledSides.x3d" "../GeometricShapes/CubeWithLabeledSides.wrl" "https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/GeometricShapes/CubeWithLabeledSides.wrl" '>
76	<MetadataString name='profile' value='"Interchange"'/>
77	</Inline>
78	<Shape USE='AxisLinesShape'/>
79	</Transform>
80	<Transform translation='0 3 0'>
81	<Shape>
82	<Text string='"Single composed" "Transform rotation"'>
83	<FontStyle family='"SANS"' justify='"MIDDLE" "MIDDLE"' size='0.5' style='BOLD'/>
84	</Text>
85	<Appearance USE='TextAppearance'/>
86	</Shape>
87	</Transform>
88	<Transform translation='0 -3 0'>
89	<Shape>
90	<Text string='"computed with X3D-Edit" "Rotation Calculator"'>
91	<FontStyle family='"SANS"' justify='"MIDDLE" "MIDDLE"' size='0.5' style='BOLD'/>
92	</Text>
93	<Appearance USE='TextAppearance'/>
94	</Shape>
95	</Transform>
96	<Shape DEF='TransparentBacking2'>
97	<Box size='7 7 0.1'/>
98	<Appearance USE='TransparentAppearance'/>
99	</Shape>
100	<!-- ROUTE information for TouchRightCube node: [from isActive to ViewRight.set_bind ] --> <TouchSensor DEF='TouchRightCube' description='Hold for direct right-side view, no parallax'/>
101	< ROUTE fromNode='TouchRightCube' fromField='isActive' toNode='ViewRight' toField='set_bind'/>
102	</Transform>
103	</Scene>
104	</X3D>

<!--

Event Graph ROUTE Table shows event connections.

-->
<!--

-->

X3D Tooltips element index: Appearance, Background, Box, Color, Coordinate, FontStyle, head, IndexedLineSet, Inline, Material, meta, MetadataString, NavigationInfo, ROUTE, Scene, Shape, Text, TouchSensor, Transform, Viewpoint, WorldInfo, X3D, plus documentation for accessType definitions, type definitions, XML data types, and field types

Event Graph ROUTE Table entries with 2 ROUTE connections total, showing X3D event-model relationships for this scene.

Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.

TouchLeftCube
TouchSensor
isActive
SFBool

→
ROUTE
event to
(1)

ViewLeft
Viewpoint
set_bind
SFBool

TouchRightCube
TouchSensor
isActive
SFBool

→
ROUTE
event to
(1)

ViewRight
Viewpoint
set_bind
SFBool

Additional guidance on X3D animation can be found in the 10-Step Animation Design Process and Event Tracing hint sheets. Have fun with X3D! 😀

-->
