X3D Model Documentation: AirRadarLw08.x3d

1	`<?xml version="1.0" encoding="UTF-8"?>`
2	`<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">`
3	<X3D profile='Immersive' version='3.0' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
4	<head>
5	<meta name='title' content=' AirRadarLw08.x3d '/>
6	<meta name='creator' content='Copyright [2001] By George Stavritis'/>
7	<meta name='created' content='20 October 2001'/>
8	<meta name='modified' content='20 October 2019'/>
9	<meta name='contributor' content='Josh Hansen'/>
10	<meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Savage/ShipsMilitary/DD963SpruanceUnitedStates/AirRadarLw08.x3d '/>
11	<meta name='description' content='Navigation radar zw06'/>
12	<meta name='generator' content='X3D-Edit 3.2, https://www.web3d.org/x3d/tools/X3D-Edit'/>
13	<meta name='license' content='../../license.html'/>
14	</head>

<!--

Event Graph ROUTE Table shows event connections.

-->
<!--

DEF nodes index: Clock, Column, ColumnPath

Index for Viewpoint node: Viewpoint_1

-->

15	<Scene>
16	<WorldInfo title='AirRadarLw08.x3d'/>
17	<Background groundAngle='1.309 1.570796' groundColor='1 1 1 0.1 0.1 0.5 0.4 0.25 0.2 0.1 0.6 0.1' skyAngle='1.309 1.571' skyColor='0 0.2 0.7 0 0.5 1 1 1 1' backUrl=' "mountns.png " "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/mountns.png " ' frontUrl=' "mountns.png " "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/mountns.png " ' leftUrl=' "mountns.png " "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/mountns.png " ' rightUrl=' "mountns.png " "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/mountns.png " '/>

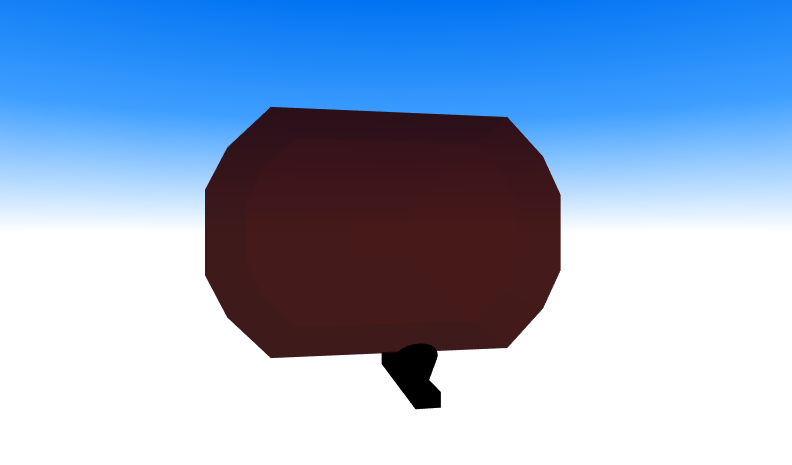

18	<Viewpoint description='Air Radar' orientation='1 0 0 0' position='0 0 6'/>
19	<Group>
20	<!-- ROUTE information for Column node: [from ColumnPath.value_changed to set_rotation ] --> <Transform DEF='Column' center='0 0 0.5' rotation='0 0 1 1.54' scale='0.4 0.4 1'>
21	<Shape>
22	<Extrusion crossSection='-4 -2 -4.5 -1 -4.5 1 -4 2 -3 3 3 3 4 2 4.5 1 4.5 -1 4 -2 3 -3 -3 -3 -4 -2' scale='0.1 0.1 0.7 0.7 1 1 0.8 0.8 0.2 0.2' spine='0 0 -0.5 0 0 0 0 0 0.4 0 0 0.1 0 0 -0.2'/>
23	<Appearance>
24	<Material diffuseColor='0.1 0 0' emissiveColor='0.1 0 0' shininess='.3' transparency='0.1'/>
25	</Appearance>
26	</Shape>
27	<Transform translation='0 -3.2 1'>
28	<Shape>
29	<Box size='0.5 0.3 1.5'/>
30	<Appearance>
31	<Material diffuseColor='0 0 0'/>
32	</Appearance>
33	</Shape>
34	</Transform>
35	<Transform rotation='1 0 0 2' scale='0.5 1 0.5' translation='0 -2.8 1.5'>
36	<Shape>
37	<Cone height='0.5'/>
38	<Appearance>
39	<Material diffuseColor='0 0 0'/>
40	</Appearance>
41	</Shape>
42	</Transform>
43	</Transform>
44	<!-- ROUTE information for Clock node: [from fraction_changed to ColumnPath.set_fraction ] --> <TimeSensor DEF='Clock' cycleInterval='8' loop='true'/>
45	<!-- ROUTE information for ColumnPath node: [from Clock.fraction_changed to set_fraction ] [from value_changed to Column.set_rotation ] --> <OrientationInterpolator DEF='ColumnPath' key='0.0 0.25 0.50 0.75 1.0' keyValue='0 1 0 0 0 1 0 1.57 0 1 0 3.14 0 1 0 4.71 0 1 0 6.18'/>
46	</Group>
47	< ROUTE fromNode='Clock' fromField='fraction_changed' toNode='ColumnPath' toField='set_fraction'/>
48	< ROUTE fromNode='ColumnPath' fromField='value_changed' toNode='Column' toField='set_rotation'/>
49	</Scene>
50	</X3D>

<!--

Event Graph ROUTE Table shows event connections.

-->
<!--

DEF nodes index: Clock, Column, ColumnPath

Index for Viewpoint node: Viewpoint_1

-->

X3D Tooltips element index: Appearance, Background, Box, Cone, Extrusion, Group, head, Material, meta, OrientationInterpolator, ROUTE, Scene, Shape, TimeSensor, Transform, Viewpoint, WorldInfo, X3D, plus documentation for accessType definitions, type definitions, XML data types, and field types

Event Graph ROUTE Table entries with 2 ROUTE connections total, showing X3D event-model relationships for this scene.

Each row shows an event cascade that may occur during a single timestamp interval between frame renderings, as part of the X3D execution model.

Clock
TimeSensor
fraction_changed
SFFloat

→
ROUTE
event to
(1)

ColumnPath
OrientationInterpolator
set_fraction
SFFloat

then

ColumnPath
OrientationInterpolator
value_changed
SFRotation

→
ROUTE
event to
(2)

Column
Transform
set_rotation
SFRotation

Additional guidance on X3D animation can be found in the 10-Step Animation Design Process and Event Tracing hint sheets. Have fun with X3D! 😀

-->
