X3D Model Documentation: MinutemenHull.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2  <!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.3//EN" "https://www.web3d.org/specifications/x3d-3.3.dtd">
  3  <X3D profile='Immersive' version='3.3'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.3.xsd'>
  4       <head>
  5            <meta name='title' content=' MinutemenHull.x3d '/>
  6            <meta name='description' content='MINUTEMEN Hull shows a notional ship design by NPS TSSE class. Generated from Meshlab X3D Exported.'/>
  7            <meta name='generator' content='Meshlab X3D Exported, http://meshlab.sourceforge.net'/>
  8            <meta name='creator' content='NPS TSSE class'/>
  9            <meta name='translator' content='Mike Grimshaw and Don Brutzman'/>
 10            <meta name='created' content='1 December 2016'/>
 11            <meta name='translated' content='16 June 2017'/>
 12            <meta name='modified' content='20 October 2019'/>
 13            <meta name='reference' content='https://wiki.nps.edu/display/NOW/2017/05/11/NPS+TSSE+2016+Design+Project+-+Minutemen+Ship+Class'/>
 14            <meta name=' TODO ' content=' add SMAL metadata '/>

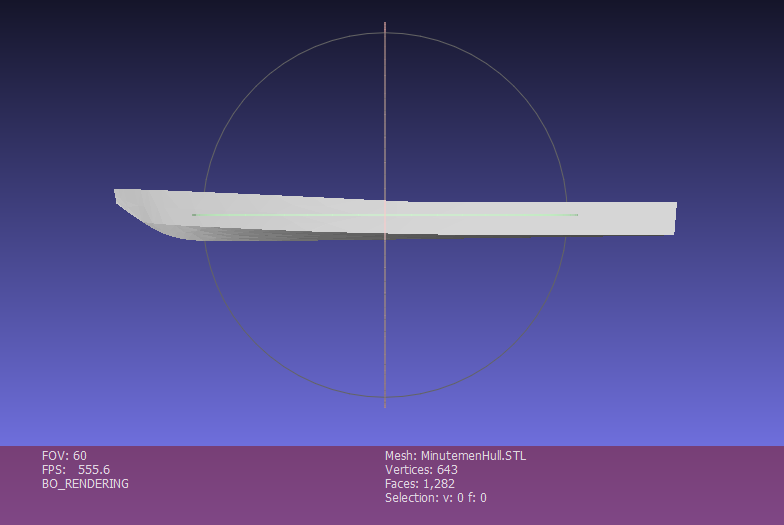

 15            <meta name='reference' content='MinutemenHull.STL'/>
 16            <meta name='Image' content='MinutemenHullScreenshotMeshlab.png'/>
 17            <meta name='reference' content=' MinutemenClassDesignAssembledSolidworks.x3d '/>
 18            <meta name='reference' content=' MinutemenGun.x3d '/>
 19            <meta name='reference' content=' https://wiki.nps.edu/download/attachments/855408809/2016TsseMinutemenClassVessel.2pages.pdf '/>
 20            <meta name='reference' content=' https://wiki.nps.edu/download/attachments/855408809/2016TsseMinutemenClassPoster.pdf '/>
 21            <meta name='generator' content='X3D-Edit 3.3, https://www.web3d.org/x3d/tools/X3D-Edit'/>
 22            <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Savage/ShipsMilitary/CorvetteMinutemenClassUnitedStates/MinutemenHull.x3d '/>
