X3D Model Documentation: LightningBolt.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
  3  <X3D profile='Immersive' version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
  4       <head>
  5            <meta name='title' content=' LightningBolt.x3d '/>
  6            <meta name='creator' content='Mike Hunsberger'/>
  7            <meta name='created' content='14 June 2001'/>
  8            <meta name='modified' content='20 October 2019'/>
  9            <meta name='description' content='LightningBolt with Arrowhead as 3D communications icon.'/>
 10            <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Savage/CommunicationsAndSensors/OmniDirectional/LightningBolt.x3d '/>
 11            <meta name='generator' content='X3D-Edit 3.2, https://www.web3d.org/x3d/tools/X3D-Edit'/>
 12            <meta name='license' content='../../license.html'/>
 13       </head>
<!--
<!-- to top DEF node index: Index for Viewpoint node: Viewpoint_1
-->
 14       <Scene>
 15            <WorldInfo title='Geodesic Hemisphere Order 4, radius 1m'/>

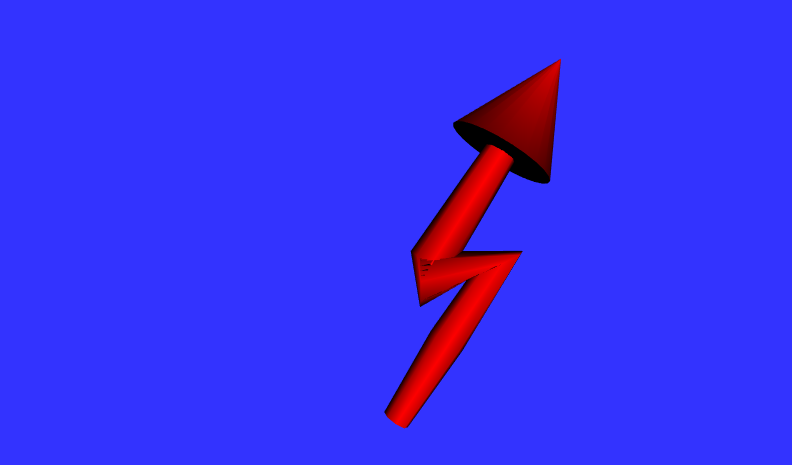

 16            <Viewpoint description='Initial' position='0 10 30'/>
 17            <Background skyAngle='.2' skyColor='1 1 1 0.2 0.2 1'/>
 18            <Group>
 19                 <Transform rotation='0 0 1 1'>
 20                      <Shape>
 21                           <Extrusion creaseAngle='3.14' crossSection='1 0 .707 .707 0 1 -.707 .707 -1 0 -.707 -.707 0 -1 .707 -.707 1 0' scale='.75 .75 1 1 1.5 1.5 1.5 1.5 1.2 1.2 1 1 .75 .75' solid='false' spine='0 0 0 5 0 0 10 0 0 7 3 0 8 3 0 13 3 0 18 3 0'/>
 22                           <Appearance>
 23                                <Material diffuseColor='1 0 0'/>
 24                           </Appearance>
 25                      </Shape>
 26                      <Transform rotation='0 0 1 -1.57' scale='3 3 3' translation='18 3 0'>
 27                           <Shape>
 28                                <Appearance>
 29                                     <Material diffuseColor='1 0 0'/>
 30                                </Appearance>
 31                                <Cone/>
 32                           </Shape>
 33                      </Transform>
 34                 </Transform>
 35            </Group>
 36       </Scene>
 37  </X3D>
<!--
<!-- to top DEF node index: Index for Viewpoint node: Viewpoint_1
-->
X3D Tooltips element index: Appearance, Background, Cone, Extrusion, Group, head, Material, meta, Scene, Shape, Transform, Viewpoint, WorldInfo, X3D, plus documentation for accessType definitions, type definitions, XML data types, and field types
-->
<!-- Online at
https://www.web3d.org/x3d/content/examples/Savage/CommunicationsAndSensors/OmniDirectional/LightningBoltIndex.html -->
