X3D Model Documentation: AircraftFuselage.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
  3  <X3D profile='Immersive' version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.0.xsd'>
  4       <head>
  5            <meta name='title' content=' AircraftFuselage.x3d '/>
  6            <meta name='description' content='The main fuselage of a Blue Angel, created with an Extrusion node and the image of a F18 cockpit attached to it.'/>
  7            <meta name='creator' content='Etsuko Lippi'/>
  8            <meta name='created' content='11 July 2001'/>
  9            <meta name='modified' content='28 November 2019'/>
 10            <meta name='reference' content=' http://spower.free.fr/thisky/f18review/f18rev.htm '/>
 11            <meta name='generator' content='X3D-Edit 3.2, https://www.web3d.org/x3d/tools/X3D-Edit'/>
 12            <meta name='subject' content='aircraft fuselage'/>
 13            <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Savage/AircraftFixedWing/F18BlueAngelUnitedStates/AircraftFuselage.x3d '/>
 14            <meta name='license' content='../../license.html'/>
 15       </head>
<!--
<!-- -->
<!-- to top DEF nodes index: controlPanel, fuselage, FuselageAppearance, fuselageHead, topFuseLage
-->
 16       <Scene>
 17            <WorldInfo title='AircraftFuselage.x3d'/>
 18            <Background groundAngle='1.309 1.5702' groundColor='0.5 0.3 0.3 0.5 0.3 0.3 0.5 0.4 0.4' skyAngle='1.309 1.572' skyColor='0 0.2 0.7 0 0.5 1 1 1 1'/>
 19            <Transform rotation='0.58 -0.58 0.58 2.09' scale='0.4 0.4 0.4' translation='0.5 -0.41 -5'>
 20                 <!-- A Yellow arrow on top the fuselage. -->
 21                 <Shape>
 22                      <Appearance>
 23                           <Material diffuseColor='1 0.8 0' specularColor='1 0.8 0'/>
 24                      </Appearance>
 25                      <IndexedFaceSet creaseAngle='1.75' solid='false' coordIndex='0 1 2 0 -1 3 4 5 3 -1'>
 26                           <Coordinate point='0 7.5 -0.15 -0.35 5 0 0.35 5 0 -0.2 5 0 0.2 5 0 0 -5 0'/>
 27                      </IndexedFaceSet>
 28                 </Shape>
 29            </Transform>
 30            <Transform rotation='1 0.05 0 3.14' scale='0.3 0.3 0.3' translation='-3.0 0.11 -5.0'>
 31                 <Shape>
 32
                    <!-- Appearance FuselageAppearance is a DEF node that has 2 USE nodes: USE_1, USE_2 -->
                     <Appearance DEF='FuselageAppearance'>
 33                           <Material diffuseColor='0.1 0.25 0.5' specularColor='0 0.2 0.3'/>
 34                      </Appearance>
 35                      <Extrusion DEF='topFuseLage' creaseAngle='2.5' crossSection='0.00 1.30 .494 1.196 .923 .923 1.196 .494 1.30 0.00 1.196 -.494 .923 -.923 .494 -1.196 0.00 -1.30' scale='0.1 0.05 0.4 0.45 0.8 0.8' spine='2 -0.4 0 3 -0.4 0 5 -0.3 0'/>
 36                 </Shape>
 37            </Transform>
 38            <Transform rotation='0 1 0 3.14' scale='1 1 1.3' translation='0 0 -5.0'>
 39                 <!-- Fuselage head part -->
 40                 <Shape>
 41                      <Appearance USE='FuselageAppearance'/>
 42                      <Extrusion DEF='fuselageHead' creaseAngle='2.5' crossSection='0.00 1.30 .494 1.196 .923 .923 1.196 .494 1.30 0.00 1.196 -.494 .923 -.923 .494 -1.196 0.00 -1.30 -.494 -1.196 -.923 -.923 -1.196 -.494 -1.30 -0.00 -1.196 .494 -.923 .923 -.494 1.196 0.00 1.30' scale='0.47 0.37 0.37 0.27 0.18 0.15 0.10 0.08 0.06 0.04 0.03 0.015 0.009 0.009' spine='1.71 0.08 0 3 0 0 4 -0.1 0 4.15 -0.1 0 4.2 -0.1 0 4.22 -0.1 0 4.23 -0.1 0'/>
 43                 </Shape>
 44            </Transform>
 45            <Transform rotation='0 1 0 3.14' scale='1 1 1.3' translation='0 0 -5.0'>
 46                 <Shape>
 47                      <Appearance USE='FuselageAppearance'/>
 48                      <Extrusion DEF='fuselage' creaseAngle='2.5' crossSection='0.00 1.30 .494 1.196 .923 .923 1.196 .494 1.30 0.00 1.196 -.494 .923 -.923 .494 -1.196 0.00 -1.30 -.494 -1.196 -.923 -.923 0.00 -0.5 0.00 0.5 -.923 .923 -.494 1.196 0.00 1.30' scale='0.4 0.3 0.46 0.36 0.46 0.36 0.46 0.36 0.58 0.36 0.46 0.36 0.47 0.37' spine='-4 -0.055 0 -3 -0 0 -2 0.075 0 -1 0.1 0 0 0.22 0 1 0.08 0 1.73 0.08 0'/>
 49                 </Shape>
 50            </Transform>
 51            <Transform DEF='controlPanel' rotation='0.58 0.58 0.58 2.09' scale='0.2 0.2 0.2' translation='-1.5 0.32 -5'>
 52                 <Shape>
 53                      <Appearance>
 54                           <Material/>

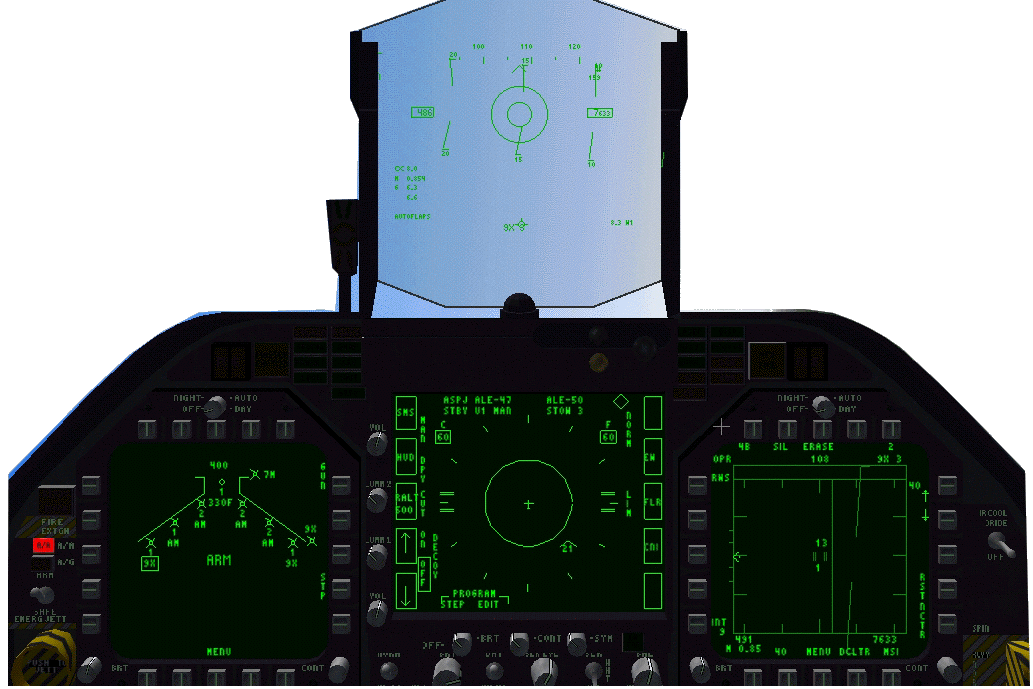

 55                           <ImageTexture   url=' "F18Cockpit.gif " "https://www.web3d.org/x3d/content/examples/Savage/AircraftFixedWing/F18BlueAngelUnitedStates/F18Cockpit.gif " '/>
 56                           <!-- note: It is imaginary and unclassified. -->
 57                      </Appearance>
 58                      <IndexedFaceSet creaseAngle='1.75' solid='false' coordIndex='0 1 2 3 4 5 6 7 8 9 0'>
 59                           <Coordinate point='0.00 1.30 0 .494 1.196 0 .923 .923 0 1.196 .494 0 2.3 .494 0 2.3 -.494 0 1.196 -.494 0 .923 -.923 0 .494 -1.196 0 0.00 -1.30 0'/>
 60                      </IndexedFaceSet>
 61                 </Shape>
 62            </Transform>
 63       </Scene>
 64  </X3D>
<!--
<!-- -->
<!-- to top DEF nodes index: controlPanel, fuselage, FuselageAppearance, fuselageHead, topFuseLage
-->
X3D Tooltips element index: Appearance, Background, Coordinate, Extrusion, head, ImageTexture, IndexedFaceSet, Material, meta, Scene, Shape, Transform, WorldInfo, X3D, plus documentation for accessType definitions, type definitions, XML data types, and field types
-->
