X3D Model Documentation: NurbsPatch.x3d

  1  <?xml version="1.0" encoding="UTF-8"?>
  2  <!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.2//EN" "https://www.web3d.org/specifications/x3d-3.2.dtd">
  3  <X3D profile='Immersive' version='3.2'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation='https://www.web3d.org/specifications/x3d-3.2.xsd'>
  4       <head>
  5            <component level='1' name='NURBS'/>
  6            <meta name='title' content=' NurbsPatch.x3d '/>
  7            <meta name='description' content='This scene contains a single NurbsPatchSurface rendering one-quarter of a cylindrical segment. The "solid" field of the surface is set false for so that surface is visible from both sides. Surface has semi-transparent material appearance. Scene also contains unit-length line segments defining x-y-z coordinate axes. Defined Viewpoints show the inner and outer sides of the cylindrical surface'/>

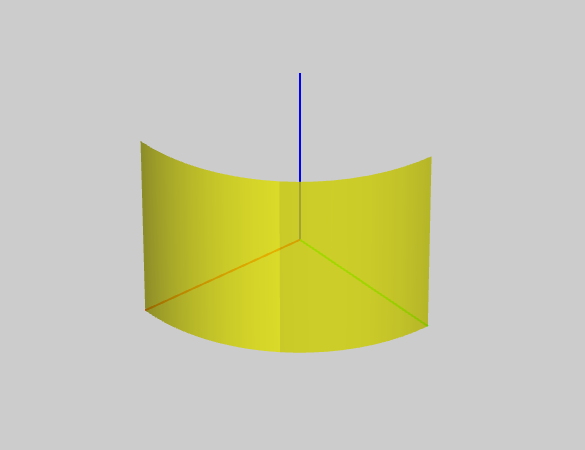

  8            <meta name='Image' content='NurbsPatch.jpg'/>
  9            <meta name='creator' content='Vincent Marchetti'/>
 10            <meta name='created' content='10 February 2012'/>
 11            <meta name='modified' content='20 October 2019'/>
 12            <meta name='reference' content='http://www.kshell.com/pages/nurbs_surface_demo'/>

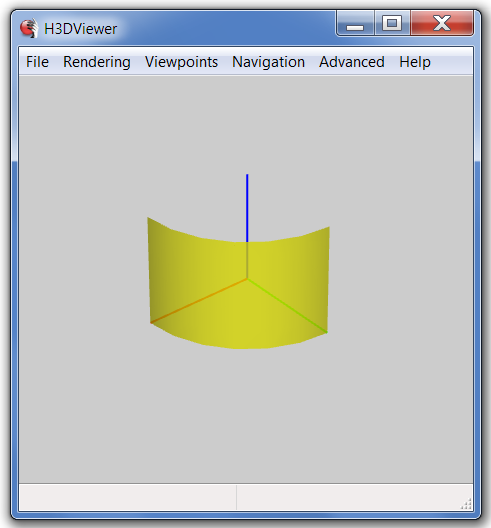

 13            <meta name='Image' content='images/NurbsPatchH3DViewer.png'/>

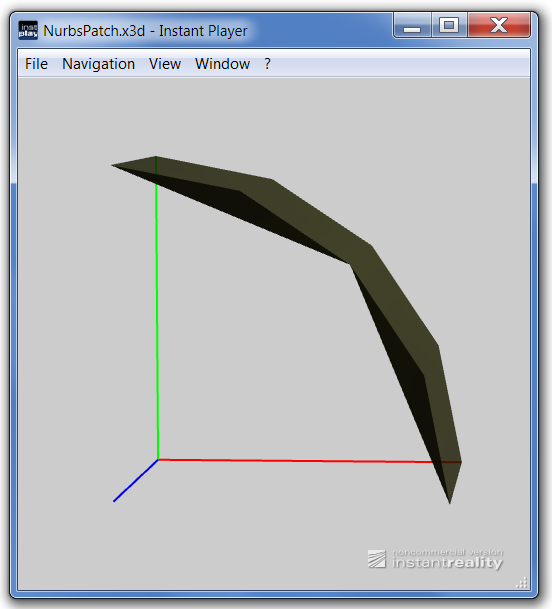

 14            <meta name='Image' content='images/NurbsPatchInstantReality.png'/>

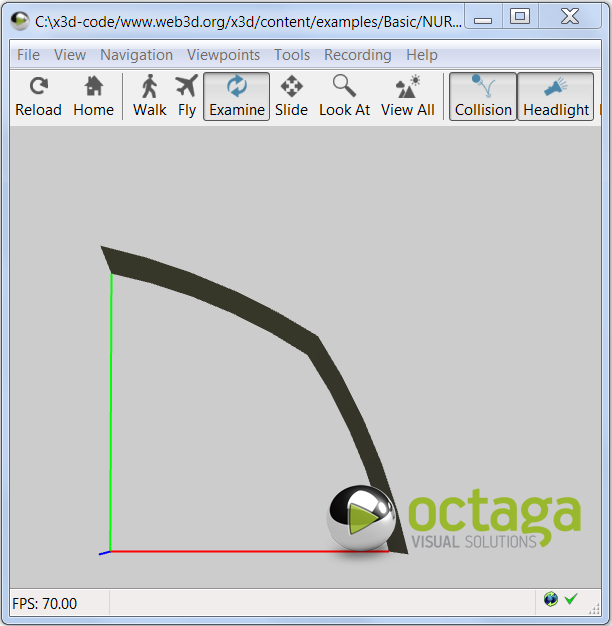

 15            <meta name='Image' content='images/NurbsPatchOctagaVS.png'/>
 16            <meta name='Image' content='images/NurbsPatchView3dscene.png'/>
 17            <meta name='Image' content='images/NurbsPatchBSContact.png'/>

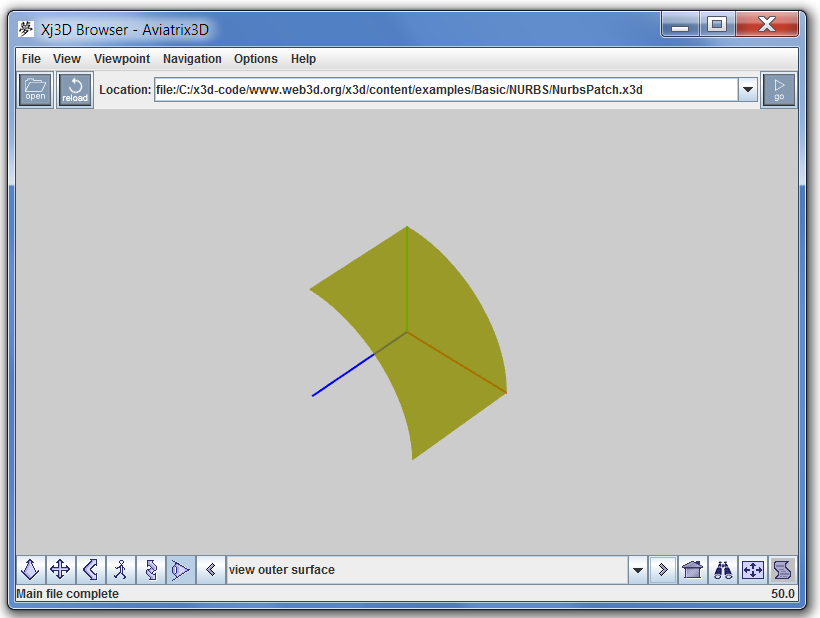

 18            <meta name='Image' content='images/NurbsPatchXj3D.png'/>
 19            <meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Basic/NURBS/NurbsPatch.x3d '/>
 20            <meta name='generator' content='Python language scripting'/>
 21            <meta name='generator' content='X3D-Edit 3.3, https://www.web3d.org/x3d/tools/X3D-Edit'/>
 22            <meta name='license' content='../license.html'/>
 23       </head>
<!--
<!-- -->
<!-- to top DEF node index: WorldSpaceCoordinateAxes

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2, Viewpoint_3
-->
 24       <Scene>
 25            <WorldInfo title='NurbsPatch.x3d'/>
 26            <Background skyColor='0.8 0.8 0.8'/>
 27            <Viewpoint description='view outer surface' fieldOfView='0.16628' orientation='0.166 0.465 0.87 2.538' position='10.55 12.855 11.111'/>
 28            <Viewpoint description='view inner surface' fieldOfView='0.16628' orientation='0.797 -0.285 -0.533 1.182' position='-10.55 -12.855 11.111'/>
 29            <Viewpoint centerOfRotation='0.7 0.7 0' description='view from above' fieldOfView='0.16628' position='0.7 0.7 10'/>
 30            <Shape>
 31                 <NurbsPatchSurface solid='false' uDimension='5' uKnot='0.0 0.0 0.0 0.5 0.5 1.0 1.0 1.0' vDimension='2' vKnot='0.0 0.0 1.0 1.0' vOrder='2' weight='1.0 0.923879181092 1.0 0.923879181092 1.0 1.0 0.923879181092 1.0 0.923879181092 1.0' containerField='geometry'>
 32                      <Coordinate containerField='controlPoint' point='1 0 0 0.92388 0.38268 0 0.70711 0.70711 0 0.38268 0.92388 0 0 1 0 1 0 1 0.92388 0.38268 0.92388 0.70711 0.70711 1 0.38268 0.92388 0.92388 0 1 1'/>
 33                 </NurbsPatchSurface>
 34                 <Appearance>
 35                      <Material diffuseColor='1 1 0' transparency='0.2'/>
 36                 </Appearance>
 37            </Shape>
 38            <Group DEF='WorldSpaceCoordinateAxes'>
 39                 <Shape>
 40                      <LineSet vertexCount='2' containerField='geometry'>
 41                           <Coordinate point='0.0 0.0 0.0 1.0 0.0 0.0'/>
 42                      </LineSet>
 43                      <Appearance>
 44                           <Material emissiveColor='1 0 0'/>
 45                           <LineProperties linewidthScaleFactor='2' containerField='lineProperties'/>
 46                      </Appearance>
 47                 </Shape>
 48                 <Shape>
 49                      <LineSet vertexCount='2' containerField='geometry'>
 50                           <Coordinate point='0.0 0.0 0.0 0.0 1.0 0.0'/>
 51                      </LineSet>
 52                      <Appearance>
 53                           <Material emissiveColor='0 1 0'/>
 54                           <LineProperties linewidthScaleFactor='2' containerField='lineProperties'/>
 55                      </Appearance>
 56                 </Shape>
 57                 <Shape>
 58                      <LineSet vertexCount='2' containerField='geometry'>
 59                           <Coordinate point='0.0 0.0 0.0 0.0 0.0 1.0'/>
 60                      </LineSet>
 61                      <Appearance>
 62                           <Material emissiveColor='0 0 1'/>
 63                           <LineProperties linewidthScaleFactor='2' containerField='lineProperties'/>
 64                      </Appearance>
 65                 </Shape>
 66            </Group>
 67       </Scene>
 68  </X3D>
<!--
<!-- -->
