complexType TimeStampType

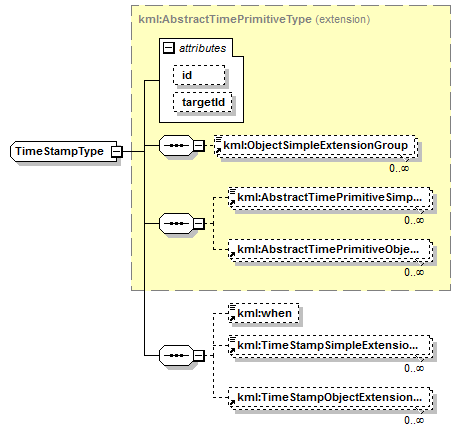

diagram ogckml22_diagrams/ogckml22_p334.png
namespace http://www.opengis.net/kml/2.2
type extension of kml:AbstractTimePrimitiveType
properties
base kml:AbstractTimePrimitiveType
final #all
children kml:ObjectSimpleExtensionGroup kml:AbstractTimePrimitiveSimpleExtensionGroup kml:AbstractTimePrimitiveObjectExtensionGroup kml:when kml:TimeStampSimpleExtensionGroup kml:TimeStampObjectExtensionGroup
used by
element TimeStamp
attributes
Name  Type  Use  Default  Fixed  Annotation
id  ID  optional
targetId  NCName  optional
source <complexType name="TimeStampType" final="#all">
  <complexContent>
    <extension base="kml:AbstractTimePrimitiveType">
      <sequence>
        <element ref="kml:when" minOccurs="0"/>
        <element ref="kml:TimeStampSimpleExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>
        <element ref="kml:TimeStampObjectExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
