complexType TimeSpanType

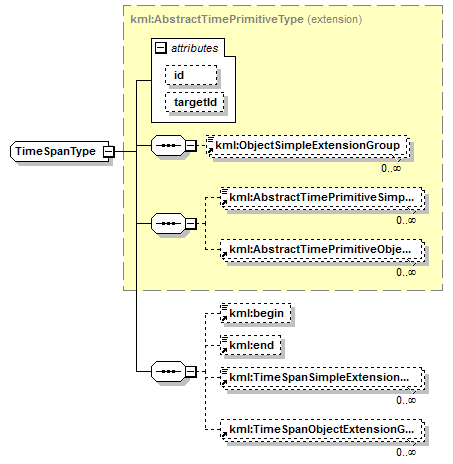

diagram ogckml22_diagrams/ogckml22_p333.png
namespace http://www.opengis.net/kml/2.2
type extension of kml:AbstractTimePrimitiveType
properties
base kml:AbstractTimePrimitiveType
final #all
children kml:ObjectSimpleExtensionGroup kml:AbstractTimePrimitiveSimpleExtensionGroup kml:AbstractTimePrimitiveObjectExtensionGroup kml:begin kml:end kml:TimeSpanSimpleExtensionGroup kml:TimeSpanObjectExtensionGroup
used by
element TimeSpan
attributes
Name  Type  Use  Default  Fixed  Annotation
id  ID  optional
targetId  NCName  optional
source <complexType name="TimeSpanType" final="#all">

<complexContent>

<extension base="kml:AbstractTimePrimitiveType">

<sequence>

<element ref="kml:begin" minOccurs="0"/>

<element ref="kml:end" minOccurs="0"/>

<element ref="kml:TimeSpanSimpleExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>

<element ref="kml:TimeSpanObjectExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>

</sequence>

</extension>

</complexContent>
</complexType>
