complexType AbstractFeatureType

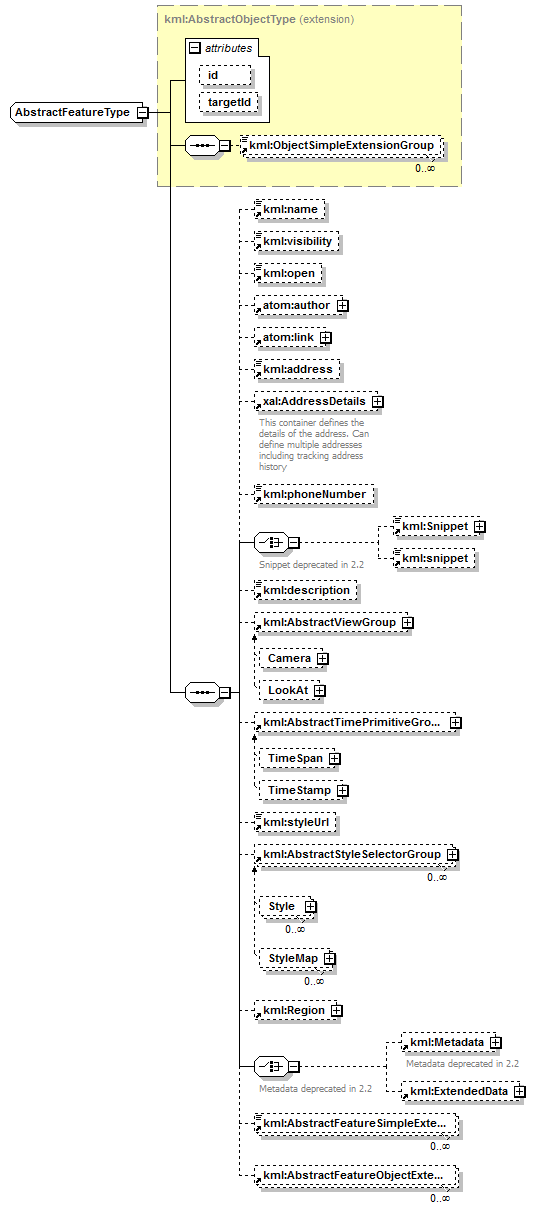

diagram ogckml22_diagrams/ogckml22_p272.png
namespace http://www.opengis.net/kml/2.2
type extension of kml:AbstractObjectType
properties
base kml:AbstractObjectType
abstract true
children kml:ObjectSimpleExtensionGroup kml:name kml:visibility kml:open atom:author atom:link kml:address AddressDetails kml:phoneNumber kml:Snippet kml:snippet kml:description kml:AbstractViewGroup kml:AbstractTimePrimitiveGroup kml:styleUrl kml:AbstractStyleSelectorGroup kml:Region kml:Metadata kml:ExtendedData kml:AbstractFeatureSimpleExtensionGroup kml:AbstractFeatureObjectExtensionGroup
used by
element AbstractFeatureGroup
complexTypes AbstractContainerType AbstractOverlayType NetworkLinkType PlacemarkType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  ID  optional
targetId  NCName  optional
source <complexType name="AbstractFeatureType" abstract="true">

<complexContent>

<extension base="kml:AbstractObjectType">

<sequence>

<element ref="kml:name" minOccurs="0"/>

<element ref="kml:visibility" minOccurs="0"/>

<element ref="kml:open" minOccurs="0"/>

<element ref="atom:author" minOccurs="0"/>

<element ref="atom:link" minOccurs="0"/>

<element ref="kml:address" minOccurs="0"/>

<element ref="xal:AddressDetails" minOccurs="0"/>

<element ref="kml:phoneNumber" minOccurs="0"/>

<choice>

<annotation>

<documentation>Snippet deprecated in 2.2</documentation>

</annotation>

<element ref="kml:Snippet" minOccurs="0"/>

<element ref="kml:snippet" minOccurs="0"/>

</choice>

<element ref="kml:description" minOccurs="0"/>

<element ref="kml:AbstractViewGroup" minOccurs="0"/>

<element ref="kml:AbstractTimePrimitiveGroup" minOccurs="0"/>

<element ref="kml:styleUrl" minOccurs="0"/>

<element ref="kml:AbstractStyleSelectorGroup" minOccurs="0" maxOccurs="unbounded"/>

<element ref="kml:Region" minOccurs="0"/>

<choice>

<annotation>

<documentation>Metadata deprecated in 2.2</documentation>

</annotation>

<element ref="kml:Metadata" minOccurs="0"/>

<element ref="kml:ExtendedData" minOccurs="0"/>

</choice>

<element ref="kml:AbstractFeatureSimpleExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>

<element ref="kml:AbstractFeatureObjectExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>

</sequence>

</extension>

</complexContent>
</complexType>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
