complexType LinkType

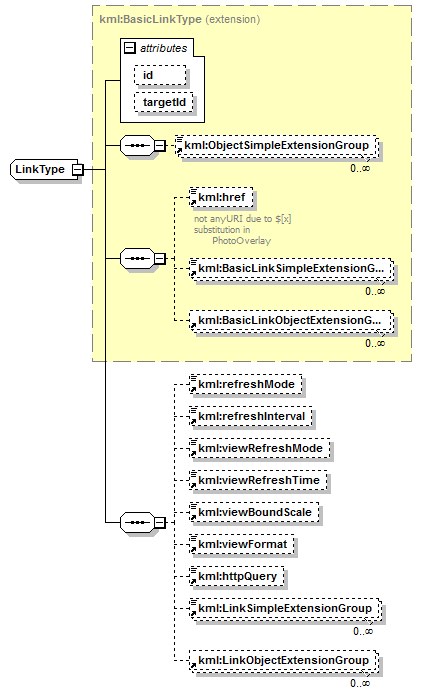

diagram
namespace	http://www.opengis.net/kml/2.2
type	extension of kml:BasicLinkType
properties	base  kml:BasicLinkType final  #all
children	kml:ObjectSimpleExtensionGroup kml:href kml:BasicLinkSimpleExtensionGroup kml:BasicLinkObjectExtensionGroup kml:refreshMode kml:refreshInterval kml:viewRefreshMode kml:viewRefreshTime kml:viewBoundScale kml:viewFormat kml:httpQuery kml:LinkSimpleExtensionGroup kml:LinkObjectExtensionGroup
used by	elements  Icon Link Url
attributes	Name   Type   Use   Default   Fixed   Annotation id   ID   optional         targetId   NCName   optional
source	<complexType name="LinkType" final="#all">   <complexContent>     <extension base="kml:BasicLinkType">       <sequence>         <element ref="kml:refreshMode" minOccurs="0"/>         <element ref="kml:refreshInterval" minOccurs="0"/>         <element ref="kml:viewRefreshMode" minOccurs="0"/>         <element ref="kml:viewRefreshTime" minOccurs="0"/>         <element ref="kml:viewBoundScale" minOccurs="0"/>         <element ref="kml:viewFormat" minOccurs="0"/>         <element ref="kml:httpQuery" minOccurs="0"/>         <element ref="kml:LinkSimpleExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>         <element ref="kml:LinkObjectExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>       </sequence>     </extension>   </complexContent> </complexType>
