kml22gx - LineStyleType

complexType LineStyleType

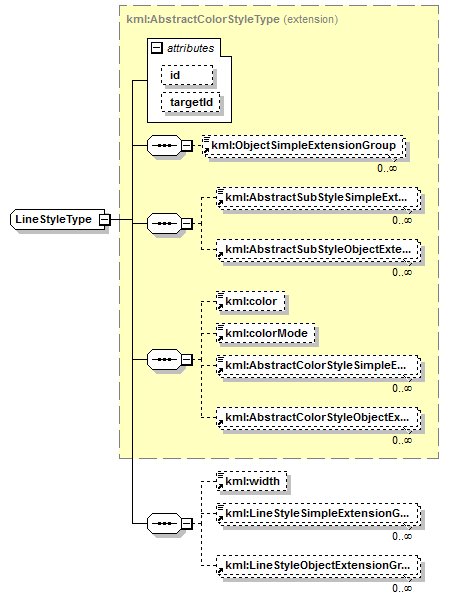

diagram

kml22gx_diagrams/kml22gx_p330.png

namespace

http://www.opengis.net/kml/2.2

type

extension of kml:AbstractColorStyleType

properties

base	kml:AbstractColorStyleType
final	#all

children

kml:ObjectSimpleExtensionGroup kml:AbstractSubStyleSimpleExtensionGroup kml:AbstractSubStyleObjectExtensionGroup kml:color kml:colorMode kml:AbstractColorStyleSimpleExtensionGroup kml:AbstractColorStyleObjectExtensionGroup kml:width kml:LineStyleSimpleExtensionGroup kml:LineStyleObjectExtensionGroup

used by

element

attributes

Name	Type	Use	Default	Fixed	Annotation
id	ID	optional
targetId	NCName	optional

source

<complexType name="LineStyleType" final="#all">
<complexContent>
    <extension base="kml:AbstractColorStyleType">
      <sequence>
        <element ref="kml:width" minOccurs="0"/>
        <element ref="kml:LineStyleSimpleExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>
        <element ref="kml:LineStyleObjectExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>
      </sequence>
    </extension>
</complexContent>
</complexType>
