complexType ItemIconType

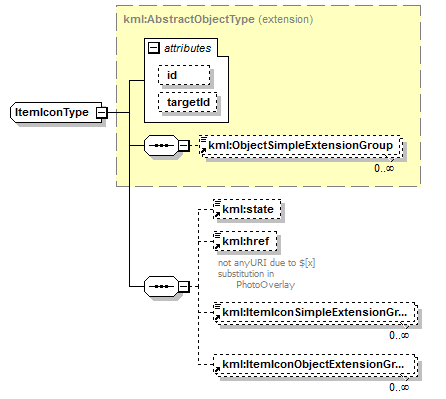

diagram kml22gx_diagrams/kml22gx_p323.png
namespace http://www.opengis.net/kml/2.2
type extension of kml:AbstractObjectType
properties
base kml:AbstractObjectType
final #all
children kml:ObjectSimpleExtensionGroup kml:state kml:href kml:ItemIconSimpleExtensionGroup kml:ItemIconObjectExtensionGroup
used by
element ItemIcon
attributes
Name  Type  Use  Default  Fixed  Annotation
id  ID  optional
targetId  NCName  optional
source <complexType name="ItemIconType" final="#all">

<complexContent>

<extension base="kml:AbstractObjectType">

<sequence>

<element ref="kml:state" minOccurs="0"/>

<element ref="kml:href" minOccurs="0"/>

<element ref="kml:ItemIconSimpleExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>

<element ref="kml:ItemIconObjectExtensionGroup" minOccurs="0" maxOccurs="unbounded"/>

</sequence>

</extension>

</complexContent>
</complexType>
