complexType X3DProgrammableShaderObject

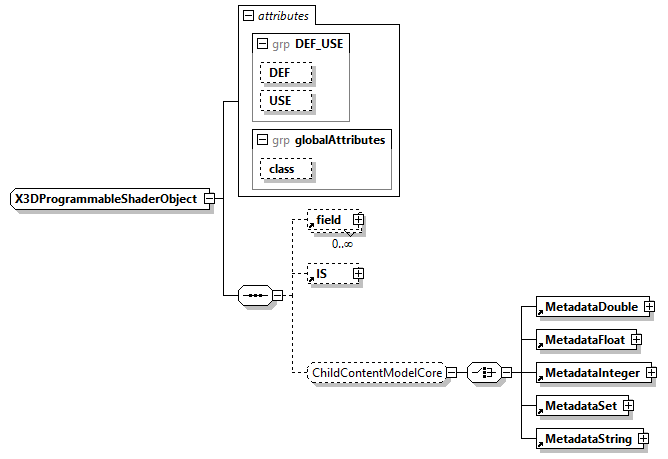

diagram x3d-3.1_diagrams/x3d-3.1_p240.png
properties
abstract true
children field IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Shaders"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
                Base type for all nodes that specify arbitrary fields for interfacing with per-object attribute values.
source <xs:complexType name="X3DProgrammableShaderObject" abstract="true">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Shaders"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
                Base type for all nodes that specify arbitrary fields for interfacing with per-object attribute values.
</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/shaders.html#X3DProgrammableShaderObject"/>

</xs:annotation>

<xs:sequence>

<xs:element ref="field" minOccurs="0" maxOccurs="unbounded"/>

<xs:element ref="IS" minOccurs="0"/>

<xs:group ref="ChildContentModelCore" minOccurs="0"/>

</xs:sequence>

<xs:attributeGroup ref="DEF_USE"/>

<xs:attributeGroup ref="globalAttributes"/>
</xs:complexType>
