complexType X3DParametricGeometryNode

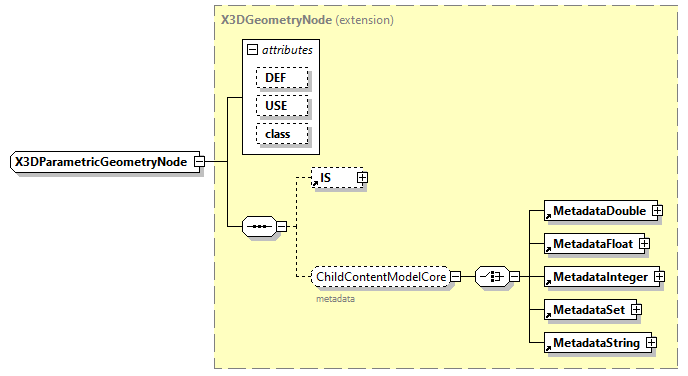

diagram x3d-3.1_diagrams/x3d-3.1_p237.png
type extension of X3DGeometryNode
properties
base X3DGeometryNode
abstract true
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
elements NurbsCurve NurbsSweptSurface NurbsSwungSurface
complexType X3DNurbsSurfaceGeometryNode
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="NURBS"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
Base type for all geometry node types that are created parametrically and use control points to describe the final shape of the surface.
source <xs:complexType name="X3DParametricGeometryNode" abstract="true">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="NURBS"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="1"/>
Base type for all geometry node types that are created parametrically and use control points to describe the final shape of the surface.
</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/nurbs.html#X3DParametricGeometryNode"/>

</xs:annotation>

<xs:complexContent>

<xs:extension base="X3DGeometryNode"/>

</xs:complexContent>
</xs:complexType>
