complexType X3DNormalNode

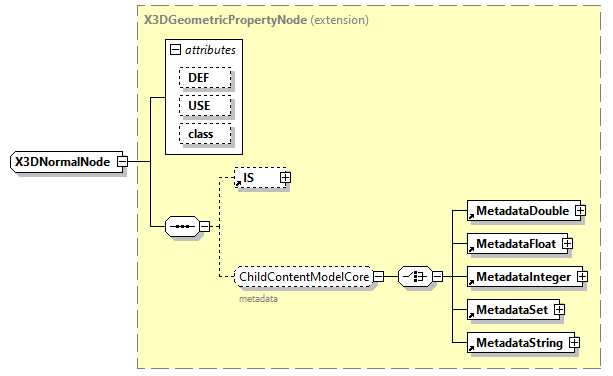

diagram x3d-3.0_diagrams/x3d-3.0_p203.png
type extension of X3DGeometricPropertyNode
properties
base X3DGeometricPropertyNode
abstract true
children IS MetadataDouble MetadataFloat MetadataInteger MetadataSet MetadataString
used by
element Normal
attributes
Name  Type  Use  Default  Fixed  Annotation
DEF  xs:ID
appinfo

DEF defines a unique ID name for each node, referenceable by other nodes.
USE  xs:IDREF
appinfo

USE means reuse an already DEF-ed node ID, excluding all child nodes and all other attributes (except for containerField, which can have a different value).
class  xs:NMTOKENS
appinfo

The class attribute is a space-separated list of classes, reserved for use by Cascading Style Sheets (CSS) and XML stylesheets.
annotation
appinfo
<xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/>
<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
Base type for all normal node types in X3D.
source <xs:complexType name="X3DNormalNode" abstract="true">

<xs:annotation>

<xs:appinfo>

<xs:attribute name="componentName" type="componentNameChoices" fixed="Rendering"/>

<xs:attribute name="componentLevel" type="xs:positiveInteger" fixed="2"/>
Base type for all normal node types in X3D.
</xs:appinfo>

<xs:documentation source="https://www.web3d.org/documents/specifications/19775-1/V3.3/Part01/components/rendering.html#X3DNormalNode"/>

</xs:annotation>

<xs:complexContent>

<xs:extension base="X3DGeometricPropertyNode"/>

</xs:complexContent>
</xs:complexType>
