[x3d-public] X3DOM dev url changed, HTML invocation questions

Mon Jul 14 18:08:53 PDT 2025

Thank you Andreas.  I have

   - taken out the CSS for SANS, SERIF, TYPEWRITER
   - updated the node-list url,
   - tested both updated addresses for x3dom-full.js

Here are two examples using your preferred address:

   -
   https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/Animation/BoxSwitchX3dom.xhtml
   -
   https://www.web3d.org/x3d/content/examples/X3dForAdvancedModeling/Animation/RotationCalculatorExampleX3dom.xhtml

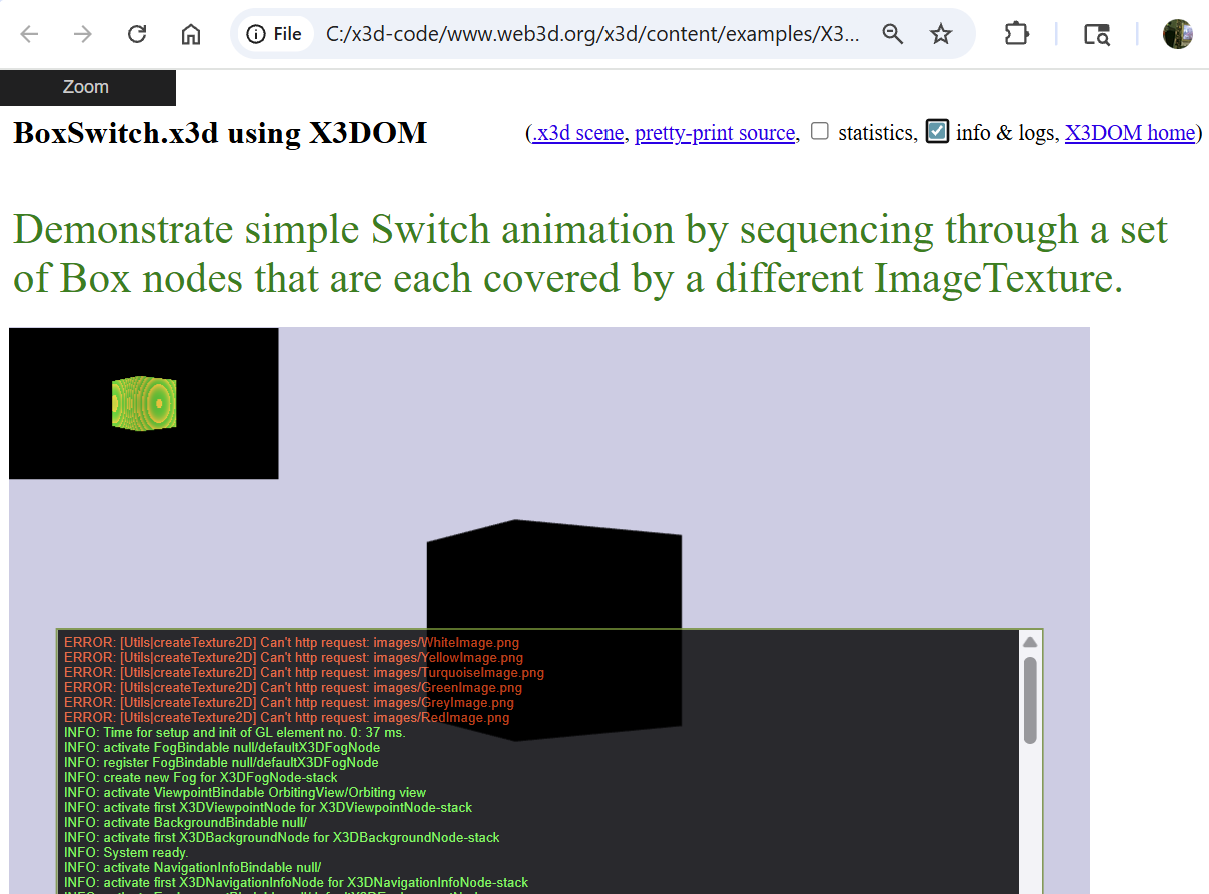

However, a problem has emerged.  Neither model is displaying image textures
when launched on local host.

ERROR: [Utils|createTexture2D] Can't http request: images/WhiteImage.png

ERROR: [Utils|createTexture2D] Can't http request: images/YellowImage.png

ERROR: [Utils|createTexture2D] Can't http request: images/TurquoiseImage.png

ERROR: [Utils|createTexture2D] Can't http request: images/GreenImage.png

ERROR: [Utils|createTexture2D] Can't http request: images/GreyImage.png

ERROR: [Utils|createTexture2D] Can't http request: images/RedImage.png

[image: image.png]

Hopefully this is a fixable issue, TIA for any scrutiny.  This was a very
useful capability when invoking the original
https://x3dom.org/download/dev/x3dom-full.js

all the best, Don

On Sun, Jul 13, 2025 at 8:45 PM Andreas Plesch <andreasplesch at gmail.com>
wrote:

> Answers below.
>
> On Sun, Jul 13, 2025 at 2:21 PM Don Brutzman <don.brutzman at gmail.com>
> wrote:
>
>> Andreas writes on 10 JUL 2025:
>>
>>> I have deployed a new dev version.
>>> Please note that the download link for the dev version of x3dom has
>>> migrated from x3dom.org/download/dev (not updated) to
>>> https://cdn.jsdelivr.net/gh/x3dom/x3dom-dev/dist/x3dom.js (preferred)
>>> or
>>> https://x3dom.github.io/x3dom-dev/dist/x3dom.js
>>> which is
>>> automatically updated through
>>> https://github.com/x3dom/x3dom-dev
>>> for every merged PR at
>>> https://github.com/x3dom/x3dom
>>> The netlify link is obsolete.
>>
>>
>>> Andreas
>>
>>
>> Thanks for the alert.  I am hoping to get the address and invocation
>> correct in our X3D Example Archives scenes by updating the conversion
>> stylesheet.
>>
>>    - X3D Example Archives
>>    -
>>    https://www.web3d.org/x3d/content/examples/X3dResources.html#Examples
>>    -
>>    https://sourceforge.net/p/x3d/code/HEAD/tree/www.web3d.org/x3d/stylesheets/X3dToX3domX_ITE.xslt
>>
>> The X3dToX3domX_ITE.xslt stylesheet produces the following header in
>> these examples:
>>
>>    - X3D Example Archives: X3D4WA, X3D for Web Authors, Chapter 01
>>    Technical Overview, Hello World
>>    -
>>    https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter01TechnicalOverview/HelloWorldIndex.html
>>    -
>>    https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter01TechnicalOverview/HelloWorldX3dom.xhtml
>>
>> <!DOCTYPE html>
>>
>> <!-- ===================================================================
>> -->
>>
>> <!-- embedded X3D scene appears after html/head/script and style entries
>> -->
>>
>> <!-- ===================================================================
>> -->
>>
>> <html xmlns="http://www.w3.org/1999/xhtml">
>>
>> <head>
>>
>> <title>Hello World!, HelloWorld.x3d (X3DOM)</title>
>>
>> <meta http-equiv="X-UA-Compatible" content="chrome=1,IE=edge"/>
>>
>> <meta http-equiv="Content-Type" content="text/html;charset=utf-8"/>
>>
>> <meta name="generator"
>>
>> content="https://www.web3d.org/x3d/stylesheets/X3dToX3domX_ITE.xslt"/>
>>
>> <script type="text/javascript" src="
>> https://ajax.googleapis.com/ajax/libs/jquery/3.2.1/jquery.min.js">
>> </script>
>>
>> <!-- Numbered X3DOM release versions: https://www.x3dom.org/download -->
>>
>> <!-- Developer X3DOM release version: https://www.x3dom.org/download/dev
>> -->
>>
>> <link rel="stylesheet"
>>
>> type="text/css"
>>
>> href="https://x3dom.org/download/dev/x3dom.css"/>
>>
>> <script type="text/javascript"
>>
>> src="https://x3dom.org/download/dev/x3dom-full.js"/>
>>
>>
>> Questions please, before I start a major rebuild:
>>
>>    1. *x3dom.js or x3dom-full.js ? (both look to be available)*
>>
>> x3dom-full.js
>
>>
>>    1. *Same treatment for x3dom.css or is it no longer used?*
>>
>> Yes, same treatment. It is still used.
>
>>
>>    1. *What is up-to-date guidance whenText node is included?*  I have
>>
>>
>>    - "X3DOM Text Example
>>    The following scenes demonstrate the use of the text and fontsyle
>>    nodes. You can also use web fonts, however on windows there is a glitch.
>>    You have to use and display the font in your document before you can use
>>    them in X3DOM."
>>    - https://x3dom.org/x3dom/example/x3dom_text.html
>>
>> <meta name="warning"
>>
>> content="Webfonts must be loaded prior to using Text node in X3D scene...
>> see https://x3dom.org/x3dom/example/x3dom_text.html"/>
>>
>> <!-- X3DOM needs Web Fonts when an X3D Text node is included -->
>>
>> <!-- adapted from https://x3dom.org/x3dom/example/x3dom_text.html and
>> https://web.mit.edu/jmorzins/www/fonts.html -->
>>
>> <style type="text/css">
>>
>> /*
>> =============================================================================
>> */
>>
>> @font-face {
>>
>> font-family: 'SERIF'; /* default original */
>>
>> font-style: normal;
>>
>> font-weight: 700;
>>
>> src: local('Roman'), url('Roman.ttf') format('truetype');
>>
>> }
>>
>> @font-face {
>>
>> font-family: 'SERIF'; /* default alternate */
>>
>> font-style: normal;
>>
>> font-weight: 700;
>>
>> src: local('Times New Roman'), local('TimesNewRoman'), url('Times New
>> Roman.ttf') format('truetype');
>>
>> }
>>
>> /*
>> =============================================================================
>> */
>>
>> @font-face {
>>
>> font-family: 'SANS'; /* default original */
>>
>> font-style: normal;
>>
>> font-weight: 400;
>>
>> src: local('Arial'), url('Arial.ttf') format('truetype');
>>
>> }
>>
>> @font-face {
>>
>> font-family: 'SANS'; /* default alternate */
>>
>> font-style: normal;
>>
>> font-weight: 400;
>>
>> src: local('Helvetica'), url('Helvetica.ttf') format('truetype');
>>
>> }
>>
>> /*
>> =============================================================================
>> */
>>
>> @font-face {
>>
>> font-family: 'TYPEWRITER'; /* default original */
>>
>> font-style: normal;
>>
>> font-weight: 900;
>>
>> src: local('Courier'), url('Courier.ttf') format('truetype');
>>
>> }
>>
>> @font-face {
>>
>> font-family: 'TYPEWRITER'; /* default alternate */
>>
>> font-style: normal;
>>
>> font-weight: 900;
>>
>> src: local('Courier New'), url('Courier New.ttf') format('truetype');
>>
>> }
>>
>> /*
>> =============================================================================
>> */
>>
>> </style>
>>
>> <style type="text/css" media="screen, print">
>>
>> .webfont { font-size:200%; font-family:'TYPEWRITER'; color:green;} /*
>> Conversion TODO font families: SANS SERIF TYPEWRITER */
>>
>> </style>
>>
>>
> I think this guidance still applies for custom font families if a
> FontLibrary node is not used. FontLibrary font loading does not require
> this css. Also, all basic X3D font families do not require css.
> https://github.com/x3dom/x3dom/blob/master/test/functional/fonts.html has
> examples.
>
>
>> and
>>
>> *4. Is the following still the best up-to-date list of supported nodes?*
>>
>> https://andreasplesch.github.io/x3dom/dist/doc/author/nodes.html
>>
>> P.S. node wish list: IndexedTriangleFanSet, Script
>>
>>
> https://x3dom.github.io/x3dom-dev/dist/doc
>
> would be the best source for up to date documentation on supported nodes
> with dev releases as it is built and deployed along with the library.
>
>
> Thanks in advance for all improvements to these invocations, and thanks as
>> ever for ongoing progress with X3DOM!
>>
>> all the best, Don
>>
>
> All the best, Andreas
> --
> Andreas Plesch
> Waltham, MA 02453
>
