<head>
<!--
<!--
Event Graph ROUTE Table
shows event connections
-->
<!-- Index for DEF nodes: CloseClock, CloseSound, Door, DoorSense, LeftClose, LeftDoor, LeftOpen, OpenClock, OpenSound, RightClose, RightDoor, RightOpen
Index for Viewpoint node: Viewpoint_1
-->
<Scene>
</X3D>
<meta name='title' content='Proximity1.x3d'/>
<meta name='description' content='Proximity door illustrates the use of a ProximitySensor node around a door. When the traveler gets near that door, an animation is triggered that opens the door and plays a sound. When the traveler leaves the area, the door closes and another sound is played.'/>
<meta name='creator' content='David R. Nadeau'/>
<meta name='translator' content='Don Brutzman'/>
<meta name='created' content='1 July 1998'/>
<meta name='translated' content='2 February 2014'/>
<meta name='modified' content='20 October 2019'/>
<meta name='reference' content='originals/prox1.wrl'/>
<meta name='reference' content=' http://www.siggraph.org/s98 '/>
<meta name='reference' content=' http://www.siggraph.org/s98/conference/courses/18.html '/>
<meta name='reference' content=' http://www.sdsc.edu/~moreland/courses/Siggraph98/vrml97/slides/mt0376.htm '/>
<meta name='reference' content=' http://www.sdsc.edu/~moreland/courses/Siggraph98/vrml97/slides/mt0389.htm '/>
<meta name='reference' content=' http://www.sdsc.edu/~moreland/courses/Siggraph98/vrml97/vrml97.htm '/>
<meta name='reference' content=' https://www.web3d.org/x3d/content/examples/X3dResources.html '/>
<meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/Proximity1.x3d '/>
<meta name='generator' content='Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html'/>
<meta name='generator' content='X3D-Edit, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../license.html'/>
</head>
<meta name='description' content='Proximity door illustrates the use of a ProximitySensor node around a door. When the traveler gets near that door, an animation is triggered that opens the door and plays a sound. When the traveler leaves the area, the door closes and another sound is played.'/>
<meta name='creator' content='David R. Nadeau'/>
<meta name='translator' content='Don Brutzman'/>
<meta name='created' content='1 July 1998'/>
<meta name='translated' content='2 February 2014'/>
<meta name='modified' content='20 October 2019'/>
<meta name='reference' content='originals/prox1.wrl'/>
<meta name='reference' content=' http://www.siggraph.org/s98 '/>
<meta name='reference' content=' http://www.siggraph.org/s98/conference/courses/18.html '/>
<meta name='reference' content=' http://www.sdsc.edu/~moreland/courses/Siggraph98/vrml97/slides/mt0376.htm '/>
<meta name='reference' content=' http://www.sdsc.edu/~moreland/courses/Siggraph98/vrml97/slides/mt0389.htm '/>
<meta name='reference' content=' http://www.sdsc.edu/~moreland/courses/Siggraph98/vrml97/vrml97.htm '/>
<meta name='reference' content=' https://www.web3d.org/x3d/content/examples/X3dResources.html '/>
<meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/Proximity1.x3d '/>
<meta name='generator' content='Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html'/>
<meta name='generator' content='X3D-Edit, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../license.html'/>
<!--
<!--
Event Graph ROUTE Table
shows event connections
-->
<!-- Index for DEF nodes: CloseClock, CloseSound, Door, DoorSense, LeftClose, LeftDoor, LeftOpen, OpenClock, OpenSound, RightClose, RightDoor, RightOpen
Index for Viewpoint node: Viewpoint_1
<Scene>
<WorldInfo info='"Copyright (c) 1997, David R. Nadeau"' title='Proximity door'/>

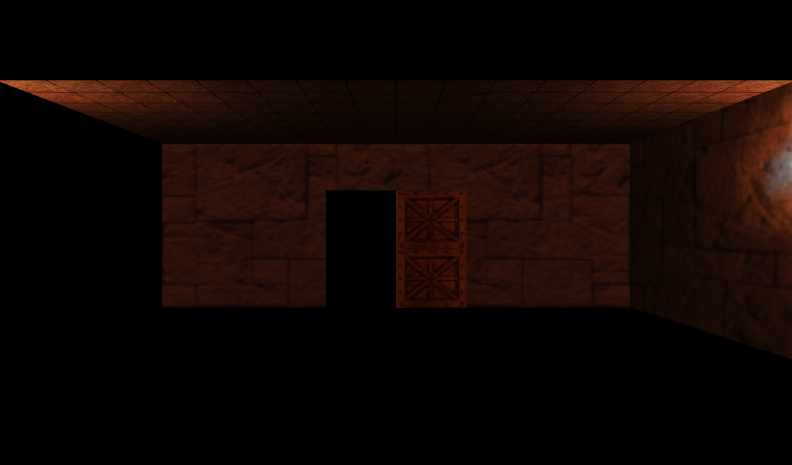

<Viewpoint description='Entry view' position='0.0 1.6 7.0'/>
<NavigationInfo avatarSize='1.0 1.6 0.75' headlight='false' speed='4.0' type='"WALK" "ANY"'/>
<Inline
url=' "DungeonRoom.x3d" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/DungeonRoom.x3d" "DungeonRoom.wrl" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/DungeonRoom.wrl" ' />
<Transform translation='0.0 0.0 -5.0'>
<Transform translation='0.0 0.0 -4.95'>
</Transform>
<Sound maxBack='60.0' maxFront='60.0' minBack='20.0' minFront='20.0'>
</Sound>
<Sound maxBack='60.0' maxFront='60.0' minBack='20.0' minFront='20.0'>
</Sound>
< ROUTE fromNode=' DoorSense' fromField='enterTime' toNode=' OpenSound' toField='set_startTime'/>
< ROUTE fromNode=' DoorSense' fromField='exitTime' toNode=' OpenSound' toField='set_stopTime'/>
< ROUTE fromNode=' DoorSense' fromField='enterTime' toNode=' OpenClock' toField='set_startTime'/>
< ROUTE fromNode=' DoorSense' fromField='exitTime' toNode=' OpenClock' toField='set_stopTime'/>
< ROUTE fromNode=' DoorSense' fromField='exitTime' toNode=' CloseSound' toField='set_startTime'/>
< ROUTE fromNode=' DoorSense' fromField='enterTime' toNode=' CloseSound' toField='set_stopTime'/>
< ROUTE fromNode=' DoorSense' fromField='exitTime' toNode=' CloseClock' toField='set_startTime'/>
< ROUTE fromNode=' DoorSense' fromField='enterTime' toNode=' CloseClock' toField='set_stopTime'/>
< ROUTE fromNode=' OpenClock' fromField='fraction_changed' toNode=' LeftOpen' toField='set_fraction'/>
< ROUTE fromNode=' OpenClock' fromField='fraction_changed' toNode=' RightOpen' toField='set_fraction'/>
< ROUTE fromNode=' CloseClock' fromField='fraction_changed' toNode=' LeftClose' toField='set_fraction'/>
< ROUTE fromNode=' CloseClock' fromField='fraction_changed' toNode=' RightClose' toField='set_fraction'/>
< ROUTE fromNode=' LeftOpen' fromField='value_changed' toNode=' LeftDoor' toField='set_translation'/>
< ROUTE fromNode=' LeftClose' fromField='value_changed' toNode=' LeftDoor' toField='set_translation'/>
< ROUTE fromNode=' RightOpen' fromField='value_changed' toNode=' RightDoor' toField='set_translation'/>
< ROUTE fromNode=' RightClose' fromField='value_changed' toNode=' RightDoor' toField='set_translation'/>
</Scene>
<Viewpoint description='Entry view' position='0.0 1.6 7.0'/>
<NavigationInfo avatarSize='1.0 1.6 0.75' headlight='false' speed='4.0' type='"WALK" "ANY"'/>
<Inline
url=' "DungeonRoom.x3d" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/DungeonRoom.x3d" "DungeonRoom.wrl" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/DungeonRoom.wrl" ' />
<Transform translation='0.0 0.0 -5.0'>
<Inline
url=' "DungeonWall2.x3d" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/DungeonWall2.x3d" "DungeonWall2.wrl" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/DungeonWall2.wrl" ' />
</Transform>
url=' "DungeonWall2.x3d" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/DungeonWall2.x3d" "DungeonWall2.wrl" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/DungeonWall2.wrl" ' />
<Transform translation='0.0 0.0 -4.95'>
<!-- ROUTE information for LeftDoor node:
[from LeftOpen.value_changed to set_translation
]
[from LeftClose.value_changed to set_translation
]
-->
<Transform DEF='LeftDoor'>
<Transform DEF='LeftDoor'>
<Transform translation='-0.75 0.0 0.0'>
</Transform>
<Inline DEF='Door'
url=' "DungeonDoor.x3d" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/DungeonDoor.x3d" "DungeonDoor.wrl" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/DungeonDoor.wrl" ' />
</Transform>
url=' "DungeonDoor.x3d" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/DungeonDoor.x3d" "DungeonDoor.wrl" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/DungeonDoor.wrl" ' />
<!-- ROUTE information for RightDoor node:
[from RightOpen.value_changed to set_translation
]
[from RightClose.value_changed to set_translation
]
-->
<Transform DEF='RightDoor'>
</Transform>
<Transform DEF='RightDoor'>
<!-- ROUTE information for DoorSense node:
[from enterTime to OpenSound.set_startTime
]
[from exitTime to OpenSound.set_stopTime
]
[from enterTime to OpenClock.set_startTime
]
[from exitTime to OpenClock.set_stopTime
]
[from exitTime to CloseSound.set_startTime
]
[from enterTime to CloseSound.set_stopTime
]
[from exitTime to CloseClock.set_startTime
]
[from enterTime to CloseClock.set_stopTime
]
-->
<ProximitySensor DEF='DoorSense' center='0.0 1.75 0.0' size='6.0 3.5 8.0'/>
<ProximitySensor DEF='DoorSense' center='0.0 1.75 0.0' size='6.0 3.5 8.0'/>
<Sound maxBack='60.0' maxFront='60.0' minBack='20.0' minFront='20.0'>
<!-- ROUTE information for OpenSound node:
[from DoorSense.enterTime to set_startTime
]
[from DoorSense.exitTime to set_stopTime
]
-->
<AudioClip DEF='OpenSound'
url=' "clunk2.wav" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/clunk2.wav" ' />
<AudioClip DEF='OpenSound'
url=' "clunk2.wav" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/clunk2.wav" ' />
<Sound maxBack='60.0' maxFront='60.0' minBack='20.0' minFront='20.0'>
<!-- ROUTE information for CloseSound node:
[from DoorSense.exitTime to set_startTime
]
[from DoorSense.enterTime to set_stopTime
]
-->
<AudioClip DEF='CloseSound'
url=' "clunk1.wav" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/clunk1.wav" ' />
<AudioClip DEF='CloseSound'
url=' "clunk1.wav" "https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Siggraph98Course/clunk1.wav" ' />
<!-- ROUTE information for OpenClock node:
[from DoorSense.enterTime to set_startTime
]
[from DoorSense.exitTime to set_stopTime
]
[from fraction_changed to LeftOpen.set_fraction
]
[from fraction_changed to RightOpen.set_fraction
]
-->
<TimeSensor DEF='OpenClock' cycleInterval='0.5' stopTime='1.0'/>
<TimeSensor DEF='OpenClock' cycleInterval='0.5' stopTime='1.0'/>
<!-- ROUTE information for CloseClock node:
[from DoorSense.exitTime to set_startTime
]
[from DoorSense.enterTime to set_stopTime
]
[from fraction_changed to LeftClose.set_fraction
]
[from fraction_changed to RightClose.set_fraction
]
-->
<TimeSensor DEF='CloseClock' cycleInterval='0.5' stopTime='1.0'/>
<TimeSensor DEF='CloseClock' cycleInterval='0.5' stopTime='1.0'/>
<!-- ROUTE information for LeftOpen node:
[from OpenClock.fraction_changed to set_fraction
]
[from value_changed to LeftDoor.set_translation
]
-->
<PositionInterpolator DEF='LeftOpen' key='0.0 1.0' keyValue='0.0 0.0 0.0 -1.3 0.0 0.0'/>
<PositionInterpolator DEF='LeftOpen' key='0.0 1.0' keyValue='0.0 0.0 0.0 -1.3 0.0 0.0'/>
<!-- ROUTE information for LeftClose node:
[from CloseClock.fraction_changed to set_fraction
]
[from value_changed to LeftDoor.set_translation
]
-->
<PositionInterpolator DEF='LeftClose' key='0.0 1.0' keyValue='-1.3 0.0 0.0 0.0 0.0 0.0'/>
<PositionInterpolator DEF='LeftClose' key='0.0 1.0' keyValue='-1.3 0.0 0.0 0.0 0.0 0.0'/>
<!-- ROUTE information for RightOpen node:
[from OpenClock.fraction_changed to set_fraction
]
[from value_changed to RightDoor.set_translation
]
-->
<PositionInterpolator DEF='RightOpen' key='0.0 1.0' keyValue='0.0 0.0 0.0 1.3 0.0 0.0'/>
<PositionInterpolator DEF='RightOpen' key='0.0 1.0' keyValue='0.0 0.0 0.0 1.3 0.0 0.0'/>
<!-- ROUTE information for RightClose node:
[from CloseClock.fraction_changed to set_fraction
]
[from value_changed to RightDoor.set_translation
]
-->
<PositionInterpolator DEF='RightClose' key='0.0 1.0' keyValue='1.3 0.0 0.0 0.0 0.0 0.0'/>
<PositionInterpolator DEF='RightClose' key='0.0 1.0' keyValue='1.3 0.0 0.0 0.0 0.0 0.0'/>
< ROUTE fromNode=' DoorSense' fromField='enterTime' toNode=' OpenSound' toField='set_startTime'/>
< ROUTE fromNode=' DoorSense' fromField='exitTime' toNode=' OpenSound' toField='set_stopTime'/>
< ROUTE fromNode=' DoorSense' fromField='enterTime' toNode=' OpenClock' toField='set_startTime'/>
< ROUTE fromNode=' DoorSense' fromField='exitTime' toNode=' OpenClock' toField='set_stopTime'/>
< ROUTE fromNode=' DoorSense' fromField='exitTime' toNode=' CloseSound' toField='set_startTime'/>
< ROUTE fromNode=' DoorSense' fromField='enterTime' toNode=' CloseSound' toField='set_stopTime'/>
< ROUTE fromNode=' DoorSense' fromField='exitTime' toNode=' CloseClock' toField='set_startTime'/>
< ROUTE fromNode=' DoorSense' fromField='enterTime' toNode=' CloseClock' toField='set_stopTime'/>
< ROUTE fromNode=' OpenClock' fromField='fraction_changed' toNode=' LeftOpen' toField='set_fraction'/>
< ROUTE fromNode=' OpenClock' fromField='fraction_changed' toNode=' RightOpen' toField='set_fraction'/>
< ROUTE fromNode=' CloseClock' fromField='fraction_changed' toNode=' LeftClose' toField='set_fraction'/>
< ROUTE fromNode=' CloseClock' fromField='fraction_changed' toNode=' RightClose' toField='set_fraction'/>
< ROUTE fromNode=' LeftOpen' fromField='value_changed' toNode=' LeftDoor' toField='set_translation'/>
< ROUTE fromNode=' LeftClose' fromField='value_changed' toNode=' LeftDoor' toField='set_translation'/>
< ROUTE fromNode=' RightOpen' fromField='value_changed' toNode=' RightDoor' toField='set_translation'/>
< ROUTE fromNode=' RightClose' fromField='value_changed' toNode=' RightDoor' toField='set_translation'/>
<!--
<!--
Event Graph ROUTE Table
shows event connections
-->
<!-- Index for DEF nodes: CloseClock, CloseSound, Door, DoorSense, LeftClose, LeftDoor, LeftOpen, OpenClock, OpenSound, RightClose, RightDoor, RightOpen
Index for Viewpoint node: Viewpoint_1
