Class greyscale_texture_material_transparency_first

java.lang.Object
ConformanceNist.Appearance.Material.greyscale_texture_material_transparency_first

public class greyscale_texture_material_transparency_first extends Object

Test that a greyscale texture transparency supersedes material transparency. A partly transparent greyscale VTS logo should appear on all geometry, with the word TRANSPARENT visible through all geometry. This indicates that the Material node's transparency value of 0.4 has been selected for geometry transparency.

Related links: Catalog page greyscale_texture_material_transparency_first, source greyscale_texture_material_transparency_first.java, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information
meta tags   Document Metadata
title greyscale_texture_material_transparency_first.x3d

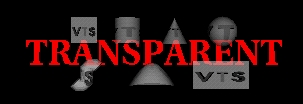

Image greyscale_texture_material_transparency_first-front.jpg
reference http://www.nist.gov/vrml.html
reference http://www.itl.nist.gov/div897/ctg/vrml/vrml.html
creator http://www.itl.nist.gov/div897/ctg/vrml/members.html
disclaimer This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology (NIST). This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified.
reference Original NIST Conformance Testing Group, https://www.itl.nist.gov/div897/ctg/vrml
reference Interactive Conformance Testing for VRML, Mary Brady and Lynn Rosenthal, NIST, created 8 September 2010 and updated 25 August 2016, https://www.nist.gov/itl/ssd/information-systems-group/interactive-conformance-testing-vrml
info Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, https://www.web3d.org/working-groups/x3d
translator Michael Kass NIST, Don Brutzman NPS
translated 21 January 2001
modified 28 August 2023
description Test that a greyscale texture transparency supersedes material transparency. A partly transparent greyscale VTS logo should appear on all geometry, with the word TRANSPARENT visible through all geometry. This indicates that the Material node's transparency value of 0.4 has been selected for geometry transparency.
identifier https://www.web3d.org/x3d/content/examples/ConformanceNist/Appearance/Material/greyscale_texture_material_transparency_first.x3d
generator Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html
generator X3D-Edit 4.0, https://savage.nps.edu/X3D-Edit
license ../../license.html


This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet (version control) which is used to create Java source code from an original .x3d model.
