<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
<X3D profile='Interchange'  version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.0.xsd ' >
<head>
<meta name='title' content=' scale_primitives.x3d '/>
<meta name='Image' content='scale_primitives-front.jpg' />
<meta name='Image' content='scale_primitives-rear.jpg' />
<meta name='Image' content='scale_primitives-top.jpg' />
<meta name='Image' content='scale_primitives-bottom.jpg' />
<meta name='Image' content='scale_primitives-left.jpg' />
<meta name='Image' content='scale_primitives-right.jpg' />
<meta name='reference' content=' http://www.nist.gov/vrml.html '/>
<meta name='reference' content=' http://www.itl.nist.gov/div897/ctg/vrml/vrml.html '/>
<meta name='creator' content=' http://www.itl.nist.gov/div897/ctg/vrml/members.html '/>
<meta name='disclaimer' content=' This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology (NIST). This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified. '/>
<meta name='reference' content=' Original NIST Conformance Testing Group, https://www.itl.nist.gov/div897/ctg/vrml '/>
<meta name='reference' content=' Interactive Conformance Testing for VRML, Mary Brady and Lynn Rosenthal, NIST, created 8 September 2010 and updated 25 August 2016, https://www.nist.gov/itl/ssd/information-systems-group/interactive-conformance-testing-vrml '/>
<meta name='info' content='Correct definition and compliance of this conformance scene is maintained by the X3D Working Group, https://www.web3d.org/working-groups/x3d'/>
<meta name='translator' content='Michael Kass NIST, Don Brutzman NPS'/>
<meta name='translated' content='21 January 2001'/>
<meta name='modified' content='28 August 2023'/>

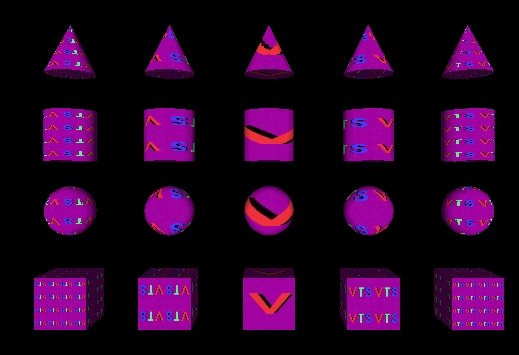

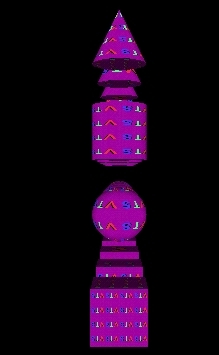

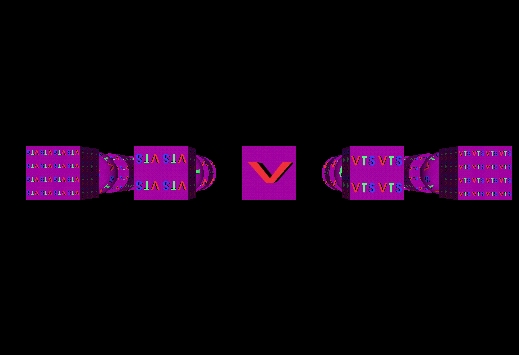

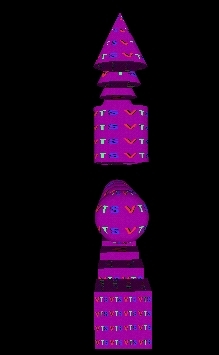

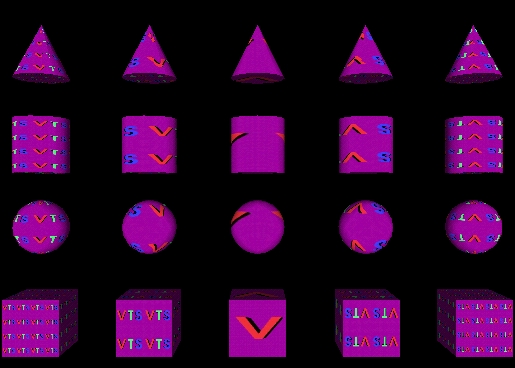

<meta name='description' content='Test scale field for ImageTexture mapping to primitive geometry. Test browser ability to apply scales of (left to right) -4 -4, -2 -2, .4 .9, 2 2, and 4 4 to an ImageTexture mapped to the faces of primative geometry, using default primitive mapping rules. The result is: a 4 X 4 reversed and inverted matrix of VTS logos should appear on al1 geometry in the first (far left) column. The second colum should display a reversed and inverted 2 X 2 matrix of VTS logos on all geometry faces. The third geometry column should map an upright, enlarged, centered V on the front of all geometry faces. The fourth column should contain an upright 2 X 2 grid of VTS logos on all geometry faces, and the fifth geometry column should contain a 4 X 4 matrix of upright VTS logos on all geometry faces.'/>
<meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/ConformanceNist/Appearance/TextureTransform/scale_primitives.x3d '/>
<meta name='generator' content=' Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html '/>
<meta name='generator' content='X3D-Edit 4.0, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../../license.html'/>
</head>
<!--
to top <!-- Index for DEF node: VTS
Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2, Viewpoint_3, Viewpoint_4, Viewpoint_5, Viewpoint_6
-->
<Scene>
<WorldInfo title='scale_primitives.x3d'/>
<Group>
<Viewpoint description='Front View'/>
<Viewpoint description='Rear View' orientation='0 1 0 3.14' position='0 0 -10'/>
<Viewpoint description='Top View' orientation='1 0 0 -1.57' position='0 10 0'/>
<Viewpoint description='Bottom View' orientation='1 0 0 1.57' position='0 -10 0'/>
<Viewpoint description='Right View' orientation='0 1 0 1.57' position='10 0 0'/>
<Viewpoint description='Left View' orientation='0 1 0 -1.57' position='-10 0 0'/>
</Group>
<NavigationInfo type='"EXAMINE" "WALK" "FLY" "ANY"'/>
<DirectionalLight ambientIntensity='1' intensity='0.2'/>
<DirectionalLight ambientIntensity='1' direction='0 0 1' intensity='0.2'/>
<Transform translation='-4 -0.75 0'>
<Shape>
<Appearance>
<ImageTexture DEF='VTS'
  url=' "../../vts.jpg " "https://www.web3d.org/x3d/content/examples/ConformanceNist/vts.jpg " ' />
<TextureTransform scale='-4 -4'/>
<Material/>
</Appearance>
<Sphere radius='0.5'/>
</Shape>
</Transform>
<Transform translation='-2 -0.75 0'>
<Shape>
<Appearance>
<ImageTexture USE=' VTS'/>
<TextureTransform scale='-2 -2'/>
<Material/>
</Appearance>
<Sphere radius='0.5'/>
</Shape>
</Transform>
<Transform translation='0 -0.75 0'>
<Shape>
<Appearance>
<ImageTexture USE=' VTS'/>
<TextureTransform scale='0.4 0.9'/>
<Material/>
</Appearance>
<Sphere radius='0.5'/>
</Shape>
</Transform>
<Transform translation='2 -0.75 0'>
<Shape>
<Appearance>
<ImageTexture USE=' VTS'/>
<TextureTransform scale='2 2'/>
<Material/>
</Appearance>
<Sphere radius='0.5'/>
</Shape>
</Transform>
<Transform translation='4 -0.75 0'>
<Shape>
<Appearance>
<ImageTexture USE=' VTS'/>
<TextureTransform scale='4 4'/>
<Material/>
</Appearance>
<Sphere radius='0.5'/>
</Shape>
</Transform>
<Transform translation='-4 -2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE=' VTS'/>
<TextureTransform scale='-4 -4'/>
<Material/>
</Appearance>
<Box size='1 1 1'/>
</Shape>
</Transform>
<Transform translation='-2 -2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE=' VTS'/>
<TextureTransform scale='-2 -2'/>
<Material/>
</Appearance>
<Box size='1 1 1'/>
</Shape>
</Transform>
<Transform translation='0 -2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE=' VTS'/>
<TextureTransform scale='0.4 0.9'/>
<Material/>
</Appearance>
<Box size='1 1 1'/>
</Shape>
</Transform>
<Transform translation='2 -2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE=' VTS'/>
<TextureTransform scale='2 2'/>
<Material/>
</Appearance>
<Box size='1 1 1'/>
</Shape>
</Transform>
<Transform translation='4 -2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE=' VTS'/>
<TextureTransform scale='4 4'/>
<Material/>
</Appearance>
<Box size='1 1 1'/>
</Shape>
</Transform>
<Transform translation='-4 2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE=' VTS'/>
<TextureTransform scale='-4 -4'/>
<Material/>
</Appearance>
<Cone bottomRadius='0.5' height='1'/>
</Shape>
</Transform>
<Transform translation='-2 2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE=' VTS'/>
<TextureTransform scale='-2 -2'/>
<Material/>
</Appearance>
<Cone bottomRadius='0.5' height='1'/>
</Shape>
</Transform>
<Transform translation='0 2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE=' VTS'/>
<TextureTransform scale='0.4 0.9'/>
<Material/>
</Appearance>
<Cone bottomRadius='0.5' height='1'/>
</Shape>
</Transform>
<Transform translation='2 2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE=' VTS'/>
<TextureTransform scale='2 2'/>
<Material/>
</Appearance>
<Cone bottomRadius='0.5' height='1'/>
</Shape>
</Transform>
<Transform translation='4 2.5 0'>
<Shape>
<Appearance>
<ImageTexture USE=' VTS'/>
<TextureTransform scale='4 4'/>
<Material/>
</Appearance>
<Cone bottomRadius='0.5' height='1'/>
</Shape>
</Transform>
<Transform translation='-4 0.75 0'>
<Shape>
<Appearance>
<ImageTexture USE=' VTS'/>
<TextureTransform scale='-4 -4'/>
<Material/>
</Appearance>
<Cylinder height='1' radius='0.5'/>
</Shape>
</Transform>
<Transform translation='-2 0.75 0'>
<Shape>
<Appearance>
<ImageTexture USE=' VTS'/>
<TextureTransform scale='-2 -2'/>
<Material/>
</Appearance>
<Cylinder height='1' radius='0.5'/>
</Shape>
</Transform>
<Transform translation='0 0.75 0'>
<Shape>
<Appearance>
<ImageTexture USE=' VTS'/>
<TextureTransform scale='0.4 0.9'/>
<Material/>
</Appearance>
<Cylinder height='1' radius='0.5'/>
</Shape>
</Transform>
<Transform translation='2 0.75 0'>
<Shape>
<Appearance>
<ImageTexture USE=' VTS'/>
<TextureTransform scale='2 2'/>
<Material/>
</Appearance>
<Cylinder height='1' radius='0.5'/>
</Shape>
</Transform>
<Transform translation='4 0.75 0'>
<Shape>
<Appearance>
<ImageTexture USE=' VTS'/>
<TextureTransform scale='4 4'/>
<Material/>
</Appearance>
<Cylinder height='1' radius='0.5'/>
</Shape>
</Transform>
</Scene>
</X3D>
<!--
