<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "http://www.web3d.org/specifications/x3d-3.0.dtd">

<X3D profile='Immersive' version='3.0' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation=' http://www.web3d.org/specifications/x3d-3.0.xsd '>

<head>

<meta name='title' content='jumpcut_loadurl.x3d'/>
<meta name='reference' content=' http://www.nist.gov/vrml.html '/>
<meta name='reference' content=' http://xsun.sdct.itl.nist.gov/~mkass/vts/html/vrml.html '/>
<meta name='creator' content=' http://www.itl.nist.gov/div897/ctg/vrml/members.html '/>
<meta name='disclaimer' content=' This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology. This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified. '/>
<meta name='translator' content='Michael Kass NIST, Don Brutzman NPS'/>
<meta name='translated' content='21 January 2001'/>
<meta name='modified' content='27 February 2011'/>
<meta name='description' content='Test jumpcut transition with LoadUrl method. A Script node with a call to the "loadURL" method, with a url corresponding to the MFString "Top_View" (the name of a Viewpoint in this world) should create a "jump cut" transition of views when the Box geometry in this world is indicated by the pointing device. As a result, indicating the Box geometry should result in a Viewpoint transition to the top view of the Box geometry, and the viewer should see a cubic geometry with the word TOP displayed on the face of the cube.'/>
<meta name='identifier' content=' http://www.web3d.org/x3d/content/examples/ConformanceNist/BindableNodes/Viewpoint/jumpcut_loadurl.x3d '/>
<meta name='generator' content='Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html'/>
<meta name='generator' content='X3D-Edit 3.2, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../../license.html'/>

</head>
<!--

Index for DEF nodes: Front_View, MYSCRIPT, ROOT, SquareTexCoord, STARTER, Top_View, UnitCube
Index for Viewpoint images: Front_View, Top_View

-->
<Scene>

<NavigationInfo type='"EXAMINE"' transitionType='"ANIMATE"'/>
<Background groundAngle='1.57' groundColor='0 0.5 0 0 0.5 0' skyColor='0 0 1'/>

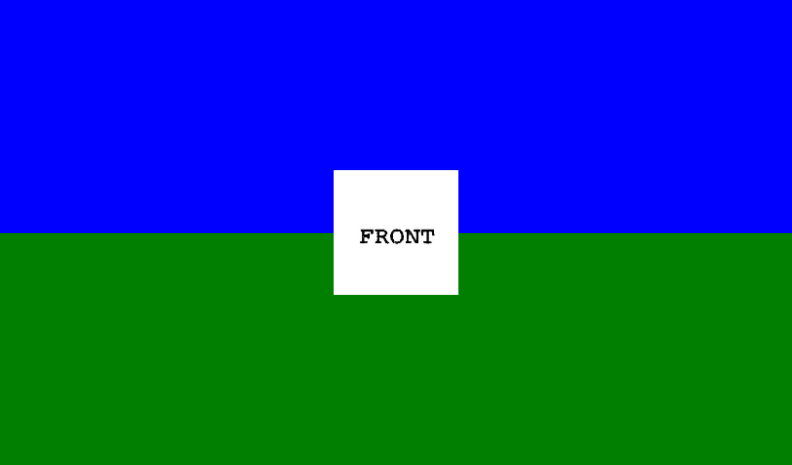

<Viewpoint DEF='Front_View' description='Front View'/>
<Viewpoint DEF='Top_View' description='Top View' orientation='1 0 0 -1.57' position='0 10 0'/>

<TouchSensor DEF='STARTER' description='touch to activate'/>
<Transform DEF='ROOT'>

<Shape>

<Appearance>

<Material/>
<ImageTexture
url=' "front.jpg" "http://www.web3d.org/x3d/content/examples/ConformanceNist/BindableNodes/Viewpoint/front.jpg" '/>

</Appearance>
<IndexedFaceSet coordIndex='0 1 2 3 -1' texCoordIndex='0 1 2 3 -1'>

<Coordinate DEF='UnitCube' point='-1 -1 1 1 -1 1 1 1 1 -1 1 1 1 1 -1 -1 1 -1 -1 -1 -1 1 -1 -1'/>
<TextureCoordinate DEF='SquareTexCoord' point='0 0 1 0 1 1 0 1'/>

</IndexedFaceSet>

</Shape>
<Shape>

<Appearance>

<Material/>
<ImageTexture
url=' "right.jpg" "http://www.web3d.org/x3d/content/examples/ConformanceNist/BindableNodes/Viewpoint/right.jpg" '/>

</Appearance>
<IndexedFaceSet coordIndex='1 7 4 2 -1' texCoordIndex='0 1 2 3 -1'>

<Coordinate USE='UnitCube'/>
<TextureCoordinate USE='SquareTexCoord'/>

</IndexedFaceSet>

</Shape>
<Shape>

<Appearance>

<Material/>
<ImageTexture
url=' "rear.jpg" "http://www.web3d.org/x3d/content/examples/ConformanceNist/BindableNodes/Viewpoint/rear.jpg" '/>

</Appearance>
<IndexedFaceSet coordIndex='7 6 5 4 -1' texCoordIndex='0 1 2 3 -1'>

<Coordinate USE='UnitCube'/>
<TextureCoordinate USE='SquareTexCoord'/>

</IndexedFaceSet>

</Shape>
<Shape>

<Appearance>

<Material/>
<ImageTexture
url=' "left.jpg" "http://www.web3d.org/x3d/content/examples/ConformanceNist/BindableNodes/Viewpoint/left.jpg" '/>

</Appearance>
<IndexedFaceSet coordIndex='0 3 5 6 -1' texCoordIndex='1 2 3 0 -1'>

<Coordinate USE='UnitCube'/>
<TextureCoordinate USE='SquareTexCoord'/>

</IndexedFaceSet>

</Shape>
<Shape>

<Appearance>

<Material/>
<ImageTexture
url=' "top.jpg" "http://www.web3d.org/x3d/content/examples/ConformanceNist/BindableNodes/Viewpoint/top.jpg" '/>

</Appearance>
<IndexedFaceSet coordIndex='3 2 4 5 -1' texCoordIndex='0 1 2 3 -1'>

<Coordinate USE='UnitCube'/>
<TextureCoordinate USE='SquareTexCoord'/>

</IndexedFaceSet>

</Shape>
<Shape>

<Appearance>

<Material/>
<ImageTexture
url=' "bottom.jpg" "http://www.web3d.org/x3d/content/examples/ConformanceNist/BindableNodes/Viewpoint/bottom.jpg" '/>

</Appearance>
<IndexedFaceSet coordIndex='0 6 7 1 -1' texCoordIndex='3 0 1 2 -1'>

<Coordinate USE='UnitCube'/>
<TextureCoordinate USE='SquareTexCoord'/>

</IndexedFaceSet>

</Shape>

</Transform>

<Script DEF='MYSCRIPT'
url=' "jumpcut_loadurl.js" "http://www.web3d.org/x3d/content/examples/ConformanceNist/BindableNodes/Viewpoint/jumpcut_loadurl.js" '>

<field name='myurl' type='MFString' value='jumpcut_loadurl.wrl#Top_View' accessType='initializeOnly'/>
<field name='myparameter' type='MFString' value='target=_blank' accessType='initializeOnly'/>
<field name='trigger_event' type='SFBool' accessType='inputOnly'/>

</Script>
<ROUTE fromNode='STARTER' fromField='isActive' toNode='MYSCRIPT' toField='trigger_event'/>

</Scene>

</X3D>
<!--
