<meta name='reference' content=' http://www.nist.gov/vrml.html '/>
<meta name='reference' content=' http://xsun.sdct.itl.nist.gov/~mkass/vts/html/vrml.html '/>
<meta name='creator' content=' http://www.itl.nist.gov/div897/ctg/vrml/members.html '/>
<meta name='title' content='jumpcut_collision.x3d'/>
<meta name='disclaimer' content=' This file was provided by the National Institute of Standards and Technology, and is part of the X3D Conformance Test Suite, available at http://www.nist.gov/vrml.html The information contained within this file is provided for use in establishing conformance to the ISO VRML97 Specification. Conformance to this test does not imply recommendation or endorsement by the National Institute of Standards and Technology. This software can be redistributed and/or modified freely provided that any derivative works bear some notice that they are derived from it, and any modified versions bear some notice that they have been modified. '/>
<meta name='translator' content='Michael Kass NIST, Don Brutzman NPS'/>
<meta name='translated' content='21 January 2001'/>
<meta name='modified' content='23 January 2011'/>

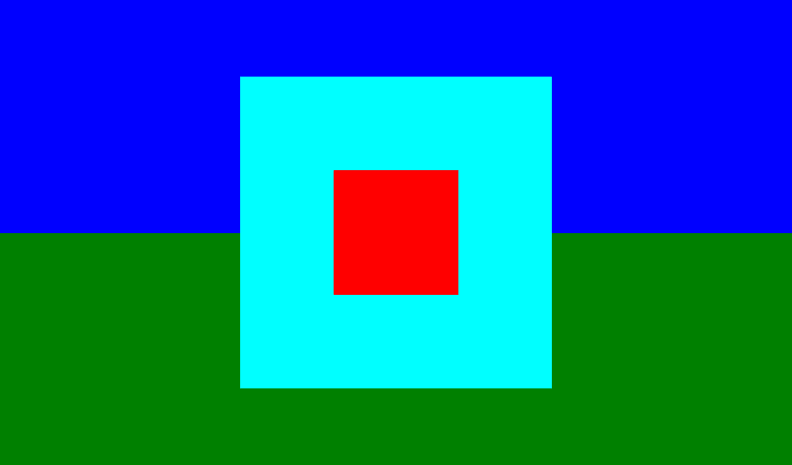

<meta name='description' content='Test jumpcut transition with a Collision node. This world contains a collision node that should NOT send events during a jumpcut. The initial Viewpoint in this world is in front of a red Box geometry. A second Viewpoint exists BEHIND the red Box geometry. Indicating the Box with the pointing device should cause a "jumpcut" from the front to rear Viewpoint. During this jumcput, collision detection should be disabled. As a result, the Box geometry should remain a red color, indicating that no collision detection took place during the jumpcut. If the red Box turns yellow, then that indicates that collision detection occured during the jumpcut, and the browser fails the test.'/>
<meta name='identifier' content=' http://www.web3d.org/x3d/content/examples/ConformanceNist/BindableNodes/Viewpoint/jumpcut_collision.x3d '/>
<meta name='generator' content='Vrml97ToX3dNist, http://ovrt.nist.gov/v2_x3d.html'/>
<meta name='generator' content='X3D-Edit 3.2, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../../license.html'/>

<NavigationInfo type='"EXAMINE" "WALK" "FLY" "ANY"' transitionType='"ANIMATE"'/>
<Background groundAngle='1.57' groundColor='0 0.5 0 0 0.5 0' skyColor='0 0 1'/>
<Viewpoint DEF='VIEW1' description='Front View' position='0 0 15'/>
<!-- VIEW2 ROUTE:  [from TOUCH.isOver to set_bind ] -->
<Viewpoint DEF='VIEW2' description='Behind Origin' position='0 0 -20'/>
<!-- TIME0 ROUTEs:  [from COLLIDE1.collideTime to startTime ] [from fraction_changed to COLOR_INTERP.set_fraction ] -->
<TimeSensor DEF='TIME0' cycleInterval='2'/>
<!-- COLOR_INTERP ROUTEs:  [from TIME0.fraction_changed to set_fraction ] [from value_changed to BOX1.set_diffuseColor ] -->
<ColorInterpolator DEF='COLOR_INTERP' key='0 0.5 1' keyValue='1 1 0 1 1 0 1 1 0'/>
<!-- TOUCH ROUTE:  [from isOver to VIEW2.set_bind ] -->
<TouchSensor DEF='TOUCH' description='touch to activate'/>
<!-- COLLIDE1 ROUTE:  [from collideTime to TIME0.startTime ] -->
<Collision DEF='COLLIDE1'> </Collision>
<Transform DEF='TRANS2' translation='0 0 -100'> </Transform>
<ROUTE fromNode='TOUCH' fromField='isOver' toNode='VIEW2' toField='set_bind'/>
<ROUTE fromNode='COLLIDE1' fromField='collideTime' toNode='TIME0' toField='startTime'/>
<ROUTE fromNode='TIME0' fromField='fraction_changed' toNode='COLOR_INTERP' toField='set_fraction'/>
<ROUTE fromNode='COLOR_INTERP' fromField='value_changed' toNode='BOX1' toField='set_diffuseColor'/>
