Package Basic.X3dSpecifications

Class TriangleStripSetFigure

java.lang.Object
Basic.X3dSpecifications.TriangleStripSetFigure
public class TriangleStripSetFigure extends Object

X3D specification example for TriangleStripSet.

Related links: TriangleStripSetFigure.java source, TriangleStripSetFigure catalog page, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information
meta tags   Document Metadata
title TriangleStripSetFigure.x3d
description X3D specification example for TriangleStripSet.
creator Don Brutzman
created 17 November 2003
modified 28 October 2019
specificationSection X3D Abstract Specification, Part 1: Architecture and base components, Topic 11.4.14 TriangleStripSet
specificationUrl https://www.web3d.org/specifications/X3Dv4Draft/ISO-IEC19775-1v4-IS.proof/Part01/components/rendering.html#TriangleStripSet
TODO confirm indices in specification diagram

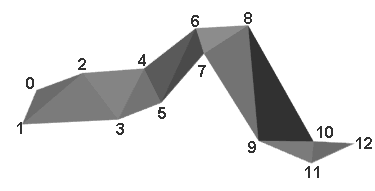

Image TriangleStripSet.png
reference https://www.web3d.org/x3d/content/examples/Basic/development/RenderingComponentExamples.x3d
reference https://www.web3d.org/x3d/content/examples/Basic/development/RenderingComponentPrototypes.x3d
info X3dToVrml97.xslt translation stylesheet automatically invokes backwards-compatibility prototypes upon encountering any new Rendering nodes.
reference https://www.web3d.org/x3d/stylesheets/X3dToVrml97.xslt
identifier https://www.web3d.org/x3d/content/examples/Basic/X3dSpecifications/TriangleStripSetFigure.x3d
generator X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit
license ../license.html


This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet (version control) is used to create Java source code from an original .x3d model.

  • Constructor Details

    • TriangleStripSetFigure

      public TriangleStripSetFigure()
      Default constructor to create this object.

  • Method Details

    • initialize

      public final void initialize()
      Create and initialize the X3D model for this object.

    • getX3dModel

      public org.web3d.x3d.jsail.Core.X3D getX3dModel()
      Provide a shallow copy of the X3D model.
      Returns:
      TriangleStripSetFigure model
      See Also:

    • main

      public static void main(String[] args)
      Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.
      Parameters:
      args - array of input parameters, provided as arguments
      See Also:
