Package Basic.CAD

Class ClipPlaneExample

java.lang.Object
Basic.CAD.ClipPlaneExample
public class ClipPlaneExample extends Object

Illustrate use of two ClipPlane intersections across four sets of primitive geometry. Line indicators are outside the scope of the ClipPlane transformation hierarchy and so are not clipped.

Related links: ClipPlaneExample.java source, ClipPlaneExample catalog page, X3D Resources, X3D Scene Authoring Hints, and X3D Tooltips.

Scene Meta Information
meta tags   Document Metadata
title ClipPlaneExample.x3d
creator Nicholas Polys, Don Brutzman
created 20 February 2013
modified 20 October 2019
description Illustrate use of two ClipPlane intersections across four sets of primitive geometry. Line indicators are outside the scope of the ClipPlane transformation hierarchy and so are not clipped.
reference ClipPlaneExample.x3d

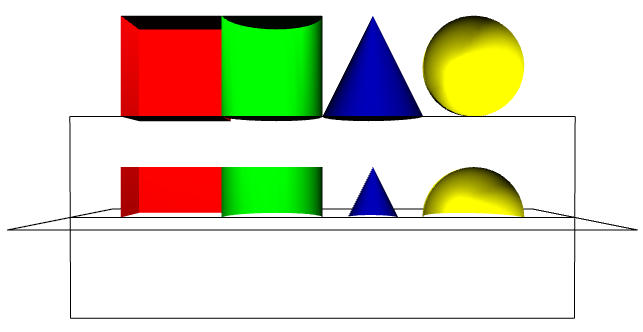

Image ClipPlaneExampleFront.png

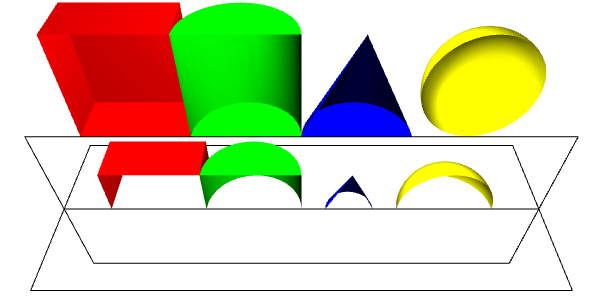

Image ClipPlaneExampleOblique.png

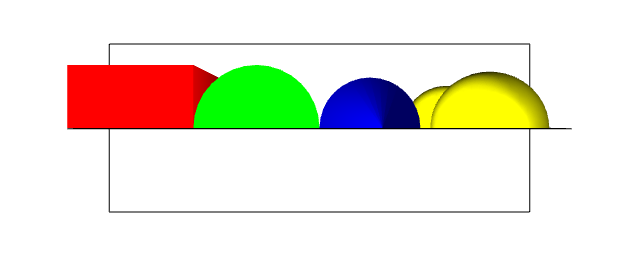

Image ClipPlaneExampleOverhead.png

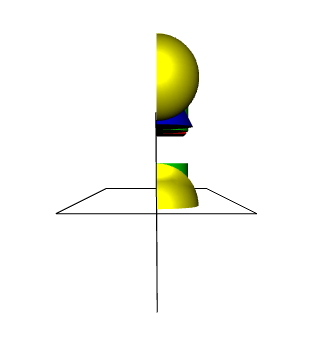

Image ClipPlaneExampleSide.png
identifier https://www.web3d.org/x3d/content/examples/Basic/CAD/ClipPlaneExample.x3d
generator X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit
generator Vivaty Studio
license ../../license.html


This program uses the X3D Java Scene Access Interface Library (X3DJSAIL). It has been produced using the X3dToJava.xslt stylesheet (version control) is used to create Java source code from an original .x3d model.

  • Constructor Summary

    Constructors
    Constructor
    Description
    ClipPlaneExample()
    Default constructor to create this object.

  • Method Summary

    Modifier and Type
    Method
    Description
    org.web3d.x3d.jsail.Core.X3D
    getX3dModel()
    Provide a shallow copy of the X3D model.
    final void
    initialize()
    Create and initialize the X3D model for this object.
    static void
    main(String[] args)
    Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.

    Methods inherited from class java.lang.Object

    clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

  • Constructor Details

    • ClipPlaneExample

      public ClipPlaneExample()
      Default constructor to create this object.

  • Method Details

    • initialize

      public final void initialize()
      Create and initialize the X3D model for this object.

    • getX3dModel

      public org.web3d.x3d.jsail.Core.X3D getX3dModel()
      Provide a shallow copy of the X3D model.
      Returns:
      ClipPlaneExample model
      See Also:

    • main

      public static void main(String[] args)
      Default main() method provided for test purposes, uses CommandLine to set global ConfigurationProperties for this object.
      Parameters:
      args - array of input parameters, provided as arguments
      See Also:
