ViewPositionOrientationExample.x3d (X3dToXhtml)

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "http://www.web3d.org/specifications/x3d-3.0.dtd">

<X3D profile='Immersive' version='3.0' xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation=' http://www.web3d.org/specifications/x3d-3.0.xsd '>

<head>

<meta name='title' content='ViewPositionOrientationExample.x3d'/>
<meta name='creator' content='Leonard Daly and Don Brutzman'/>
<meta name='translator' content='Don Brutzman'/>
<meta name='created' content='1 November 2000'/>
<meta name='modified' content='11 May 2009'/>
<meta name='description' content='As user navigates, display local position and orientation in the console output window. Various other output formats also available.'/>
<meta name='reference' content='ViewPositionOrientationPrototype.x3d'/>
<meta name='reference' content=' http://www.realism.com/Web3D/Examples#WhereAmI '/>
<meta name='reference' content=' http://www.realism.com/vrml/Example/WhereAmI/WhereAmI_Proto.wrl '/>
<meta name='identifier' content='https://savage.nps.edu/Savage/Tools/Authoring/ViewPositionOrientationExample.x3d'/>
<meta name='identifier' content=' http://www.web3d.org/x3d/content/examples/Basic/course/ViewPositionOrientationExample.x3d '/>
<meta name='generator' content='X3D-Edit 3.2, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content='../../license.html'/>

</head>
<!--

Index for ExternProtoDeclare definition: ViewPositionOrientation

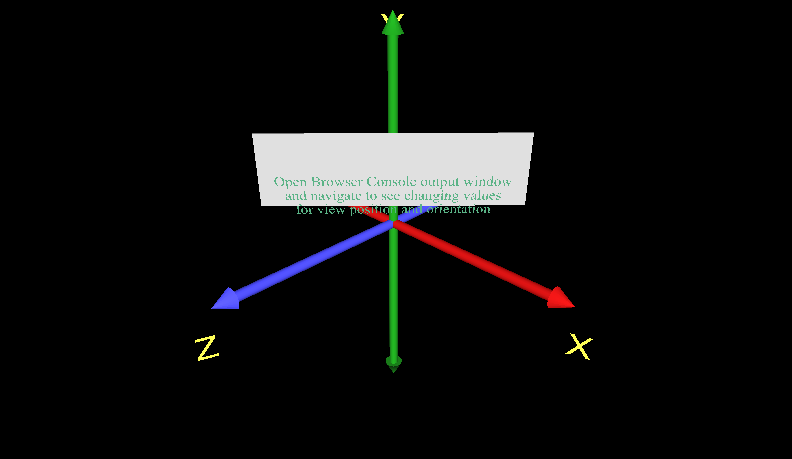

Index for Viewpoint image: Viewpoint_1

-->
<Scene>

<ExternProtoDeclare name='ViewPositionOrientation' appinfo='ViewPositionOrientation provides provides console output of local position and orientation as user navigates'
url=' "ViewPositionOrientationPrototype.x3d#ViewPositionOrientation" "../../../Basic/course/ViewPositionOrientationPrototype.x3d#ViewPositionOrientation" "../../../Savage/Tools/Authoring/ViewPositionOrientationPrototype.x3d#ViewPositionOrientation" "https://savage.nps.edu/Savage/Tools/Authoring/ViewPositionOrientationPrototype.x3d#ViewPositionOrientation" "ViewPositionOrientationPrototype.wrl#ViewPositionOrientation" "../../../Basic/course/ViewPositionOrientationPrototype.x3d#ViewPositionOrientation" "../../../Savage/Tools/Authoring/ViewPositionOrientationPrototype.wrl#ViewPositionOrientation" "https://savage.nps.edu/Savage/Tools/Authoring/ViewPositionOrientationPrototype.wrl#ViewPositionOrientation" '>

<field name='enabled' type='SFBool' accessType='inputOutput'
appinfo='Whether or not ViewPositionOrientation sends output to console.'/>
<field name='traceEnabled' type='SFBool' accessType='initializeOnly'
appinfo='Output internal trace messages for debugging this node - developer use only can be ignored.'/>
<field name='set_traceEnabled' type='SFBool' accessType='inputOnly'
appinfo='Ability to turn output tracing on/off at runtime.'/>
<field name='position_changed' type='SFVec3f' accessType='outputOnly'
appinfo='Output local position.'/>
<field name='orientation_changed' type='SFRotation' accessType='outputOnly'
appinfo='Output local orientation.'/>
<field name='outputViewpointString' type='MFString' accessType='outputOnly'
appinfo='MFString value of new Viewpoint'/>

</ExternProtoDeclare>
<ProtoInstance name='ViewPositionOrientation'>

<fieldValue name='enabled' value='true'/>

</ProtoInstance>

<Transform rotation='0 1 0 0.78' translation='20 15 20'>

<Viewpoint description='ViewPositionOrientation example' orientation='1 0 0 -0.5' position='0 0 0'/>

</Transform>
<Billboard>

<Transform translation='0 4 2'>

<Shape>

<Text string='"Open console output window" "and navigate to see changing values" "for view position and orientation"' solid='true'>

<FontStyle justify='"MIDDLE" "MIDDLE"'/>

</Text>
<Appearance>

<Material diffuseColor='0.4 0.8 0.6' shininess='0.8'/>

</Appearance>

</Shape>

</Transform>
<Transform translation='0 4 1.8'>

<Shape>

<Box size='14 4 0.1'/>
<Appearance>

<Material diffuseColor='1 1 1'/>

</Appearance>

</Shape>

</Transform>

</Billboard>
<Inline
url=' "GridXZ_20x20Fixed.x3d" "https://savage.nps.edu/Savage/Tools/Authoring/GridXZ_20x20Fixed.x3d" "GridXZ_20x20Fixed.wrl" "https://savage.nps.edu/Savage/Tools/Authoring/GridXZ_20x20Fixed.wrl" '/>
<Transform scale='11 11 11'>

<Inline
url=' "CoordinateAxes.x3d" "https://savage.nps.edu/Savage/Tools/Authoring/CoordinateAxes.x3d" "CoordinateAxes.wrl" "https://savage.nps.edu/Savage/Tools/Authoring/CoordinateAxes.wrl" '/>

</Transform>

</Scene>

</X3D>
<!--

Index for ExternProtoDeclare definition: ViewPositionOrientation
Index for Viewpoint image: Viewpoint_1

-->
