<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
<X3D profile='Immersive'  version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.0.xsd ' >
<head>
<meta name='title' content=' SimpleCarrierHull.x3d '/>
<meta name='creator' content='Don Brutzman and MV4204 class'/>
<meta name='created' content='31 August 2000'/>
<meta name='modified' content='20 October 2019'/>
<meta name='description' content='Using Extrusion to model a simple hull. Scaled VRML coordinate axes superimposed.'/>
<meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Basic/course/SimpleCarrierHull.x3d '/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../license.html'/>
</head>
<!--
to top <!-- Index for DEF node: CoordinateAxes
Index for Viewpoint node: Viewpoint_1
-->
<Scene>
<WorldInfo title='SimpleCarrierHull.x3d'/>

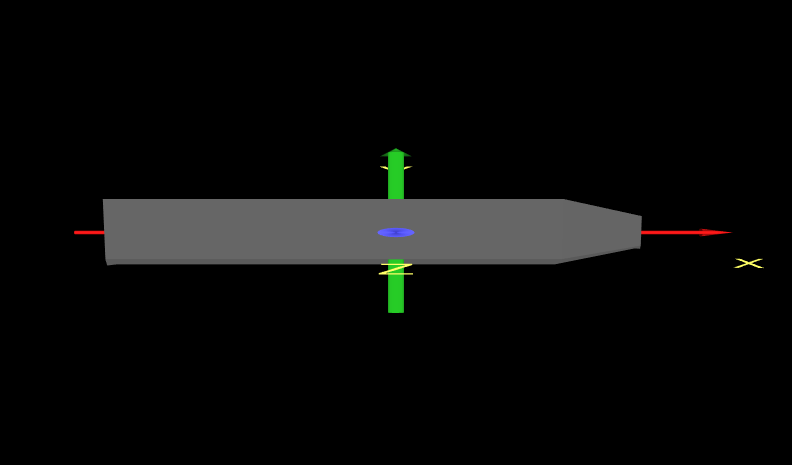

<Viewpoint description='Simple Carrier Hull' position='0 0 350'/>
<Transform>
<Shape>
<Extrusion crossSection='20 -15 -16 -12 -20 -10 -20 10 -16 12 20 15' scale='0.5 0.5 1 1 1 1 1 1' solid='false' spine='150 0 0 100 0 0 0 0 0 -175 0 0'/>
<Appearance>
<Material diffuseColor='.4 .4 .4'/>
</Appearance>
</Shape>
</Transform>
<Transform scale='200 50 50'>
<Inline DEF='CoordinateAxes'
  url=' "../../X3dForWebAuthors/Chapter03Grouping/CoordinateAxes.x3d" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter03Grouping/CoordinateAxes.x3d" "https://savage.nps.edu/Savage/Tools/Authoring/CoordinateAxes.x3d" "../../X3dForWebAuthors/Chapter03Grouping/CoordinateAxes.wrl" "https://www.web3d.org/x3d/content/examples/X3dForWebAuthors/Chapter03Grouping/CoordinateAxes.wrl" "https://savage.nps.edu/Savage/Tools/Authoring/CoordinateAxes.wrl" ' />
</Transform>
</Scene>
</X3D>
<!--
