<head>
<meta name='title' content=' Example16.x3d '/>
<meta name='creator' content='X3D working group'/>
<meta name='creator' content='Don Brutzman'/>
<meta name='created' content='26 June 2000'/>
<meta name='modified' content='28 October 2019'/>

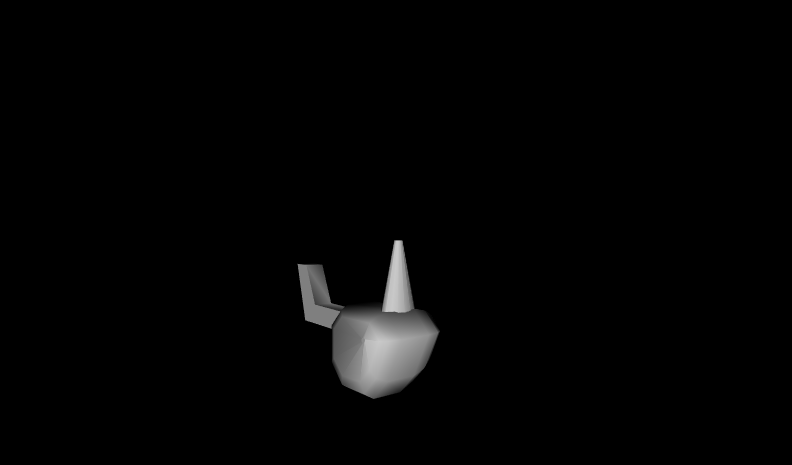

<meta name='description' content='VRML 97 specification example: Chopper. Click chopper to toggle rotor spinning.'/>
<meta name='reference' content='originals/exampleD_16.wrl'/>
<meta name='specificationSection' content=' VRML 97, ISO/IEC 14772-1, Part 1: Functional specification and UTF-8 encoding, D.16 Chopper'/>
<meta name='specificationUrl' content=' https://www.web3d.org/documents/specifications/14772/V2.0/part1/examples.html#D.16 '/>
<meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Basic/Vrml97Specification/Example16.x3d '/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../license.html'/>
</head>
<!--
to top <!-- Event Graph ROUTE Table shows event connections -->

<!-- Index for DEF nodes: MikesChopper, RotorScript, Top, Touch
Index for Viewpoint node: Viewpoint_1 Index for ExternProtoDeclare definition: Rotor
Index for ProtoDeclare definition: Chopper
-->
<Scene>
<WorldInfo title='Example16.x3d'/>
<ExternProtoDeclare name='Rotor' appinfo='Rotor prototype to spin children geometry'
  url=' "Rotor.x3d#Rotor" "https://www.web3d.org/x3d/content/examples/Basic/Vrml97Specification/Rotor.x3d#Rotor" "Rotor.wrl#Rotor" "https://www.web3d.org/x3d/content/examples/Basic/Vrml97Specification/Rotor.wrl#Rotor" ' >
<field name='rate' type='SFTime' accessType='initializeOnly'
 appinfo='rotation rate' />
<field name='children' type='MFNode' accessType='initializeOnly'
 appinfo='children geometry to spin' />
<field name='startTime' type='SFTime' accessType='inputOutput'
 appinfo='exposed TimeSensor field for animation' />
<field name='stopTime' type='SFTime' accessType='inputOutput'
 appinfo='exposed TimeSensor field for animation' />
</ExternProtoDeclare>
<ProtoDeclare name='Chopper'>
<ProtoInterface>
<field name='rotorSpeed' type='SFTime' value='1' accessType='initializeOnly'/>
</ProtoInterface>
<ProtoBody>
<Group>
<!-- ROUTE information for Touch node:  [from touchTime to RotorScript.startOrStopEngine ] -->
 <TouchSensor DEF='Touch' description='touch to start/stop spinning rotor'/>

<Inline
  url=' ChopperBody.x3d"https://www.web3d.org/x3d/content/examples/Basic/Vrml97Specification/ChopperBody.x3d" "ChopperBody.wrl" "https://www.web3d.org/x3d/content/examples/Basic/Vrml97Specification/ChopperBody.wrl" ' />
<!-- ROUTE information for Top node:  [from RotorScript.startEngine to startTime ] [from RotorScript.stopEngine to stopTime ] -->
 <ProtoInstance name='Rotor' DEF='Top'>
<fieldValue name='stopTime' value='1'/>
<fieldValue name='children'>
<Inline
  url=' ChopperRotor.x3d"https://www.web3d.org/x3d/content/examples/Basic/Vrml97Specification/ChopperRotor.x3d" "ChopperRotor.wrl" "https://www.web3d.org/x3d/content/examples/Basic/Vrml97Specification/ChopperRotor.wrl" ' />
</fieldValue>
<IS>
<connect nodeField='rate' protoField='rotorSpeed'/>
</IS>
</ProtoInstance>
</Group>
<!-- Warning: VRML97-style scripting, not X3D Scene Authoring Interface (SAI) -->
<!-- ROUTE information for RotorScript node:  [from Touch.touchTime to startOrStopEngine ] [from startEngine to Top.startTime ] [from stopEngine to Top.stopTime ] -->
 <Script DEF='RotorScript'>
<field name='startOrStopEngine' type='SFTime' accessType='inputOnly'/>
<field name='startEngine' type='SFTime' accessType='outputOnly'/>
<field name='stopEngine' type='SFTime' accessType='outputOnly'/>
<field name='engineStarted' type='SFBool' value='false' accessType='initializeOnly'/>
<![CDATA[

ecmascript:

function startOrStopEngine(value) {
	// start or stop engine:
	if (!engineStarted) {
		startEngine = value;
		engineStarted = true;
	}
	else
	{
		stopEngine = value;
		engineStarted = false;
	}
}
]]>
</Script>
< ROUTE  fromNode=' Touch' fromField='touchTime' toNode=' RotorScript' toField='startOrStopEngine'/>
< ROUTE  fromNode=' RotorScript' fromField='startEngine' toNode=' Top' toField='startTime'/>
< ROUTE  fromNode=' RotorScript' fromField='stopEngine' toNode=' Top' toField='stopTime'/>
</ProtoBody>
</ProtoDeclare>
<!-- ==================== -->
<Viewpoint description='Example 16' position='0 0 5'/>
<Group>
<ProtoInstance name='Chopper' DEF='MikesChopper'/>
</Group>
</Scene>
</X3D>
<!--
to top <!-- Event Graph ROUTE Table shows event connections -->

<!-- Index for DEF nodes: MikesChopper, RotorScript, Top, Touch
Index for Viewpoint node: Viewpoint_1 Index for ExternProtoDeclare definition: Rotor
Index for ProtoDeclare definition: Chopper
-->

Event Graph ROUTE Table entries with 3 ROUTE connections total, showing X3D event-model relationships for this scene.
