<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.2//EN" "http://www.web3d.org/specifications/x3d-3.2.dtd">
<X3D xmlns:ds='http://www.w3.org/2000/09/xmldsig#'  profile='Immersive' version='3.2 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' http://www.web3d.org/specifications/x3d-3.2.xsd '>
<head>
<meta name='titlecontent='HelloWorldSigned.x3d'/>
<meta name='descriptioncontent='Simple X3D example with XML digital signature for author authentication, also used for example combined with encryption'/>
<meta name='createdcontent='2 July 2008'/>
<meta name='modifiedcontent='6 July 2008'/>
<meta name='creatorcontent='Don Brutzman, Mike Bailey'/>
<meta name='referencecontent='X3dSecurityReadMe.html'/>
<meta name='referencecontent='keystore/SelectSigningKeyPair.png'/>
<meta name='referencecontent='keystore/PublicPrivatePair_certificateChain.cer'/>
<meta name='referencecontent=' http://www.web3d.org/x3d/content/examples/HelloWorld.x3d '/>
<meta name='referencecontent=' http://www.web3d.org/x3d/content/examples/Basic/Security/HelloWorldSignedEncryptedResult.xml '/>
<meta name='referencecontent=' http://www.web3d.org/x3d/content/examples/Basic/Security/HelloWorldSignedDecrypted.x3d '/>
<meta name='identifiercontent=' http://www.web3d.org/x3d/content/examples/Basic/Security/HelloWorldSigned.x3d '/>
<meta name='generatorcontent='X3D-Edit 3.2, https://savage.nps.edu/X3D-Edit'/>
<meta name='licensecontent=' ../license.html'/>
<meta name='subjectcontent='X3D security, XML signature authentication, public private key pair, XML encryption, secret key'/>
</head>
<!--

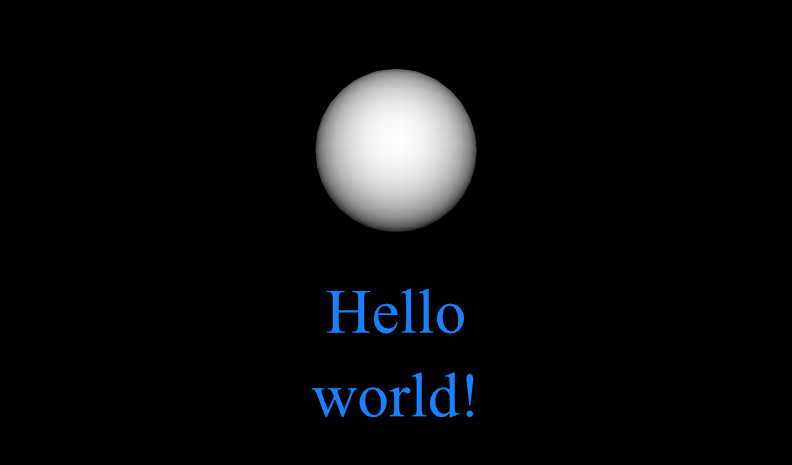

Index for Viewpoint image : Viewpoint_1
-->
<Scene>
<!-- Example scene to illustrate X3D tags and attributes. -->
<Group>
<Viewpoint centerOfRotation='0 -1 0description='Hello world!position='0 -1 7'/>
<Transform rotation='0 1 0 3'> </Transform>
<Transform translation='0 -2 0'>
<Shape>
<Text string='"Hello" "world!"'>
<FontStyle justify='"MIDDLE" "MIDDLE"'/>
</Text>
<Appearance>
<Material diffuseColor='0.1 0.5 1'/>
</Appearance>
</Shape>
</Transform>
</Group>
</Scene>
<ds:Signature>
<ds:SignedInfo>
<ds:CanonicalizationMethod Algorithm=' http://www.w3.org/TR/2001/REC-xml-c14n-20010315 '/>
<ds:SignatureMethod Algorithm=' http://www.w3.org/2000/09/xmldsig#rsa-sha1 '/>
<ds:Reference URI='#xpointer(/)'>
<ds:Transforms> </ds:Transforms>
<ds:DigestMethod Algorithm=' http://www.w3.org/2000/09/xmldsig#sha1 '/>
<ds:DigestValue>
nqV+sWdljdElfGSBXbMMjBZyUfs=
</ds:DigestValue>
</ds:Reference>
</ds:SignedInfo>
<ds:SignatureValue>
T9q7zV6KZUfyAg3gGTpKkAYWtY0QZxy8JWm/T6SI8eH7mrfCADeco5heVyXmTdTScVokSL1KFp2O f96puB6Bo0BHG03AczpoxaBtcv1s8LvVBOukLXleKhpjrZ3vCuL2IyYP147KhKrXgRJMDfnYn7yp xstPVWPtnzuIbt6DeMH/GQrJYKIvI4Hoj7Y0Y2Jl1UyGrHf0zICyVGOfPivbKRxOMScyk/UWZE0Q tTLdsYM5tBrGVwZqf5ZXQKutS/nl7V/GnMPRtcRiqU63E9AVwfcR1UJu/XV/ZdEChGDSKke4RCjA SnN3XtG9wE+fWfuldJ/mG1wUa1lBDfj/Em1aaQ==
</ds:SignatureValue>
<ds:KeyInfo>
<ds:X509Data>
<ds:X509Certificate>
MIIDvjCCAqYCAzOA3DANBgkqhkiG9w0BAQUFADCBozELMAkGA1UEBhMCVVMxEzARBgNVBAgTCkNh bGlmb3JuaWExETAPBgNVBAcTCE1vbnRlcmV5MSIwIAYDVQQKExlOYXZhbCBQb3N0Z3JhZHVhdGUg U2Nob29sMTAwLgYDVQQLEydTYXZhZ2UgUmVzZWFyY2ggR3JvdXAgLyBNT1ZFUyBJbnN0aXR1dGUx FjAUBgNVBAMTDVgzRC1FZGl0IHVzZXIwHhcNMDgwNzA0MTYxNDA3WhcNMTMwNjI4MTYxNDA3WjCB ozELMAkGA1UEBhMCVVMxEzARBgNVBAgTCkNhbGlmb3JuaWExETAPBgNVBAcTCE1vbnRlcmV5MSIw IAYDVQQKExlOYXZhbCBQb3N0Z3JhZHVhdGUgU2Nob29sMTAwLgYDVQQLEydTYXZhZ2UgUmVzZWFy Y2ggR3JvdXAgLyBNT1ZFUyBJbnN0aXR1dGUxFjAUBgNVBAMTDVgzRC1FZGl0IHVzZXIwggEiMA0G CSqGSIb3DQEBAQUAA4IBDwAwggEKAoIBAQCFIvV3Gbf0WB4vU0BO87YD8EBuKE6C1/mV4A5J1sfc BXQ5RalntS8j4hOU4toNh1CWa3TrHbYK6wTIMsmFW12FumUpQ9nbkRBGG3RA4cSclR193PJZ0bx5 m7e+SP0li5RKDIyTybqDxjVC5UxM8O8Pt8DUCLSaMXAtDtBox+iG5lfjh7cg/O6S1bdS3WPrtL5g eXLXWz+6juALZkktFt8BwRlv3DcI5ku3Q5u385zZKGr+E9gmzTYvwa19mBnoS6T9JpgXK+zw8DRo IutNv/oH571o1vMw9neqeoHQjLcc9azJG7fTERX6VVlHl5YWRxM0g/0IMw6x3PVYbFcAAByRAgMB AAEwDQYJKoZIhvcNAQEFBQADggEBAFEisvXLNl6fRPXOeAB3JHvY8FYyOGqspkk18nLZVXS995Wh OZ/lGaPIQjYSxUDKuLR8gKGwUVeNREqQQsIc4pBfB4i1kOiJqD+zdSiYWUr7LQpc2V2wt2bQ2utQ /8++mbxrxiVRhBCXhzyGdT41Wzjui4KBs01ilkPz1YZVUZ4lZuZUCZbuJAAjFXScE1RDNmNZIeRd MmQ4/UGBxemsGmCZP2GcIQL8g4GvFJD42U7+nLJGQUJi4g4AWGxi9OT3LVjrTzh8P1122Kb/Xxf/ 7zs6+OHJt5CmTys7zJp2slRdO1o19btfrgWZRUbq0WF7mSVnjYvzMLMOo4IIkxzp7aw=
</ds:X509Certificate>
</ds:X509Data>
<ds:KeyValue>
<ds:RSAKeyValue>
<ds:Modulus>
hSL1dxm39FgeL1NATvO2A/BAbihOgtf5leAOSdbH3AV0OUWpZ7UvI+ITlOLaDYdQlmt06x22CusE yDLJhVtdhbplKUPZ25EQRht0QOHEnJUdfdzyWdG8eZu3vkj9JYuUSgyMk8m6g8Y1QuVMTPDvD7fA 1Ai0mjFwLQ7QaMfohuZX44e3IPzuktW3Ut1j67S+YHly11s/uo7gC2ZJLRbfAcEZb9w3COZLt0Ob t/Oc2Shq/hPYJs02L8GtfZgZ6Euk/SaYFyvs8PA0aCLrTb/6B+e9aNbzMPZ3qnqB0Iy3HPWsyRu3 0xEV+lVZR5eWFkcTNIP9CDMOsdz1WGxXAAAckQ==
</ds:Modulus>
<ds:Exponent>
AQAB
</ds:Exponent>
</ds:RSAKeyValue>
</ds:KeyValue>
</ds:KeyInfo>
</ds:Signature>
</X3D>
<!--

Index for Viewpoint image : Viewpoint_1
-->

<!-- Color key: <X3dNode field='value'/> matches <XmlElement attribute='value'/>
(Light blue background: behavior node) (Grey background: inserted documentation) (Magenta background: X3D Extensibility)
-->

<!-- Additional help information about X3D scenes: X3D Resources, X3D Scene Authoring Hints and X3D Tooltips -->
