<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
<X3D profile='Immersive'  version='3.0'  xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.0.xsd ' >
<head>
<meta name='title' content=' GraphicalLogAnalyzer.x3d '/>
<meta name='example' content=' GraphicalLogAnalyzerDisplay.html '/>
<meta name='description' content='Graphical Log Analyzer (GLA) reads data from a file to create a visualization - load the GraphicalLogAnalyzerDisplay HTML page to test functionality.'/>
<meta name=' warning ' content=' requires External Authoring Interface (EAI) as implemented by Cortona. File read/display functionality only works when running in Netscape. '/>
<meta name='creator' content='Lindsey Lack'/>
<meta name='created' content='2 May 2002'/>
<meta name='modified' content='20 October 2019'/>
<meta name=' warning ' content=' Under development. VRML 97 EAI support appears inconsistent for various browsers. '/>
<meta name='reference' content=' GraphicalLogAnalyzer.ppt '/>
<meta name='reference' content=' GraphicalLogAnalyzer.java '/>
<meta name='reference' content=' javadoc/index.html '/>
<meta name='reference' content=' GraphicalLogAnalyzerInputFile.txt '/>
<meta name='reference' content=' GraphicalLogAnalyzerReadme.txt '/>
<meta name='reference' content='Some values used from CreateVrmlFromString sample by Vincent Gardet (modified by Curt Blais). Also see vrmlcity CreateVrmlFromString tutorial.'/>
<meta name='reference' content=' ../course/CreateVrmlFromStringRandomBoxes.wrl'/>
<meta name='reference' content=' ../course/CreateVrmlFromStringRandomBoxes.x3d'/>
<meta name='reference' content=' ../course/CreateVrmlFromStringRandomBoxes.html'/>
<meta name='reference' content=' http://www.gardet.nom.fr/vrmlcity/tut_cvfs.htm '/>
<meta name='reference' content=' http://www.parallelgraphics.com/developer/products/cortona/eai '/>
<meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Basic/ExternalAuthoringInterface/GraphicalLogAnalyzer.x3d '/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../license.html'/>
</head>
<!--
to top <!-- Index for DEF node: ROOT
Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2, Viewpoint_3
-->
<Scene>
<WorldInfo title='GraphicalLogAnalyzer.x3d'/>
<NavigationInfo headlight='false' speed='5'/>
<Background skyAngle='1.1 1.57' skyColor='.3 .3 1 .4 .4 1 .7 .7 .9'/>
<DirectionalLight direction='0 -.5 -1'/>
<DirectionalLight direction='-1 -.5 .5' intensity='.7'/>
<DirectionalLight direction='1 -.5 .5' intensity='.7'/>
<Viewpoint description='Entry' position='0 1.2 5'/>

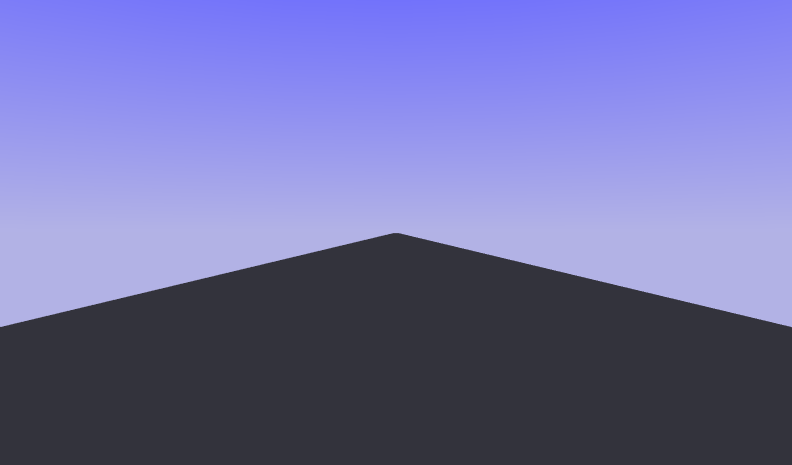

<Viewpoint description='Overview' orientation='1 0 0 -.37' position='0 5 4'/>

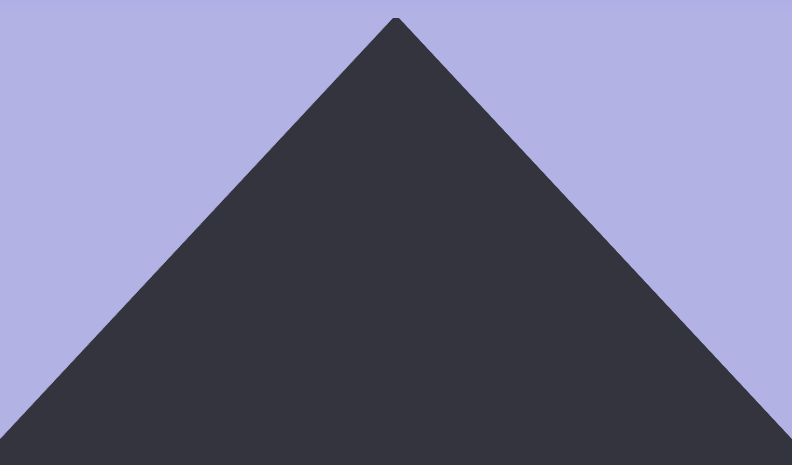

<Viewpoint description='Down' orientation='1 0 0 -1.57' position='0 8 -2'/>
<Transform translation='0 0 -490'>
<Shape>
<Appearance>
<Material ambientIntensity='.25' diffuseColor='.14 .14 .16' shininess='.072' specularColor='.39 .46 .52' transparency='.1'/>
</Appearance>
<Box size='10 0.01 1000'/>
</Shape>
</Transform>
<Group>
<Transform DEF='ROOT'/>
</Group>
</Scene>
</X3D>
<!--
