<meta name='title' content=' CadDesignPatternExampleBushing.x3d '/>
<meta name='description' content='Design pattern examples demonstrating proper hierarchy of CAD nodes: CADLayer, CADAssembly, CADPart, and then CADFace.'/>
<meta name='creator' content='Vince Marchetti, Don Brutzman'/>
<meta name='translator' content=' Xj3D, http://www.xj3d.org '/>
<meta name='created' content='24 June 2012'/>
<meta name='modified' content='20 October 2019'/>

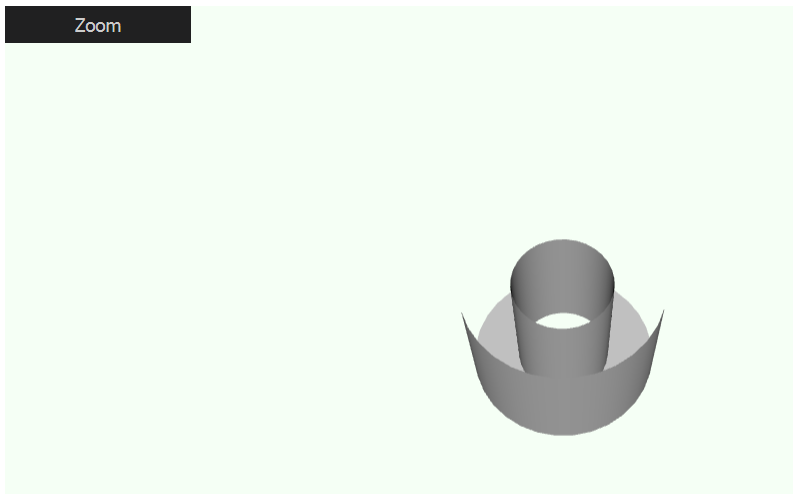

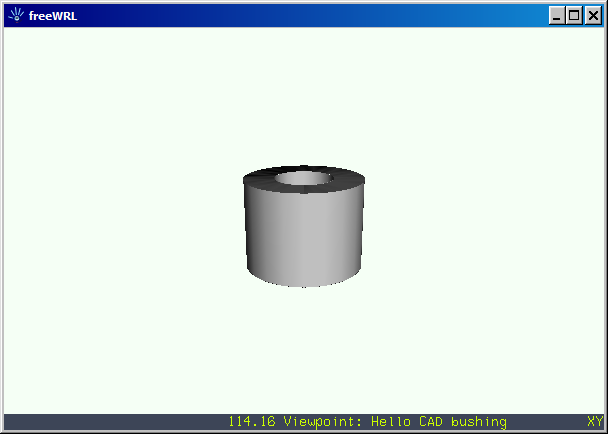

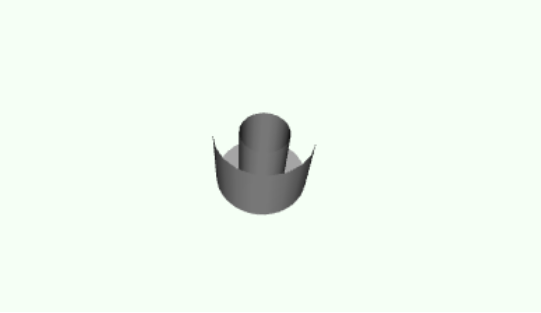

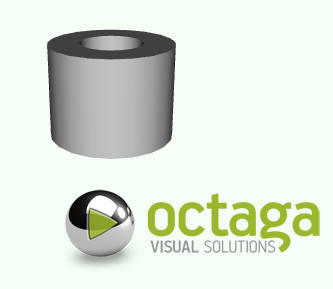

<meta name=' warning ' content=' Only InstantReality, X3DOM, OctagaVs and Xj3D are properly handling geometry of Disk2D end caps '/>
<meta name='Image' content='CadDesignPatternExampleBushingInstantReality.png' />
<meta name='Image' content='CadDesignPatternExampleBushingBsContact.png' />
<meta name='Image' content='CadDesignPatternExampleBushingCobweb.png' />
<meta name='Image' content='CadDesignPatternExampleBushingFreeX3d.png' />
<meta name='Image' content='CadDesignPatternExampleBushingInstantReality.png' />
<meta name='Image' content='CadDesignPatternExampleBushingOctagaVs.png' />

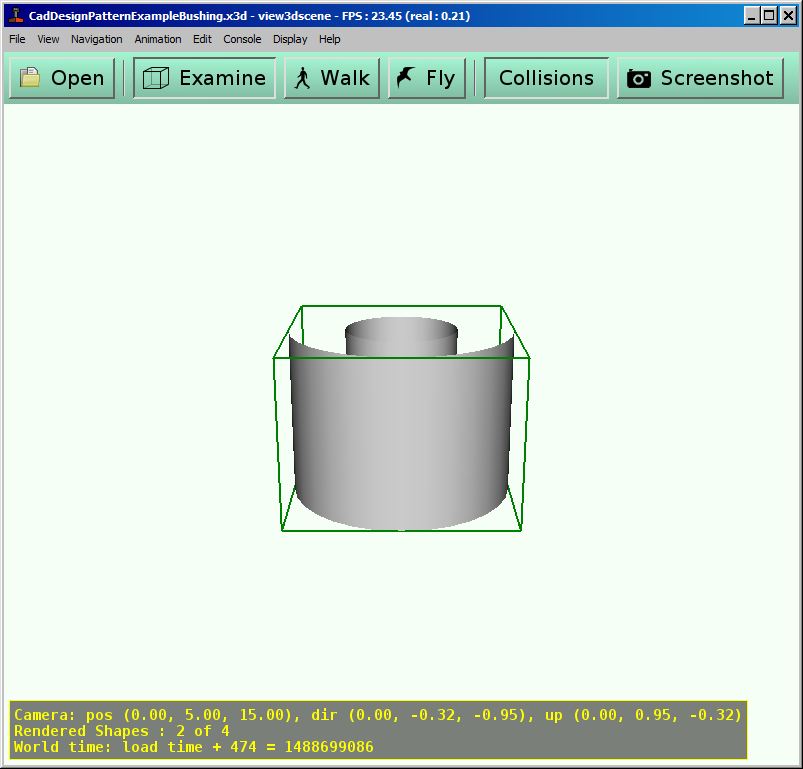

<meta name='Image' content='CadDesignPatternExampleBushingView3dscene.png' />
<meta name='Image' content='CadDesignPatternExampleBushingX3dom.png' />

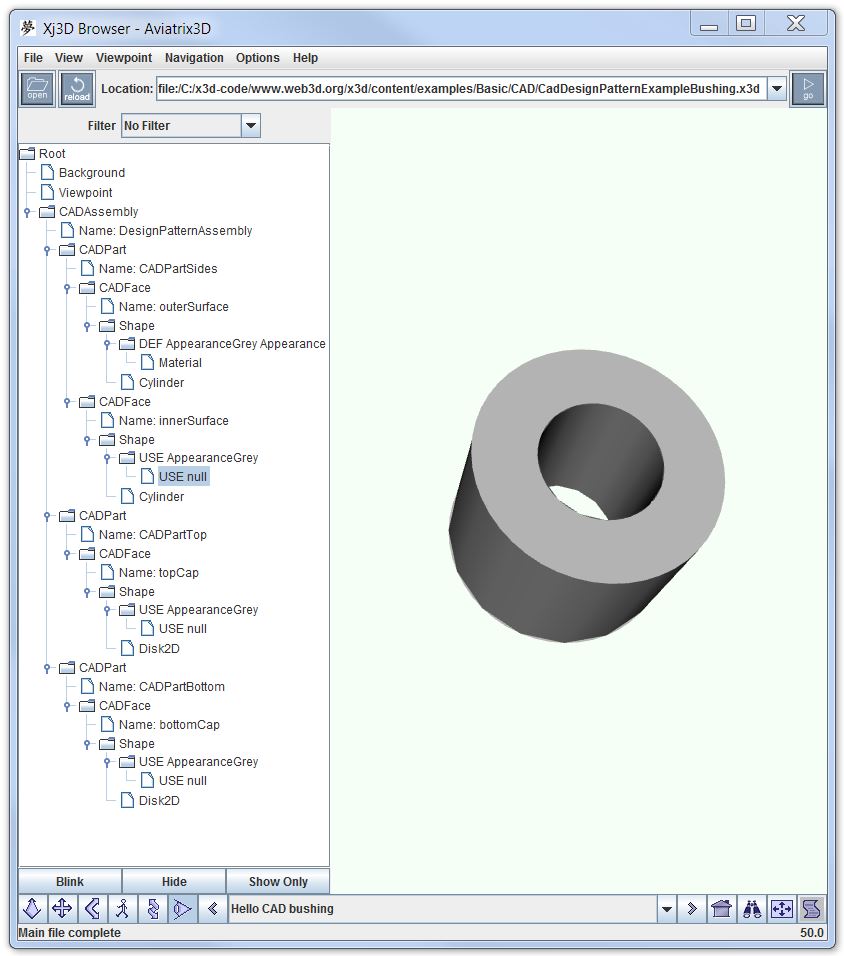

<meta name='Image' content='CadDesignPatternExampleBushingXj3d.png' />
<meta name='reference' content=' https://www.web3d.org/member-only/mantis/view.php?id=528 '/>
<meta name='reference' content=' https://www.web3d.org/files/specifications/19775-1/V3.3/Part01/components/CADGeometry.html '/>
<meta name='subject' content='X3D CAD CADInterchange profile'/>
<meta name='identifier' content=' https://www.web3d.org/x3d/content/examples/Basic/CAD/CadDesignPatternExampleBushing.x3d '/>
<meta name='generator' content='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='license' content=' ../license.html'/>
</head>
<!--
to top <!-- Index for DEF node: AppearanceGrey
Index for Viewpoint node: Viewpoint_1
-->
<Scene>
<WorldInfo title='CadDesignPatternExampleBushing.x3d'/>
<Background skyColor='0.9607843 1 0.9607843'/>
<Viewpoint description='Hello CAD bushing' orientation='1 0 0 -0.321751' position='0 5 15'/>
<CADAssembly name='DesignPatternAssembly'>
<CADPart name='CADPartSides'>
<!-- the rotation and translation attributes serve to position the bushing within the assembly -->
<CADFace name='outerSurface'>
<Shape containerField='shape'>
<!-- note solid='true' and so one-sided external rendering only -->
<Cylinder bottom='false' height='3' radius='2' top='false'/>
<Appearance DEF='AppearanceGrey'>
<Material/>
</Appearance>
</Shape>
</CADFace>
<CADFace name='innerSurface'>
<Shape containerField='shape'>
<!-- note solid='false' and so two-sided internal + external rendering -->
<Cylinder bottom='false' height='3' solid='false' top='false'/>
<Appearance USE=' AppearanceGrey'/>
</Shape>
</CADFace>
</CADPart>
<CADPart name='CADPartTop' rotation='1 0 0 1.5708' translation='0 1.5 0'>
<CADFace name='topCap'>
<Shape containerField='shape'>
<Disk2D innerRadius='1' outerRadius='2'/>
<Appearance USE=' AppearanceGrey'/>
</Shape>
</CADFace>
</CADPart>
<CADPart name='CADPartBottom' rotation='-1 0 0 1.5708' translation='0 -1.5 0'>
<CADFace name='bottomCap'>
<Shape containerField='shape'>
<Disk2D innerRadius='1' outerRadius='2'/>
<Appearance USE=' AppearanceGrey'/>
</Shape>
</CADFace>
</CADPart>
</CADAssembly>
</Scene>
</X3D>
<!--
