<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
<X3D profile='Immersive'  version='3.0 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.0.xsd ' >
<head>
<meta name='titlecontent=' Figure15_12TorusWithAxes.x3d '/>
<meta name='creatorcontent='Figure 15.12, The VRML 2.0 Sourcebook, Copyright [1997] By Andrea L. Ames, David R. Nadeau, and John L. Moreland'/>
<meta name='referencecontent=' http://www.wiley.com/legacy/compbooks/vrml2sbk/ch15/15fig12.htm '/>
<meta name='translatorcontent='Don Brutzman'/>
<meta name='createdcontent='20 August 2000'/>
<meta name='modifiedcontent='20 October 2019'/>

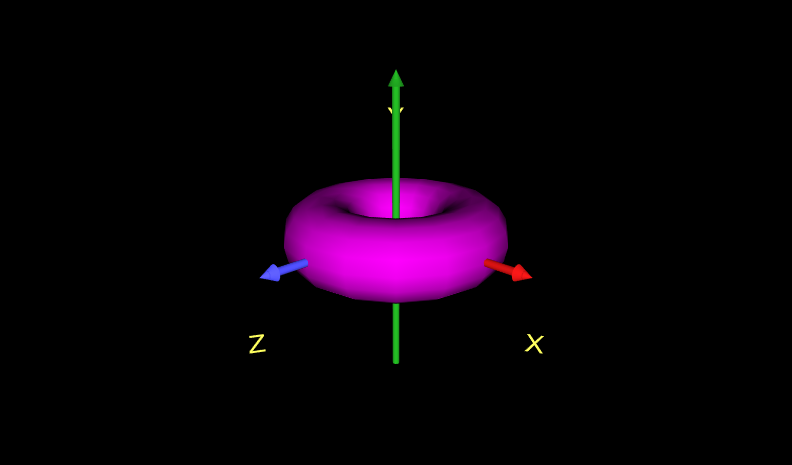

<meta name='descriptioncontent='A torus built using a circular cross section swept along a circular spine.'/>
<meta name='identifiercontent=' https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Chapter15Extrusion/Figure15_12TorusWithAxes.x3d '/>
<meta name='generatorcontent='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='licensecontent=' ../../license.html'/>
</head>
<!--

to top <!-- Index for DEF node: CoordinateAxes

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2
-->
<Scene>
<!-- Computational cost of Extrusion node compared to IndexedFaceSet or other triangle meshes: quicker to download, takes time to calculate polygonal faces and normals during initial loading, equally fast at run time. -->
<!-- Authoring capabilities of Extrusion compared to IndexedFaceSet or other triangle meshes: can provide great detail with much less effort. -->
<WorldInfo title='Figure15_12TorusWithAxes.x3d'/>
<Viewpoint description='Torus from aboveorientation='-0.37796 0.91249 0.15656 0.85225position='10 5 10'/>
<Viewpoint description='Torus from ahead'/>
<Shape>
<Appearance>
<Material diffuseColor='1 0 1'/>
</Appearance>
<Extrusion beginCap='falseconvex='falsecreaseAngle='1.57crossSection='1.00 0.00 0.92 -0.38 0.71 -0.71 0.38 -0.92 0.00 -1.00 -0.38 -0.92 -0.71 -0.71 -0.92 -0.38 -1.00 -0.00 -0.92 0.38 -0.71 0.71 -0.38 0.92 0.00 1.00 0.38 0.92 0.71 0.71 0.92 0.38 1.00 0.00endCap='falsespine='2.00 0.0 0.00 1.85 0.0 0.77 1.41 0.0 1.41 0.77 0.0 1.85 0.00 0.0 2.00 -0.77 0.0 1.85 -1.41 0.0 1.41 -1.85 0.0 0.77 -2.00 0.0 0.00 -1.85 0.0 -0.77 -1.41 0.0 -1.41 -0.77 0.0 -1.85 0.00 0.0 -2.00 0.77 0.0 -1.85 1.41 0.0 -1.41 1.85 0.0 -0.77 2.00 0.0 0.00'/>
</Shape>
<!-- Adding this Inline reference to another scene superimposes X3D/VRML coordinate system axes. -->
<Transform scale='4 4 4'> </Transform>
</Scene>
</X3D>
<!--

to top <!-- Index for DEF node: CoordinateAxes

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2
-->
-->

<!-- Online at
https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Chapter15Extrusion/Figure15_12TorusWithAxesIndex.html -->
<!-- Version control at
https://sourceforge.net/p/x3d/code/HEAD/tree/www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Chapter15Extrusion/Figure15_12TorusWithAxes.x3d -->

<!-- Color legend: X3D terminology <X3dNode DEF='idName' field='value'/> matches XML terminology <XmlElement DEF='idName' attribute='value'/>
(Light-blue background: event-based behavior node or statement) (Grey background inside box: inserted documentation) (Magenta background: X3D Extensibility)
-->

to top <!-- For additional help information about X3D scenes, please see X3D Tooltips, X3D Resources, and X3D Scene Authoring Hints. -->
