<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.0//EN" "https://www.web3d.org/specifications/x3d-3.0.dtd">
<X3D profile='Immersive'  version='3.0 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.0.xsd ' >
<head>
<meta name='titlecontent=' Figure15_07ExtrudedCylinder.x3d '/>
<meta name='creatorcontent='Figure 15.7, The VRML 2.0 Sourcebook, Copyright [1997] By Andrea L. Ames, David R. Nadeau, and John L. Moreland'/>
<meta name='referencecontent=' http://www.wiley.com/legacy/compbooks/vrml2sbk/ch15/15fig07.htm '/>
<meta name='translatorcontent='Don Brutzman'/>
<meta name='createdcontent='20 August 2000'/>
<meta name='modifiedcontent='20 October 2019'/>

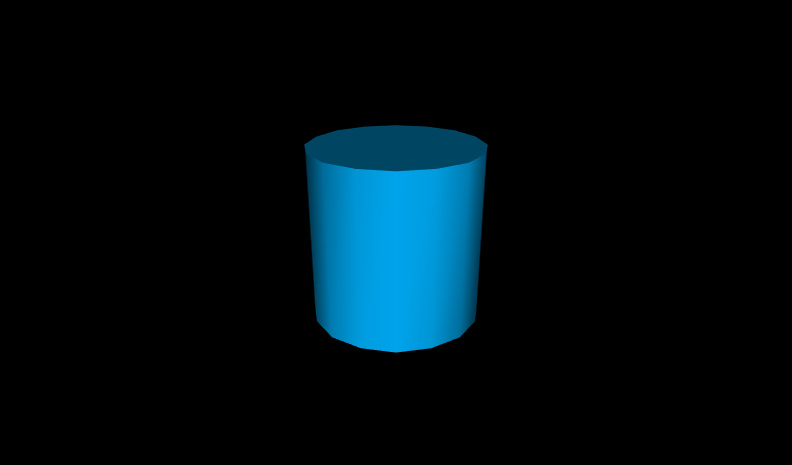

<meta name='descriptioncontent='An extruded cylinder built using a circular cross section swept along a straight spine.'/>
<meta name='identifiercontent=' https://www.web3d.org/x3d/content/examples/Vrml2Sourcebook/Chapter15Extrusion/Figure15_07ExtrudedCylinder.x3d '/>
<meta name='generatorcontent='X3D-Edit 3.3, https://savage.nps.edu/X3D-Edit'/>
<meta name='licensecontent=' ../../license.html'/>
</head>
<!--

Index for Viewpoint node: Viewpoint_1
-->
<Scene>
<WorldInfo title='Figure15_07ExtrudedCylinder.x3d'/>
<Viewpoint description='Extruded cylinderorientation='1 0 0 -0.4position='0 2.5 6'/>
<Shape>
<Appearance>
<Material diffuseColor='0 0.7 1'/>
</Appearance>
<Extrusion creaseAngle='0.785crossSection='1.00 0.00 0.92 -0.38 0.71 -0.71 0.38 -0.92 0.00 -1.00 -0.38 -0.92 -0.71 -0.71 -0.92 -0.38 -1.00 -0.00 -0.92 0.38 -0.71 0.71 -0.38 0.92 0.00 1.00 0.38 0.92 0.71 0.71 0.92 0.38 1.00 0.00spine='0 -1 0 0 1 0'/>
</Shape>
</Scene>
</X3D>
<!--

Index for Viewpoint node: Viewpoint_1
-->
-->
