<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE X3D PUBLIC "ISO//Web3D//DTD X3D 3.2//EN" "https://www.web3d.org/specifications/x3d-3.2.dtd">
<X3D profile='Immersive'  version='3.2 xmlns:xsd='http://www.w3.org/2001/XMLSchema-instance' xsd:noNamespaceSchemaLocation =' https://www.web3d.org/specifications/x3d-3.2.xsd ' >
<head>
<component level='1name='NURBS'/>
<meta name='titlecontent=' NurbsPatchImageTexture.x3d '/>
<meta name='descriptioncontent='A NURBS patch representing a segment of a cylinder. An applied image texture depicts the u-v axes of the parametric coordinate system. Defined Viewpoints show the inner and outer sides of the cylindrical surface'/>
<meta name='creatorcontent='Vincent Marchetti'/>
<meta name='createdcontent='31 August 2011'/>
<meta name='modifiedcontent='20 October 2019'/>

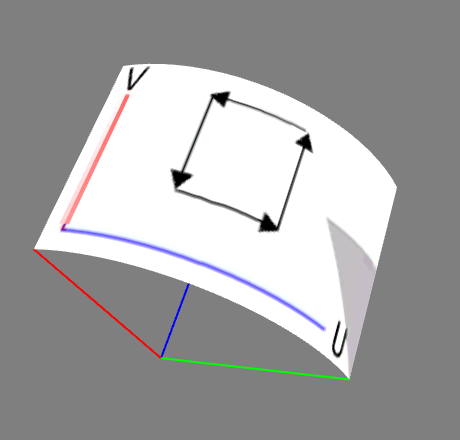

<meta name='Imagecontent='NurbsPatchImageTexture1.jpg' />

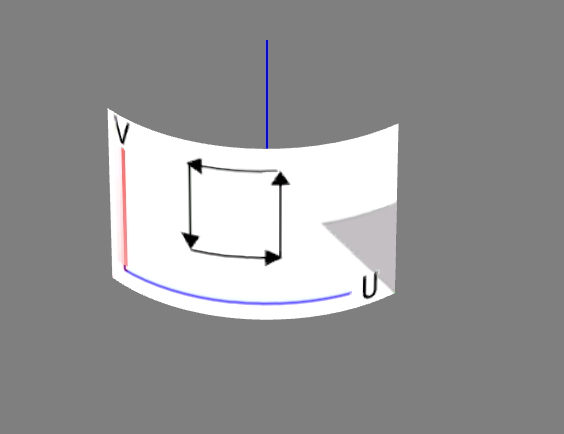

<meta name='Imagecontent='NurbsPatchImageTexture2.jpg' />
<meta name=' warning content=' Currently only Octaga 2.0 properly implements the X3D NURBS component, see the following page for status. '/>
<meta name=' warning content=' http://www.kshell.com/pages/nurbs_surface_demo '/>
<meta name='Imagecontent='images/NurbsPatchImageTextureBSContact.png' />
<meta name='Imagecontent='images/NurbsPatchImageTextureH3dViewer.png' />

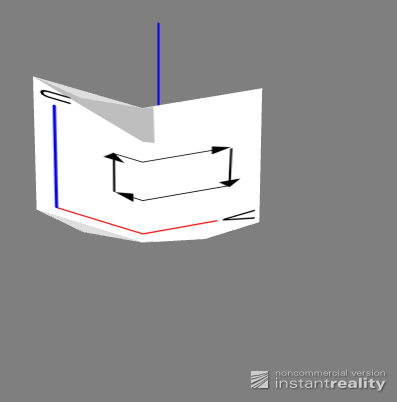

<meta name='Imagecontent='images/NurbsPatchImageTextureInstantReality.png' />

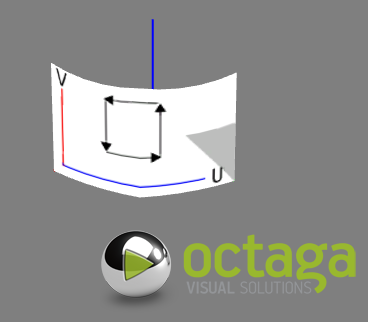

<meta name='Imagecontent='images/NurbsPatchImageTextureOctagaVS.png' />
<meta name='Imagecontent='images/NurbsPatchImageTextureView3dscene.png' />

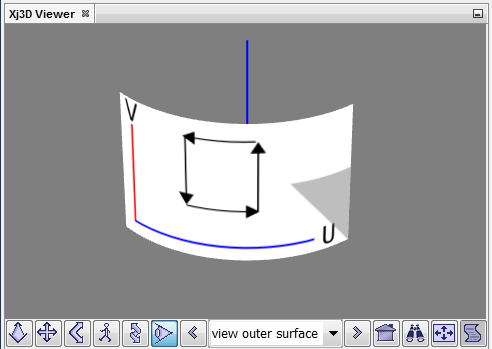

<meta name='Imagecontent='images/NurbsPatchImageTextureXj3d.png' />
<meta name='referencecontent=' http://www.kshell.com/pages/nurbs_surface_demo '/>
<meta name='referencecontent='AxesTexture.png'/>
<meta name='identifiercontent=' https://www.web3d.org/x3d/content/examples/Basic/NURBS/NurbsPatchImageTexture.x3d '/>
<meta name='generatorcontent='Python language scripting'/>
<meta name='licensecontent=' ../license.html'/>
</head>
<!--

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2
-->
<Scene>
<WorldInfo title='NurbsPatchImageTexture.x3d'/>
<Background skyColor='0.5 0.5 0.5'/>
<Viewpoint description='view outer surfacefieldOfView='0.16628orientation='0.166 0.465 0.87 2.538position='10.55 12.855 11.111'/>
<Viewpoint description='view inner surfacefieldOfView='0.16628orientation='0.797 -0.285 -0.533 1.182position='-10.55 -12.855 11.111'/>
<Shape>
<NurbsPatchSurface solid='falseuDimension='5uKnot='0 0 0 0.5 0.5 1 1 1vDimension='2vKnot='0 0 1 1vOrder='2weight='1 0.92388 1 0.92388 1 1 0.92388 1 0.92388 1containerField='geometry'>
<Coordinate containerField='controlPointpoint='1 0 0 0.92388 0.38268 0 0.70711 0.70711 0 0.38268 0.92388 0 -0.000004 1 0 1 0 1 0.92388 0.38268 0.92388 0.70711 0.70711 1 0.38268 0.92388 0.92388 -0.000004 1 1'/>
</NurbsPatchSurface>
<Appearance> </Appearance>
</Shape>
<Group>
<Shape>
<LineSet vertexCount='2containerField='geometry'>
<Coordinate point='0 0 0 1 0 0'/>
</LineSet>
<Appearance>
<Material emissiveColor='1 0 0'/>
<LineProperties linewidthScaleFactor='2containerField='lineProperties'/>
</Appearance>
</Shape>
<Shape>
<LineSet vertexCount='2containerField='geometry'>
<Coordinate point='0 0 0 0 1 0'/>
</LineSet>
<Appearance>
<Material emissiveColor='0 1 0'/>
<LineProperties linewidthScaleFactor='2containerField='lineProperties'/>
</Appearance>
</Shape>
<Shape>
<LineSet vertexCount='2containerField='geometry'>
<Coordinate point='0 0 0 0 0 1'/>
</LineSet>
<Appearance>
<Material emissiveColor='0 0 1'/>
<LineProperties linewidthScaleFactor='2containerField='lineProperties'/>
</Appearance>
</Shape>
</Group>
</Scene>
</X3D>
<!--

Index for Viewpoint nodes: Viewpoint_1, Viewpoint_2
-->
-->

<!-- Online at
https://www.web3d.org/x3d/content/examples/Basic/NURBS/NurbsPatchImageTextureIndex.html -->
<!-- Version control at
https://sourceforge.net/p/x3d/code/HEAD/tree/www.web3d.org/x3d/content/examples/Basic/NURBS/NurbsPatchImageTexture.x3d -->

<!-- Color legend: X3D terminology <X3dNode field='value'/> matches XML terminology <XmlElement attribute='value'/>
(Light-blue background: event-based behavior node or statement) (Grey background inside box: inserted documentation) (Magenta background: X3D Extensibility)
-->
